Classic Dynaudio heritage… with a twist
Each speaker’s single 14cm long-throw mid/bass driver is made from MSP (Magnesium Silicate Polymer), just like all Dynaudio speakers have used for decades. They use updated surrounds to extend their throw, their frequency response and their low-frequency dynamics – all while maintaining stellar midrange performance.
Want to know the woofer’s secrets? The diaphragm is 0.4mm thin, which provides exactly the right combination of lightness, stiffness and damping to ensure optimum performance. It’s made of one piece (the dust-cap is part of the playing surface), and is bonded directly to the rigid glass-fibre voice-coil former directly under the Balance Ribs you’ll see around the centre dome. That means the whole unit moves as one, in a predictable (and carefully tuned) way, for a performance that strikes the ideal balance between bass and midrange.
The 38mm voice-coil itself is made from aluminium, making it extremely light. That means we can use more windings. More windings gives us more control over the cone’s movement, which means more control over the sound – even at high volumes and high frequencies. It’s kept stable, centred and true by the aramid fibre spider (the circular spring assembly that stops the cone moving when it shouldn’t, and lets it move when it should).
And the whole assembly is driven by one of our powerful strontium carbonate Ferrite+ ceramic magnet systems.
Cerotar: an improved tweeter
Up top is the 28mm Cerotar soft-dome tweeter. Our engineers looked behind the curtain of the award-winning Special Forty and money-no-object Confidence tweeters and cherry-picked some key technologies to bring to Evoke.
The headline-grabbing component is the Hexis – an ingenious inner dome that refines the airflow behind the playing surface to smooth-out its frequency response and eliminate unwanted resonances.
The Cerotar, like the woofer, is powered by a powerful Ferrite+ ceramic magnet assembly.
Linking the drivers together is a high-grade second-order crossover that uses the Confidence’s design with different components. So, yes, when we say you’re getting high-end tech, we mean it.
Honest Danish design

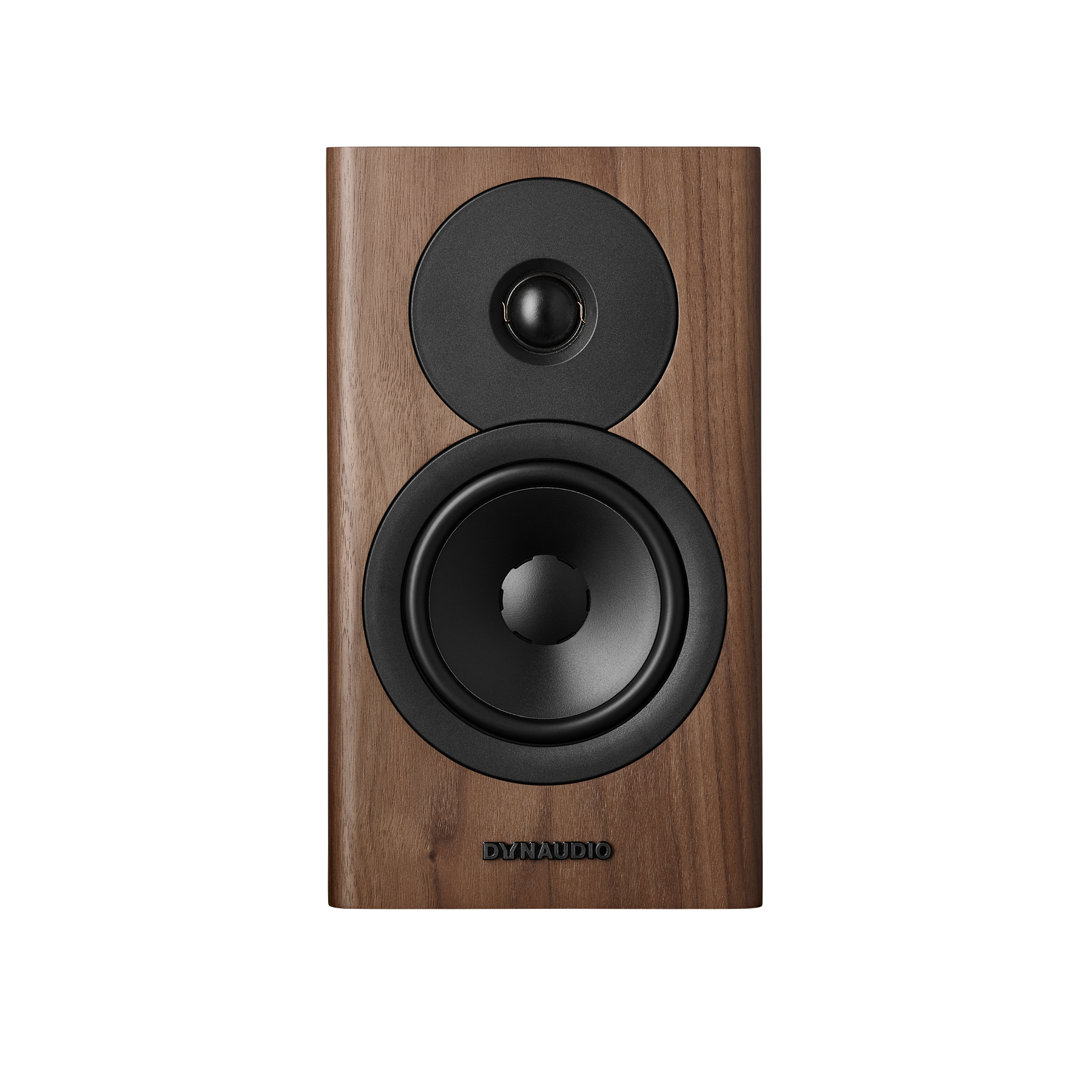

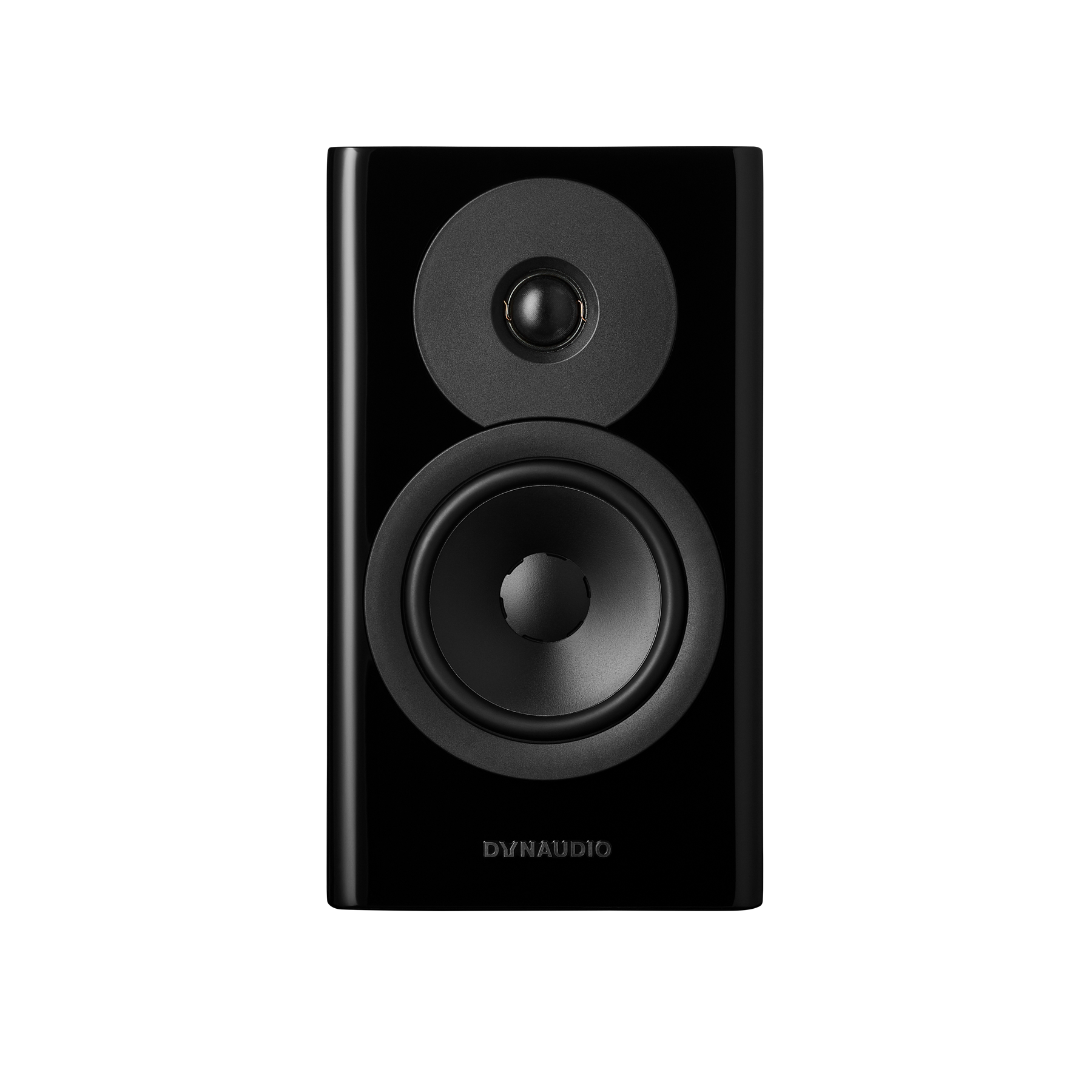

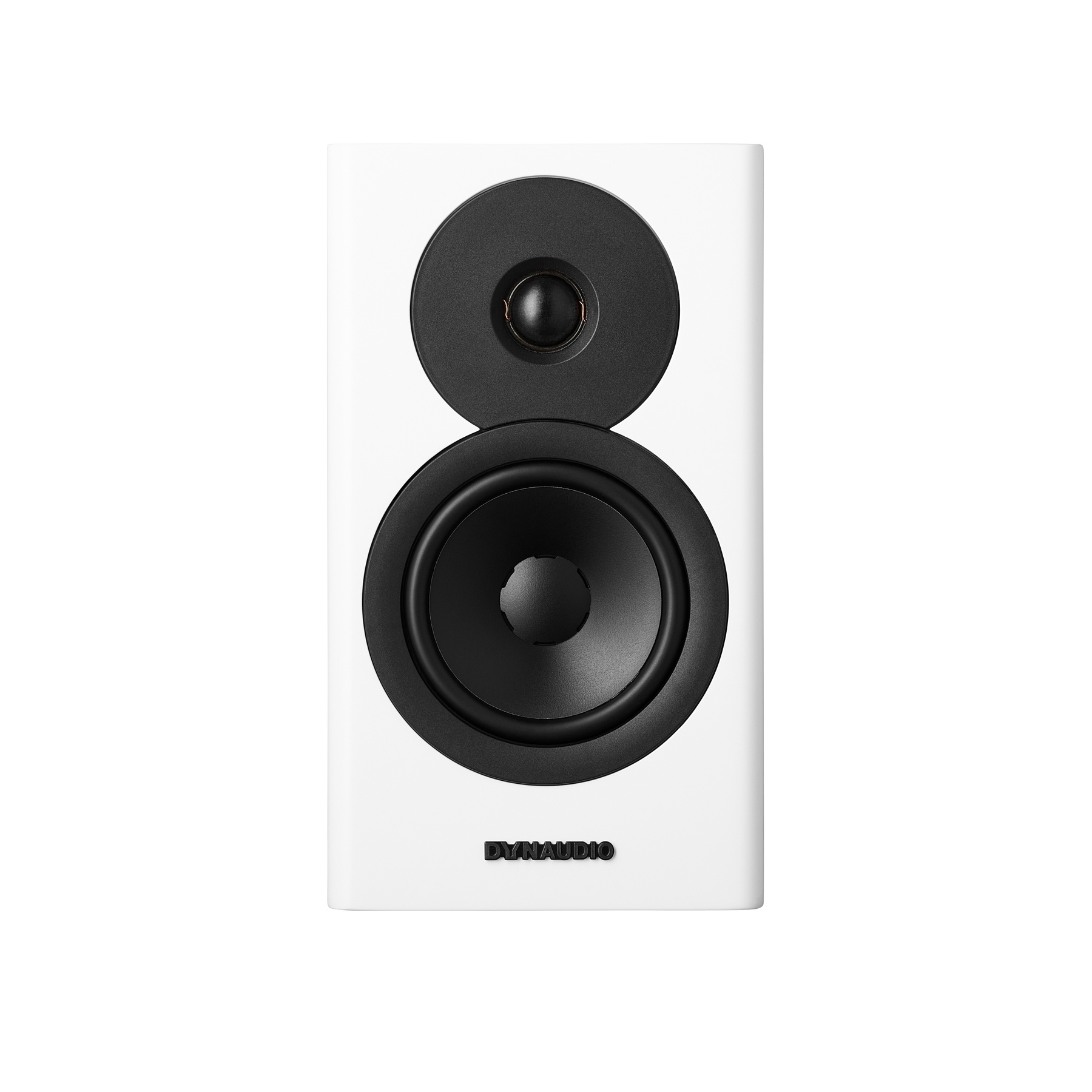

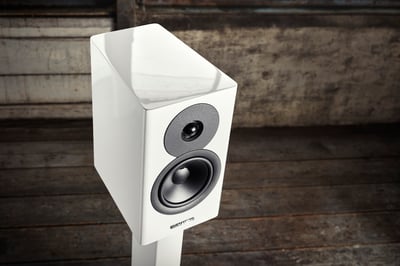

Evoke 10 is available in four beautiful finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood. The shiny versions really are just that: improved lacquering techniques have resulted in a sumptuous, almost glass-like finish. The wood versions use a tactile, open natural veneer for either a warm, dark tone or a light apricot look.
You might notice that you can’t see any mounting screws. Evoke has simple, clean trim rings that emphasise the cabinet’s finish as well as the moving parts of the drivers. The rings are one-piece moulded, with the surface finish embedded in the moulding process – so what we make is what you get.
Clean, beautiful and honest. How very Danish.
It means you can take them with you when you move… and, we trust, enjoy them for a lifetime.
Evoke
Features
Cerotar tweeter
A 28mm precision-coated soft-dome design derived directly from the award-winning Special Forty and the mighty Confidence series. The motor system uses strontium carbonate Ferrite+ ceramic magnets for improved sensitivity.
The Hexis
An ingenious inner tweeter dome that further smooths out the tweeter’s frequency response and minimises resonances – so all you get are the desirable ones. You’ll also find Hexis in the the Confidence range.
Esotec+ woofers
Long-throw designs for improved frequency response and low-frequency dynamics. They’re all made from MSP – a material we developed in-house and have used in our high-quality drivers for decades.
Timeless Danish design
Simple, clean, traditional, modern and luxurious. All at once. We’ve made sure Evoke is realistic for, and sympathetic with, real homes and real lives. It’s available in four finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood.
- Status Current
- Segment Home
- Series Evoke
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 84
- IEC Power Handling (W) 160
- Rated Impedance (Ohm) 6
- Lower Cutoff (Hz @ +/- 3 dB) 47
- Upper Cutoff (kHz @ +/- 3 dB) 23
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Crossover Frequency (Hz) 1400 Hz
Evoke series
- Status:
- Segment:
- Series:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- IEC Power Handling (W):
- Rated Impedance (Ohm):
- Minimum Impedance (Ohm):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Box Principle:
- Crossover:
Evoke 50
- Current
- Home
- Evoke
- Floorstand
- 87
- 260
- 4
- 3 ohm minimum @100 HZ
- 35
- 23
- Bass reflex rear ported
- 3-way
Evoke 30
- Current
- Home
- Evoke
- Floorstand
- 88
- 200
- 4
- 40
- 23
- Bass reflex rear ported
- 2.5-way
Evoke 20
- Current
- Home
- Evoke
- Bookshelf
- 86
- 180
- 6
- 40
- 23
- Bass reflex rear ported
- 2-way
Evoke 10
- Current
- Home
- Evoke
- Bookshelf
- 84
- 160
- 6
- 47
- 23
- Bass reflex rear ported
- 2-way
Evoke 25C
- Current
- Home
- Evoke
- Center
- 88
- 200
- 4
- 50
- 23
- Bass reflex rear ported
- 2.5-way
