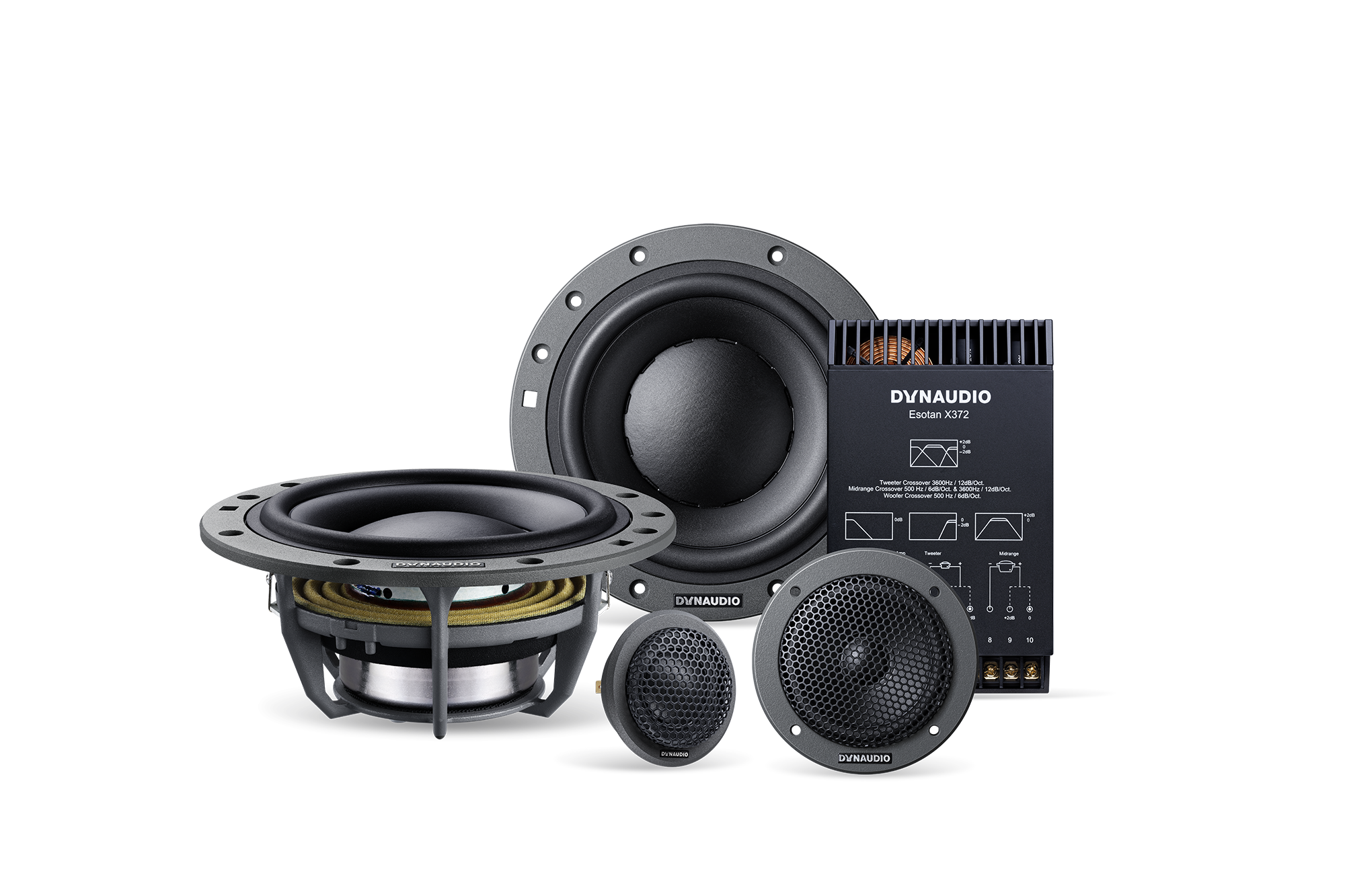

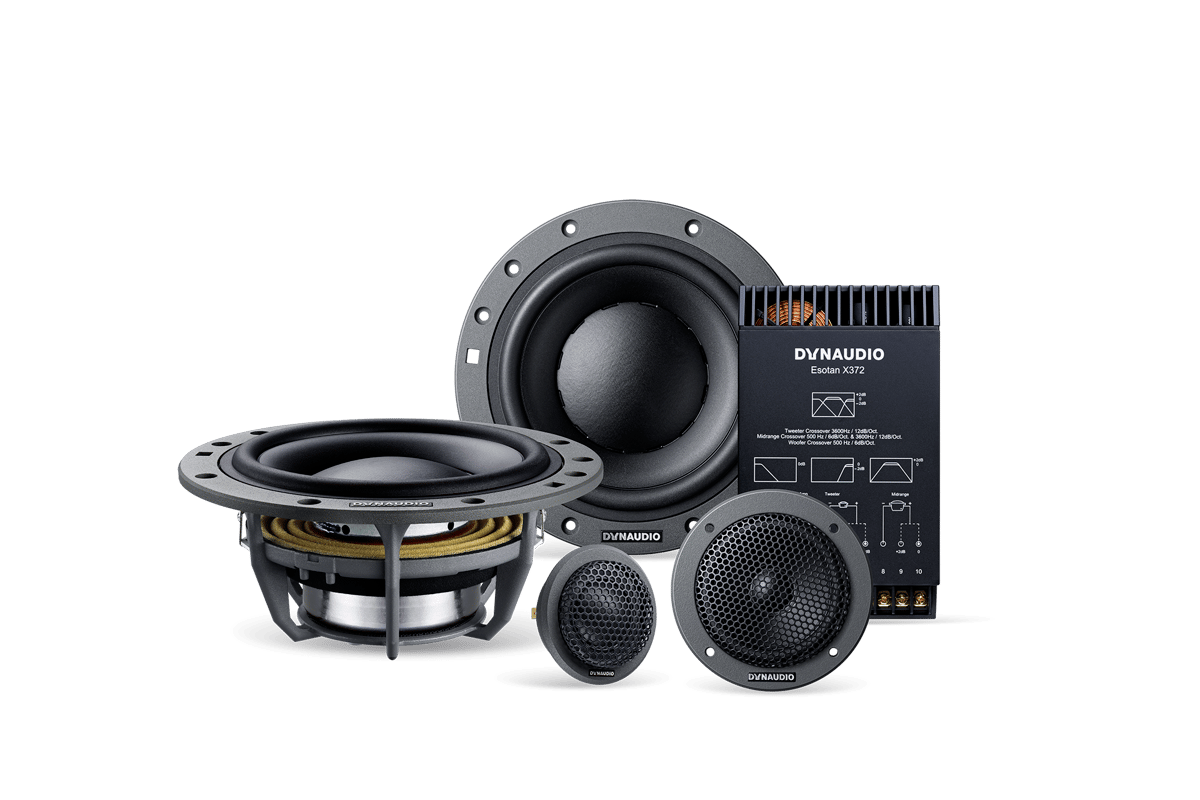

Esotan 372 MKII

165mm & 100mm 3-way component system

With a new tweeter, new woofer, new crossover – The Esotan 372 MKII has been constantly improved at all levels, from material to acoustic performance, power handling and durability. This high-performance package is a 3-way component system comprising one pair each of MT171 tweeters, MF171 midranges, MF172 woofers and X372 crossovers along with all mounting hardware.

Features

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

MT171 tweeter

The brand-new MT171 tweeter is equipped with the new coated textile dome, neodymium magnet system, 28mm aluminium voice-coil for providing a flatter frequency response and more detailed and natural reproduction.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

MF172 woofer

Equipped with the new optimized MSP Magnesium Silicate Polymer (MSP) cone, 65mm aluminium voice-coil and aluminium basket, the brand-new MF172 woofer achieves better control and greater linearity to deliver a very dynamic, natural sound.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

MF171 midrange

The MF171 midrange gains an updated  aramid fibre spider for increased system symmetry and power handling, it means improved high-volume performance at midrange frequencies. Of course, it’s still equipped with aluminium voice-coil, diamond-cut aluminium basket and midrange grille.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

X372 crossover

The X372 is designed for the integration of an automotive stereo system comprising a pair each of the MT171 tweeters, MF171 midranges and MF172 woofers, and the tweeter and midrange levels can be adjusted – it has three tweeter levels and two midrange levels.

_i7r4968
_i7r4968

Esotan MKII series

  • Component:
  • Diameter:
  • Mounting depth:
  • Frequency response:
  • Ajustable tweeter level:
  • Ajustable medium level:
  • Power rating (MRS/Max.):
  • Sensitivity (dB @ 2.83V/1m):
  • Impedance:
  • Tweeter case:
  • Midrange og woofer basket:
  • Mounting hardware:
See more
  • Esotan 372 MKII
  • 3-way component system

  • 165mm/6.5"

  • 67mm/2.4"

  • 50Hz-20kHz
  • 0, -2dB

  • 0, +2dB

  • 150W/400W
  • 86dB
  • 4Ω
  • Aluminium
  • Aluminium
  • Included
  • Esotan 232 MKII
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 60Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 60W/120W
  • 86dB
  • 4Ω
  • Aluminium
  • Included
  • Esotan 272 MKII
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 50Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 150W/400W
  • 86dB
  • 4Ω
  • Aluminium
  • Aluminium
  • Included
  • Esotan 236 MKI
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 60Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 80W/160W
  • 89dB
  • 4Ω
  • Aluminium
  • Included
