Legendary engineering

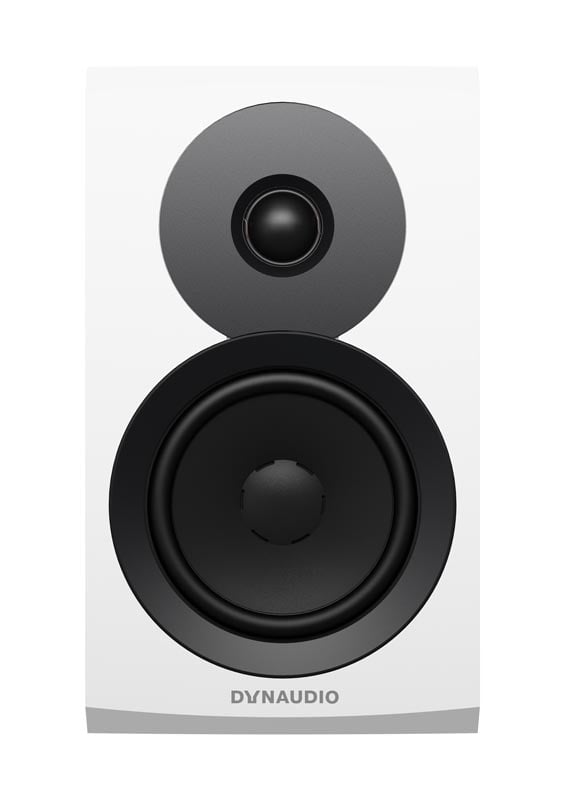

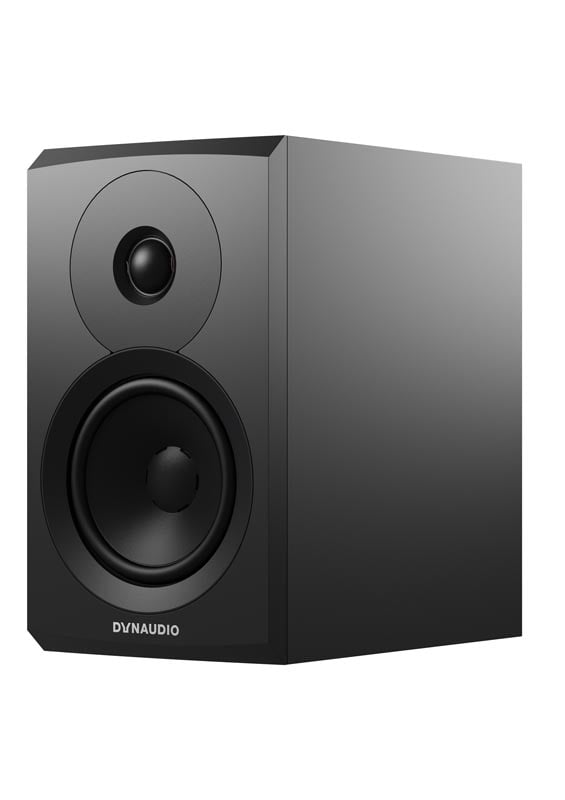

Emit 10’s mid/bass driver is derived from the Esotec+ in the successful Evoke series.
Its double magnet system gives better movement control and sensitivity, which means you’ll hear improved frequency response and dynamics at lower frequencies, while retaining crystal-clear midrange performance. That means you’ll hear what you want from a powerful rhythm section, plus guitars, vocals and more – all without distortion at louder volumes.
You’ll notice that the dust-cap isn’t simply glued on. It’s part of the playing surface of the cone. The little dashed line around its edge – the balance rib structure – is bonded directly to the 38mm voice-coil behind it. It’s an incredibly strong connection with the motor, which means more of the coil’s motion energy is transferred to the diaphragm.
Behind the cone
The voice-coil itself is made of copper-clad aluminium wire. Aluminium is light, which gives the driver a fleetness of foot you might not find elsewhere, while the copper coating increases conductivity for more power. It’s a winning combination for detail and punch.
A high-quality double ferrite magnet system provides the power. It’s a stacked design to keep it compact, but it serves another purpose: using two magnets means our engineers were able to control the magnetic flux, directing it back to the voice-coil, where it’s needed the most. (We can’t break the laws of physics, but we do rather like to bend them a bit.)
High-quality Cerotar tweeter
The Cerotar tweeter is exactly what you’ll find in Evoke. It’s based on the one we’ve used in our award-winning Esotar Forty anniversary tweeter and the incredible Esotar3, which you’ll hear in Heritage Special and Confidence.
It’s a 28mm fabric soft-dome unit with our special DSR (Dynaudio Secret Recipe) coating. Why fabric soft-dome tweeters? They convey all the detail and openness you could wish to hear from your recordings without subjecting you to unwanted fatigue over longer listening sessions. These are speakers you can (and, we hope, will) listen to late into the night.
Behind the dome sits our much-talked-about Hexis device. It’s an ingenious dimpled inner dome that sits directly behind the playing surface and shapes airflow to optimise the frequency response and eliminate unwanted resonances. That means the diaphragm can move more precisely, so you’ll hear even more detail.
It’s driven by a strontium carbonate Ferrite+ ceramic magnet system for more sensitivity, improved clarity and a natural, dynamic response.
The crossover
Emit 10’s crossover was designed by the same engineers that worked on Heritage Special and our Core range of professional studio reference systems.
It uses a first-order design for the tweeter and a second-order topology for the mid/bass driver. We could’ve used a one-size-fits-all circuit, but that would mean compromising performance – and we’d much rather spend a little extra time to do it properly. We think you’ll agree when you hear them.
Finishing touches

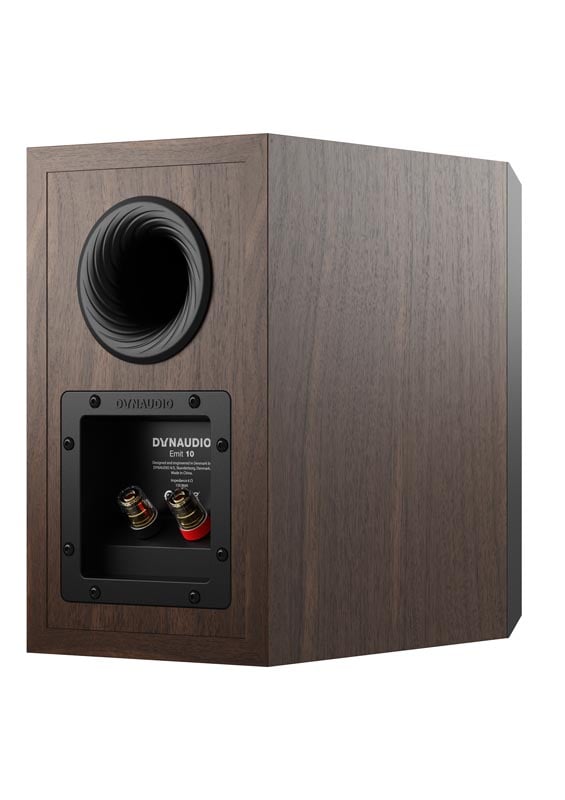

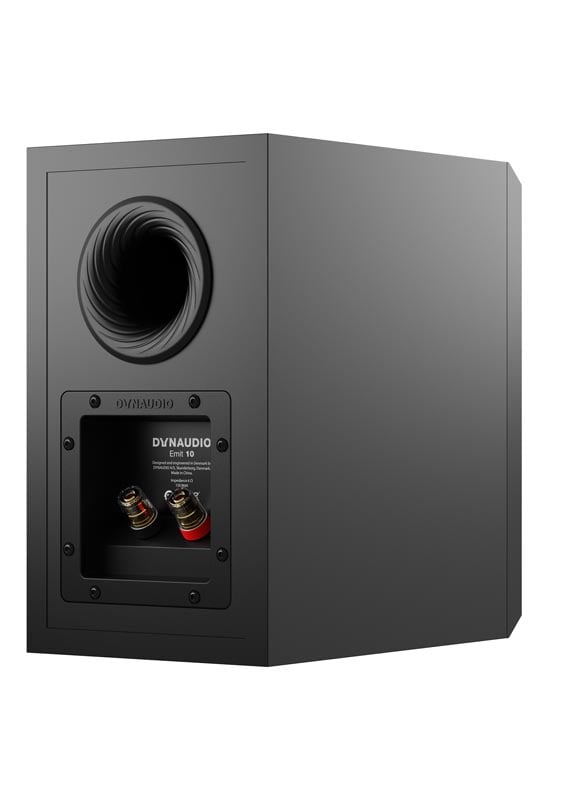

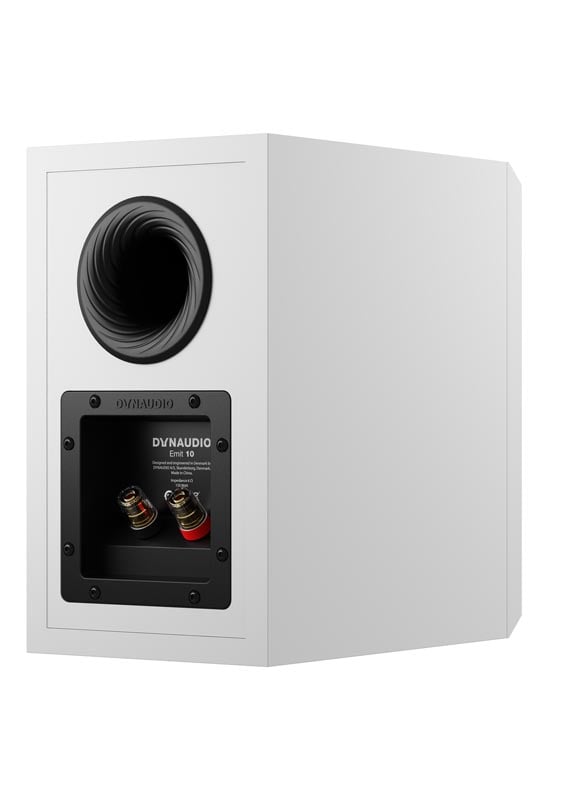

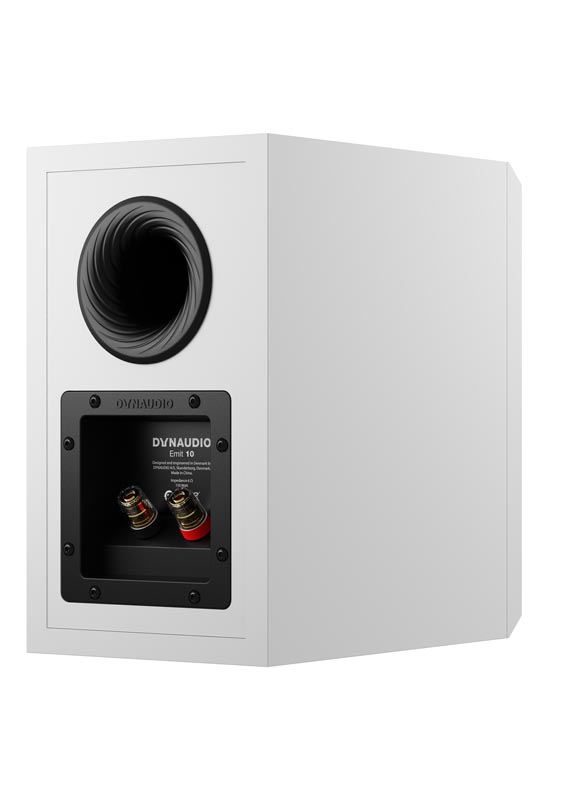

Round the back, you’ll see the bass-reflex port. It’s a dual-flared design to reduce air turbulence and minimise unwanted ‘chuffing’, especially with deep notes. We’ve even tuned the internal damping material (yes, that’s possible). It’s measured down to the gram for the perfect combination of damping and openness.

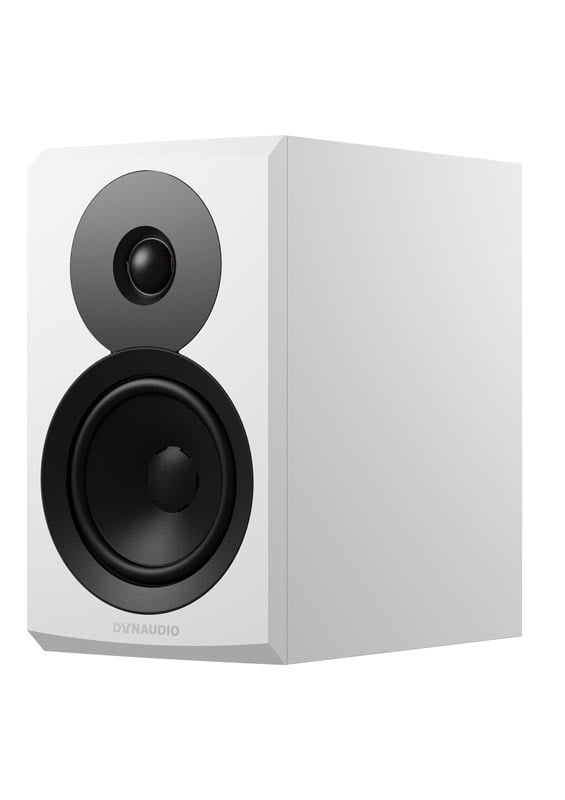

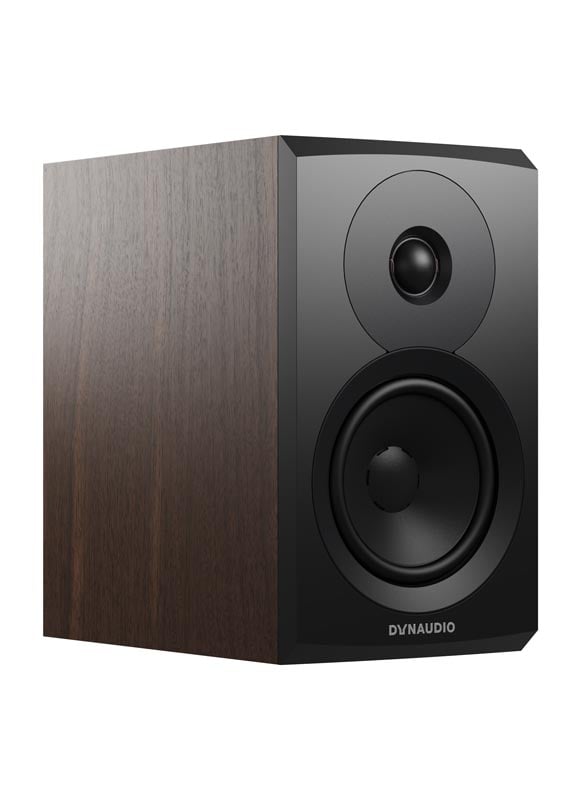

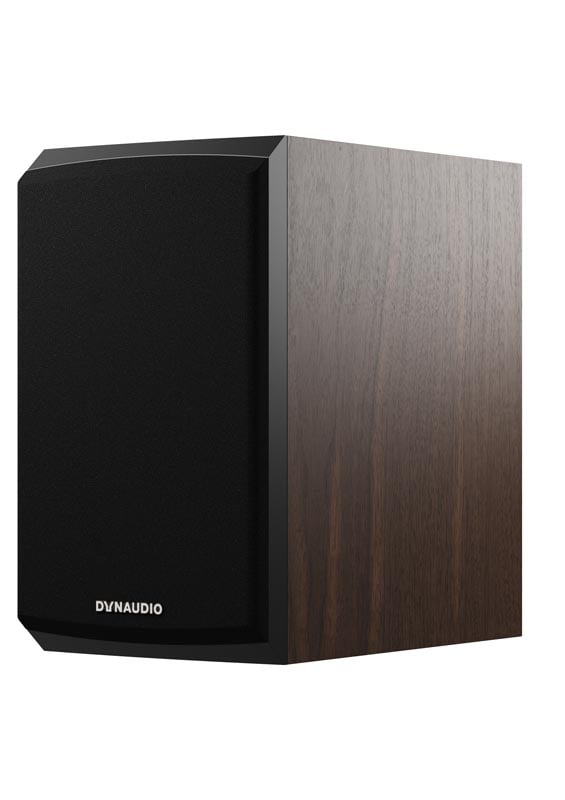

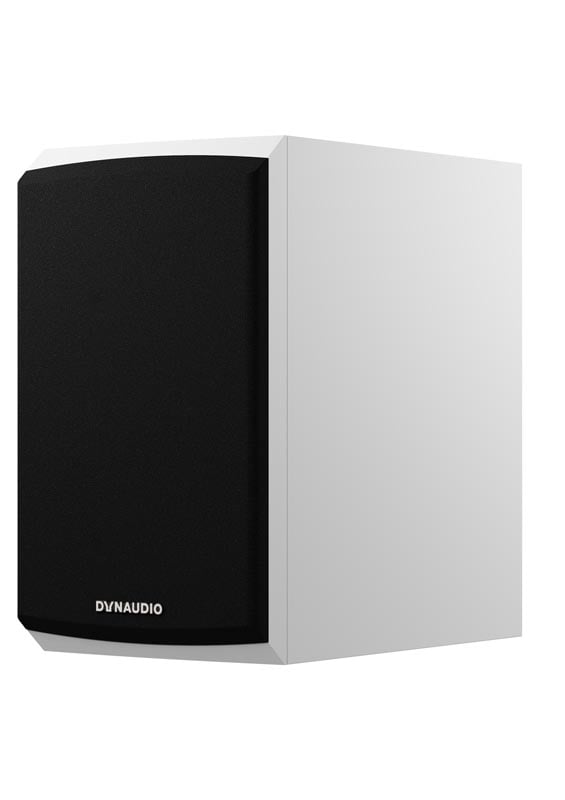

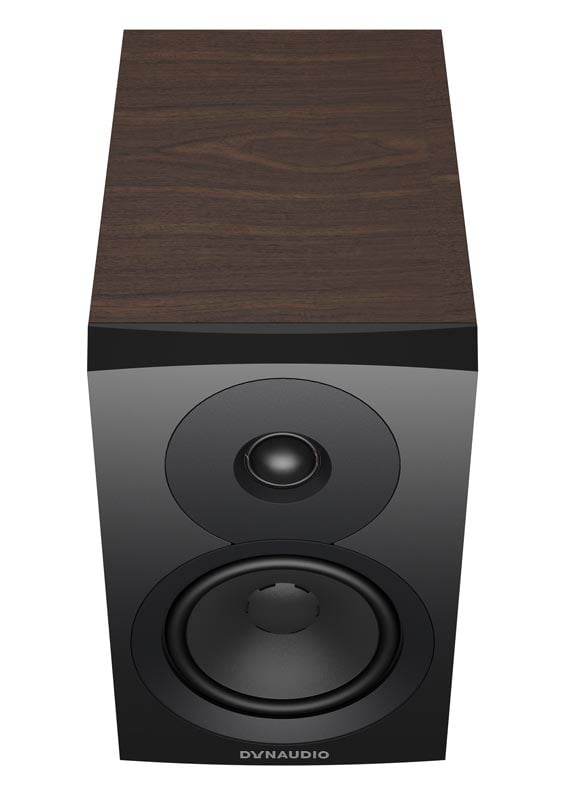

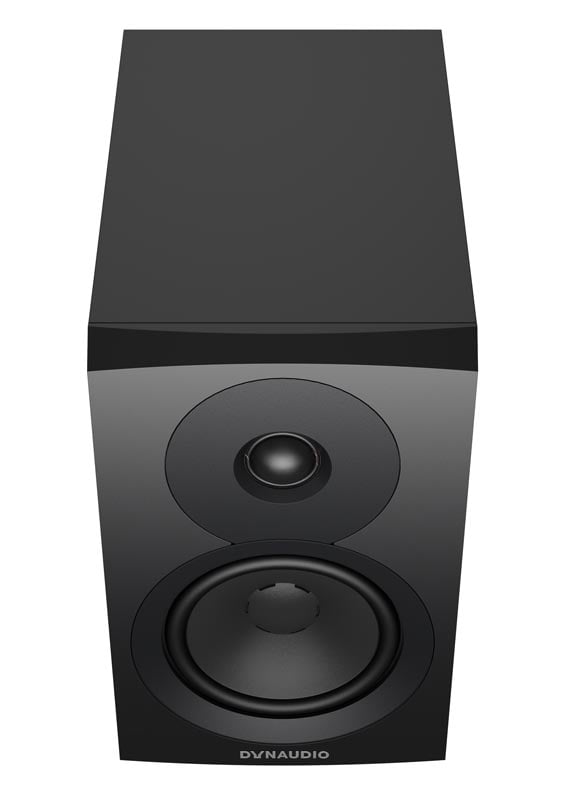

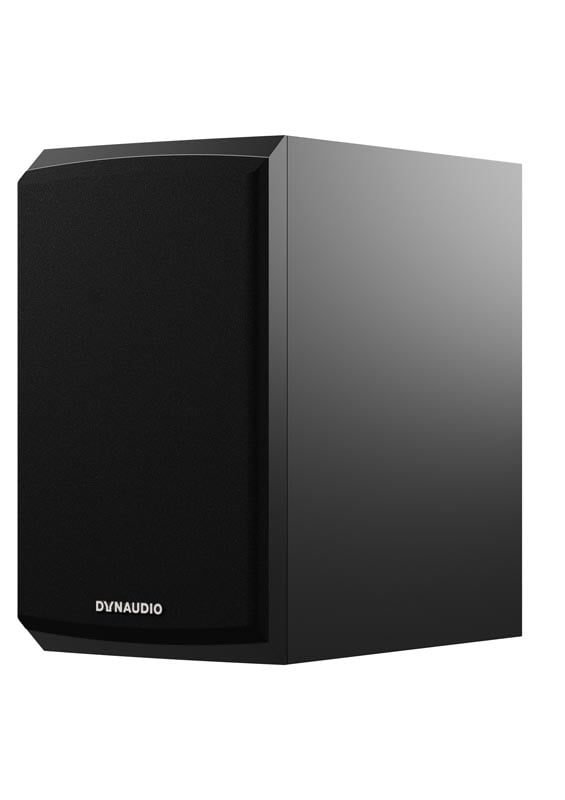

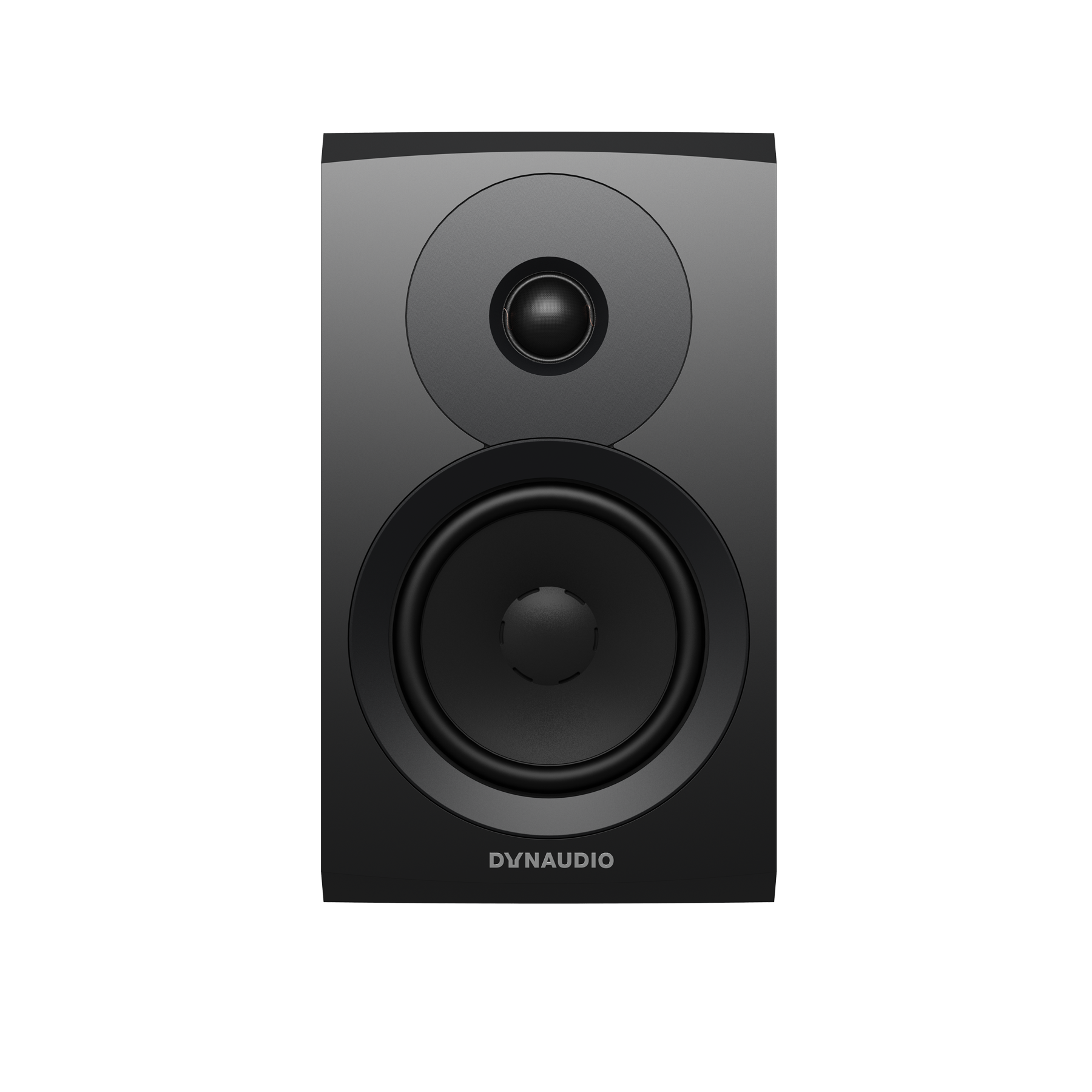

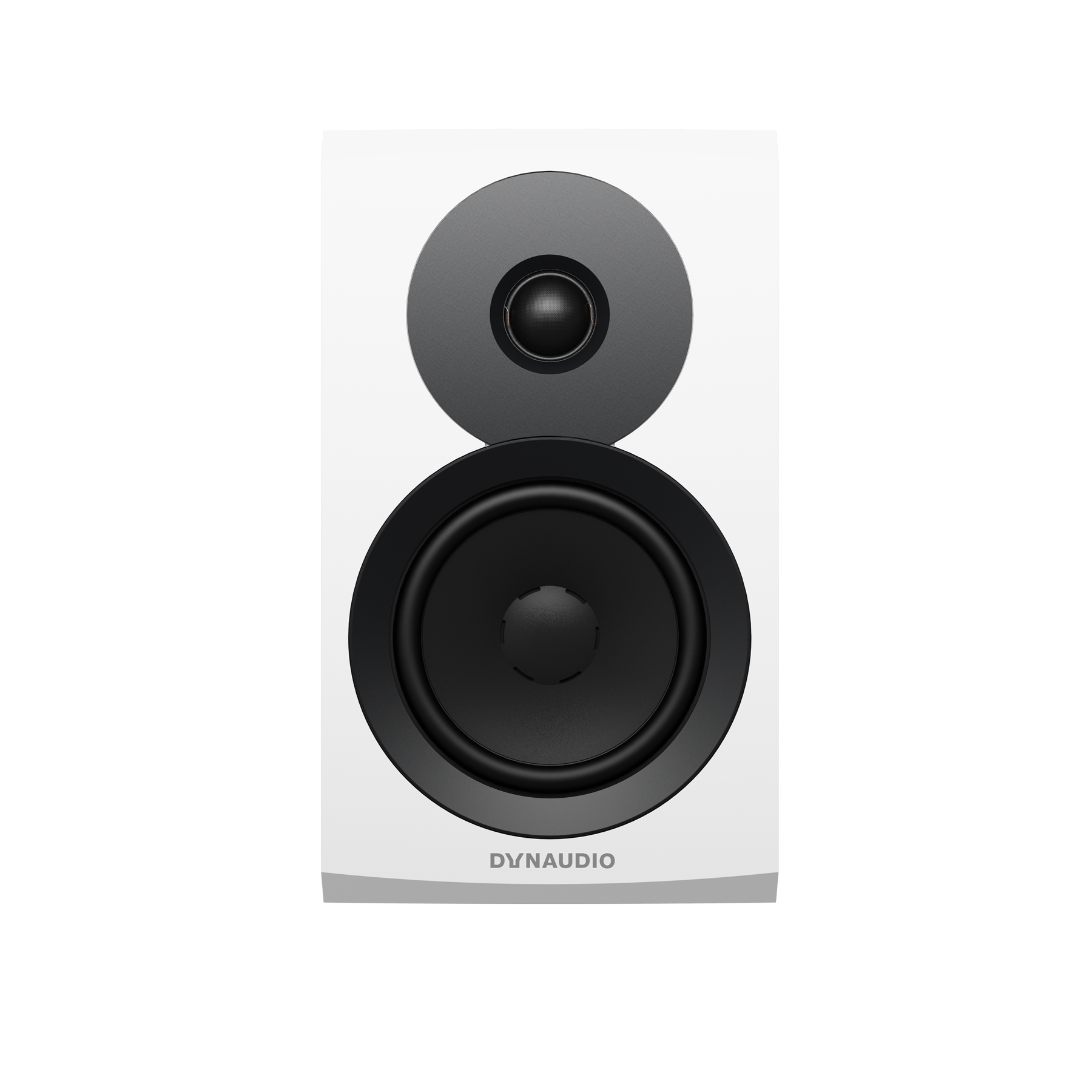

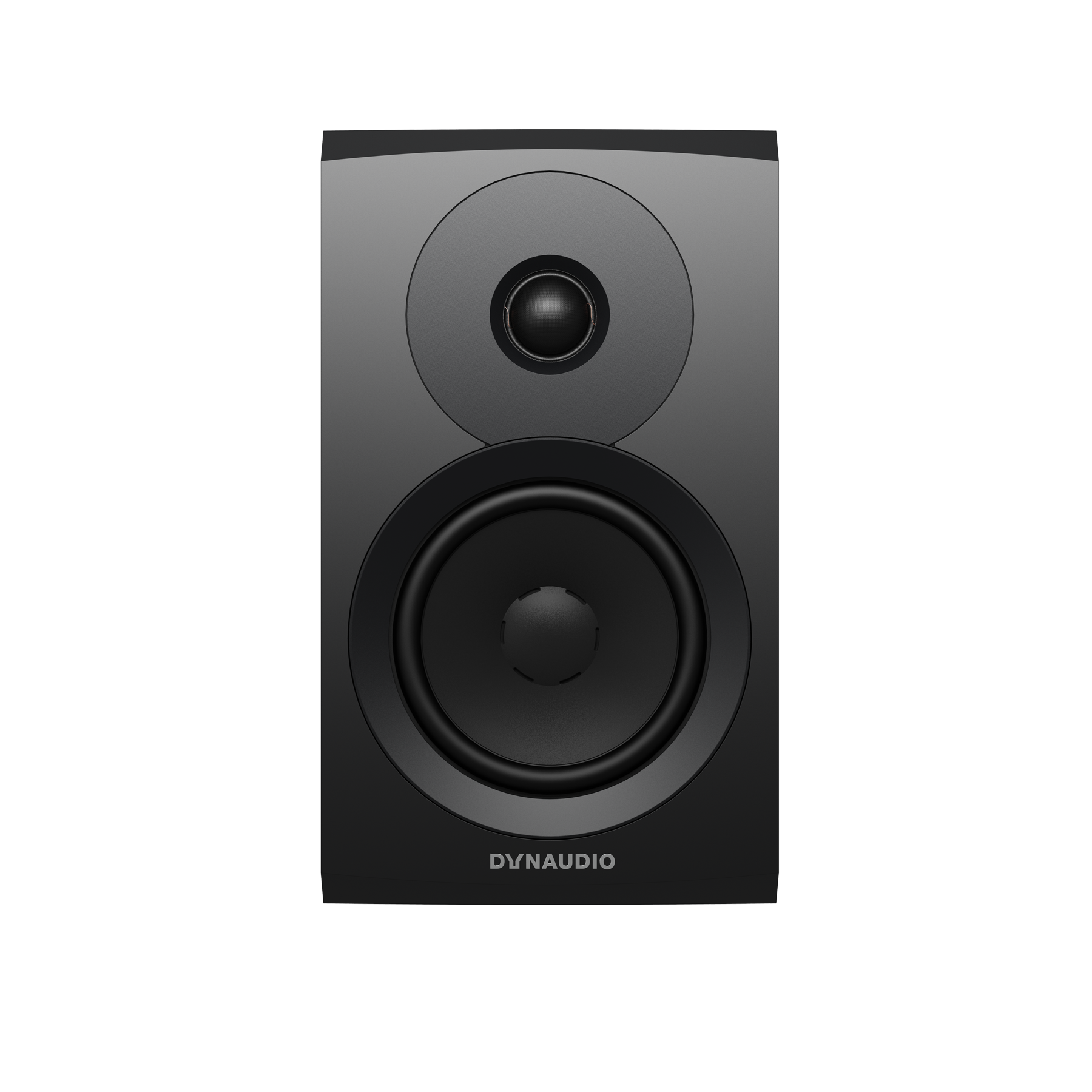

The cabinets are made from 18mm MDF, covered in beautiful custom laminate finishes. There are three available: Black, White and Walnut. All come with magnetic grilles, too – so if you want a different look, or someone small in your house is obsessed with poking and prodding your speakers with sticky fingers, you’re well covered.
Emit 10 is the ideal way to take your next step into the world of hi-fi. Cutting-edge technology, simple Danish design and unmatched performance at this level. What’s not to like?
Emit
Features
Designed and engineered in Denmark
The entire Emit family has been put through its paces in our world-class Jupiter measuring facility at Dynaudio Labs. We treat it exactly the same as we do every other speaker in our range: no stone left unturned.
Cerotar tweeter
Emit uses the highly regarded Cerotar tweeter from our Evoke series. It's a high-quality high-frequency driver inspired by our top-end Confidence and Heritage Special speakers, and includes the innovative resonance-defeating Hexis inner dome.
Clean and simple
Each speaker in the Emit range is designed to fit with modern lifestyles and interiors. Clean lines, simple finishes and minimalist Scandinavian looks – whether you're listening in stereo or have a full multi-channel system.
- Status Current
- Segment Home
- Series Emit
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 150
- Rated Impedance (Ohm) 6
- Lower Cutoff (Hz @ +/- 3 dB) 64
- Upper Cutoff (kHz @ +/- 3 dB) 25
- Lower Cutoff (Hz @ -6 dB) 52
- Upper Cutoff (kHz @ -6 dB) 35
- Box Principle Bass reflex rear double flared port
Stephen Entwistle, Senior Acoustics Engineer, Product Manager
Emit series
- Status:
- Segment:
- Series:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- IEC Power Handling (W):
- Rated Impedance (Ohm):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Lower Cutoff (Hz @ -6 dB):
- Upper Cutoff (kHz @ -6 dB):
- Box Principle:

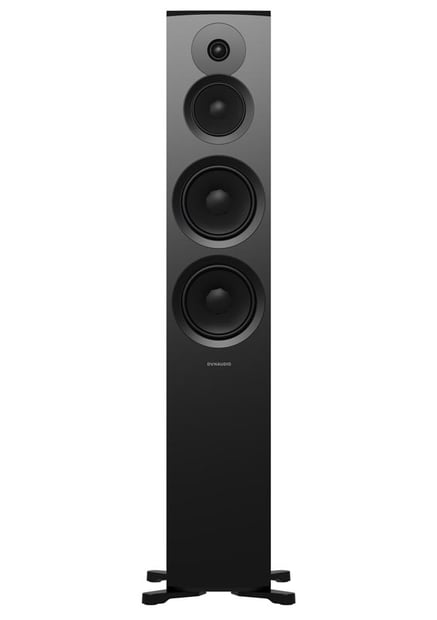

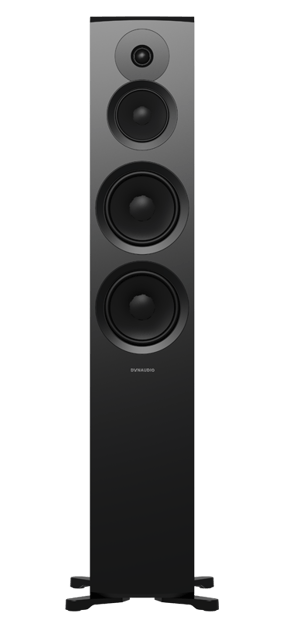

Emit 50
- Current
- Home
- Emit
- Floorstand
- 86
- 240
- 4
- 33
- 25
- 28
- 35
- Bass reflex rear double flared port

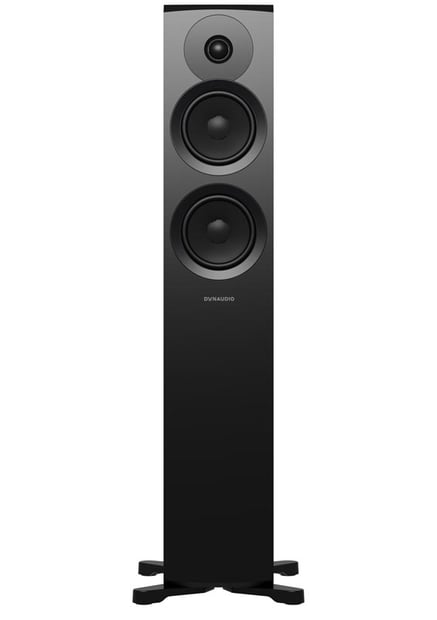

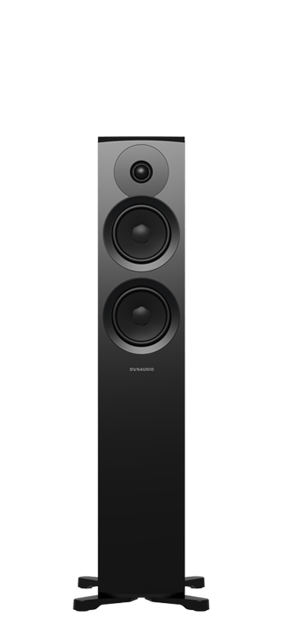

Emit 30
- Current
- Home
- Emit
- Floorstand
- 88
- 180
- 4
- 55
- 25
- 39
- 35
- Bass reflex rear double flared port

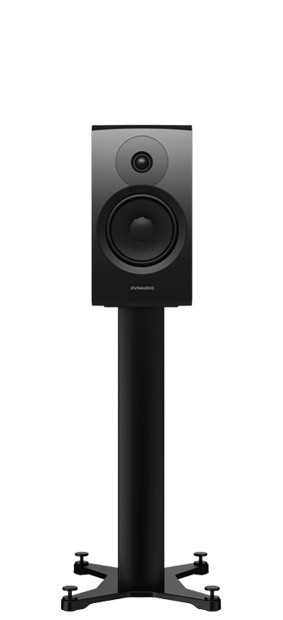

Emit 20
- Current
- Home
- Emit
- Bookshelf
- 86
- 160
- 6
- 53
- 25
- 42
- 35
- Bass reflex rear double flared port

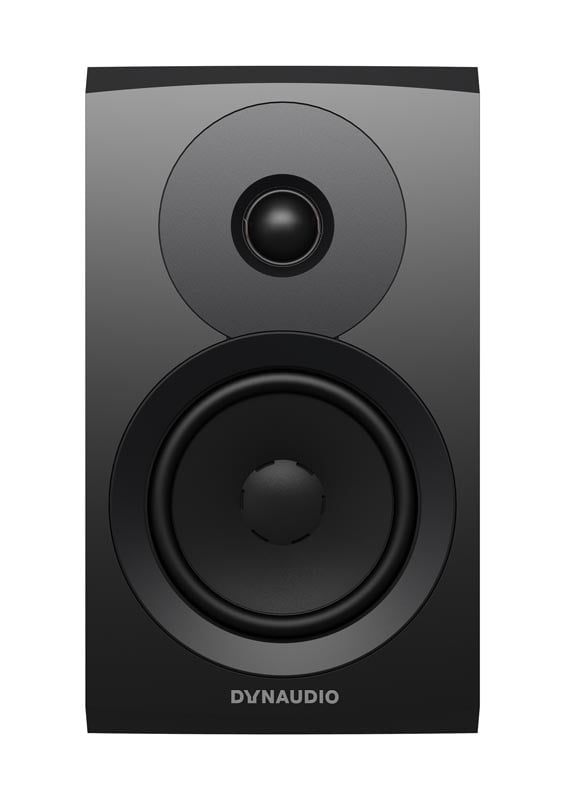

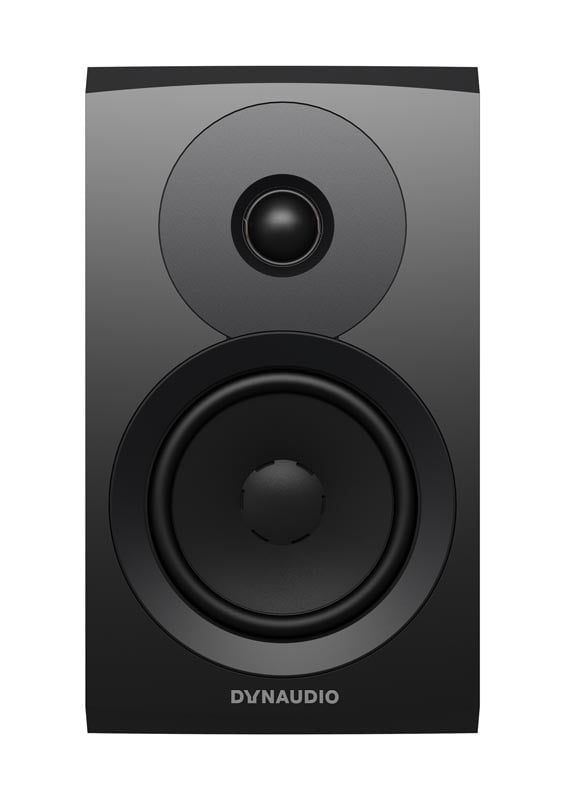

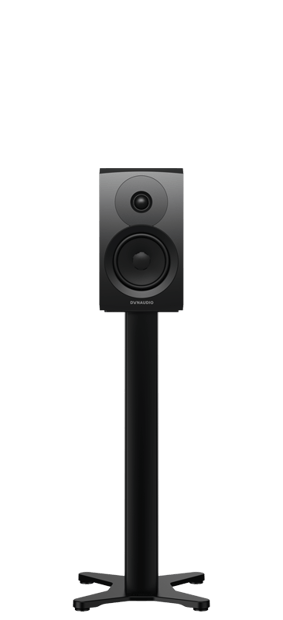

Emit 10
- Current
- Home
- Emit
- Bookshelf
- 86
- 150
- 6
- 64
- 25
- 52
- 35
- Bass reflex rear double flared port

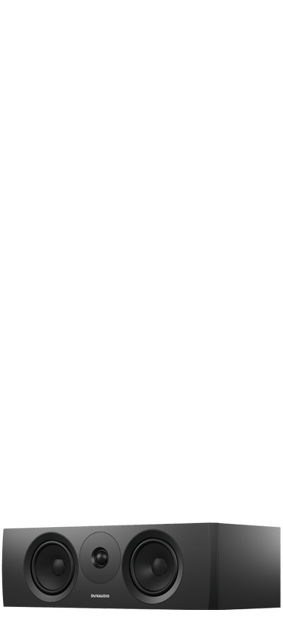

Emit 25C
- Current
- Home
- Emit
- Center
- 87
- 180
- 4
- 53
- 25
- 46
- 35
- Bass reflex rear double flared port
