Center Platinum
Confidence
Multichannel performance with total tonal consistency

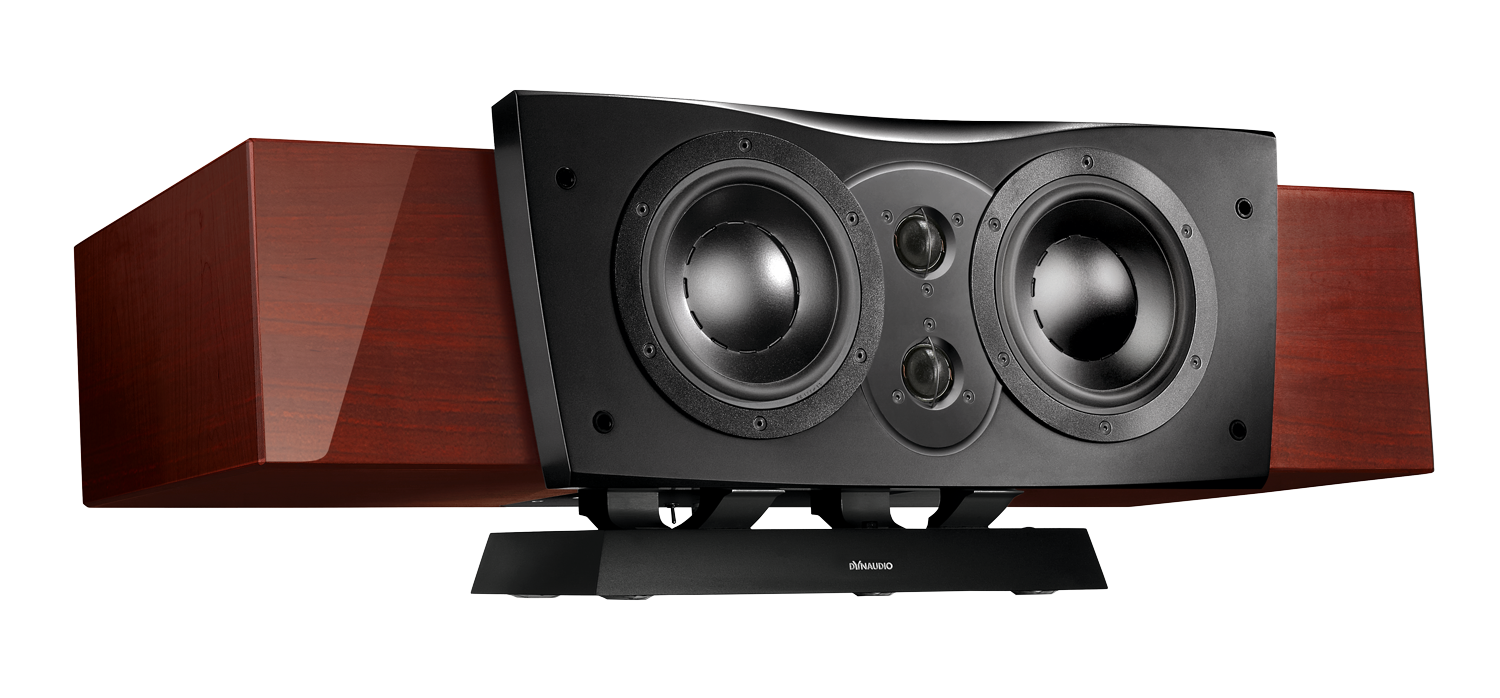

Center Platinum
Multichannel performance with total tonal consistency. The ideal complement to your Confidence-based home cinema system.
Watching films is all about being immersed – and that’s what the Confidence Center Platinum brings to your system. The double Esotar2 tweeter and 17cm mid/bass driver arrangement is optimised for integration into a multichannel Confidence Platinum (or Evidence Platinum) system.
High-frequency performance
Like all Confidence models, the cabinet construction is extremely low-resonance and has a front baffle designed for ideal sound dispersion, while the two tweeters are solidly mounted in an aluminium plate which eliminates any unwanted influence on the high-frequency performance.
The speaker has an adjustable plinth for precise positioning, and dispersion can be adjusted for placement above or below a display via a rear switch.
The Confidence Platinum models are available in the finishes established with the Evidence Platinum:
- Mocca - Bird’s-eye maple real wood veneer stained in dark brown, finished with clear piano lacquer
- Bordeaux – Bird’s-eye maple real wood veneer stained in dark red, finished with clear piano lacquer
- Rosewood – Rosewood veneer stained in a glowing dark red, finished with clear piano lacquer
- Piano Black – Deep black piano lacquer
Confidence
Features
Esotar² tweeters with Precision Coating for refined, detailed highs.
Aluminium / Kapton voice coils for accurate, authentic bass and midrange.
Acoustically shaped front baffle for ideal sound dispersion.
DDC technology reduces room reflections by 75%.
Exceptional cabinet finish with select real wood veneers and piano lacquer.
Center Platinum
Specifications
- Status Discontinued
- Segment Home
- Series Confidence
- Type Center
- Sensitivity (dB @ 2.83V/1m) 87
- IEC Power Handling (W) 300
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 45
- Upper Cutoff (kHz @ +/- 3 dB) 22
- Box Principle Bass reflex rear ported
- Crossover 2-way DDC
- Crossover Frequency (Hz) 2200,(6000) Hz
- Tweeter 2x 28 mm Esotar2
- Midrange/Woofer 2x17 cm MSP
- Weight kg 20.6
- Weight lbs 45.4
- Width mm 800
- Height mm 270
- Depth mm 380
- Width inches 31 4/8
- Height inches 10 5/8
- Depth inches 15
- Width mm incl. feet/grill/stand 800
- Height mm incl. feet/grill/stand 300
- Depth mm incl. feet/grill/stand 380
- Width inches incl. feet/grill/stand 31 4/8
- Height inches incl. feet/grill/stand 11 6/8
- Depth inches incl. feet/grill/stand 15
