Focus 110

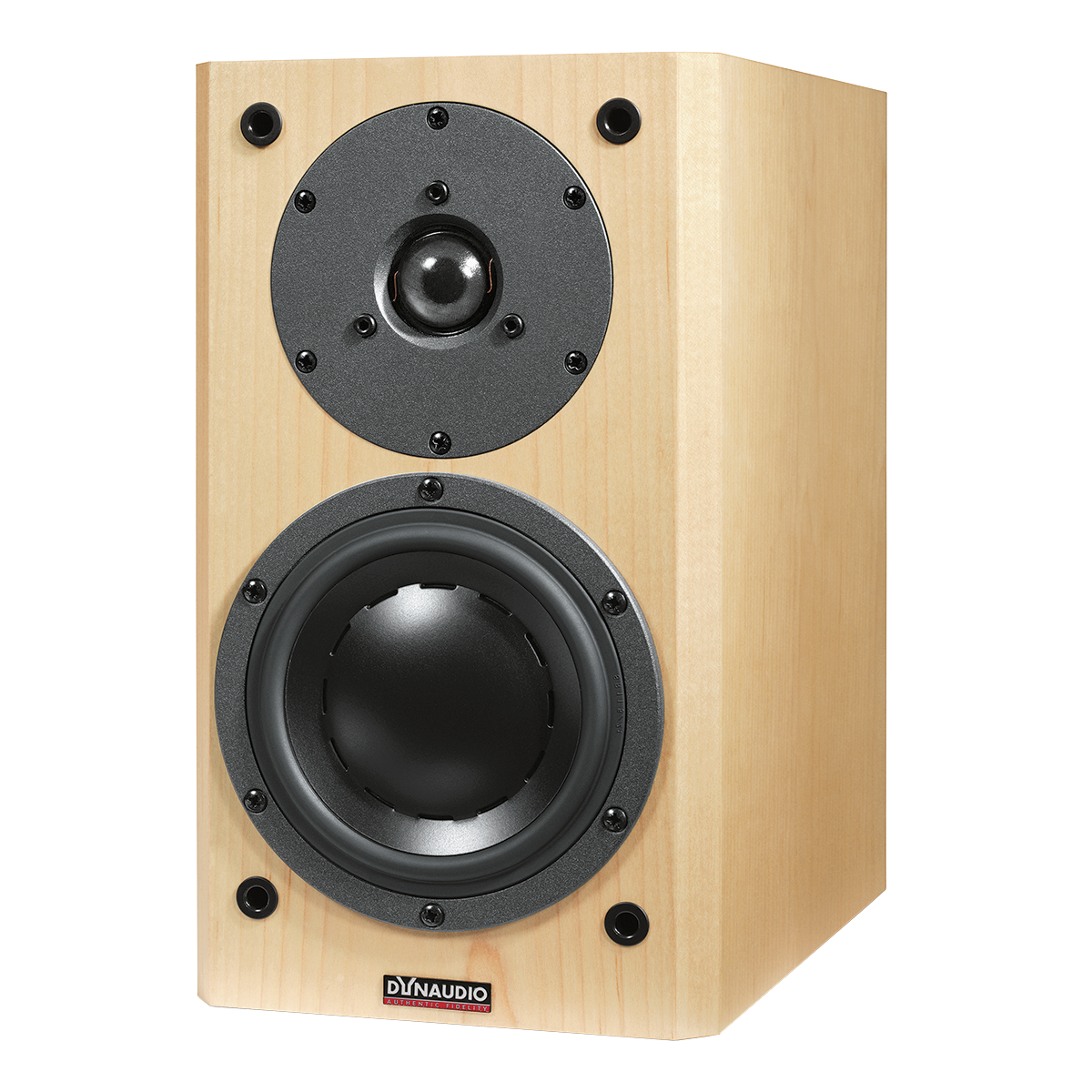

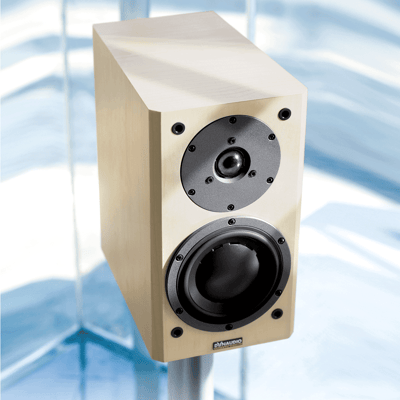

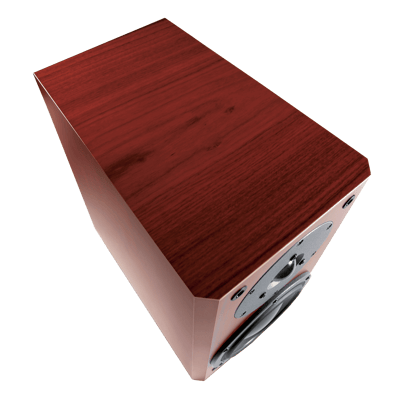

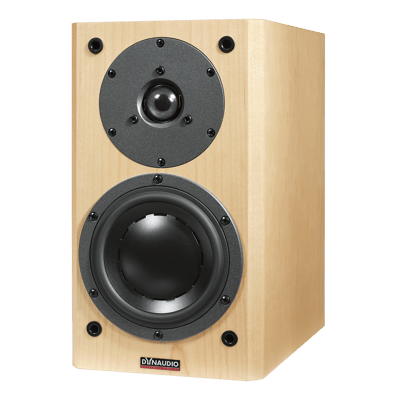

The basis of the Focus 110 is the extremely solid cabinet construction. The asymmetrical form of the cabinet takes shape with sidewalls that gently taper towards the back, contributing additional rigidity to the assembly. In principle, this further prevents unwanted resonance and its detrimental effects. The end result is pure and untainted sound reproduction free of coloration.
The Esotec+ technology is also prominently featured in the smallest model of the Focus range. The integrated D 280 tweeter with its coated 28mm soft dome fascinates with its incredibly detailed resolution of the high frequencies – a level of performance for which Dynaudio has become renowned.
Another element typical of Dynaudio is the diffraction-optimized shape of the new Esotec+ mid/bass driver. Its cone’s characteristic curvature further aids imaging so that even at short listening distances or in a smaller room a realistic, true three-dimensional sound-stage can be enjoyed. In relation to the total cone surface area, the voice-coil is exceptionally large in diameter, allowing a most precise conversion of the amplifier’s signal to music. The result is uncompromised, direct music enjoyment.
The Focus 110’s balanced frequency response is not simply the result of the superior drivers utilized, but also a product of accurate fine-tuning of the crossover.
Focus 110
Specifications
- Status Discontinued
- Segment Home
- Series Focus
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 85
- IEC Power Handling (W) 150
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 45
- Upper Cutoff (kHz @ +/- 3 dB) 25
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 15 cm MSP
- Weight kg 7.3
- Weight lbs 16.1
- Width mm 173
- Height mm 305
- Depth mm 285
- Width inches 6 6/8
- Height inches 12
- Depth inches 11 2/8
