Bass performance

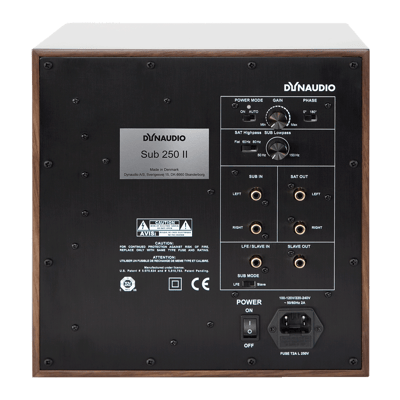

The amplifier circuit incorporates variable gain setting, a variable Low-Pass Filter (50 Hz to 150 Hz), and a selectable phase switch (0º or 180º). The audio signal can be fed from an AV Receiver's Subwoofer/LFE output into the LFE Input (1 x RCA), or from a Stereo Amplifier's Pre-Out into the SUB Input (2 x RCA). A selectable High-pass Filter (Flat, 60 Hz, or 80 Hz) enables the SAT Output (2 x RCA) to facilitate a crossover integration between the Sub 250 II and the main speakers.
Bass performance can be further enhanced by using a multi-sub configuration with two or more subwoofers in parallel. For this use, the Sub 250 II is equipped with a ”slave” function, which by-passes all settings on the rear and adapts the settings from a ”master” subwoofer. By positioning multiple subwoofers in a room the bass is generally more evenly dispersed, thus effectively improving the overall sound quality of the system. Two or more smaller subwoofers can even result in an ultimately superior bass performance than that achieved via one large subwoofer.
Available in an elegant Satin Black or Satin White lacquer, as well as in Rosewood or Walnut real wood veneer finishes, the Sub 250 II perfectly and discreetly integrates into any room and every décor scheme.
The Sub series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs:
- Analog outputs:
- Amplifier Power (W):
- AC Power Input:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):
- Upper Cutoff (Hz @ 85dB +/- 3 dB):
Sub 250 II
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
Sub 600
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 300W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 325
- 18
- 250
Sub 250
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
Sub 250 SAT
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
Sub 250MC
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
Sub 300
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA, 1x XLR
- 1x RCA, 1x XLR
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 25
- 250
Sub 500
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA, 1x XLR
- 1x RCA, 1x XLR
- 250W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 18
- 250
