Installation IW17

High performance custom installation in-wall loudspeaker

FIND A DEALER
BOOK LISTENING SESSION

Installation IW17

High performance custom installation in-wall loudspeaker. High performance architectural audio with Dynaudio sound quality begins here.

The IW17 features the core technologies Dynaudio has become renowned for: A geometrically optimized Magnesium Silicate Polymer (MSP) cone membrane, a specially coated soft dome tweeter and a high quality crossover comprised of select components.

To make the IW 17 both cost effective and easy to install, the frame construction is built of lightweight yet rigid injection-moulded plastic.

The IW 17 is intended for in-wall installations and can be used for almost any high quality stereo, multi-room, or multi-channel audio application.

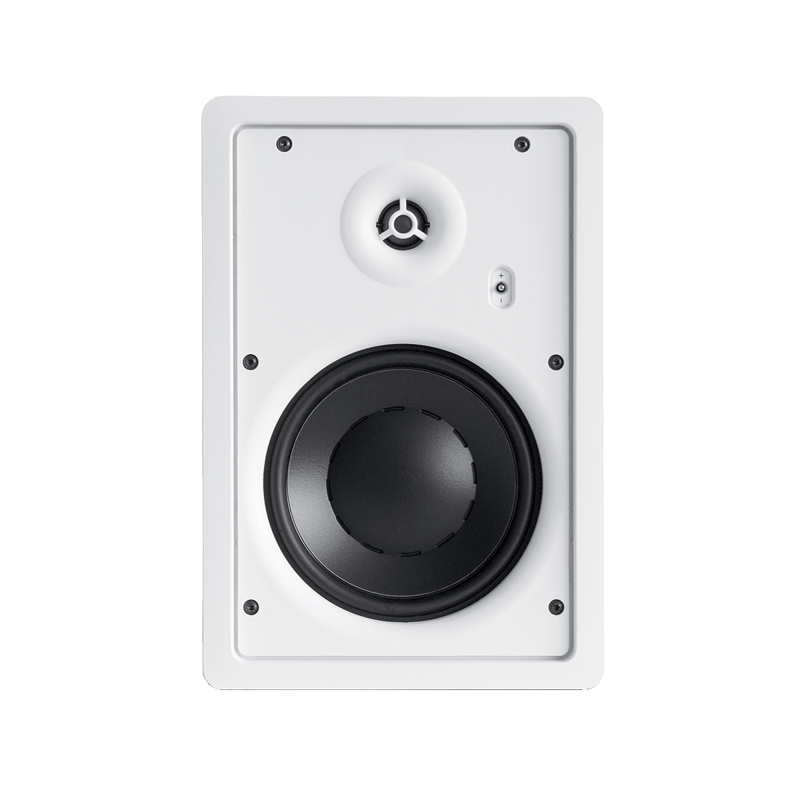

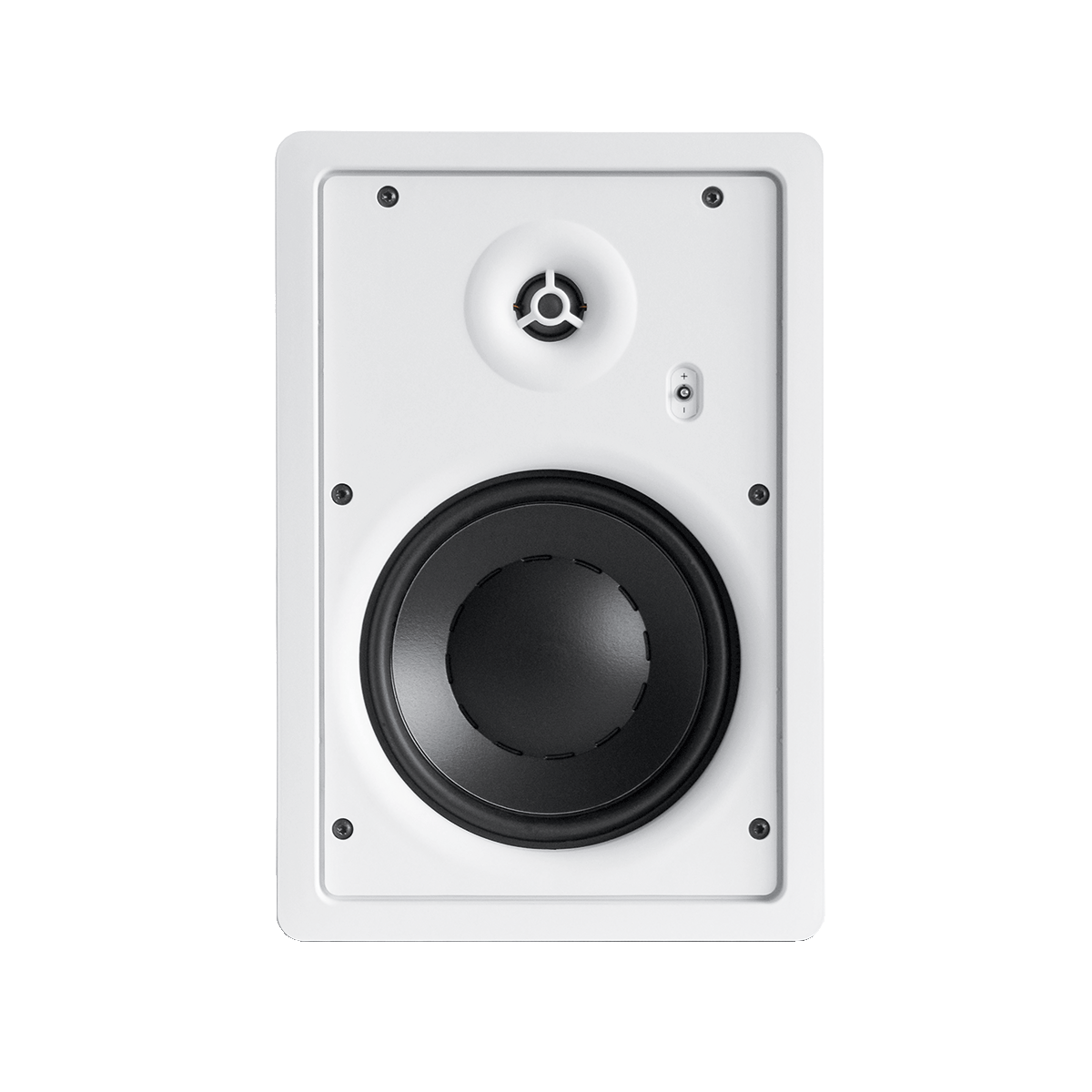

DYN_IW17_front
DYN_IW17_close_1
DYN_IW17_side2

IW17

Specifications

  • Status Discontinued
  • Segment Custom Install
  • Series Legacy
  • Type In-wall
  • Sensitivity (dB @ 2.83V/1m) 88
  • Long Term Power 100
  • Rated Impedance (Ohm) 4
  • Lower Cutoff (Hz @ +/- 3 dB) 45
  • Upper Cutoff (kHz @ +/- 3 dB) 25
  • Crossover 2-way
  • Tweeter 28 mm soft dome
  • Midrange/Woofer 17 cm MSP
DYN_IW17_side2

Legacy Install series

  • Status:
  • Segment:
  • Series:
  • Type:
  • Sensitivity (dB @ 2.83V/1m):
  • Long Term Power:
  • Rated Impedance (Ohm):
  • Lower Cutoff (Hz @ +/- 3 dB):
  • Upper Cutoff (kHz @ +/- 3 dB):
  • Crossover:
  • Tweeter:
  • Midrange/Woofer:
  • IP17
  • Discontinued
  • Custom Install
  • Legacy
  • In-wall
  • 88
  • 150
  • 8
  • 45
  • 23
  • 2-way
  • 28 mm soft dome
  • 17 cm MSP
  • IW17
  • Discontinued
  • Custom Install
  • Legacy
  • In-wall
  • 88
  • 100
  • 4
  • 45
  • 25
  • 2-way
  • 28 mm soft dome
  • 17 cm MSP
  • IP24
  • Discontinued
  • Custom Install
  • Legacy
  • In-wall
  • 90
  • 150
  • 4
  • 40
  • 23
  • 2-way
  • 28 mm soft dome
  • 24 cm MSP
  • IC17
  • Discontinued
  • Custom Install
  • Legacy
  • In-ceiling
  • 88
  • 100
  • 4
  • 45
  • 25
  • 2-way
  • 28 mm soft dome
  • 17 cm MSP
