P4-LCR50
Centre stage

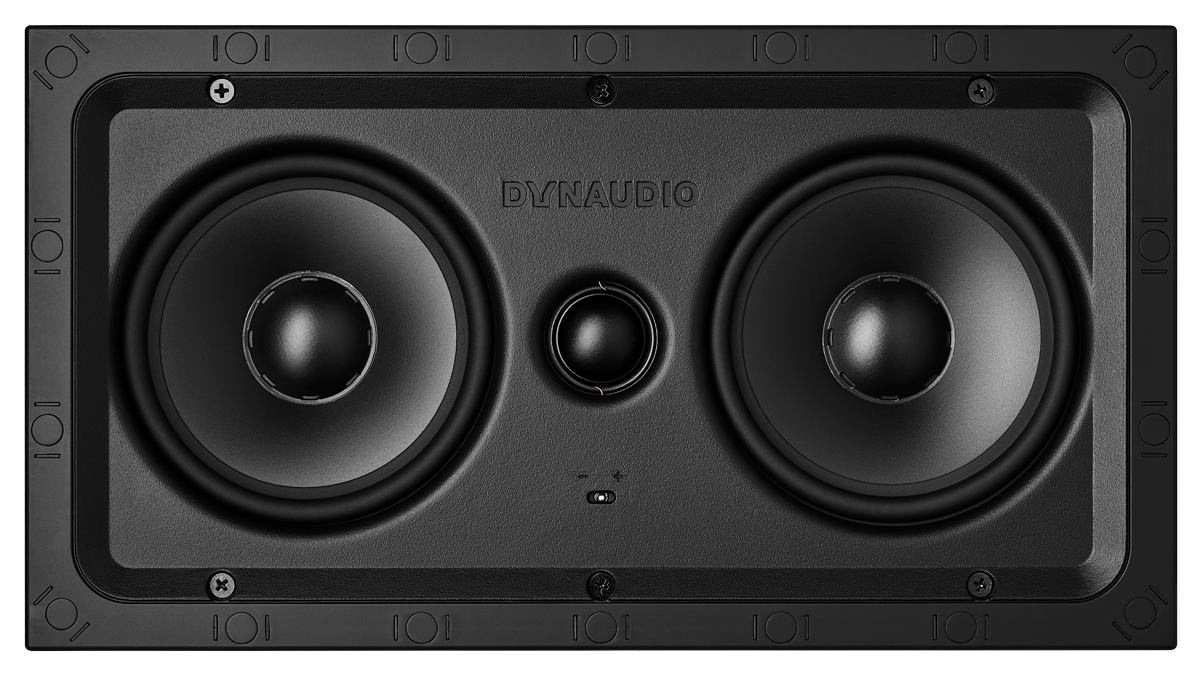

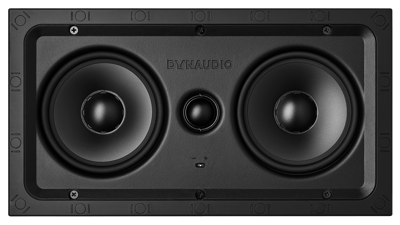

Slimline in-wall speaker with twin 5in woofers
P4-LCR50
Centre stage. Slimline in-wall speaker with twin 5in woofers
It’s been said that up to 80% of the movie-going experience centres on sound. And most of that sound – dialogue, music and more – comes from the centre-channel. There is no more important speaker in a cinema set-up.If you’re building or specifying a home cinema or media-room, you need to know you’re installing a centre channel you can trust. And if you’ve been finding yourself grappling with surprises (or limited space) behind the drywall, this is the LCR speaker you need.It has a Dynaudio 28mm coated soft-dome tweeter flanked by twin 5in woofers – all tuned and refined by the same expert team (and expert ears) that have created some of our most legendary home, pro and car systems (including Evidence, Confidence and Evoke).The paintable magnetic grille and extreme ease of installation – plus stellar performance – all make for a solution that will give any movie the delivery it deserves.



P4-LCR50
Specifications
- Status Current
- Segment Custom Install
- Range Performance
- Type In-wall
- Sensitivity (dB @ 2.83V/1m) 89
- Rated Power 50
- Long Term Power 100
- Rated Impedance (Ohm) 4
- Impedance (Minimum) 3,2
- Lower Cutoff (Hz @ +/- 3 dB) 46
- Upper Cutoff (kHz @ +/- 3 dB) 20
- Crossover 2-way
- Tweeter 28 mm soft dome
- Midrange/Woofer 2x 16.5 cm MSP
- Tweeter level options -3dB, 0dB, +3dB
- Width mm 360
- Height mm 195
- Depth mm 77
- Width inches 14,17322835
- Height inches 7,677165354
- Depth inches 3,031496063
- Width Cutout mm 175
- Height Cutout mm 340
- Height cutout inches 6 7/8
- Width cutout inches 13 3/8
