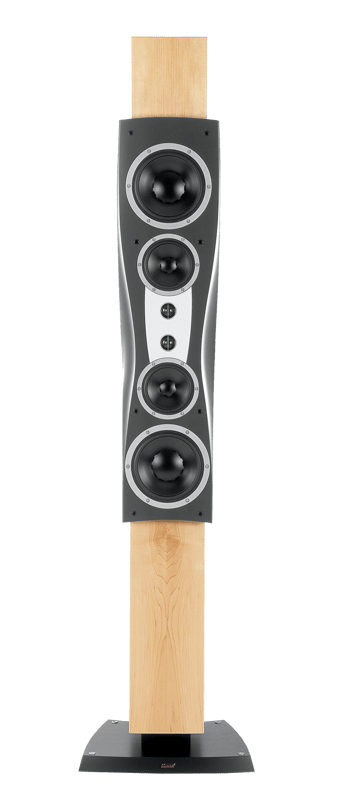

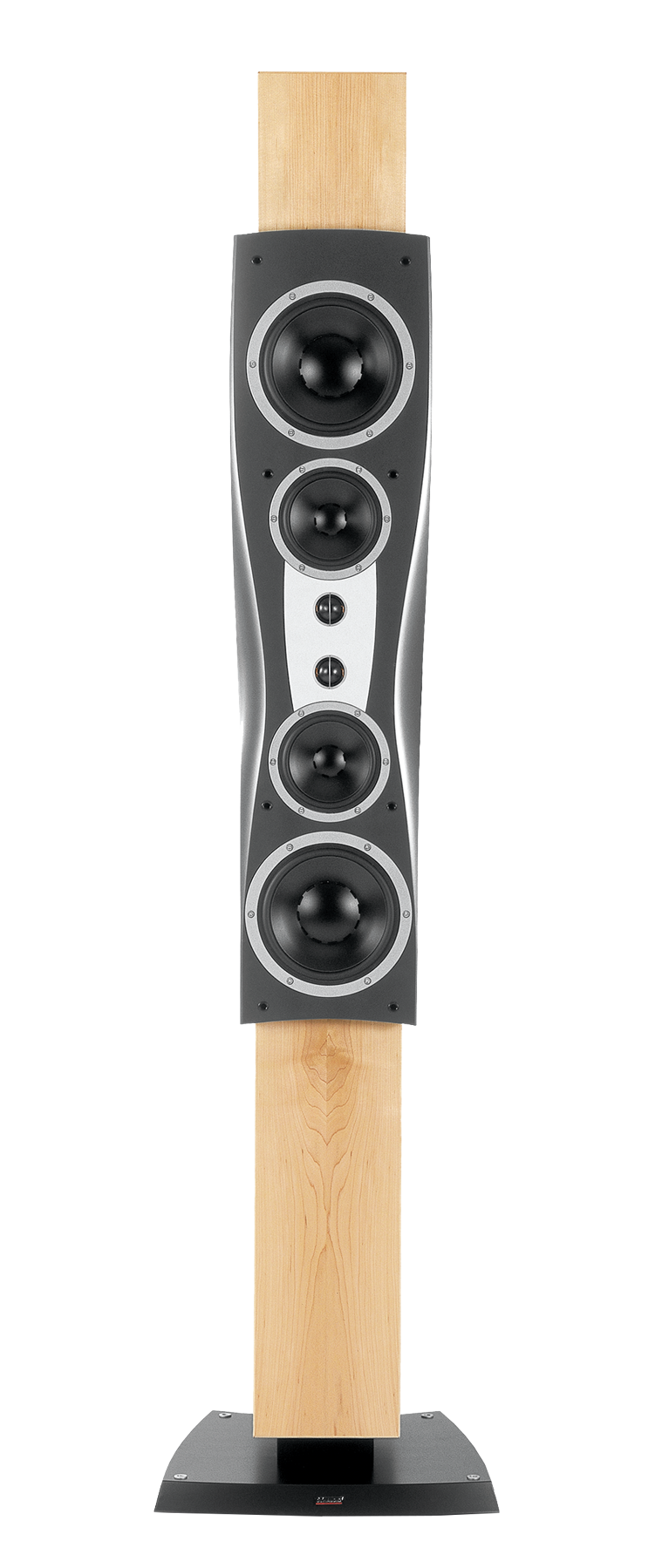

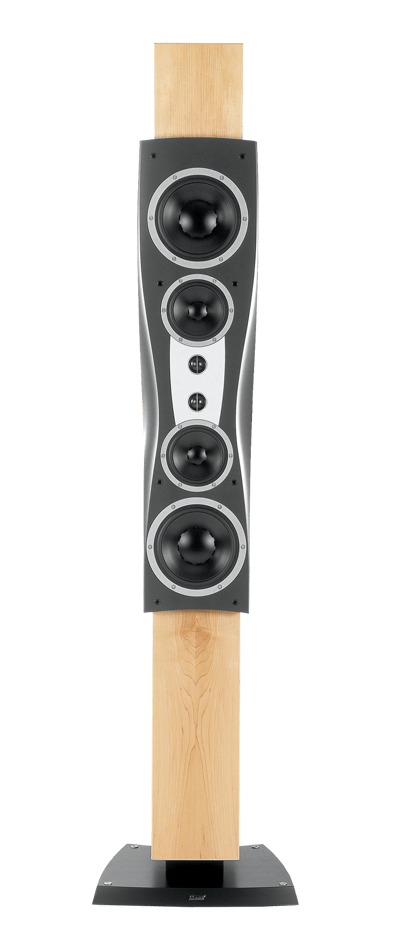

Confidence C4
The development of the flagship Dynaudio Evidence range confirmed that integrating the tweeters into a solid aluminium-block housing offered the most ideal performance solution.

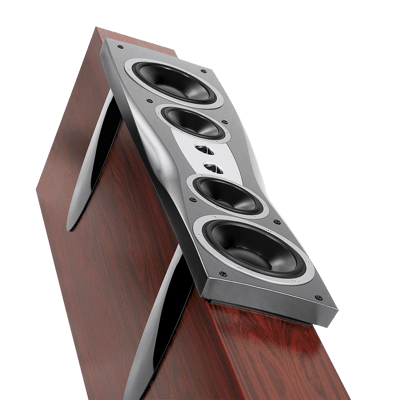

To achieve a similar level of optimization, the tweeters of the C4, as in all the Confidence models, are integrated into such a moulded aluminium module. This measure prevents vibration and resonance from affecting the tweeters' performance and disturbing the phase response, allowing the Esotar² an extremely rigid enclosure as well as a temperature-ideal environment in which to operate.

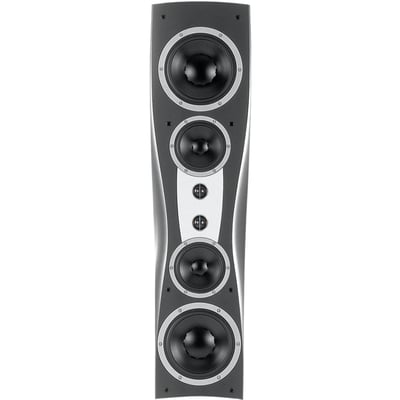

In view of Dynaudio's DDC technology, it is necessary to utilize a symmetric driver array - including dual tweeters - to cover the entire frequency range. The frequency response of the mirrored-pair drivers is perfectly integrated to yield an ideal dispersion into the room by avoiding ceiling and floor reflections. Imaging is precise, open, and spacious, and the sound is unaffected by room induced colorations or distortions. The response is free of peaks well over 20 kHz, thereby validating that the design is perfectly suitable for all high-resolution, extended frequency range digital formats such as SACD and DVD-Audio. To provide a solid foundation for the speakers' technical capabilities to be fully realized,
Dynaudio constructed an intelligently designed base plinth - borrowed from the Evidence concept - in which four individually
adjustable internal spikes are concealed to facilitate perfect alignment and levelling. The high quality binding post assembly
is also integrated into the base plate, disappearing into the elegant lines of the stable and heavy plinth.
Confidence C4
Specifications
- Status Discontinued
- Segment Home
- Series Confidence
- Type Floorstand
- Sensitivity (dB @ 2.83V/1m) 88
- IEC Power Handling (W) 400
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 27
- Upper Cutoff (kHz @ +/- 3 dB) 25
- Box Principle Bass reflex rear ported
- Crossover 3-way DDC
- Crossover Frequency (Hz) 730,2200,(8000) Hz
- Tweeter 2x 28 mm Esotar2
- Midrange 2x15 cm MSP
- Woofer 2x20 cm MSP
- Weight kg 55
- Weight lbs 121
- Width mm 250
- Height mm 1750
- Depth mm 445
- Width inches 9 7/8
- Height inches 68 7/8
- Depth inches 17 4/8
- Width mm incl. feet/grill 420
- Height mm incl. feet/grill 1750
- Depth mm incl. feet/grill 475
- Width inches incl. feet/grill 16 4/8
- Height inches incl. feet/grill 68 7/8
- Depth inches incl. feet/grill 18 6/8
