Confidence Center
Perfect dialogue reproduction for advanced multi-channel systems at the Dynaudio Confidence level is facilitated through the Confidence Center model.

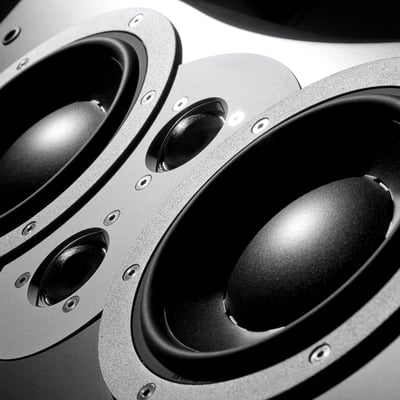

In the Confidence Center, dual Esotar2 tweeters are mounted in the 10 mm thick, anti-resonant aluminium plate integrated into the massive front baffle. In conjunction with the specially tuned crossover, the tweeters offer the benefits of the DDC technology, greatly reducing reflections from the room's floor and ceiling boundaries, yielding a sonic reproduction of the recording that remains true to the original performance.
The two mid/woofers are powered by 75 mm diameter aluminium/Kapton® voice coils and highly efficient neodymium magnets, integrated into a rigid, resonance-absorbing low mass aluminium frame. The baffle uses the same construction as the other Confidence models, while the cabinet base features a mechanism that allows the angle of dispersion to be focused upwards or downwards to optimize such with regards to positioning the speaker below or above the video screen. The acoustic phase is further adjusted by a toggle switch to optimize the height of the soundstage in these same positioning scenarios.
The level of sound quality remains true to the Confidence name. Due to the Confidence level technology, the Center model provides a solid, tight and dynamic performance, with excellent reproduction of any music of film based material, ensuring you the best seat in the house in amost musical theater, one capable of convincing even the most ambitious cinema enthusiast or movie critic.

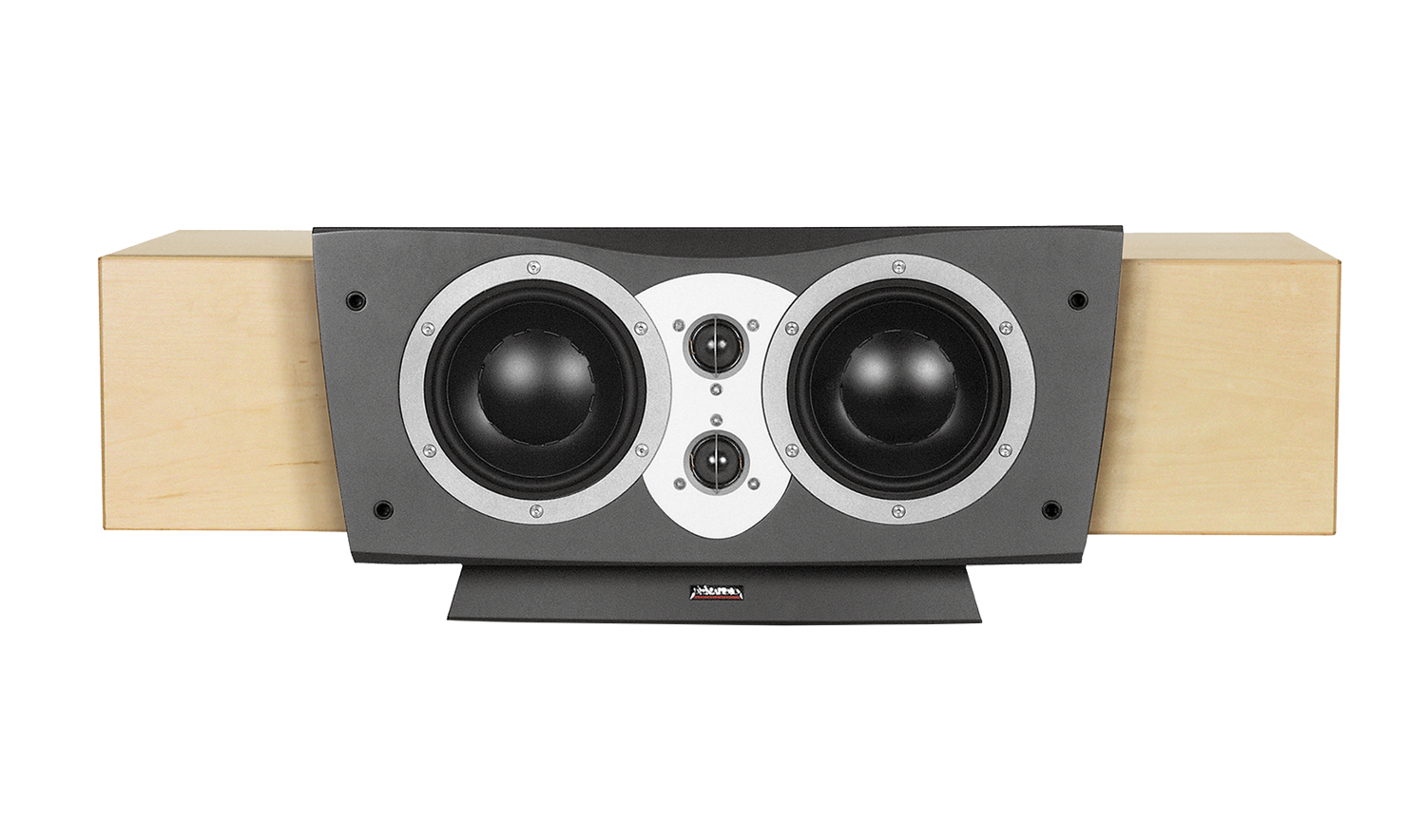

Confidence Center
Specifications
- Status Discontinued
- Segment Home
- Series Confidence
- Type Center
- Sensitivity (dB @ 2.83V/1m) 87
- IEC Power Handling (W) 300
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 45
- Upper Cutoff (kHz @ +/- 3 dB) 22
- Box Principle Bass reflex rear ported
- Crossover 2-way DDC
- Crossover Frequency (Hz) 2200,(6000) Hz
- Tweeter 2x 28 mm Esotar2
- Midrange/Woofer 2x17 cm MSP
- Weight kg 20.6
- Weight lbs 45.4
- Width mm 800
- Height mm 270
- Depth mm 380
- Width inches 31 4/8
- Height inches 10 5/8
- Depth inches 15
- Width mm incl. feet/grill/stand 800
- Height mm incl. feet/grill/stand 300
- Depth mm incl. feet/grill/stand 380
- Width inches incl. feet/grill/stand 31 4/8
- Height inches incl. feet/grill/stand 11 6/8
- Depth inches incl. feet/grill/stand 15
