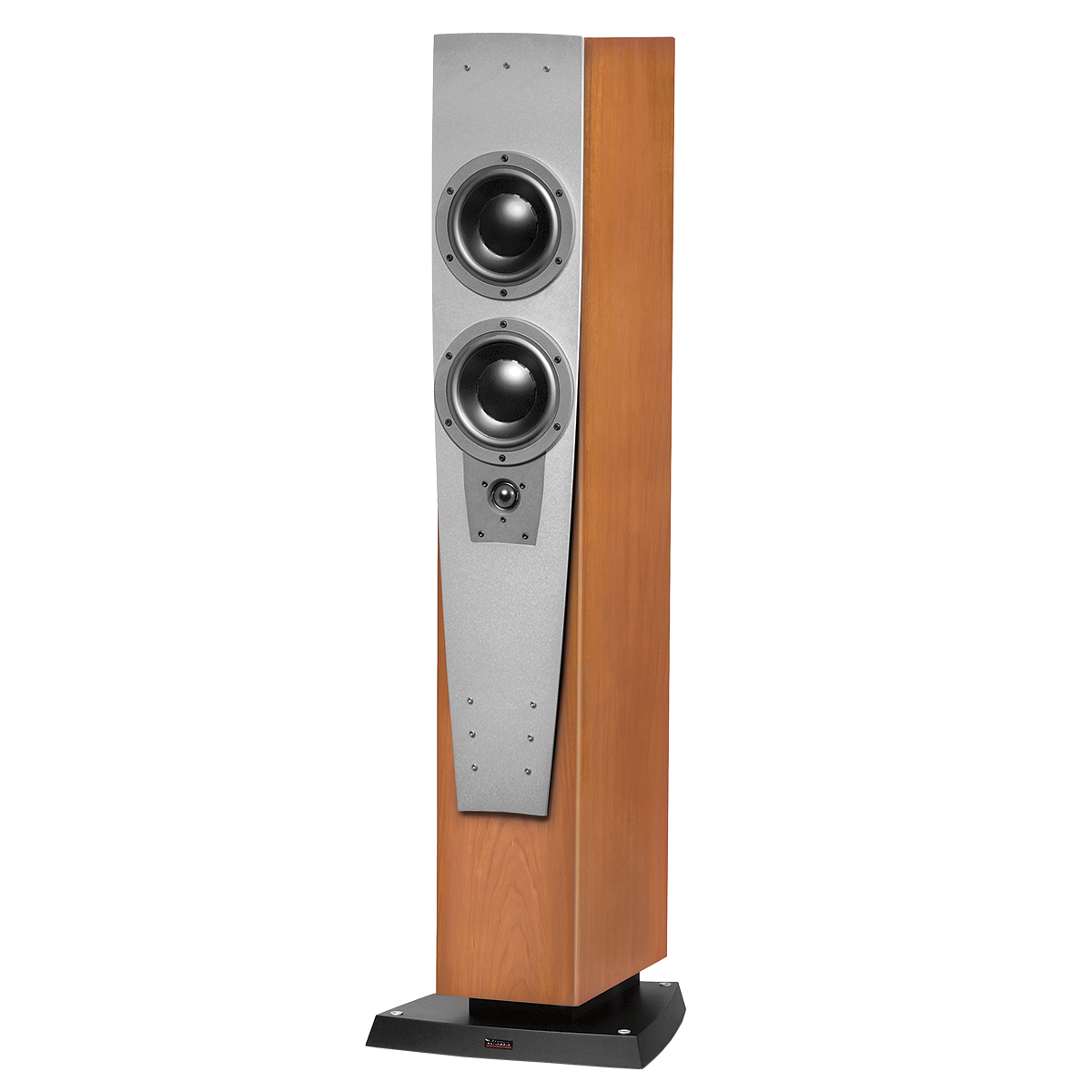

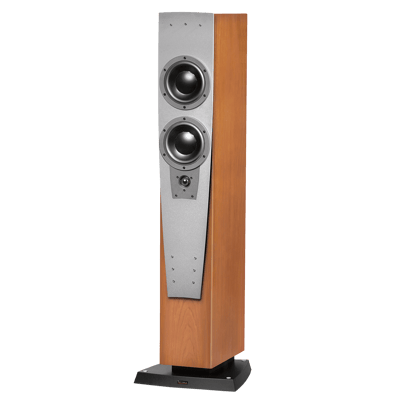

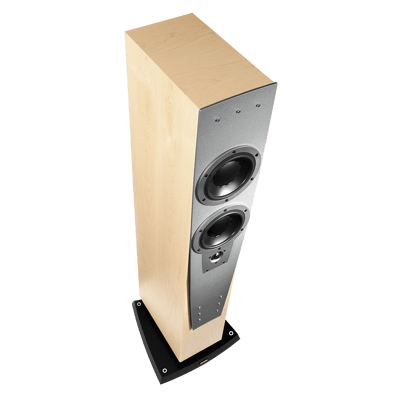

Contour S 3.4
Natural, life-like sound and precise imaging due to its incredible balance and time alignment.
The Contour Cabinet is strengthened by cross braces in specific areas to achieve a solid, vibration-free construction. Internally, the MDF walls are damped with an extremely dense material that absorbs even the most microscopic resonance.
In conjunction with the advanced metal baffle construction, an extremely stiff and rigid unit is created, further ennobled by the finely polished surface of a beautifully finished real wood veneer. The innovative base plinth, derived from the Dynaudio Confidence range, serves as a stylish yet solid stand for the speakers.
The crossover is mounted on a smaller block, between the plinth and the cabinet, away from unwanted vibrations and resonance, while using the shortest possible path-lengths to the gold plated WBT terminals. The sensitive components are thus isolated from any potential performance compromising factors. In the S 3.4, the Esotec tweeter is used; it features a double magnet system that ensures extremely high power handling and precise control of movement of the dome.
The Contour S 3.4 is available in a choice of real-wood veneer finishes: Maple, Cherry, Rosewood and Black Ash. Several other real-wood veneers and Piano Clear Lacquer, White Piano Lacquer and Black Piano Lacquer are available upon request per special order.
Contour S 3.4
Specifications
- Status Discontinued
- Segment Home
- Series Contour
- Type Floorstand
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 270
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 35
- Upper Cutoff (kHz @ +/- 3 dB) 25
- Box Principle Bass reflex rear ported
- Crossover 2.5-way
- Crossover Frequency (Hz) 2000 Hz
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 17 cm MSP
- Woofer 17 cm MSP
- Weight kg 33.3
- Weight lbs 73.4
- Width mm 357
- Height mm 1226
- Depth mm 366
- Width inches 14
- Height inches 48 2/8
- Depth inches 14 3/8
