Contour S CX

This special center speaker drew upon Dynaudio's extensive experience in developing professional studio loudspeaker technology focused on the requirements of modern multi-channel recordings: Every loudspeaker in a multi-channel system requires the same character and level of sound quality - any variances between the speakers is unacceptable to Dynaudio.

With more high-resolution multi-channel digital formats than ever, the center channel has taken on an increasingly important role. The Contour S CX utilizes extremely dynamic mid/bass drivers featuring solid aluminium voice coils to offer incredibly high power handling and remarkable low-frequency performance, even in large sized rooms.

The drivers are integrated onto the massive, damped metal front baffle for absolute resonance control in the relatively large cabinet.

The Contour S CX incorporates the advanced Esotar² soft dome tweeter to reproduce the high frequencies, achieving the highest resolution and purest, most homogenous response as recognized from the Contour S 5.4 model from which this tweeter was derived.

The Contour S CX is available in a choice of real-wood veneer finishes: Maple, Cherry, Rosewood and Black Ash. Several other real-wood veneers and Piano Clear Lacquer, White Piano Lacquer and Black Piano Lacquer are available upon request per special order.

The Center Base, as shown in the picture, is an optional accessory and has to be purchased separately.

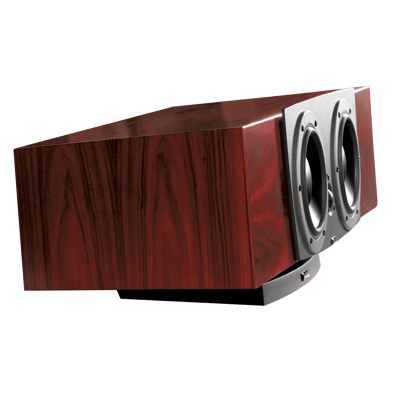

DYN_Contour_SCX_side

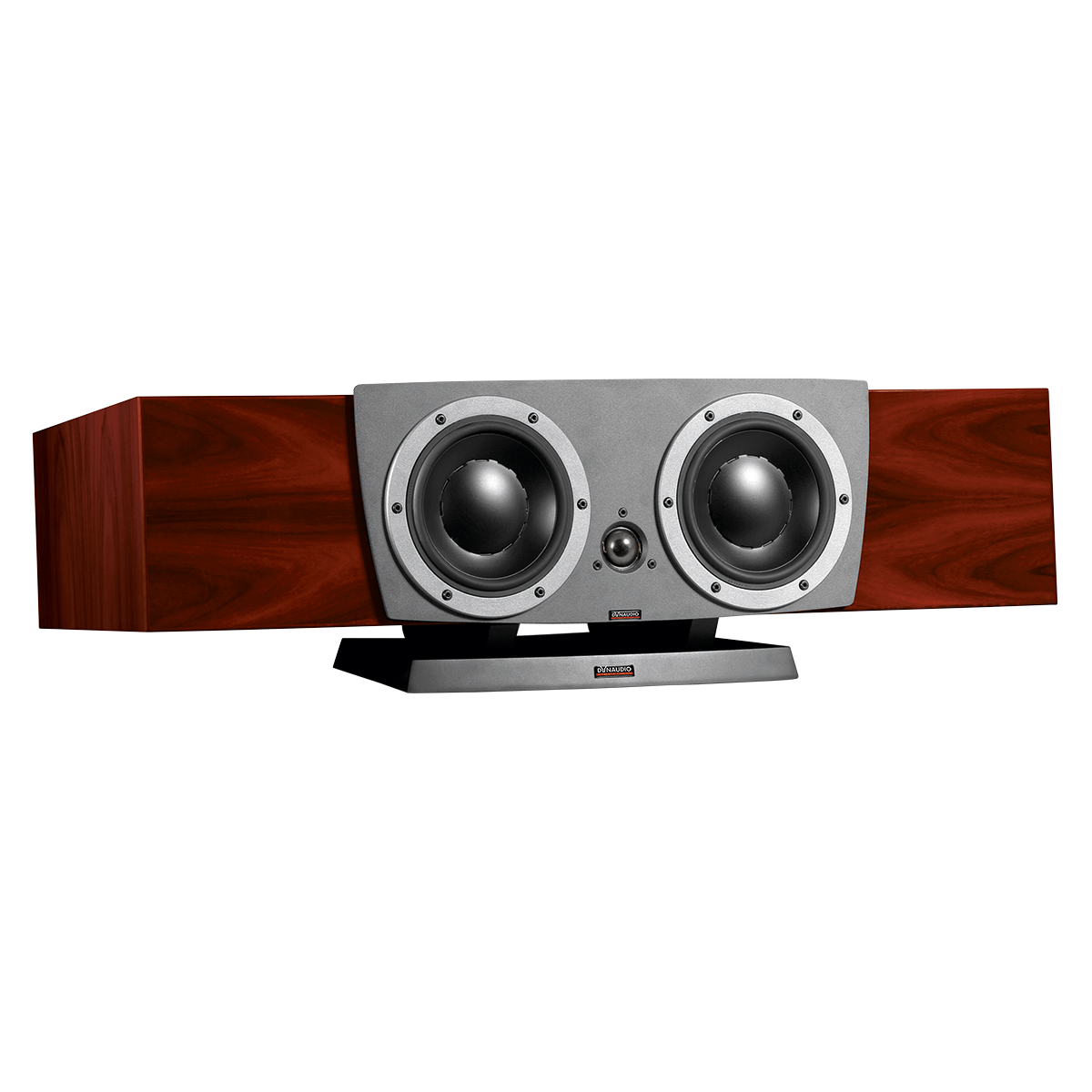

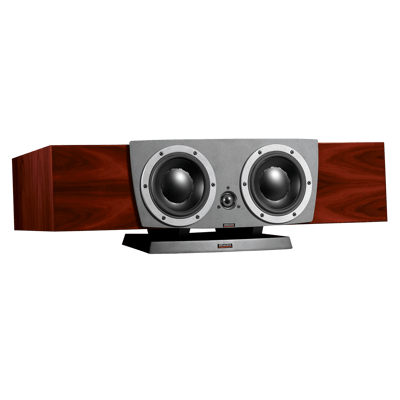

DYN_Contour_SCX_front

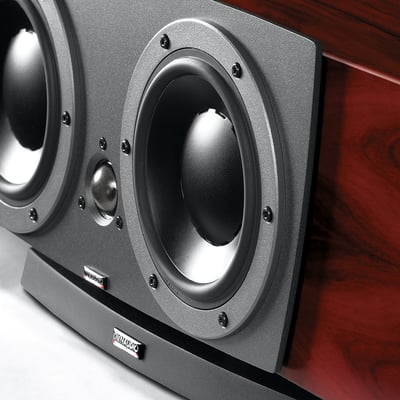

DYN_Contour_SCX_detail

Contour S CX

Specifications

  • Status Discontinued
  • Segment Home
  • Series Contour
  • Type Center
  • Sensitivity (dB @ 2.83V/1m) 87
  • IEC Long Term Power Handling (W) 300
  • Rated Impedance (Ohm) 4
  • Lower Cutoff (Hz @ +/- 3 dB) 46
  • Upper Cutoff (kHz @ +/- 3 dB) 22
  • Box Principle Bass reflex rear ported
  • Crossover 2-way
  • Crossover Frequency (Hz) 2300 Hz
DYN_Contour_SCX_rosewood

Contour S series

  • Status:
  • Segment:
  • Series:
  • Type:
  • Sensitivity (dB @ 2.83V/1m):
  • IEC Long Term Power Handling (W):
  • Rated Impedance (Ohm):
  • Lower Cutoff (Hz @ +/- 3 dB):
  • Upper Cutoff (kHz @ +/- 3 dB):
  • Box Principle:
  • Crossover:
  • Crossover Frequency (Hz):
Contour S 1.4
  • Contour S 1.4
  • Discontinued
  • Home
  • Contour
  • Bookshelf
  • 85
  • 160
  • 4
  • 41
  • 25
  • Bass reflex rear ported
  • 2-way
  • 1900 Hz
Contour S 1.4 LE
  • Contour S 1.4 LE
  • Discontinued
  • Home
  • Contour
  • Bookshelf
  • 85
  • 160
  • 4
  • 41
  • 25
  • Bass reflex rear ported
  • 2-way
  • 1900 Hz
Contour S 3.4
  • Contour S 3.4
  • Discontinued
  • Home
  • Contour
  • Floorstand
  • 86
  • 270
  • 4
  • 35
  • 25
  • Bass reflex rear ported
  • 2.5-way
  • 2000 Hz
Contour S 3.4 LE
  • Contour S 3.4 LE
  • Discontinued
  • Home
  • Contour
  • Floorstand
  • 86
  • 270
  • 4
  • 35
  • 25
  • Bass reflex rear ported
  • 2.5-way
  • 2000 Hz
Contour S 5.4
  • Contour S 5.4
  • Discontinued
  • Home
  • Contour
  • Floorstand
  • 87
  • 350
  • 4
  • 30
  • 27
  • Bass reflex rear ported
  • 3-way
  • 800,2000 HZ
Contour S C
  • Contour S C
  • Discontinued
  • Home
  • Contour
  • Center
  • 86
  • 150
  • 4
  • 65
  • 25
  • Bass reflex rear ported
  • 2-way
  • 1400 Hz
Contour S CX
  • Contour S CX
  • Discontinued
  • Home
  • Contour
  • Center
  • 87
  • 300
  • 4
  • 46
  • 22
  • Bass reflex rear ported
  • 2-way
  • 2300 Hz
Contour S R
  • Contour S R
  • Discontinued
  • Home
  • Contour
  • On-Wall
  • 86
  • 150
  • 4
  • Bass reflex rear ported
  • 2-way
  • 1400 Hz
