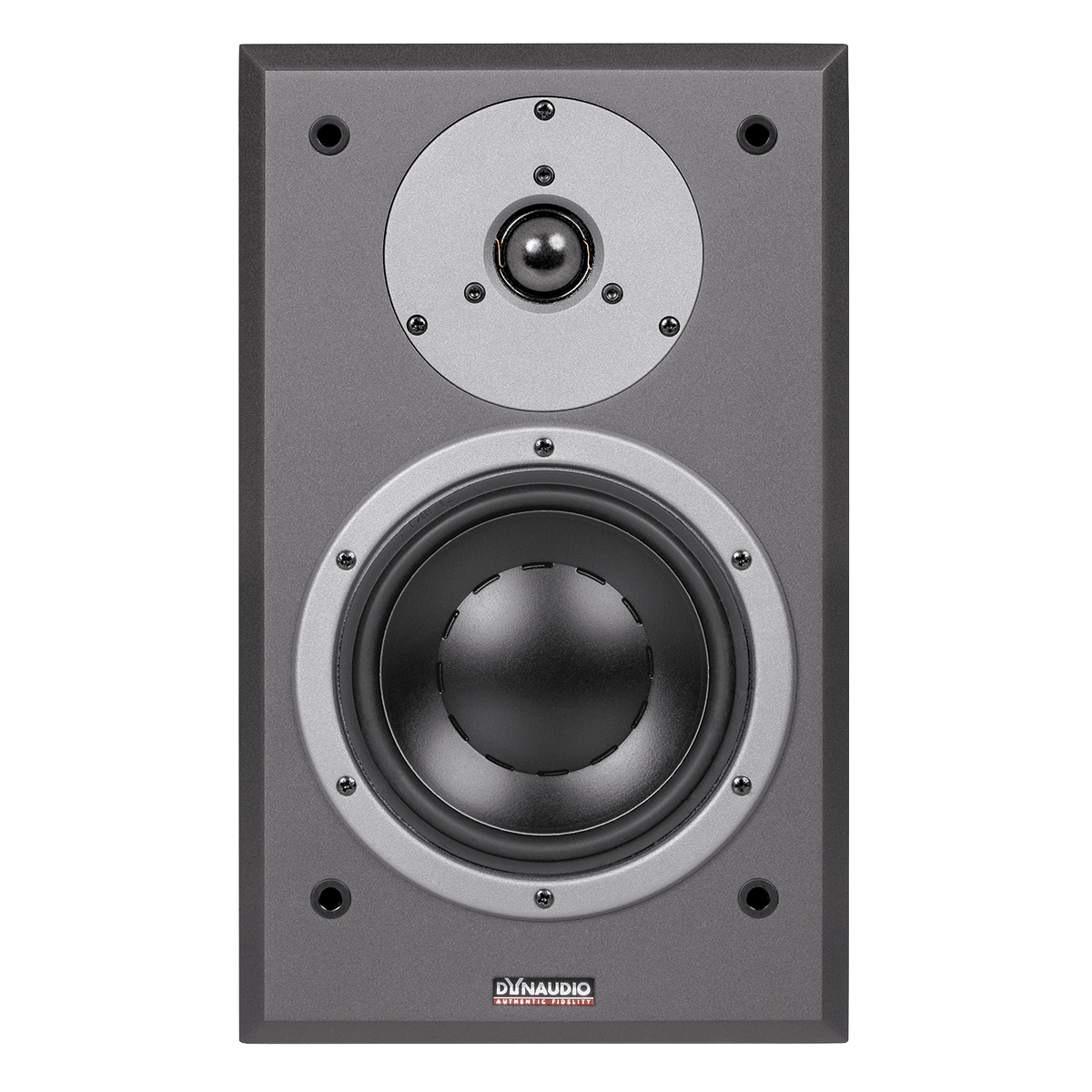

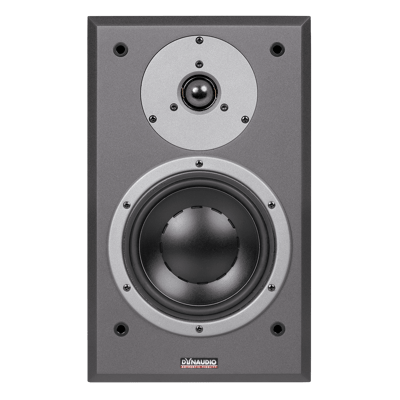

DM 2/7
The DM 2/7 model, with its classic compact loudspeaker proportions, is ideally suited for medium sized rooms and can easily be placed on a bookshelf or on a small stand – even when space is limited.

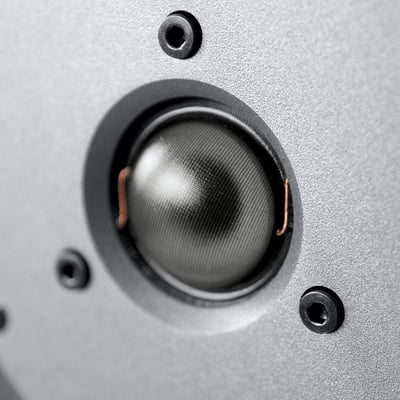

The DM 2/7's 6.5 inch (17 cm) MSP mid/bass driver works in perfect harmony with its 1.1 inch (28 mm) specially coated soft dome tweeter. The linear impedance and high power handling of the DM 2/7 make system integration easy.
The extremely solid front baffle and the rigid and additionally braced cabinet reduce unwanted resonances, even at higher volumes.
The DM 2/7 is a perfectly balanced combination of a relatively compact cabinet size and an excellent sound performance in a wide frequency range. The musical balance and classic monitor dimensions are ideal for medium sized rooms.



DM 2/7
Specifications
- Status Discontinued
- Segment Home
- Series DM
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 150
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 50
- Upper Cutoff (kHz @ +/- 3 dB) 23
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Crossover Frequency (Hz) 2600 Hz
- Crossover Topology 1st/2nd order
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 17 cm MSP
- Weight kg 7.5
- Weight lbs 16.5
- Width mm 215
- Height mm 355
- Depth mm 265
- Width inches 8 4/8
- Height inches 14
- Depth inches 10 3/8
