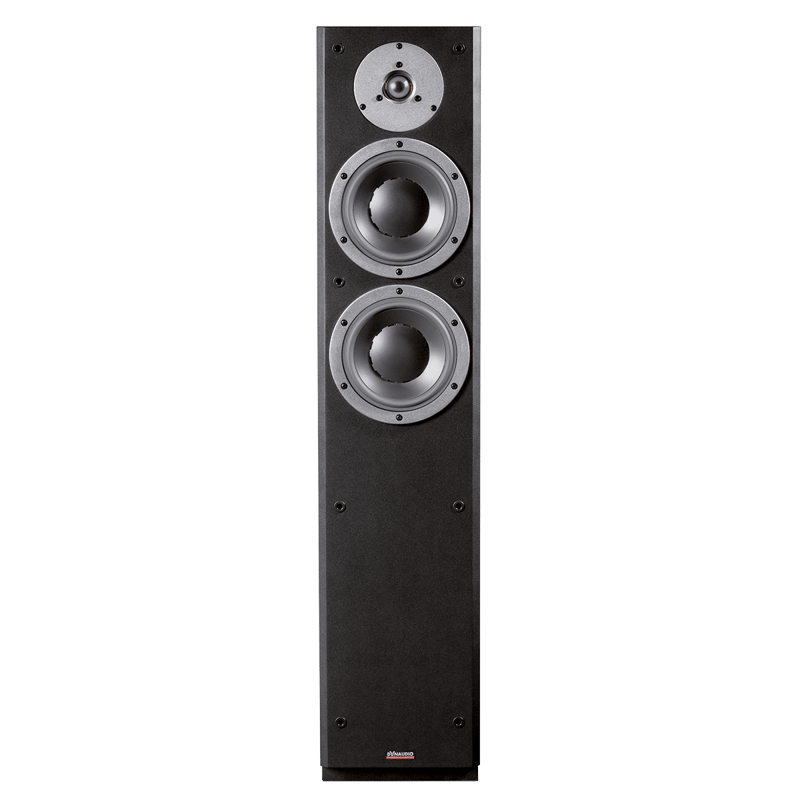

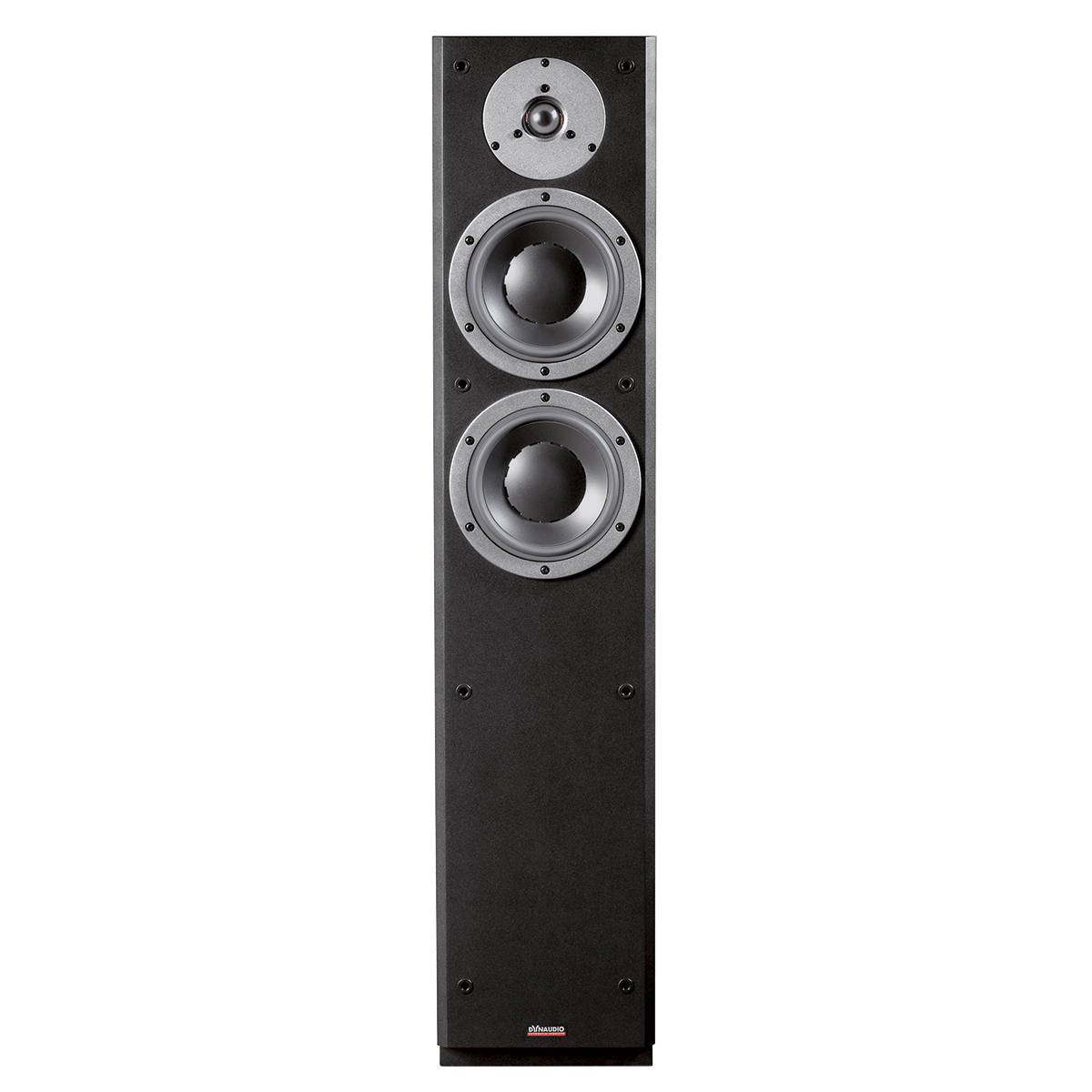

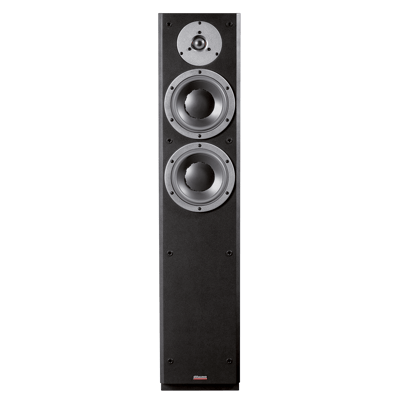

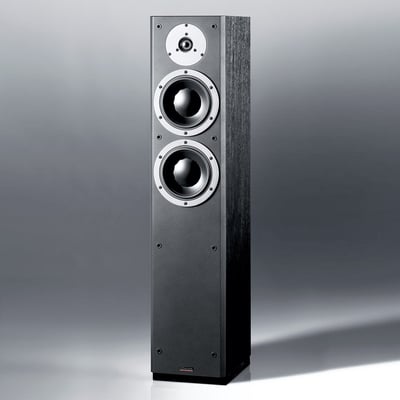

DM 3/7
High-performance 2-way floor-standing loudspeaker offering remarkable value-for-money.
The DM 3/7 is one of the finest floor-standing loudspeaker offerings in its price class. This latest Dynaudio DM series model features two 6.7 inch (17 cm) MSP (magnesium silicate polymer) mid/bass drivers equipped with large 3 inch (75 mm) diameter aluminium voice coils and rigid, low-resonance die-cast aluminium driver baskets. In concert with a large internal cabinet volume and a very solid 1 inch (25mm) front baffle, these proprietary drivers provide the DM 3/7 with the foundation for a very powerful, dynamic bass performance.
The tweeter also features renowned Dynaudio innovations: A specially-coated 1.1 inch (28 mm) diameter textile dome, an ultra-lightweight aluminium voice coil, ferrofluid damping and a powerful magnet. With this technology, the DM 3/7 provides a detailed and clear, yet homogenous and smooth high frequency reproduction. High quality crossover components and a rigid cabinet construction add to the value proposition of this loudspeaker.
The DM 3/7 is suited to a wide range of amplifiers as validated by its linear constant impedance, a sensitivity rating of 86 dB and 200W minimum long-term power handling. To facilitate the most cost effective solution, only two finishes are offered: either Rosewood or Black Ash high-quality laminates. While making the DM 3/7 extremely robust and durable, the furniture-grade quality of the laminate provides an elegant, wood-like finish.
3/7
Specifications
- Status Discontinued
- Segment Home
- Series DM
- Type Floorstand
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 200
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 40
- Upper Cutoff (kHz @ +/- 3 dB) 23
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Crossover Frequency (Hz) 1800 Hz
- Crossover Topology 2nd order
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 2x17 cm MSP
- Weight kg 18
- Weight lbs 39.7
- Width mm 204
- Height mm 960
- Depth mm 275
- Width inches 8
- Height inches 37 6/8
- Depth inches 10 7/8
