Focus 60 XD
Raising the standard for active high-end loudspeakers
The Focus 60 XD is for those seeking the best possible audio performance and completely uncompromised sound quality.
Focus 60 XD
Raising the standard for active high-end loudspeakers. The Focus 60 XD is for those seeking the best possible audio performance and completely uncompromised sound quality.

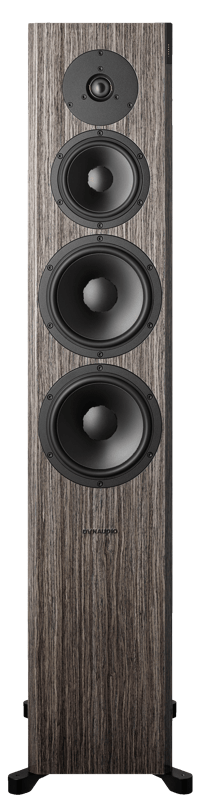

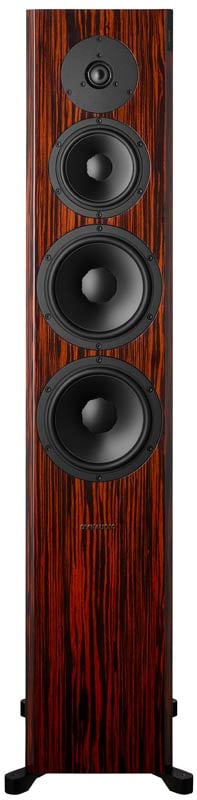

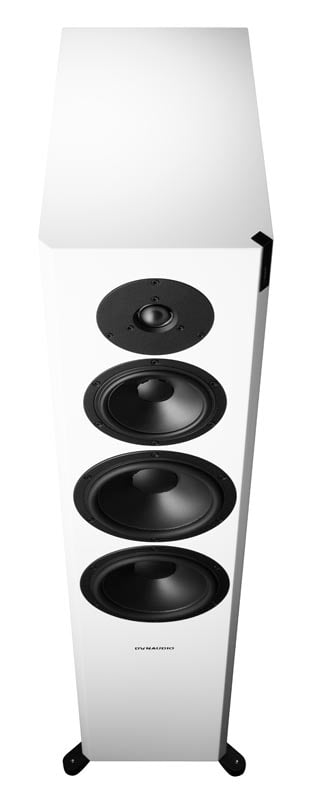

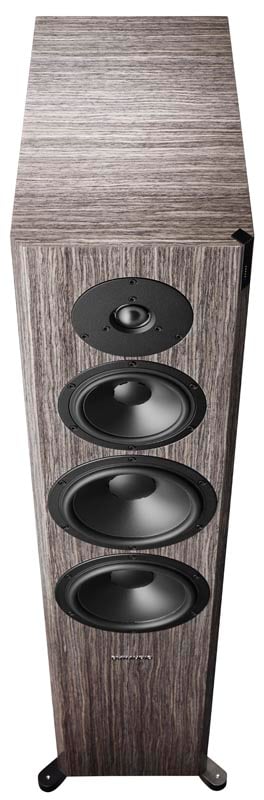

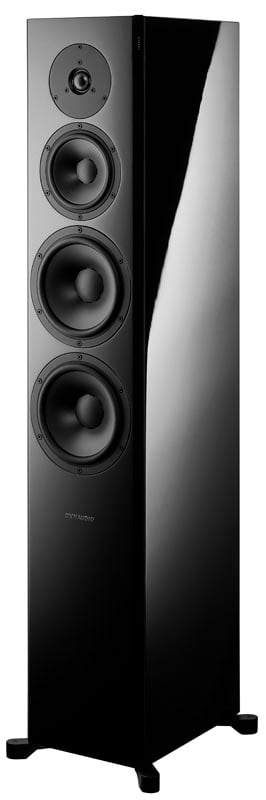

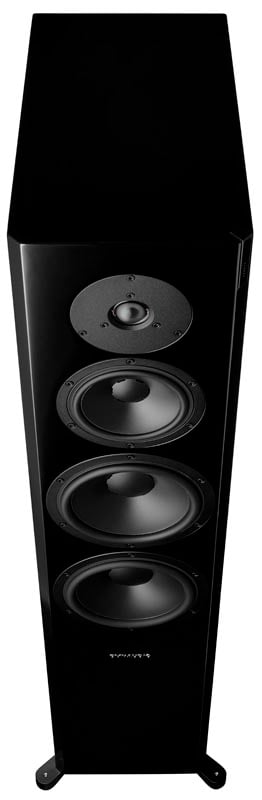

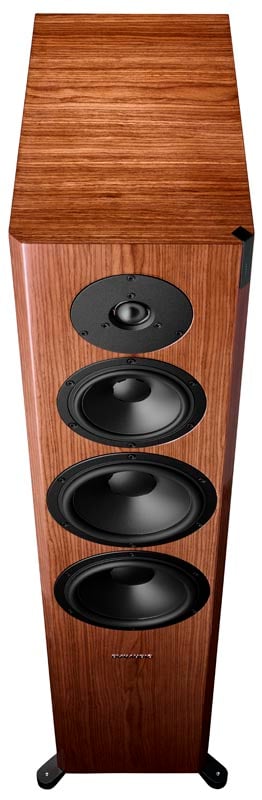

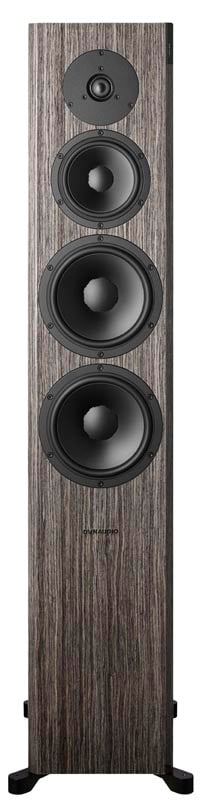

The 600W floorstanding Focus 60 XDs are the ultimate union of quality, power and performance. With twin long-throw 18cm woofers and a dedicated 14cm midrange driver – both made from our proprietary MSP material – plus our legendary 28mm soft-dome tweeter, they’re designed just as much for finesse as they are outright thump.
A complete hi-fi system
The Focus XD range is a complete hi-fi system… without the clutter of a complete hi-fi system. These high-end active speakers bring true high-resolution wireless streaming, from every conceivable source, to your home.
Send in a digital signal (wired or wireless, it’s your choice), and it’ll stay that way right up until the last possible moment – meaning it stays pure all the way from the recording studio to the speaker driver.
There’s no clutter, no fuss… and no catch.
Running the show is cutting-edge digital processing technology capable of handling full-fat, 24-bit/192kHz hi-res files.
Common controls and connections
All the speakers in the range share common controls and connections – so if you want to mix-and-match different models from the range, you can.

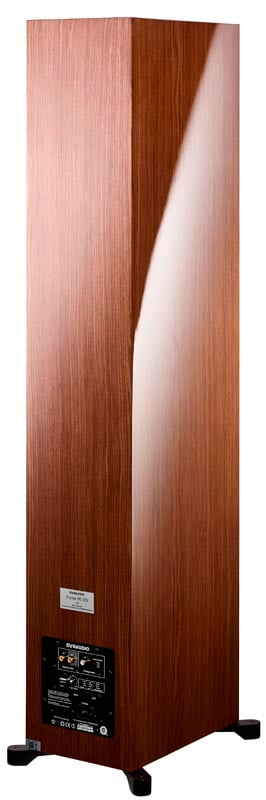

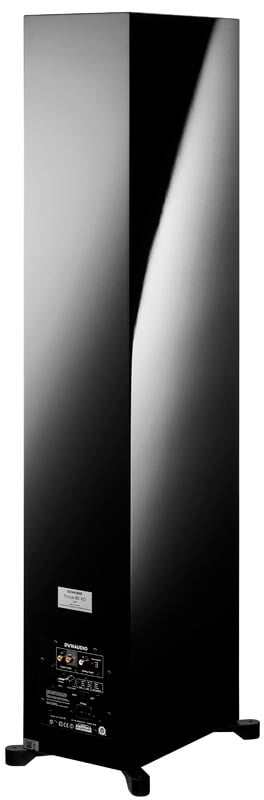

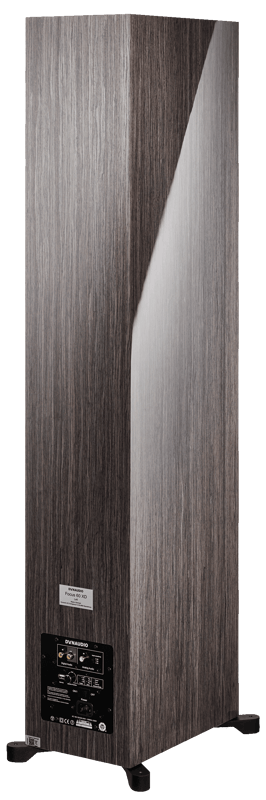

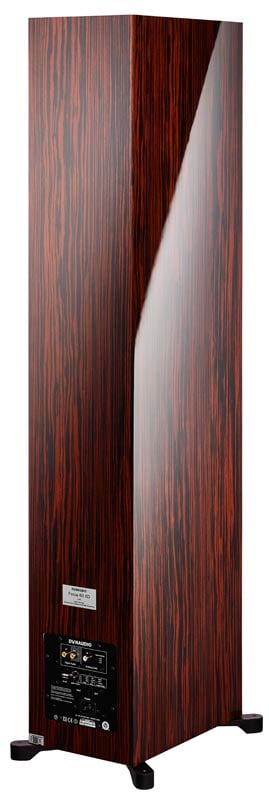

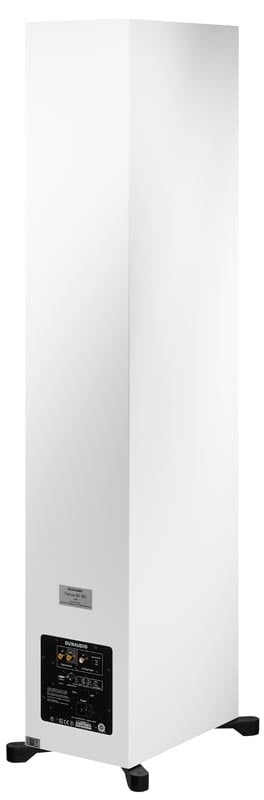

There’s digital coaxial in and out, plus analogue input (with adjustable sensitivity), as well as a seven-position control for fine-tuning the speakers’ placement in your room.
And if you add the Dynaudio Connect box, you get digital optical, another digital coaxial and RCA and 3.5mm analogue inputs – plus mini-USB (which can stream 24-bit/96kHz files), aptX Bluetooth and Wi-Fi connectivity (including DLNA).
Genuine high-end wireless hi-fi
The Focus XD’s firmware can even be upgraded when our engineers have another Eureka! moment (they get them a lot).
In fact, that’s exactly what’s just happened. In the 2017 version, not only have they redesigned the crossovers and found a way to use less processing (for even cleaner reproduction), they’ve managed to extract more volume from the drivers without distortion or compression. And because there’s less processing happening there, we’ve been able to use more in the EQ for even better speaker-position compensation.
We’ve also included tech from our LYD pro-studio monitors that lets you tweak overall brightness with a switch on the back.
Use them with your existing system (they’ll integrate just fine), build a multiroom set-up (you can use them with the Xeo range too), or even hook them up to your TV… while getting genuine high-end wireless hi-fi into the bargain.
Focus 60 XD
Specifications
- Status Discontinued
- Segment Home
- Series Focus XD
- Type Floorstand
- Analog inputs (Primary) 1x RCA
- Digital inputs (Primary) 1x RCA Coax
- Digital outputs (Primary) 1x RCA Coax
- Wireless inter-speaker connection 24-bit / 96 kHz
- Amplifier Power Woofer (W) 150
- Amplifier Power midrange (W) 150
- Amplifier Power Tweeter (W) 150
- AC Power Input 100-240V 50/60Hz
- Max Stand-by Power Consumption (W) 0.5
- Max Power Consumption (W) 200
- Lower Cutoff (Hz @85 dB +/- 3 dB) 20
- Upper Cutoff (kHz @ 85dB +/- 3 dB) 24
- Box Principle Sealed
- Crossover 3-way DSP-based
- Crossover Frequency (Hz) 270,3100 Hz
- Tweeter 28mm soft dome
- Midrange 14 cm MSP
- Woofer 2x18 cm MSP
- Weight kg 27
- Weight lbs 60
- Width mm 213
- Height mm 1095
- Depth mm 337
- Width inches 8 3/8
- Height inches 43 1/8
- Depth inches 13 2/8

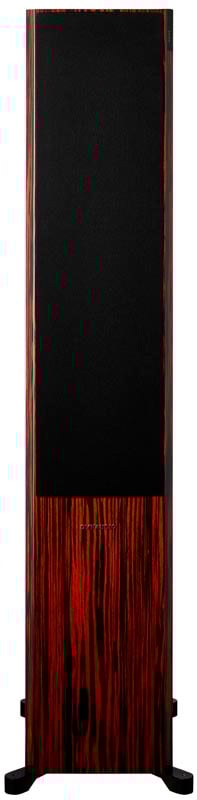

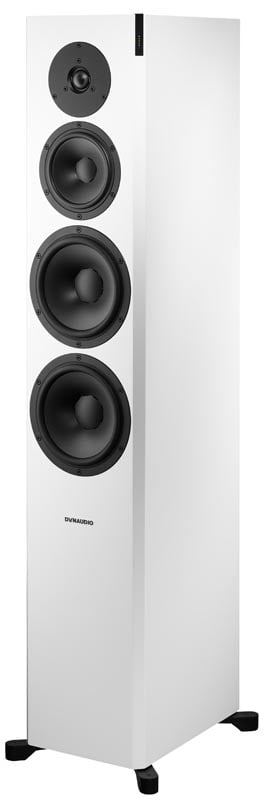

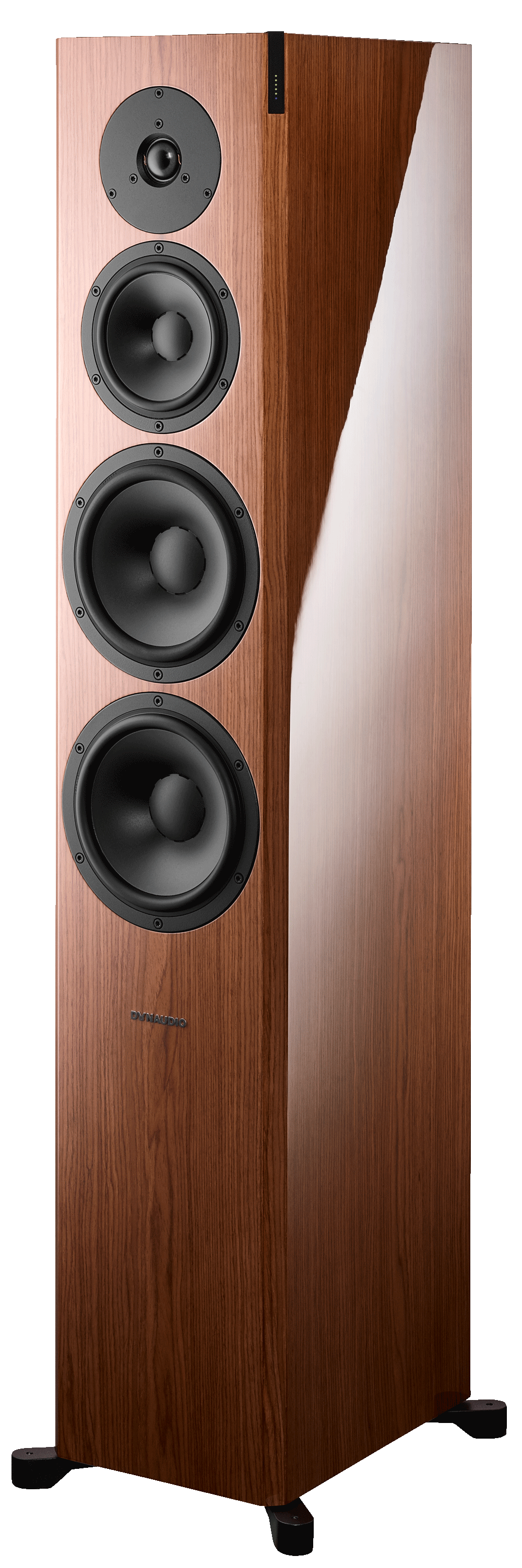

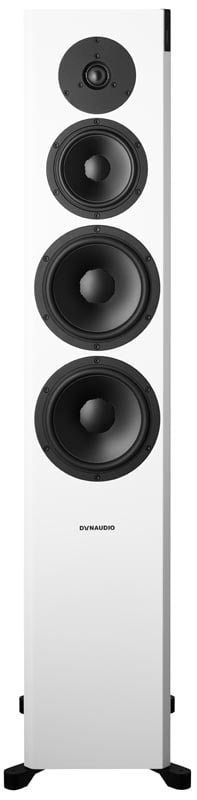

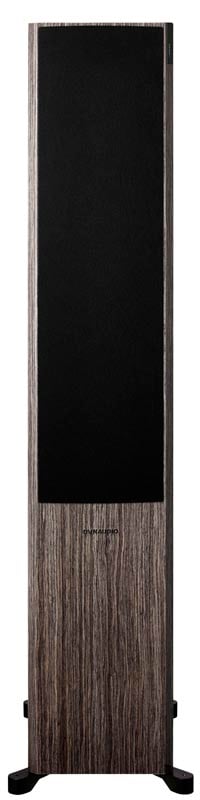

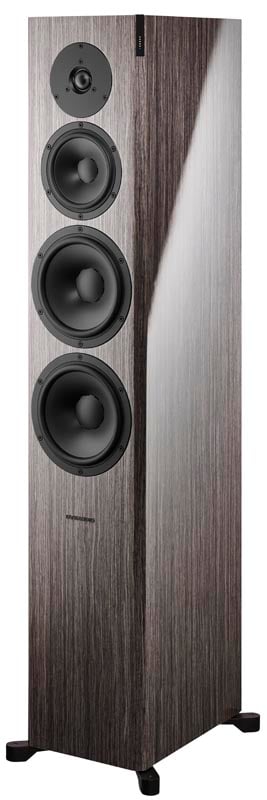

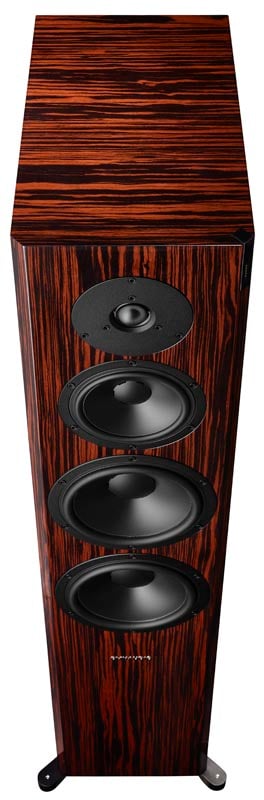

- Finishes Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG

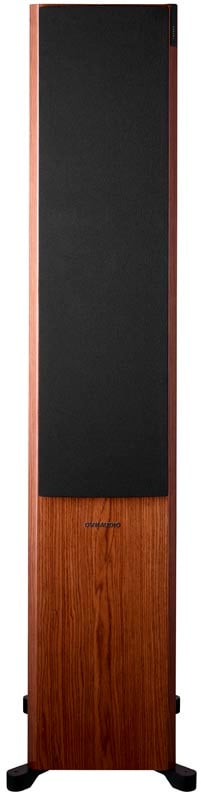

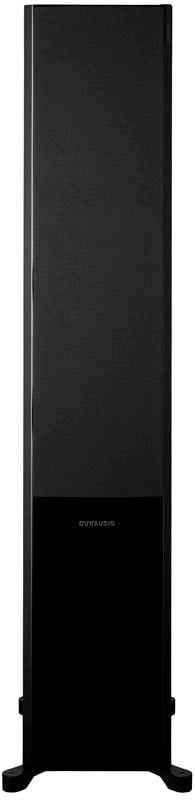

- Grille Black
This is an awesome new tuning – a clear improvement that you’ll hear instantly
Roland Hoffmann, Director
Reviews
So good it makes you question your choices
So good it makes you question your choices
It’s safe to say that our Focus 60 XDs made an impression on Australian Audio Esoterica… After auditioning them, the seasoned reviewer, Tony Morgan, even questions why you’d ever want anything different. Read our favourite quotes from the stunning review below:
Australian Audio Esoterica
Focus XD series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs (Primary):
- Digital inputs (Primary):
- Digital outputs (Primary):
- Wireless inter-speaker connection:
- Amplifier Power Woofer (W):
- Amplifier Power midrange (W):
- Amplifier Power Tweeter (W):
- AC Power Input:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):
- Upper Cutoff (kHz @ 85dB +/- 3 dB):
- Box Principle:
- Crossover:
- Crossover Frequency (Hz):
- Tweeter:
- Midrange:
- Midrange/Woofer:
- Woofer:
- Weight kg:
- Weight lbs:
- Width mm:
- Height mm:
- Depth mm:
- Width inches:
- Height inches:
- Depth inches:
- Finishes:
- Grille:
Focus 20 XD
- Discontinued
- Home
- Focus XD
- Bookshelf
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 39
- 24
- Bass reflex rear port
- 2-way DSP based
- 2500 Hz
- 28mm soft dome
- 17 cm MSP
- 8.65
- 19
- 198
- 360
- 307
- 7 6/8
- 14 1/8
- 12 1/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
Focus 60 XD
- Discontinued
- Home
- Focus XD
- Floorstand
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 20
- 24
- Sealed
- 3-way DSP-based
- 270,3100 Hz
- 28mm soft dome
- 14 cm MSP
- 2x18 cm MSP
- 27
- 60
- 213
- 1095
- 337
- 8 3/8
- 43 1/8
- 13 2/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
Focus 30 XD
- Discontinued
- Home
- Focus XD
- Floorstand
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 29
- 24
- Bass reflex rear port
- 2.5-way DSP based
- (300),2500 Hz
- 28mm soft dome
- 17 cm MSP
- 17 cm MSP
- 18.5
- 41
- 198
- 980
- 307
- 7 6/8
- 38 5/8
- 12 1/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
