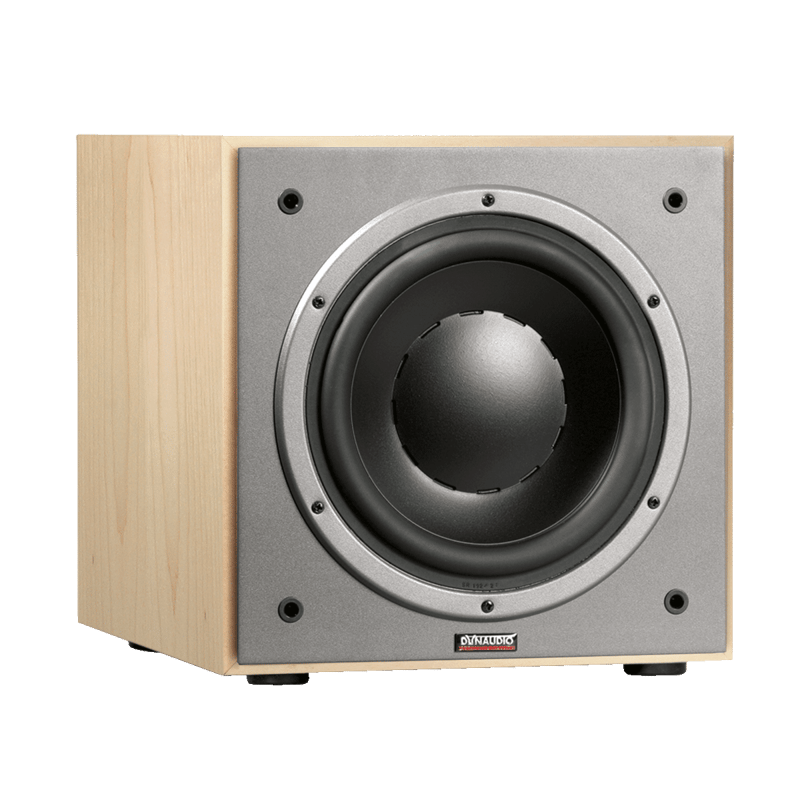

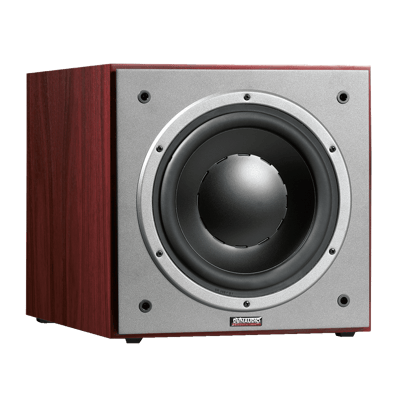

Sub 250
A subwoofer serves to provide more to a system than simply add deep bass.
Incorporating a subwoofer to augment the low frequency performance of any stereo or multi-channel loudspeaker system offers an additional benefit: by reducing the strain on the speakers in terms of reproducing extreme bass information, the overall quality of midrange frequencies and the soundstage reproduction in general are greatly improved.
The High- Pass filter on the Sub 250 crossover enhances the general performance and imaging of the main speakers by reducing inter-modulation distortion. The SUB 250 model is the most compact sub-bass solution from Dynaudio.
Utilizing its powerful 10" woofer in a sealed enclosure that measures less than a cubic metric foot, the Sub 250 delivers a very high level of performance in multi-channel or sub/sat applications where only a modest sized subwoofer would fit.

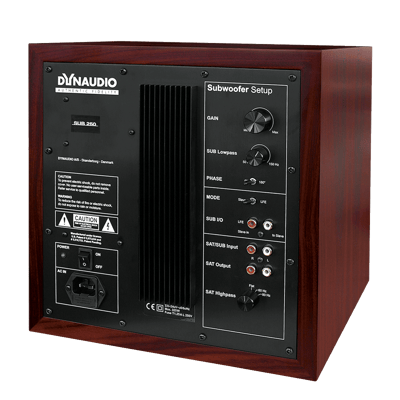

Incorporating a 200 Watt amplifier, its back panel features a selectable gain setting, a variable Low-Pass Filter (50 Hz to 150 Hz), and a selectable phase switch (0º or 180º). There is one LFE RCA input and output, as well as an RCA SAT/SUB Input and an RCA SAT output.
The SAT High-Pass Filter is also selectable (Flat, 60 Hz, or 80 Hz). The band-pass filtered inputs and outputs make it perfectly suited as a mate for any of the Dynaudio compact monitors in a high quality sub/sat stereo system, where it would produce a purely audiophile grade performance.
Sub 250
Specifications
- Status Discontinued
- Segment Home
- Series Subwoofers
- Type Subwoofer
- Analog inputs 1x RCA LFE, 2x RCA stereo
- Analog outputs 1x RCA Slave out, 2x RCA SAT out
- Amplifier Power (W) 200W
- AC Power Input 100-120 V/200-240 V 50/60 Hz
- Max Stand-by Power Consumption (W) 0,5
- Lower Cutoff (Hz @85 dB +/- 3 dB) 29
- Upper Cutoff (Hz @ 85dB +/- 3 dB) 250
- Box Principle Sealed
- Low pass filter 50Hz-150Hz
- High pass filter Flat / 60 Hz / 80 Hz
- Phase adjustment 0/180 degrees
- Woofer 24 cm MSP
- Weight kg 10
- Weight lbs 22
- Width mm 289
- Height mm 294
- Depth mm 318
- Width inches 11 3/8
- Height inches 11 5/8
- Depth inches 12 4/8
- Width mm incl. feet/grill 266
- Height mm incl. feet/grill 271
- Depth mm incl. feet/grill 271
- Width inches incl. feet/grill 10 4/8
- Height inches incl. feet/grill 10 5/8
- Depth inches incl. feet/grill 10 5/8
- Grille Black, Grey
Find a dealer
Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.
Sign up to a listening session
{name}
{name}
- {productImages}
Products
The Sub series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs:
- Analog outputs:
- Amplifier Power (W):
- AC Power Input:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):
- Upper Cutoff (Hz @ 85dB +/- 3 dB):
- Box Principle:
- Low pass filter:
- High pass filter:
- Phase adjustment:
- Woofer:
- Weight kg:
- Weight lbs:
- Width mm:
- Height mm:
- Depth mm:
- Width inches:
- Height inches:
- Depth inches:
- Width mm incl. feet/grill:
- Height mm incl. feet/grill:
- Depth mm incl. feet/grill:
- Width inches incl. feet/grill:
- Height inches incl. feet/grill:
- Depth inches incl. feet/grill:
- Grille:
Sub 250 II
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
- Sealed
- 50Hz-150Hz
- Flat / 60 Hz / 80 Hz
- 0/180 degrees
- 24 cm MSP
- 7.2
- 15.9
- 266
- 271
- 308
- 10 4/8
- 10 5/8
- 12 1/8
- 266
- 271
- 323
- 10 4/8
- 10 5/8
- 12 6/8
- Black, Grey
Sub 250 SAT
- Discontinued
- Home
- Subwoofers
- Subwoofer
- 1x RCA LFE, 2x RCA stereo
- 1x RCA Slave out, 2x RCA SAT out
- 200W
- 100-120 V/200-240 V 50/60 Hz
- 0,5
- 29
- 250
- Sealed
- 50Hz-150Hz
- Flat / 60 Hz / 80 Hz
- 0/180 degrees
- 24 cm MSP
- 10
- 22
- 289
- 294
- 318
- 11 3/8
- 11 5/8
- 12 4/8
- 266
- 271
- 323
- 10 4/8
- 10 5/8
- 12 6/8
- Black, Grey
