Sub 500

Sub 500

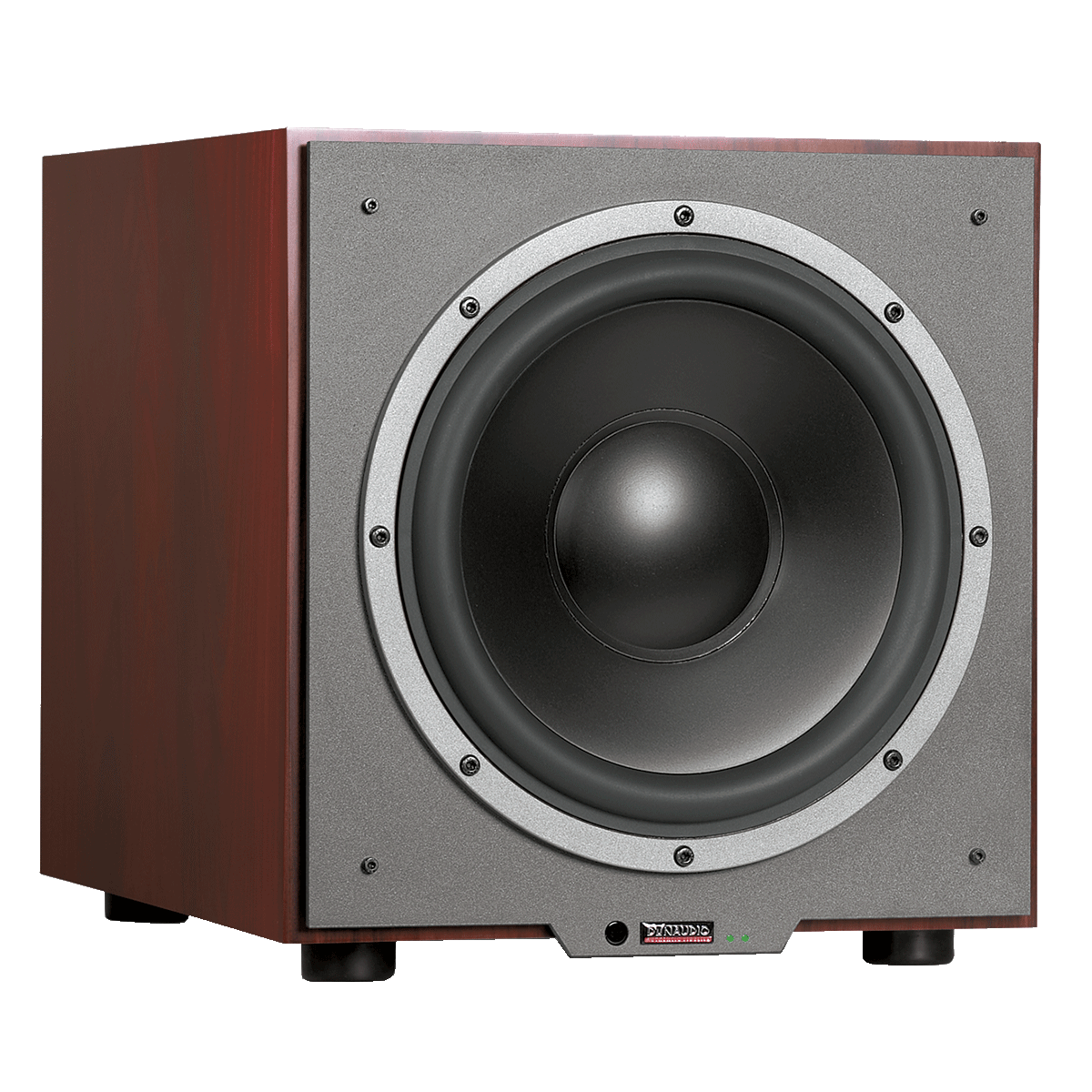

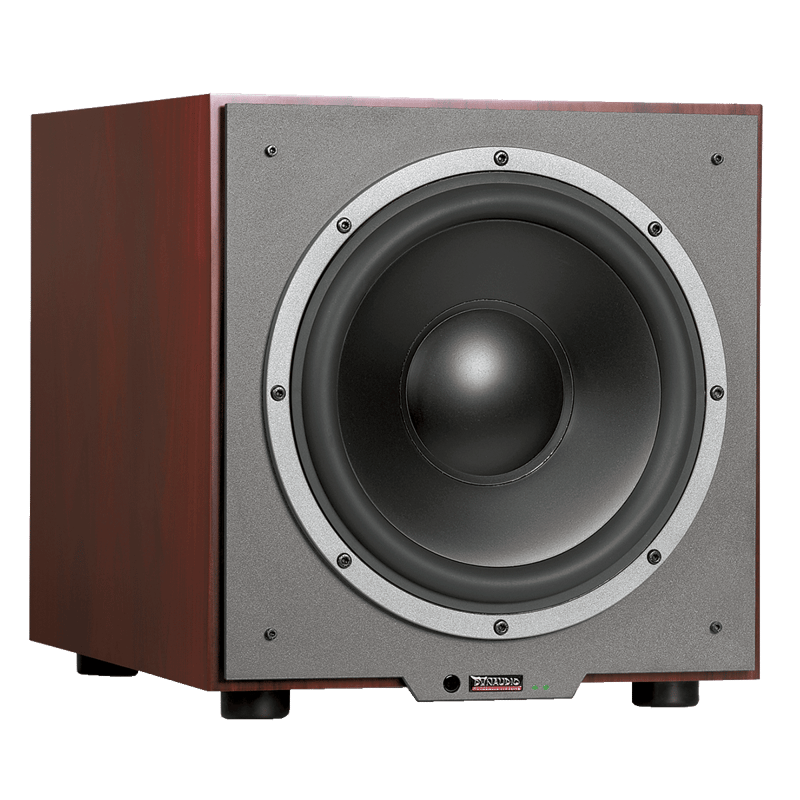

The Sub 500 is the perfect complement for ambitious multi-channel systems where deep and dynamic sub-bass is coveted and true Dynaudio sound quality is desired.

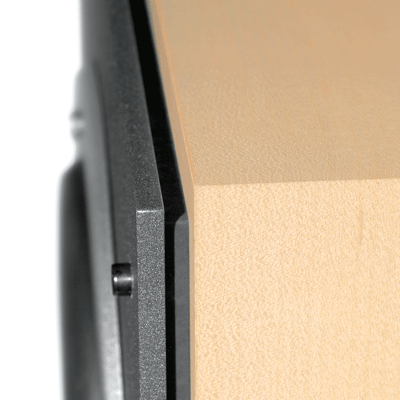

A 12' woofer, featuring a die-cast aluminium frame, is integrated into a metal baffle in a sealed cabinet. Mounting the driver to the cabinet follows Dynaudio's established design principle where a multi-layered sandwich construction is employed: Fusing the thick, stiff metal baffle to the MDF enclosure is a sheet of special dampening material.

This construction effectively eliminates any unwanted resonance and serves as the perfect foundation to optimize the fast and powerful transient signals from the driver. It is powered by a 250 Watt amplifier utilizing the innovative Dynaudio CEC (Cone Excursion Control) technology, and features full remote control operation of all adjustments: Selecting level, phase, cross-over frequency, extended bass mode, and the four individual memory presets. Its back panel is outfitted with both RCA and XLR inputs and outputs, the master/slave switch, as well as the memory protect switch.

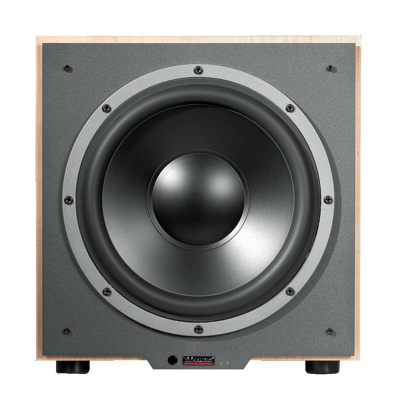

The subwoofer driver may be concealed from view by the elegantly sculpted removable black fabric grill, which is itself attached to the baffle via concealed magnets.

Status Discontinued
Segment Home
Series Subwoofers
Type Subwoofer
Analog inputs 1x RCA, 1x XLR
Analog outputs 1x RCA, 1x XLR
Amplifier Power (W) 250W
AC Power Input 100-120 V/200-240 V 50/60 Hz
Max Stand-by Power Consumption (W) 0,5
Lower Cutoff (Hz @85 dB +/- 3 dB) 18
Upper Cutoff (Hz @ 85dB +/- 3 dB) 250
Box Principle Sealed
Low pass filter Flat / 60 / 80 / 100 Hz
Phase adjustment 0/90/180/280 degrees
Woofer 30 cm MSP
Weight kg 30.6
Weight lbs 67.5
Width mm 360
Height mm 378
Depth mm 568
Width inches 14 1/8
Height inches 14 7/8
Depth inches 22 3/8

The Sub series

Status:
Segment:
Series:
Type:
Analog inputs:
Analog outputs:
Amplifier Power (W):
AC Power Input:
Max Stand-by Power Consumption (W):
Max Power Consumption (W):
Lower Cutoff (Hz @85 dB +/- 3 dB):
Upper Cutoff (Hz @ 85dB +/- 3 dB):
Box Principle:
Low pass filter:
High pass filter:
Phase adjustment:
Woofer:
Weight kg:
Weight lbs:
Width mm:
Height mm:
Depth mm:
Width inches:
Height inches:
Depth inches:
Width mm incl. feet/grill:
Height mm incl. feet/grill:
Depth mm incl. feet/grill:
Width inches incl. feet/grill:
Height inches incl. feet/grill:
Depth inches incl. feet/grill:
Grille:

Sub 250 II
Discontinued
Home
Subwoofers
Subwoofer
1x RCA LFE, 2x RCA stereo
1x RCA Slave out, 2x RCA SAT out
200W
100-120 V/200-240 V 50/60 Hz
0,5
29
250
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
24 cm MSP
7.2
15.9
266
271
308
10 4/8
10 5/8
12 1/8
266
271
323
10 4/8
10 5/8
12 6/8
Black, Grey

Sub 600
Discontinued
Home
Subwoofers
Subwoofer
1x RCA LFE, 2x RCA stereo
1x RCA Slave out, 2x RCA SAT out
300W
100-120 V/200-240 V 50/60 Hz
0,5
325
18
250
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
30 cm MSP
21
46.3
350
370
420
13 6/8
14 5/8
16 4/8
350
370
435
13 6/8
14 5/8
17 1/8
Black

Sub 250
Discontinued
Home
Subwoofers
Subwoofer
1x RCA LFE, 2x RCA stereo
1x RCA Slave out, 2x RCA SAT out
200W
100-120 V/200-240 V 50/60 Hz
0,5
29
250
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
24 cm MSP
10
22
289
294
318
11 3/8
11 5/8
12 4/8
266
271
271
10 4/8
10 5/8
10 5/8
Black, Grey

Sub 250 SAT
Discontinued
Home
Subwoofers
Subwoofer
1x RCA LFE, 2x RCA stereo
1x RCA Slave out, 2x RCA SAT out
200W
100-120 V/200-240 V 50/60 Hz
0,5
29
250
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
24 cm MSP
10
22
289
294
318
11 3/8
11 5/8
12 4/8
266
271
323
10 4/8
10 5/8
12 6/8
Black, Grey

Sub 250MC
Discontinued
Home
Subwoofers
Subwoofer
1x RCA LFE, 2x RCA stereo
1x RCA Slave out, 2x RCA SAT out
200W
100-120 V/200-240 V 50/60 Hz
0,5
29
250
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
24 cm MSP
10
22
289
294
318
11 3/8
11 5/8
12 4/8
266
271
323
10 4/8
10 5/8
12 6/8
Black, Grey

Sub 300
Discontinued
Home
Subwoofers
Subwoofer
1x RCA, 1x XLR
1x RCA, 1x XLR
200W
100-120 V/200-240 V 50/60 Hz
0,5
25
250
Ported
Flat / 60 / 80 / 100 Hz
0/90/180/280 degrees
24 cm MSP
19.1
42.1
320
338
466
12 5/8
13 2/8
18 3/8

Sub 500
Discontinued
Home
Subwoofers
Subwoofer
1x RCA, 1x XLR
1x RCA, 1x XLR
250W
100-120 V/200-240 V 50/60 Hz
0,5
18
250
Sealed
Flat / 60 / 80 / 100 Hz
0/90/180/280 degrees
30 cm MSP
30.6
67.5
360
378
568
14 1/8
14 7/8
22 3/8
