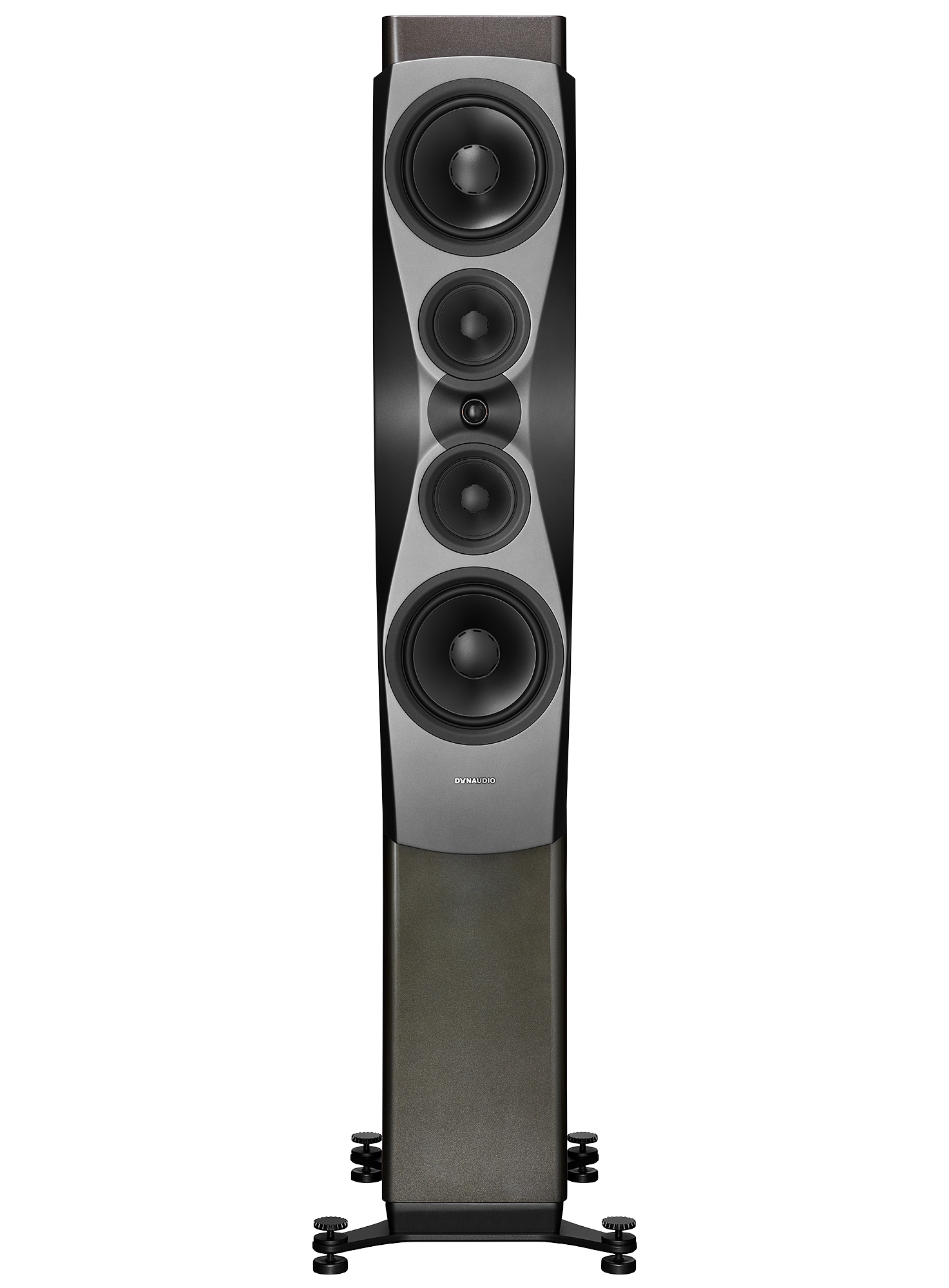

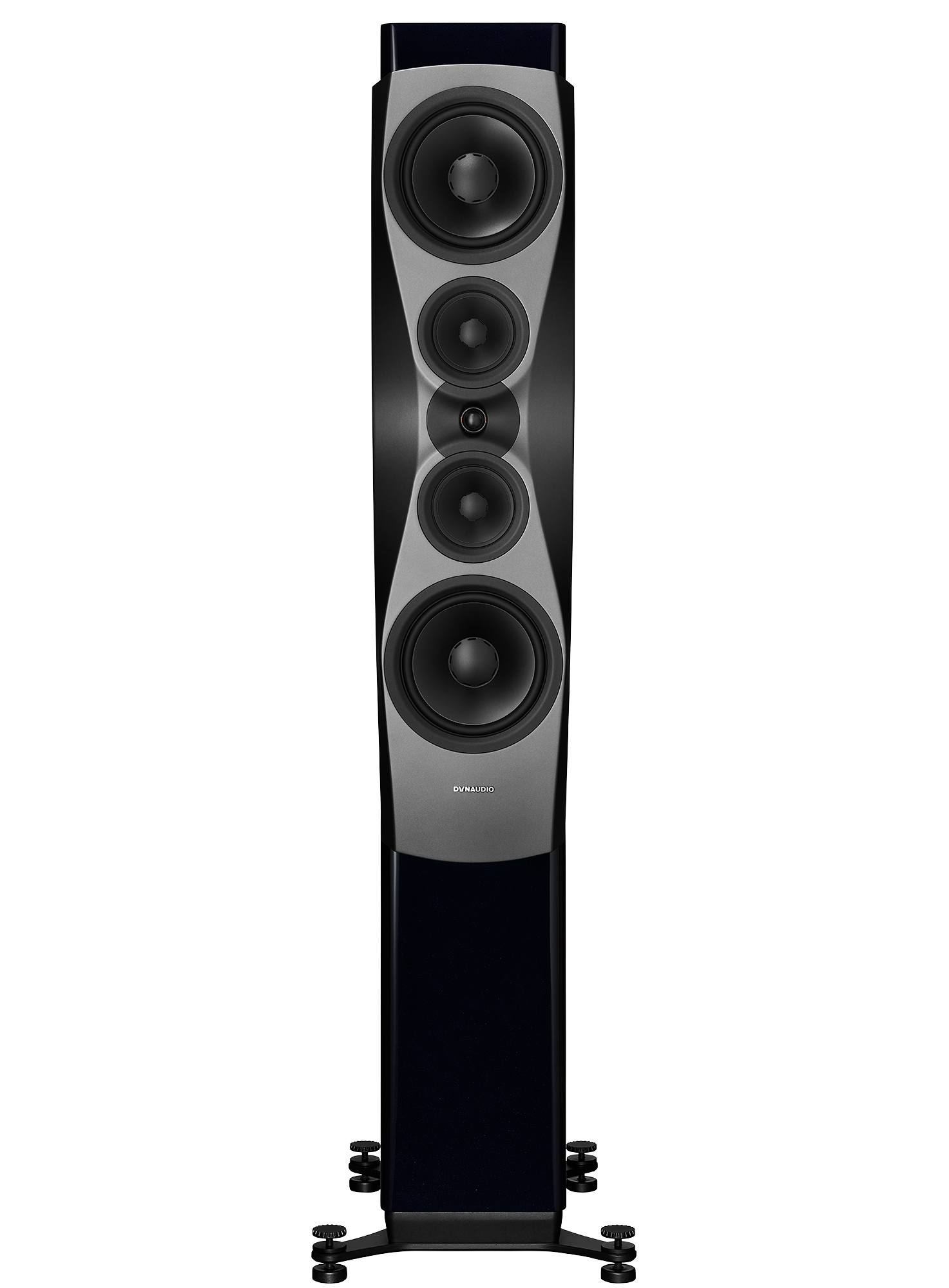

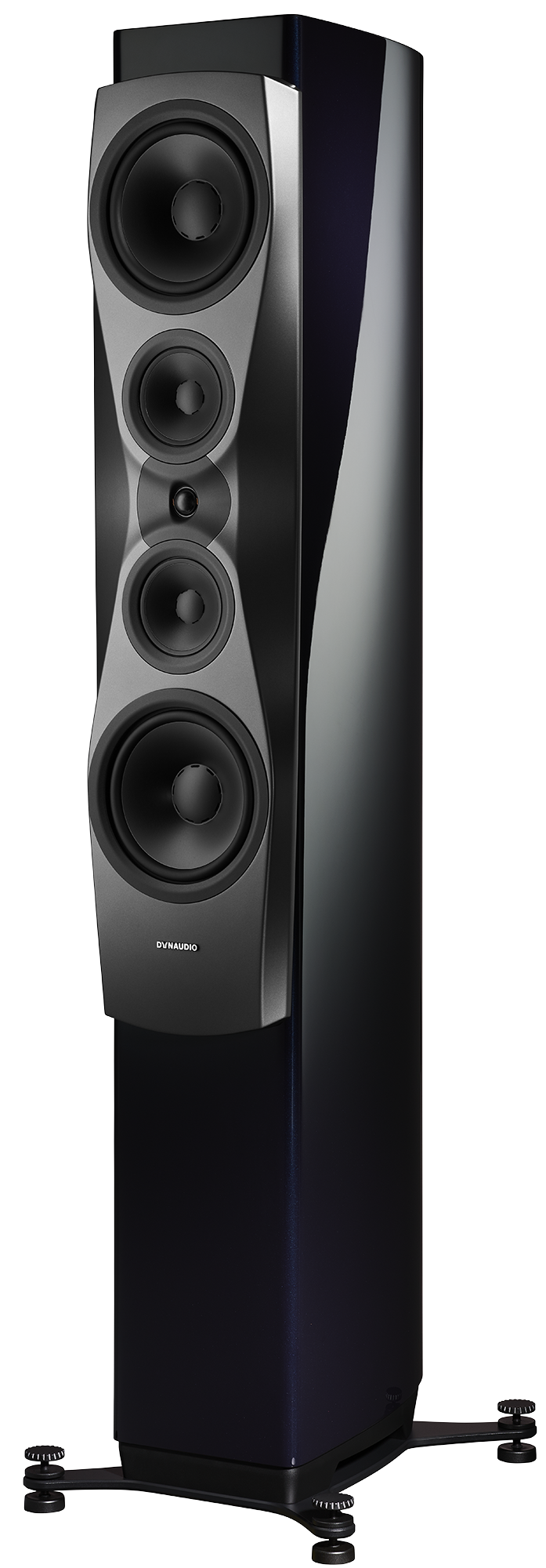

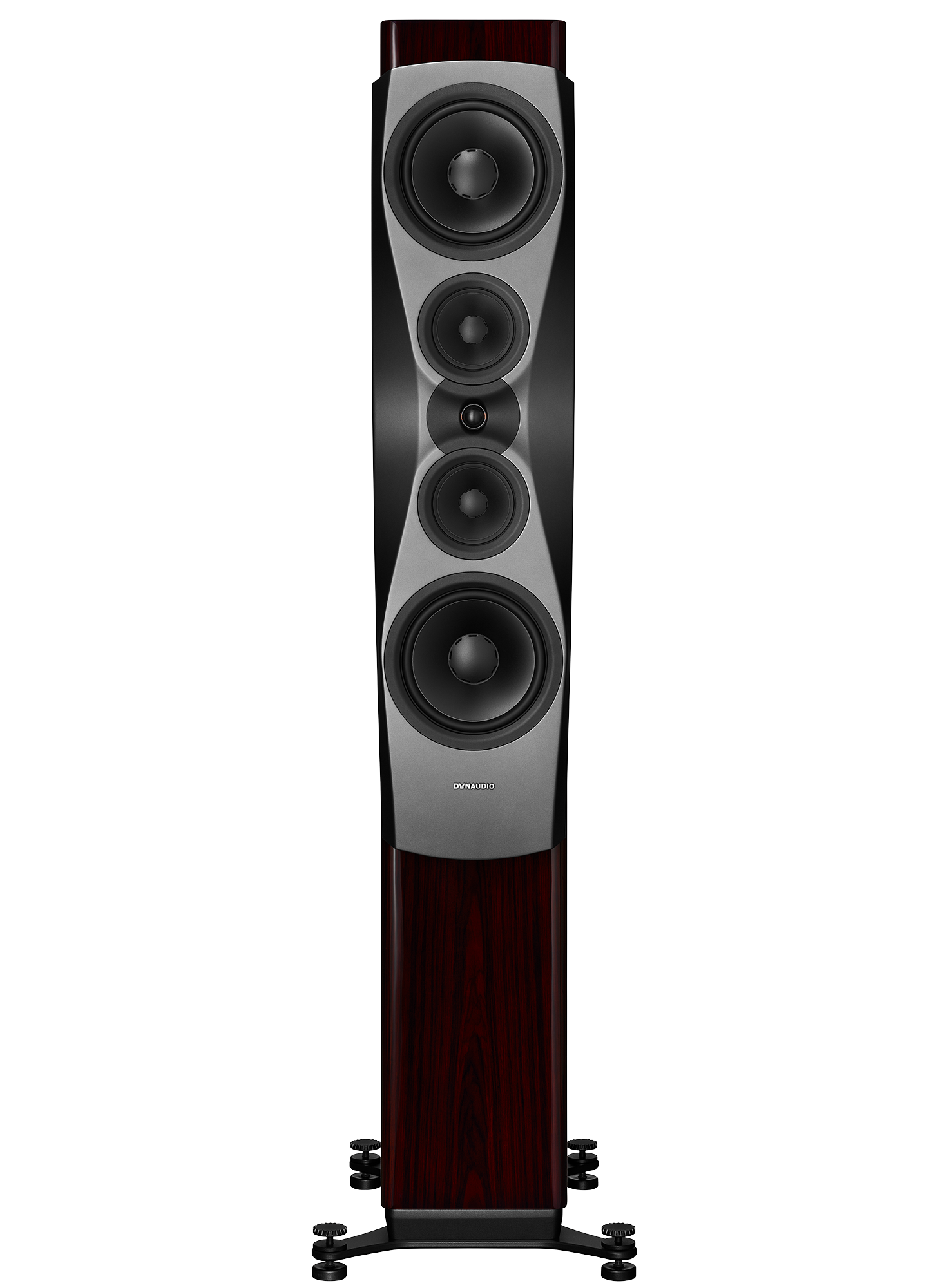

Confidence 60
Your goosebumps will get goosebumps.
Ultimate performance. Ultimate quality. Ultimate innovation. Meet the flagship of Dynaudios most advanced speaker range.
Confidence 60
Ultimate performance. Ultimate quality. Ultimate innovation. Meet the flagship of Dynaudio’s most advanced speaker range.
Sometimes size does matter. Confidence 60, the flagship of the Confidence family, towers above the outgoing Confidence C4 model.
It’s unashamedly big; it’s unselfconscious hi-fi royalty. And it sounds like nothing else you’ve heard. Pull up a chair.

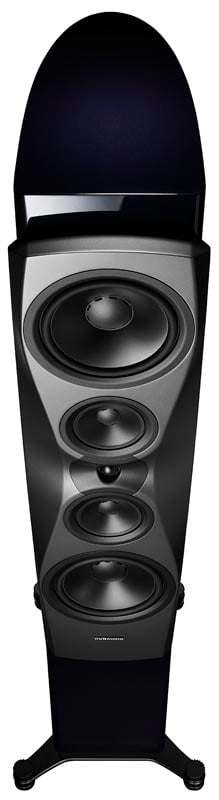

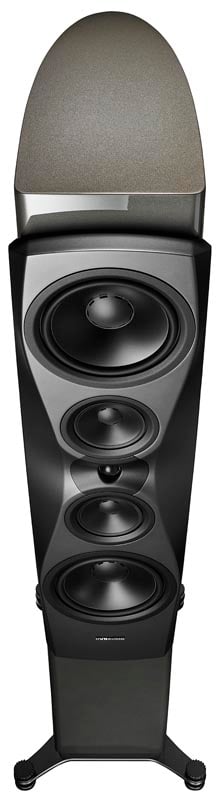

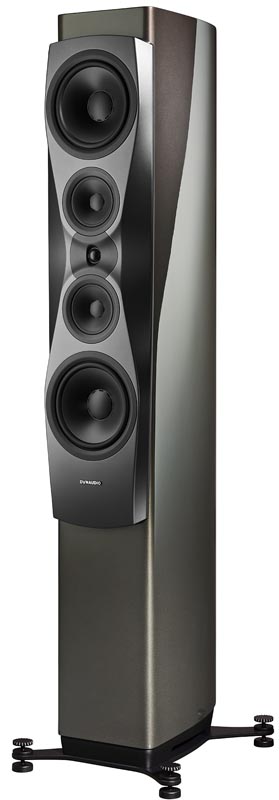

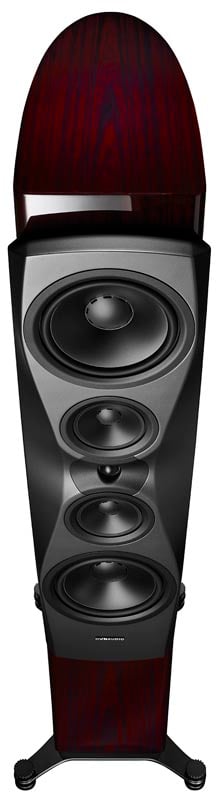

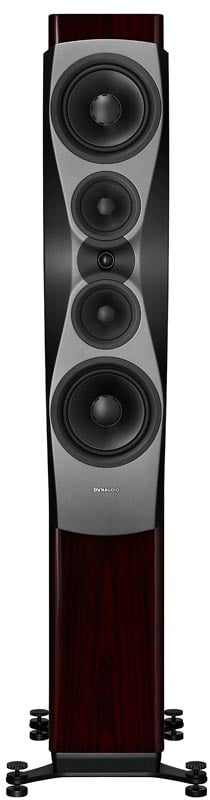

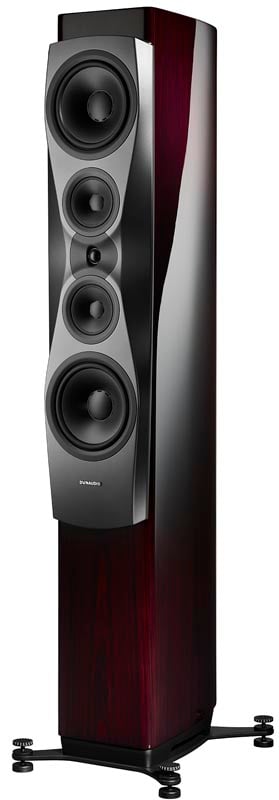

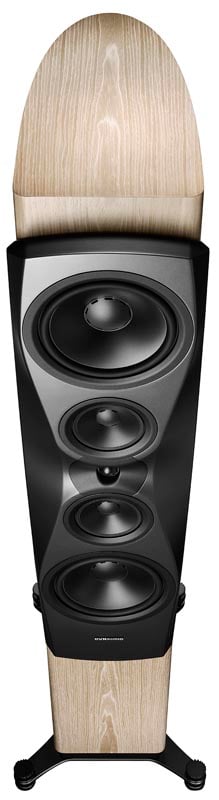

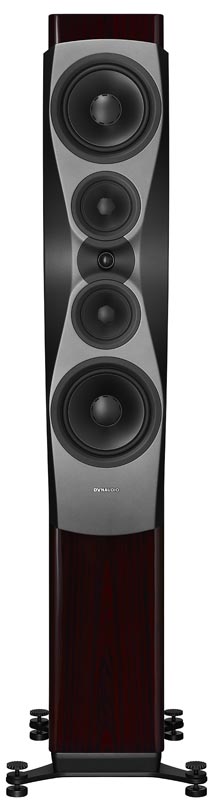

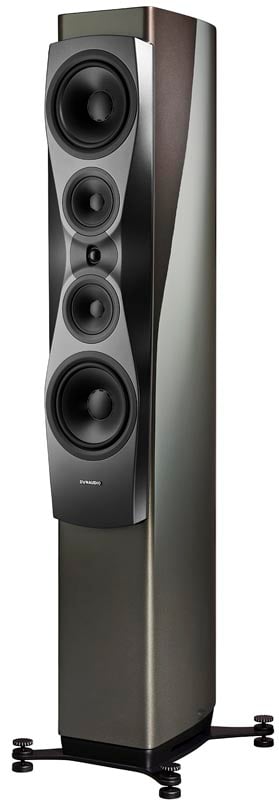

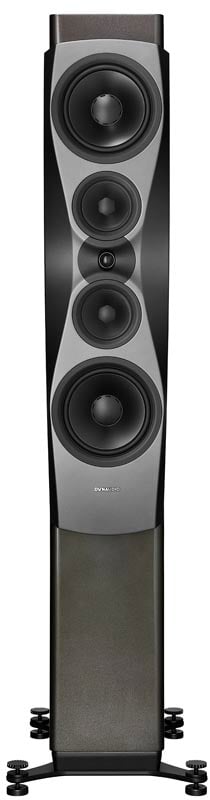

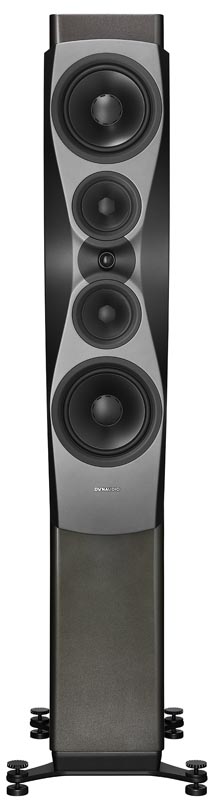

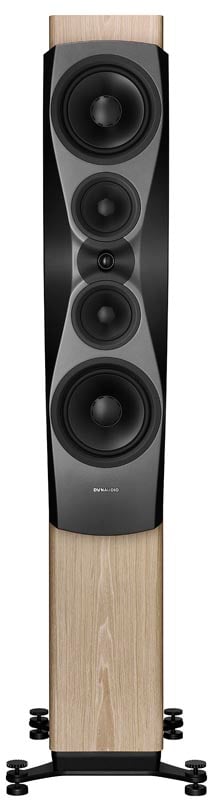

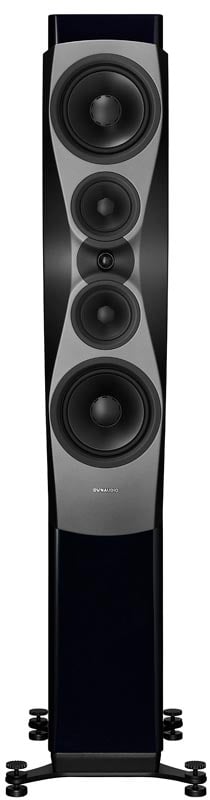

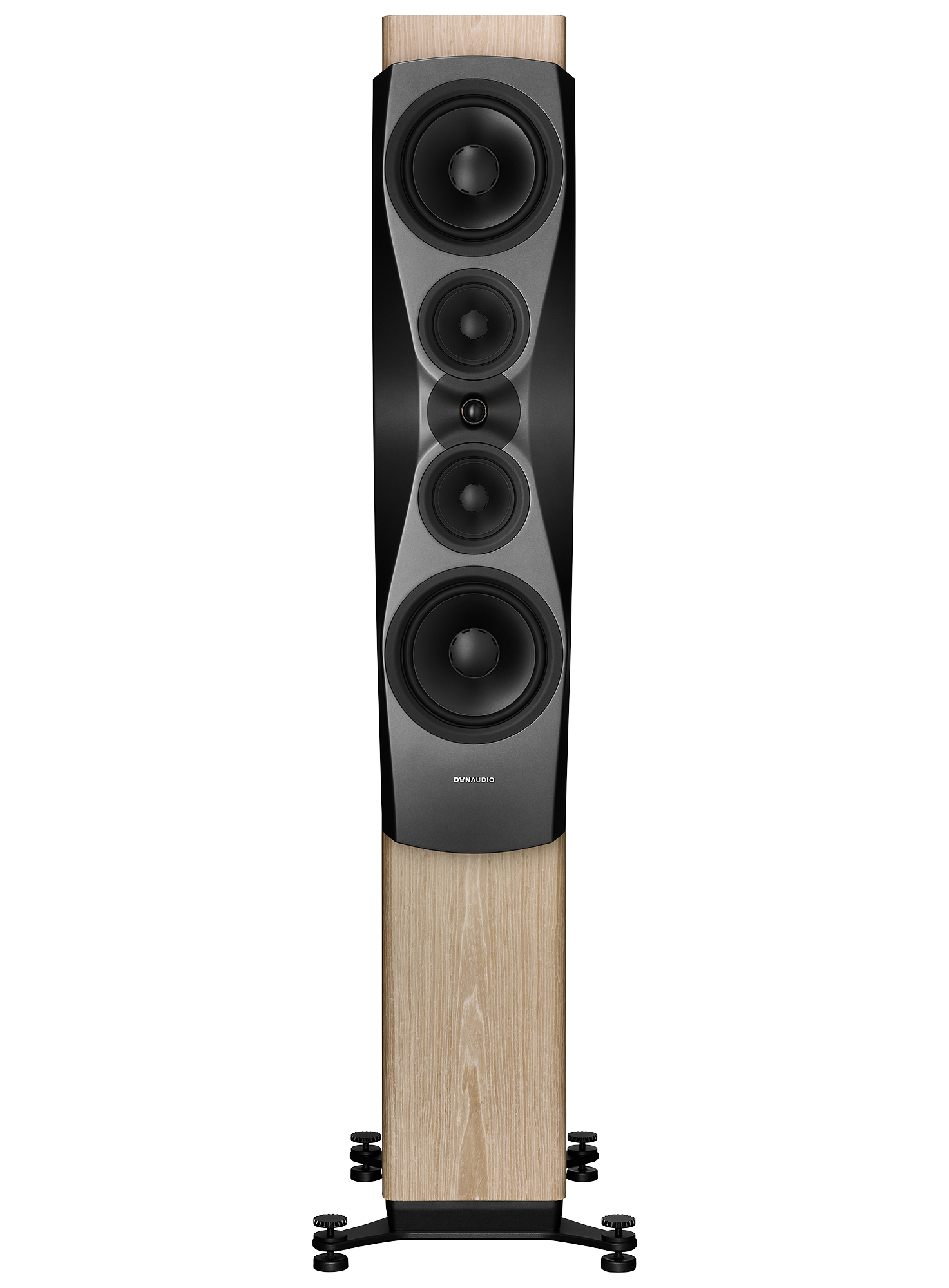

While your ears are captivated by the Confidence 60’s astonishing power, scale and detail, your eyes will probably be drawn to the single Esotar3 28mm soft-dome tweeter in the middle. Then the twin 15cm MSP midrange drivers with Horizon Surrounds. And, finally to the two 23cm MSP NeoTec Woofers.
The drivers are all updated
And they’re all part of the next generation of our innovative DDC (Dynaudio Directivity Control) sound-shaping technology platform.
This focuses the sound waves radiating from the speakers into a tight vertical ‘beam’ that avoids reflections from floors and ceilings while maintaining a wide horizontal image. That means a bigger sweet-spot on the couch, a happier audience, and the knowledge that you’re only hearing what the drivers are producing – and not what the room itself is bringing to the party. (Something you can learn more about in our six-part podcast series on Confidence).

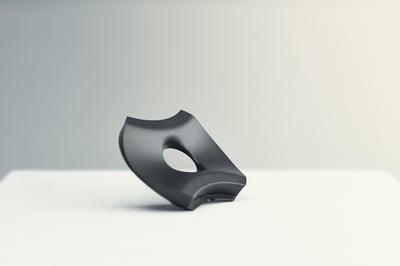

The star of the show is the DDC Lens – a machined aluminium waveguide integrated into the precision Compex composite baffle. This ingenious part (the result of hundreds of hours of simulations, prototyping and listening tests) works in conjunction with the baffle shape, the tweeter and the midrange drivers (notice their Horizon Surround, also part of the system) and the woofers to focus sound waves where they need to go: you.
Designed precisely for that purpose
In fact, everything in the Confidence 60 is designed precisely for that purpose. Even the gasket that decouples the baffle from the cabinet, and the screws that hold everything in place.
The Esotar3 28mm soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of learnings from development of the award-winning Esotar Forty unit – and rolls it all into the finest tweeter we’ve ever created. A powerful neodymium magnet system, innovations in airflow routing, the resonance-busting Hexis inner dome … it all combines to increase detail, clarity and sensitivity.
The 23cm NeoTec MSP woofers also have neodymium magnets under the hood, and use three layers of glass-fibre in their voice-coil formers for optimum stiffness. The voice-coils themselves are copper (which provides extra moving mass for tighter, more powerful and more controlled bass in this specific driver design). And the entire woofer motor has been designed to harness airflow using an innovative venting system that’s been machined directly into the magnet.
The Confidence 60’s MSP midrange drivers are a big departure from previous Dynaudio designs.
They use a radical surround design – the Horizon – that follows the cone’s shape right to the edge of the driver. This reduces the surround’s first resonant mode to effectively increase the whole playing surface area and improve performance. They also sit flush with the baffle to reduce diffractions from the diaphragm and the adjacent tweeter.
Behind the scenes, the basket has been given a lightweight organic design – one that’s resulted from extensive topology-optimisation simulations. It increases airflow, maintains its stability and rigidity and reduces weight simultaneously without sacrificing performance.

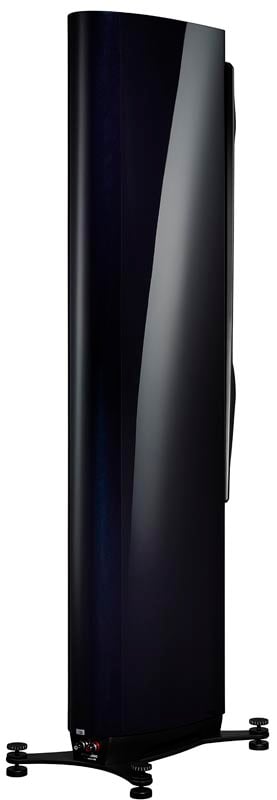

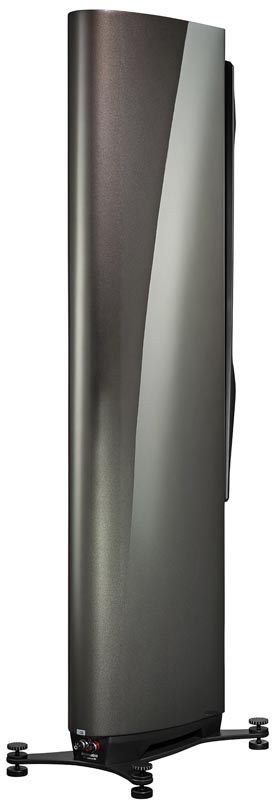

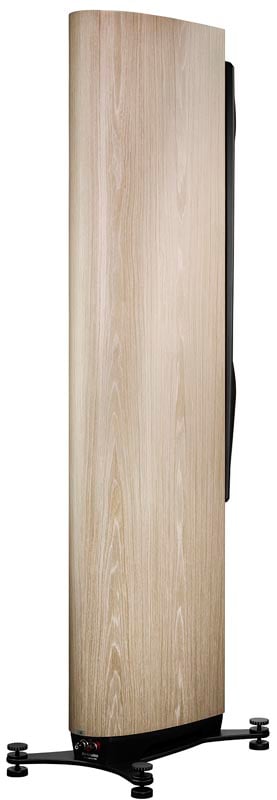

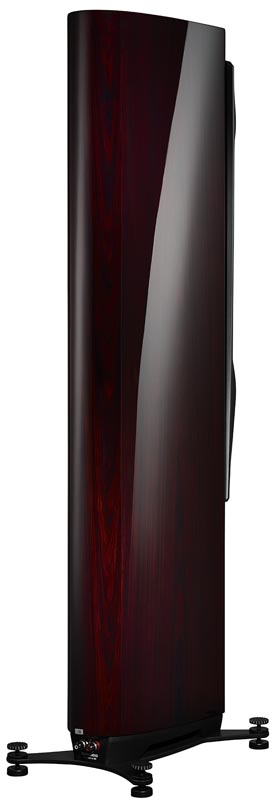

And it’s all finished in our trademark Danish-designed furniture-grade cabinetry. Perfect performance, perfect quality.
Confidence 60
Features
Designed and engineered in Denmark

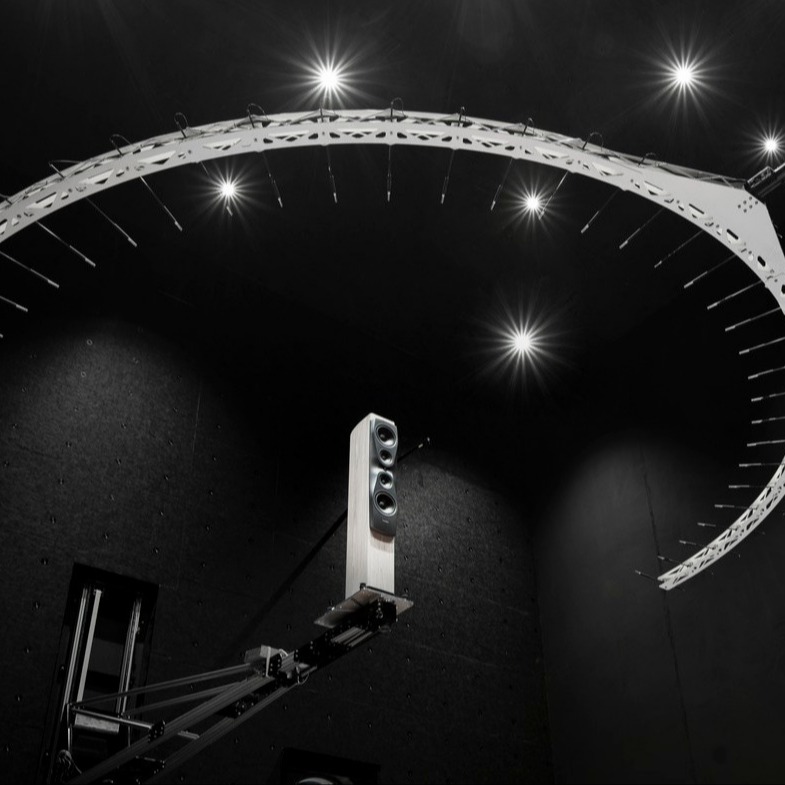

We put Confidence through intensive – and exhaustive – testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.
Esotar3 tweeter
The legend continues. The Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.
Next-gen DDC technology
Dynaudio Directivity Control, our sound-shaping technology platform, has been rebooted, revamped and refined to include the DDC Lens –a unique machined waveguide that focuses your music exactly where it should go: your ears.
NeoTec woofers
We’ve taken our legendary MSP woofers to elevated heights. A combination of powerful neodymium magnets and aluminium and copper voice-coils mean each driver is individually engineered and tuned for one purpose: unsurpassed quality.
Confidence 60
Specifications
- Status Current
- Segment Home
- Series Confidence
- Type Floorstand
- Sensitivity (dB @ 2.83V/1m) 87
- IEC Power Handling (W) 600
- Rated Impedance (Ohm) 4
- Minimum Impedance (Ohm) 3.7 @ 71 Hz
- Lower Cutoff (Hz @ +/- 3 dB) 29
- Upper Cutoff (kHz @ +/- 3 dB) 22

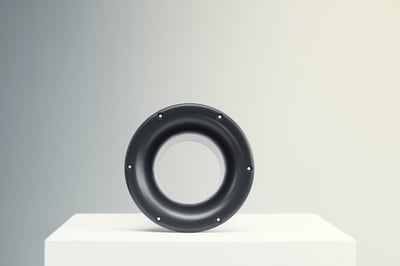

- Box Principle Bass reflex down-firing port
- Crossover 3-way
- Crossover Frequency (Hz) 200/2580 Hz
- Crossover Topology 2nd/3rd order w. DDC
- Tweeter 28 mm Esotar 3
- Midrange 2x 15 cm MSP with Horizon
- Woofer 2x 23 cm MSP
- Weight kg 66.2
- Weight lbs 146
- Width mm 271
- Height mm 1634
- Depth mm 469
- Width inches 10 5/8
- Height inches 64 3/8
- Depth inches 18 4/8
- Width mm incl. feet/grill 432
- Height mm incl. feet/grill 1679
- Depth mm incl. feet/grill 517
- Width inches incl. feet/grill 17
- Height inches incl. feet/grill 66 1/8
- Depth inches incl. feet/grill 20 3/8

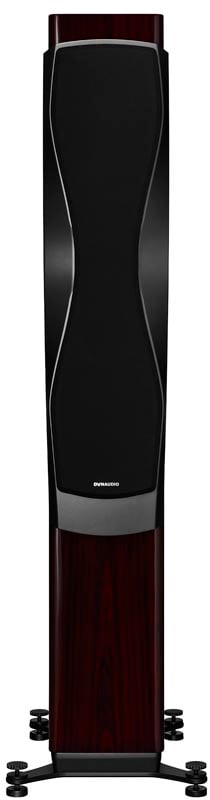

- Grille Black
- Baffle Compex
- Baffle DDC 2
Buying new speakers buys you a new music collection. When I first heard Confidence I felt an almost physical need to listen to all my music again. All of it.
Otto Jørgensen, Product Manager

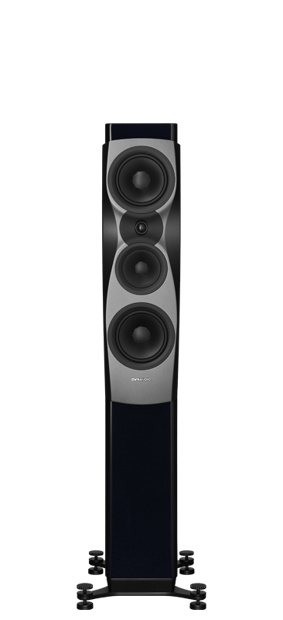

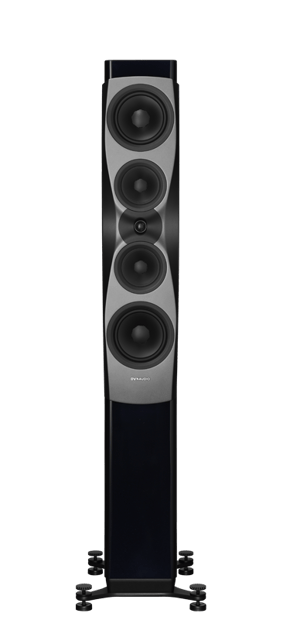

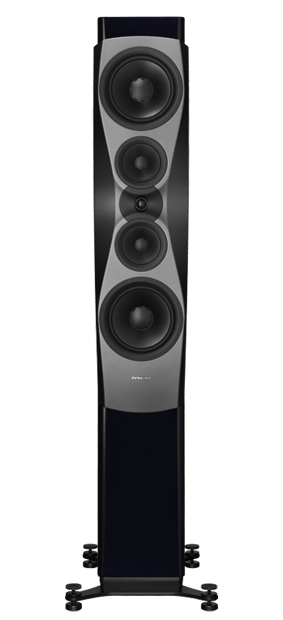

Confidence series
