Evoke 25C

Going to the movies is much better at home. You don’t have to queue, the floor isn’t sticky, and you don’t get charged through the nose for snacks. Plus, you can create a far superior audio experience. But for that, you need a centre channel.

Director Danny Boyle said that sound makes for 70-80 per cent of the movie-going experience. And when you’re watching a film, the majority of that 70-80 per cent is reproduced by the centre channel.

Evoke 25C is a dedicated centre speaker designed to integrate perfectly with any and all other speakers in the Evoke family – so you can bathe your ears in high-quality stereo just as effectively as you can shake the fillings out of your teeth with a summer blockbuster.

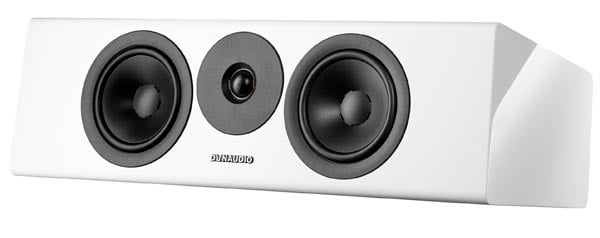

The two-way design has one 28mm soft-dome tweeter and twin 14cm long-throw woofers.

Cerotar tweeter

Like the rest of the Evoke range, the tweeter is the original design Cerotar. It’s based on key technologies from our award-winning Esotar Forty anniversary tweeter, and the mighty Esotar3, which you’ll find in the top-of-the-line Confidence series.

Like all Dynaudio tweeters, it uses a precision-coated soft dome. This coating is applied in exactly the correct places and thicknesses to optimise high-frequency performance – it’s a process derived from our most exclusive speakers.

But that’s where the similarity to everything except Confidence ends. Hidden behind the dome is a part called the Hexis: a special inner dome that shapes airflow to smooth-out the frequency response and eliminate unwanted resonances that would affect high-frequency performance.

The Cerotar tweeter is powered by a strontium carbonate Ferrite+ ceramic magnet for increased sensitivity, improved detail resolution and a natural, dynamic response.

That’s all a posh way of saying “even if you’re watching one of those box-sets that lasts for nine hours, your ears won’t get tired”. Which, of course, is exactly as it should be.

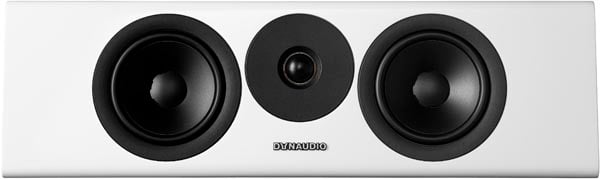

evoke_25C_white_front

Updated woofer technology

Evoke 25C’s twin 14cm Esotec+ mid/bass drivers are made from MSP (Magnesium Silicate Polymer), a material we’ve been using for our woofer diaphragms since the dawn of Dynaudio. It provides exactly the right combination of lightness, stiffness and damping to balance the needs of precise bass performance with clear, detailed midrange.

Each speaker cone is crafted from a single piece of MSP. This makes them exactly the right amount of rigid – and means far less physical distortion when they’re playing. It also gives a super-solid physical connection to the glass-fibre voice-coil former on the back (it’s glued directly under the Balance Ribs you’ll see around the centre), which means more of the coil’s motion energy is transferred to the diaphragm.

The 38mm voice-coils themselves are made from aluminium, making them extremely light. That means we can use more windings. More windings gives us more control over the cone’s movement, which means more control over the sound – even at high volumes and high frequencies. That’s especially important in a centre speaker, which predominantly deals with speech – its midrange performance has to be absolutely top-notch.

The woofer motor is kept stable, centred and true by the Nomex spider (the circular spring assembly that stops the cone moving when it shouldn’t, and lets it move when it should), while the Contour-derived surround allows a longer throw ratio for greater punch. And, like the Cerotar tweeter, the woofers are both driven by ceramic Ferrite+ magnets for greater control, finesse and power.

In non-speaker-designer language, that means “you’ll hear your movie the way it was meant to be heard”. No rough edges, nothing standing out where it shouldn’t – and nothing relegated to a cameo when it should be the lead.

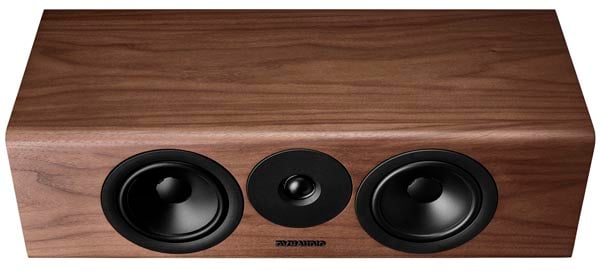

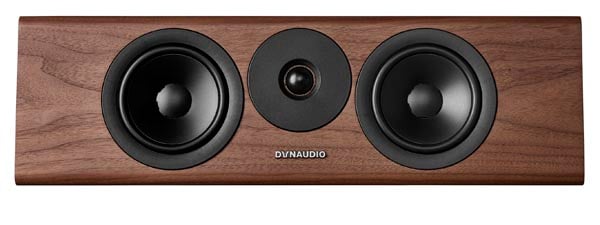

evoke_25C_walnut_wood_front

Made for (home) movies

Our design department took drew inspiration from show-homes, home-interiors stores and real-life dwellings in Denmark to hone Evoke 25C’s look. After all, it’s as much a piece of furniture as the couch you sit on to watch your movies.

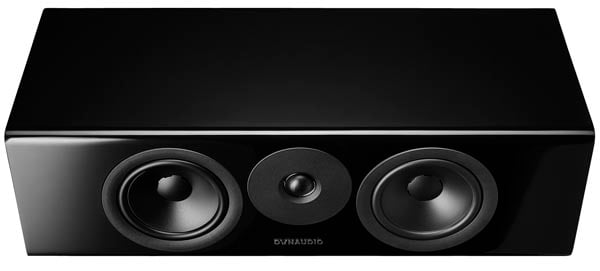

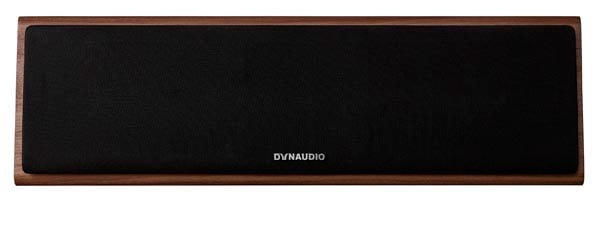

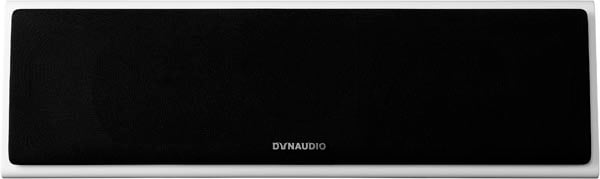

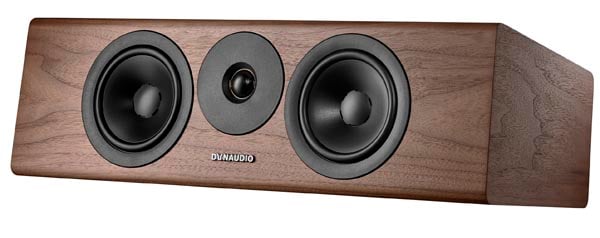

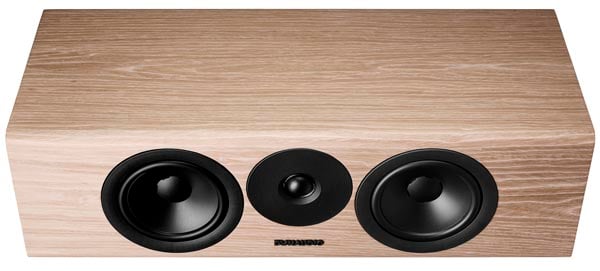

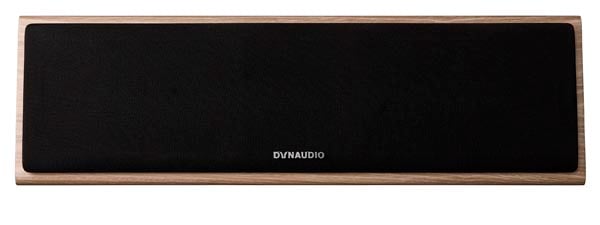

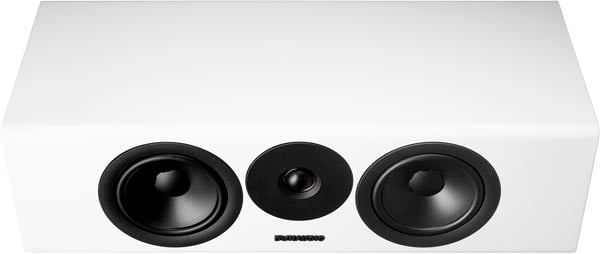

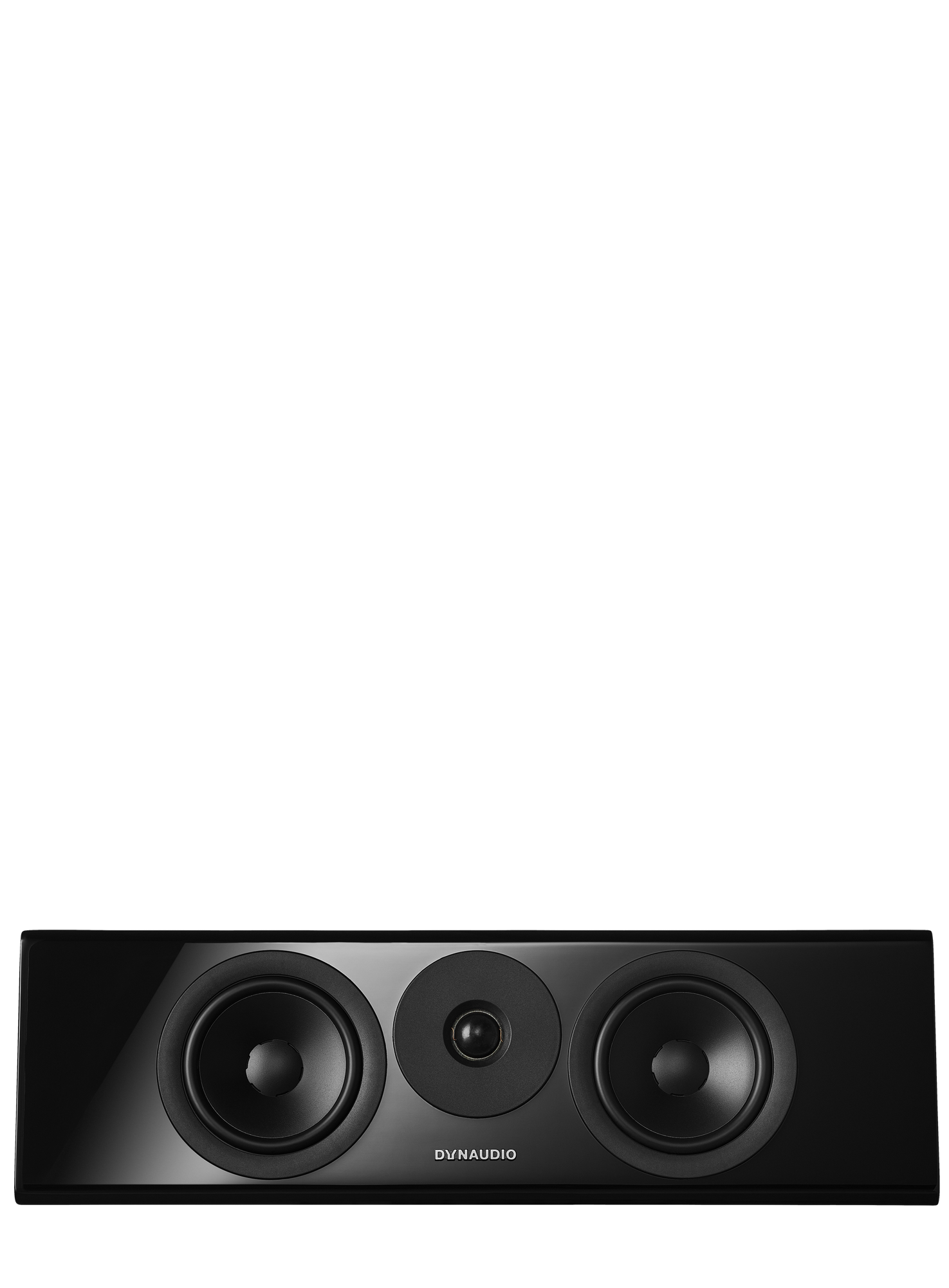

That’s why the four finishes are so relatable. You can choose from Black High Gloss and White High Gloss (which both use improved lacquering techniques for a stunning glass-like surface), as well as the warm and organic open-veneered Walnut Wood and Blonde Wood styles.

The cabinet is tapered and rounded in a nod to the Contour and Confidence ranges, while the mounting screws are hidden behind stylish one-piece trim rings.

Like a great movie, a great design doesn’t age. Evoke 25C will stay as timeless and thrilling as the classics you’re playing through it.

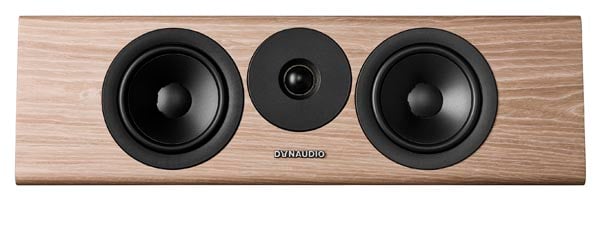

evoke_25C_blonde_wood_front

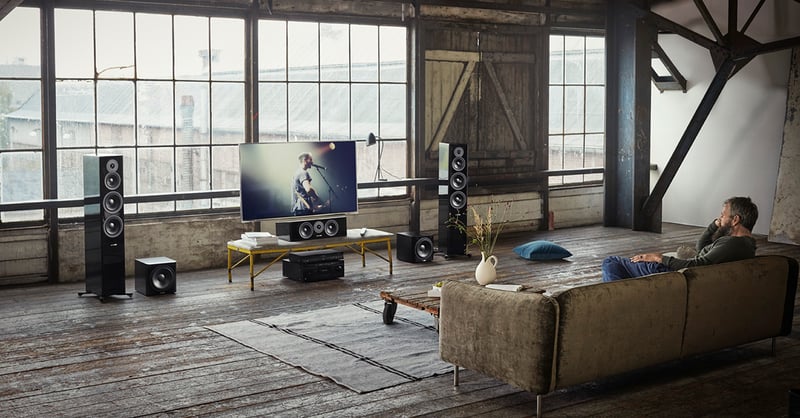

Dynaudio Evoke 50 black - Evoke 25C black - Sub 3 black - Lifestyle

Evoke

Features

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Cerotar tweeter


A 28mm Ferrite+ soft-dome tweeter inspired by Special Forty and Confidence.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Hexis


An ingenious resonance-defeating inner tweeter dome, trickled down directly from our most exclusive ranges.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Esotec+ woofers


Two long-throw 14cm one-piece MSP cones with aluminium voice-coils and strontium carbonate Ferrite+ ceramic magnets.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Crossover


High-grade Dynaudio topology with select components – just like all our high-end hi-fi speakers.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Danish design


Timeless, honest and beautiful: subtly curved MDF with hidden screws and four beautiful, clean finishes.

Evoke 25C

Specifications

  • Status Current
  • Segment Home
  • Range Evoke
  • Type Center
  • Sensitivity (dB @ 2.83V/1m) 88
  • Lower Cutoff (Hz @ +/- 3 dB) 50
  • Upper Cutoff (kHz @ +/- 3 dB) 23

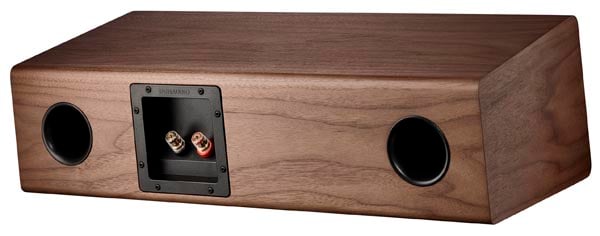

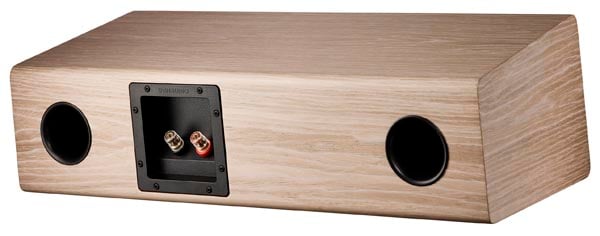

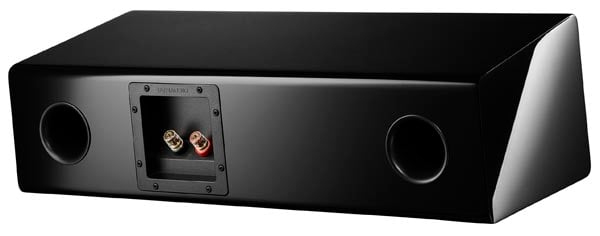

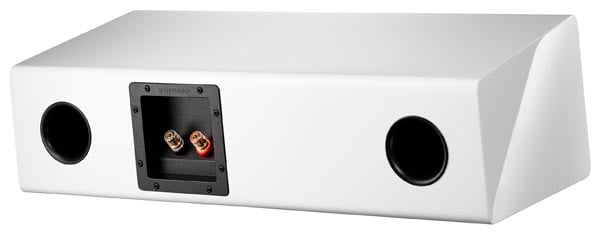

  • Box Principle Bass reflex rear ported
  • Crossover 2.5-way
  • Crossover Frequency (Hz) (1200)/2300 Hz
  • Crossover Topology 2nd order
  • Tweeter 28mm Cerotar soft dome with Hexis
Product-Lineart-Evoke 25C

Find a dealer

Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.

    Evoke series

    • Status:
    • Segment:
    • Range:
    • Type:
    • Sensitivity (dB @ 2.83V/1m):
    • Lower Cutoff (Hz @ +/- 3 dB):
    • Upper Cutoff (kHz @ +/- 3 dB):
    • Box Principle:
    • Crossover:
    • Crossover Frequency (Hz):
    • Crossover Topology:
    • Tweeter:
    • Evoke 50
    • Current
    • Home
    • Evoke
    • Floorstand
    • 87
    • 35
    • 23
    • Bass reflex rear ported
    • 3-way
    • 430/3500 Hz
    • 3rd/2nd order
    • 28mm Cerotar soft dome with Hexis

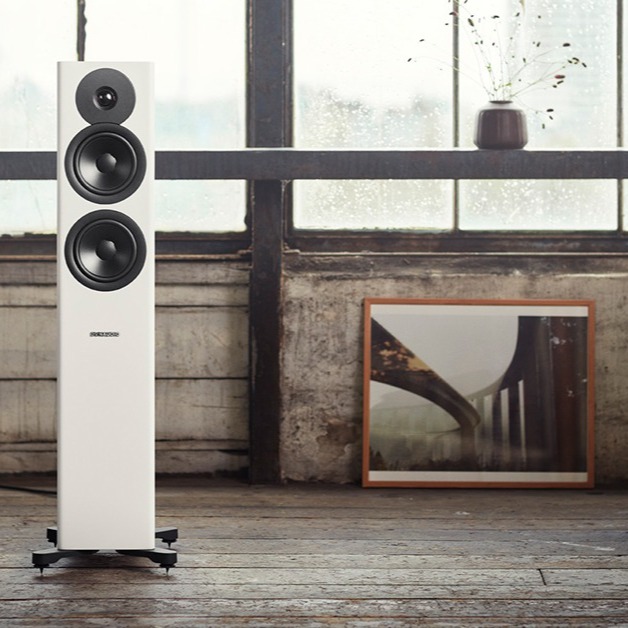

    • Evoke 30
    • Current
    • Home
    • Evoke
    • Floorstand
    • 88
    • 40
    • 23
    • Bass reflex rear ported
    • 2.5-way
    • (1200)/2300 Hz
    • 2nd order
    • 28mm Cerotar soft dome with Hexis
    • Evoke 20
    • Current
    • Home
    • Evoke
    • Bookshelf
    • 86
    • 40
    • 23
    • Bass reflex rear ported
    • 2-way
    • 3200 Hz
    • 2nd order
    • 28mm Cerotar soft dome with Hexis
    • Evoke 10
    • Current
    • Home
    • Evoke
    • Bookshelf
    • 84
    • 47
    • 23
    • Bass reflex rear ported
    • 2-way
    • 1400 Hz
    • 2nd order
    • 28mm Cerotar soft dome with Hexis
    • Evoke 25C
    • Current
    • Home
    • Evoke
    • Center
    • 88
    • 50
    • 23
    • Bass reflex rear ported
    • 2.5-way
    • (1200)/2300 Hz
    • 2nd order
    • 28mm Cerotar soft dome with Hexis
