Focus 20 XD
The next generation of stand-mounted high-end loudspeakers
No amplifier. No speaker cables. No compromise.

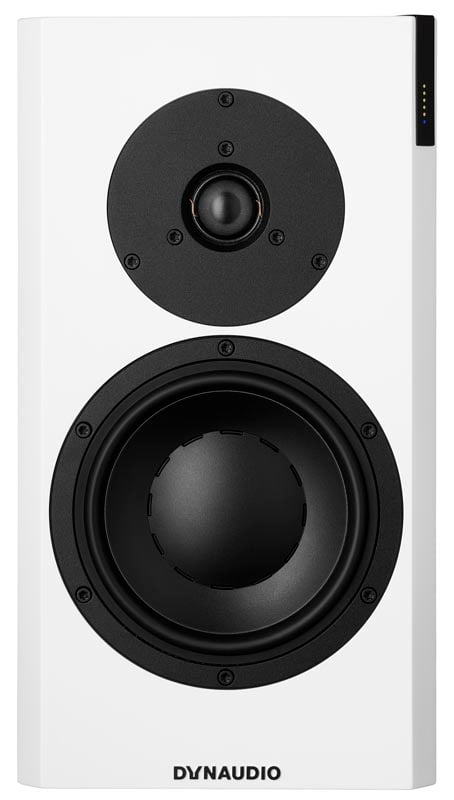

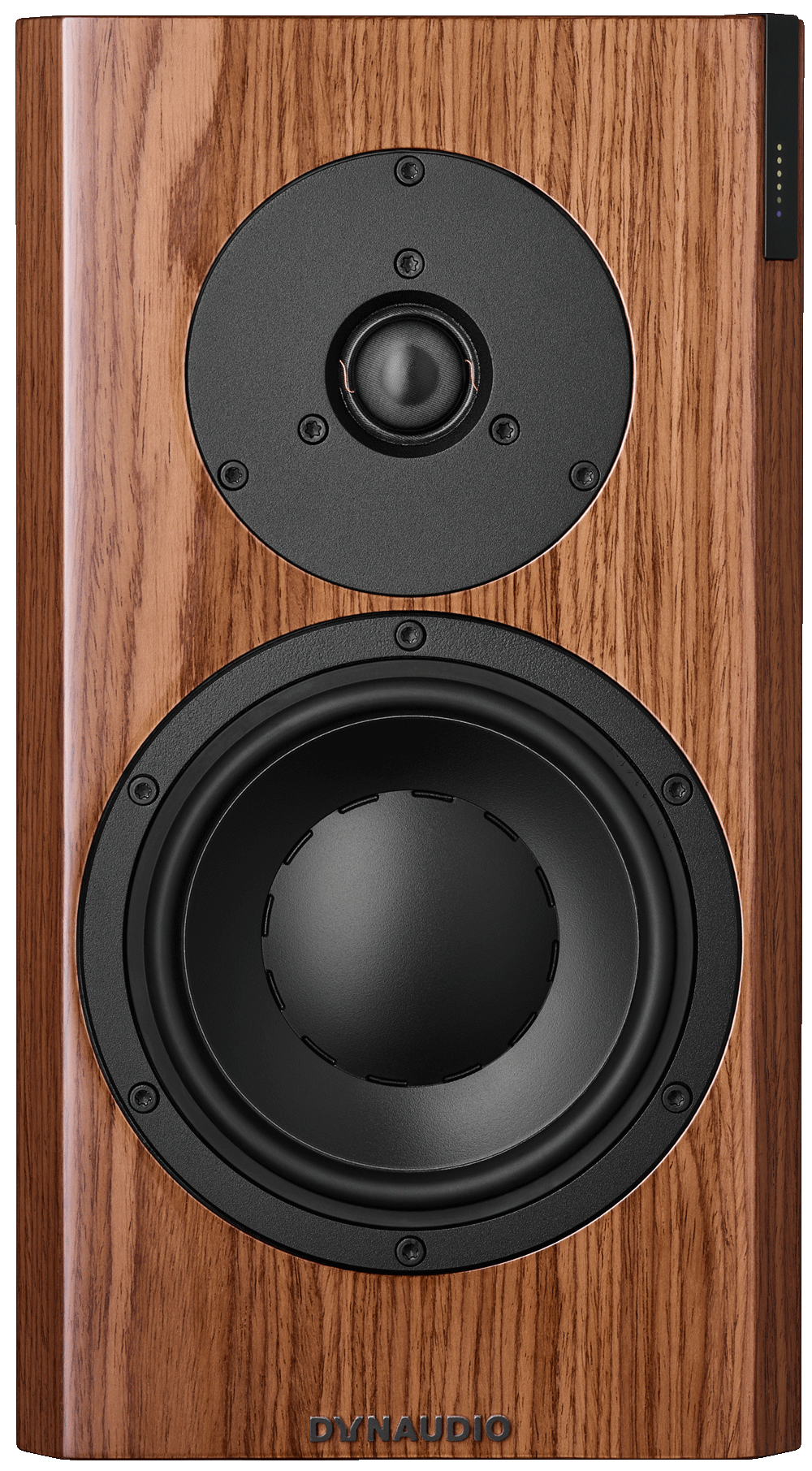

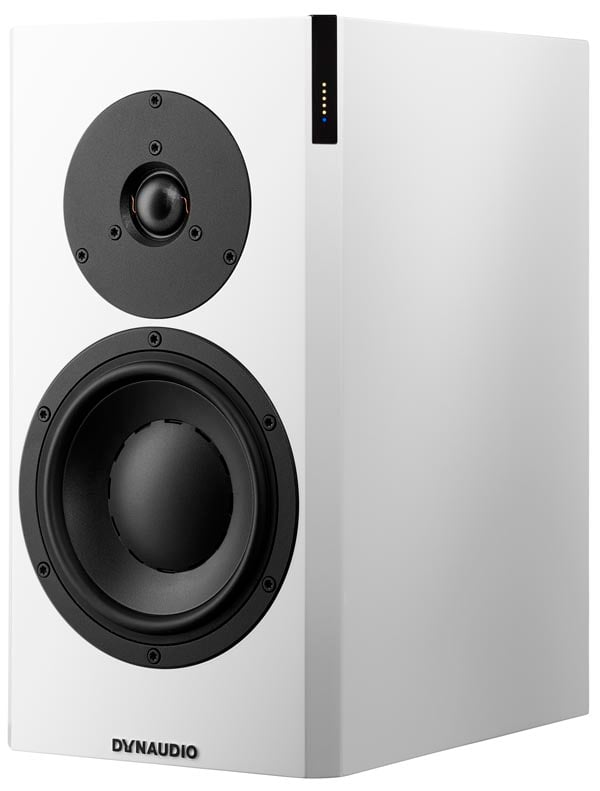

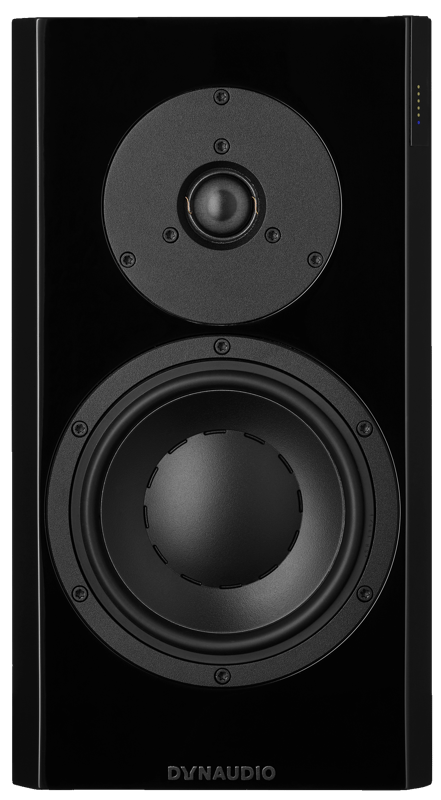

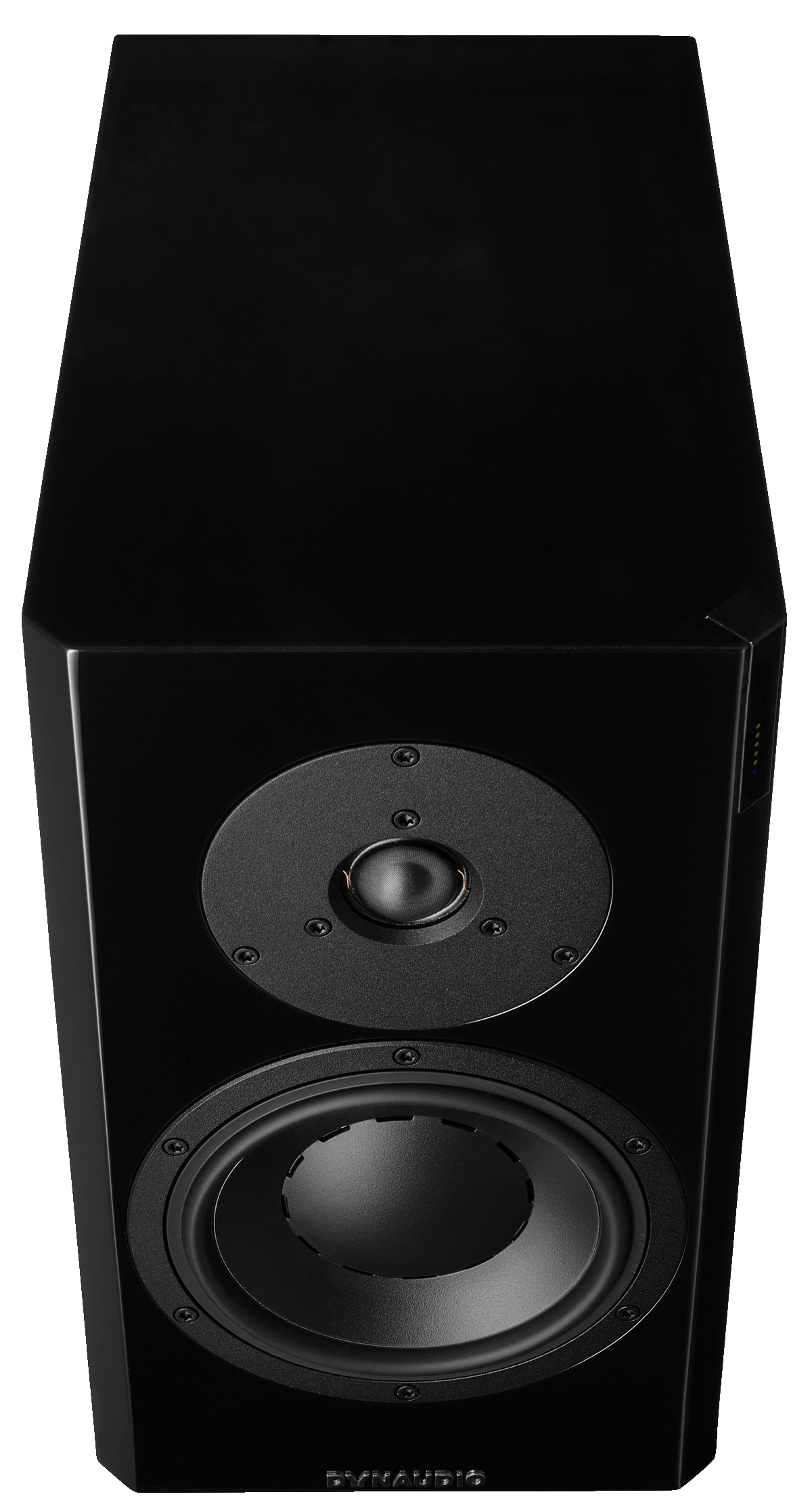

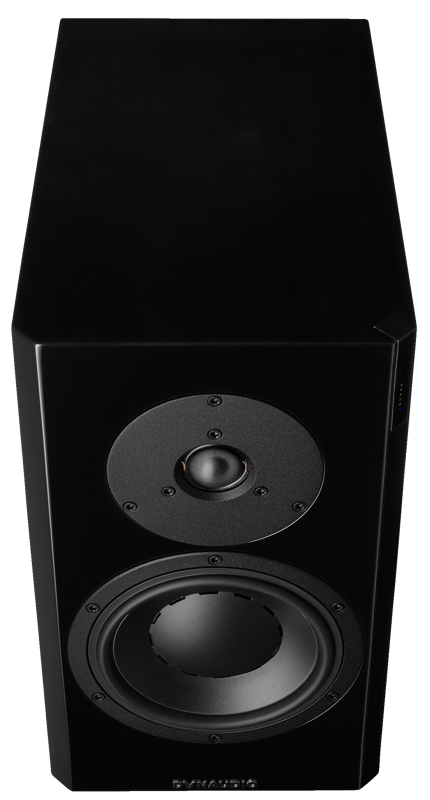

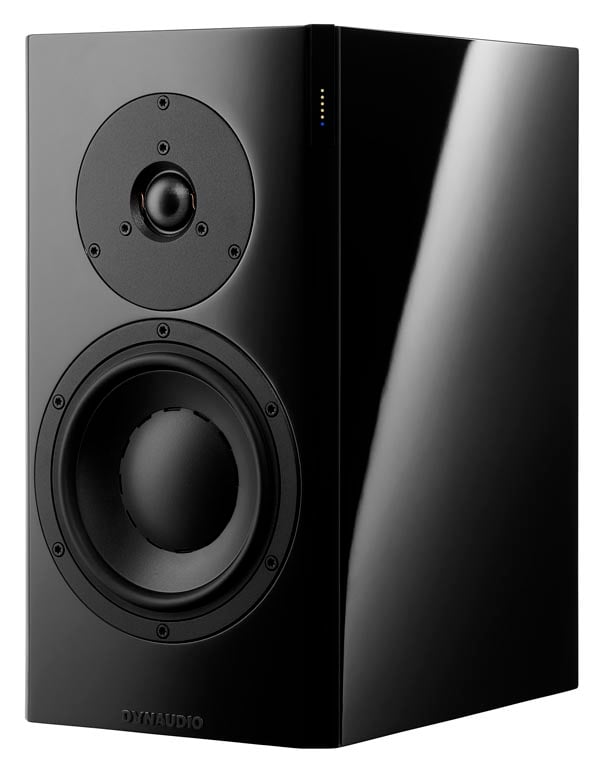

Focus 20 XD
The next generation of stand-mounted high-end loudspeakers. No amplifier. No speaker cables. No compromise.
Dynaudio has spent decades repeatedly redefining the compact loudspeaker – and with the 300W Focus 20 XD, it’s happened again. The MSP driver and 28mm tweeter from the rest of the Focus XD range appear here, too – along with all the authority and control of the larger speakers. It’s quality, concentrated.
A complete hi-fi system
The Focus XD range is a complete hi-fi system… without the clutter of a complete hi-fi system. These high-end active speakers bring true high-resolution wireless streaming, from every conceivable source, to your home.
Send in a digital signal (wired or wireless, it’s your choice), and it’ll stay that way right up until the last possible moment – meaning it stays pure all the way from the recording studio to the speaker driver.
There’s no clutter, no fuss… and no catch.
Running the show is cutting-edge digital processing technology capable of handling full-fat, 24-bit/192kHz hi-res files.
Common controls and connections

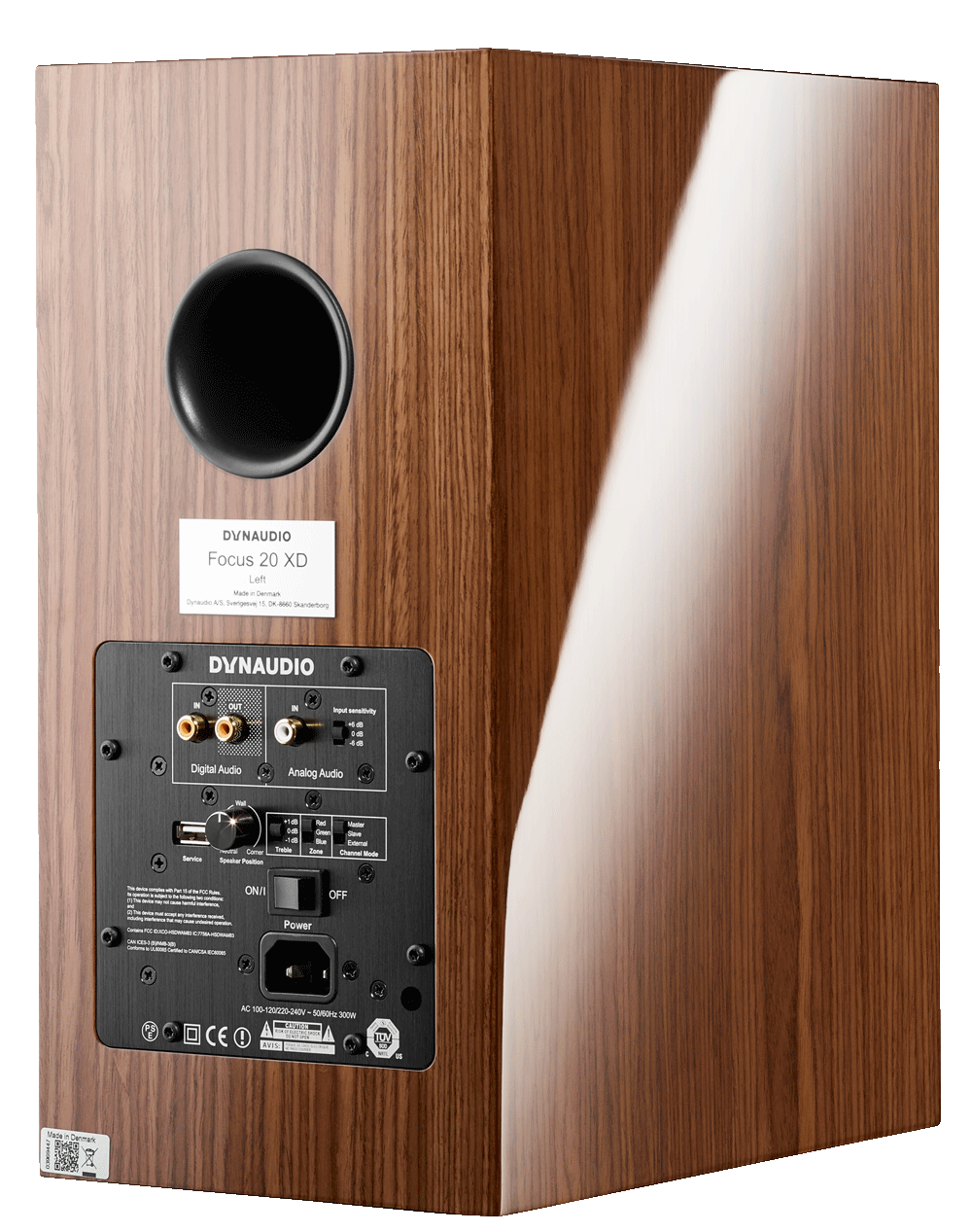

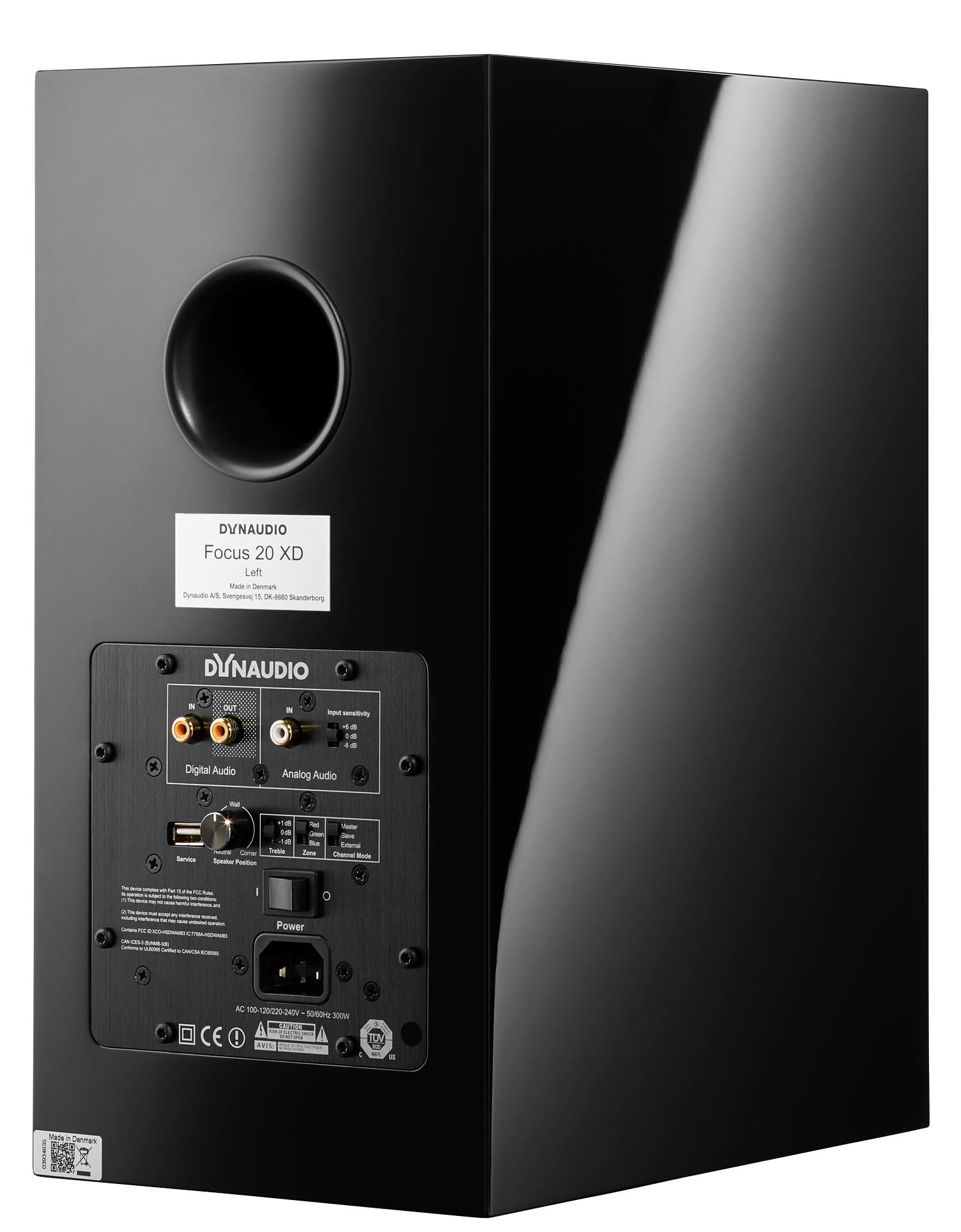

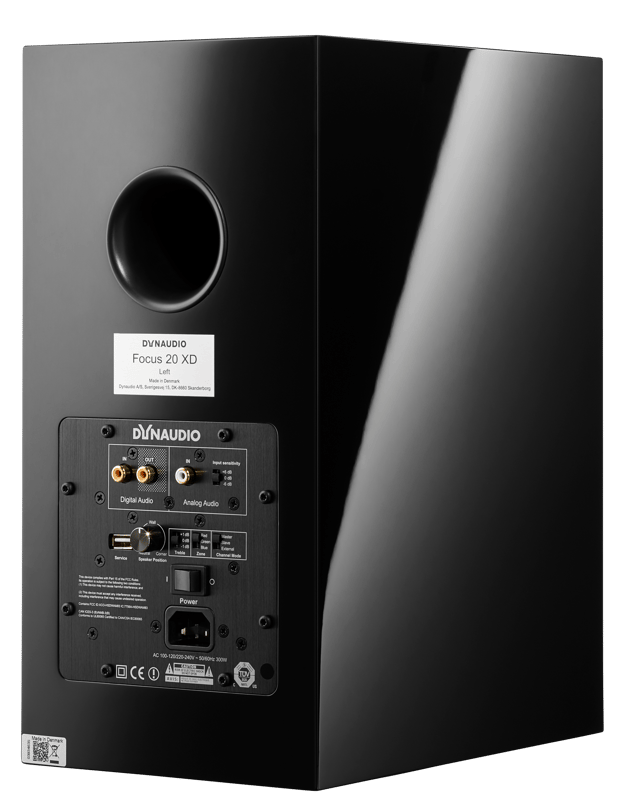

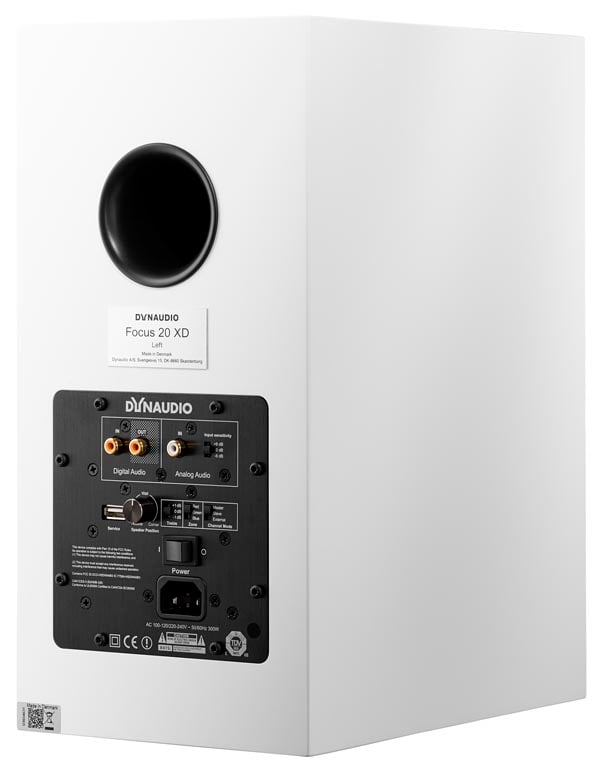

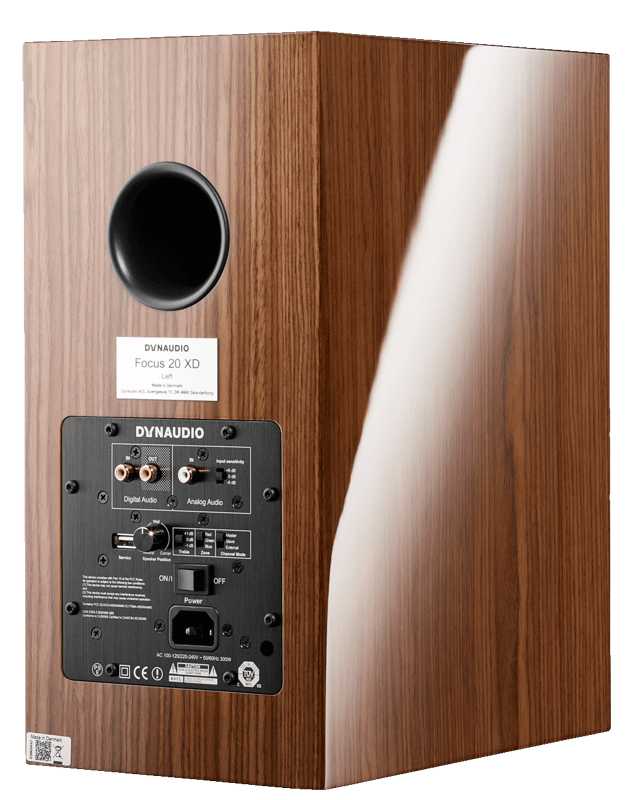

All the speakers in the range share common controls and connections – so if you want to mix-and-match different models from the range, you can. There’s digital coaxial in and out, plus analogue input (with adjustable sensitivity), as well as a seven-position control for fine-tuning the speakers’ placement in your room.
And if you add the Dynaudio Connect box, you get digital optical, another digital coaxial and RCA and 3.5mm analogue inputs – plus mini-USB (which can stream 24-bit/96kHz files), aptX Bluetooth and Wi-Fi connectivity (including DLNA).
Genuine high-end wireless hi-fi
The Focus XD’s firmware can even be upgraded when our engineers have another Eureka! moment (they get them a lot). In fact, that’s exactly what’s just happened.
In the 2017 version, not only have they redesigned the crossovers and found a way to use less processing (for even cleaner reproduction), they’ve managed to extract more volume from the drivers without distortion or compression. And because there’s less processing happening there, we’ve been able to use more in the EQ for even better speaker-position compensation.
We’ve also included tech from our LYD pro-studio monitors that lets you tweak overall brightness with a switch on the back.
Use them with your existing system (they’ll integrate just fine), build a multiroom set-up (you can use them with the Xeo range too), or even hook them up to your TV… while getting genuine high-end wireless hi-fi into the bargain.
Focus 20 XD
Specifications
- Status Discontinued
- Segment Home
- Series Focus XD
- Type Bookshelf
- Analog inputs (Primary) 1x RCA
- Digital inputs (Primary) 1x RCA Coax
- Digital outputs (Primary) 1x RCA Coax
- Wireless inter-speaker connection 24-bit / 96 kHz
- Amplifier Power Woofer (W) 150
- Amplifier Power Tweeter (W) 150
- AC Power Input 100-240V 50/60Hz
- Max Stand-by Power Consumption (W) 0.5
- Max Power Consumption (W) 200
- Lower Cutoff (Hz @85 dB +/- 3 dB) 39
- Upper Cutoff (kHz @ 85dB +/- 3 dB) 24
- Box Principle Bass reflex rear port
- Crossover 2-way DSP based
- Crossover Frequency (Hz) 2500 Hz
- Tweeter 28mm soft dome
- Midrange/Woofer 17 cm MSP
- Weight kg 8.65
- Weight lbs 19
- Width mm 198
- Height mm 360
- Depth mm 307
- Width inches 7 6/8
- Height inches 14 1/8
- Depth inches 12 1/8

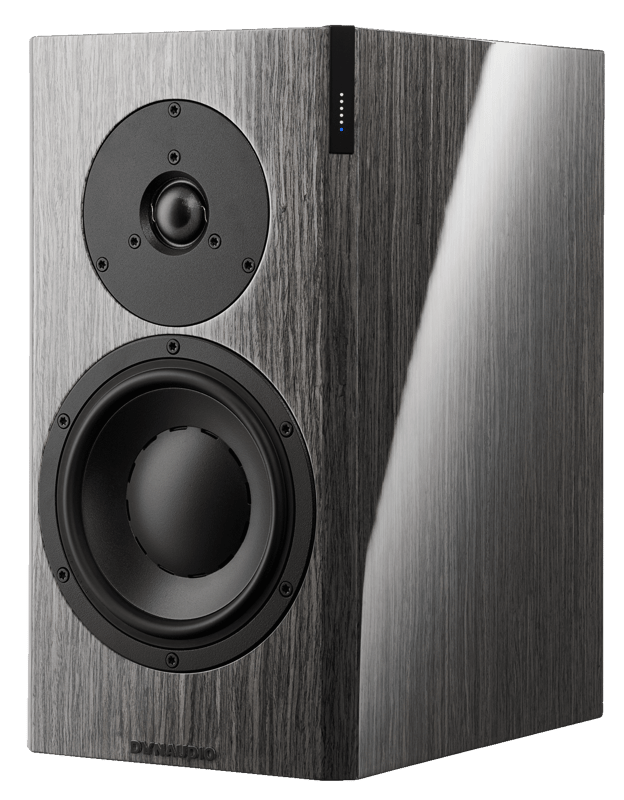

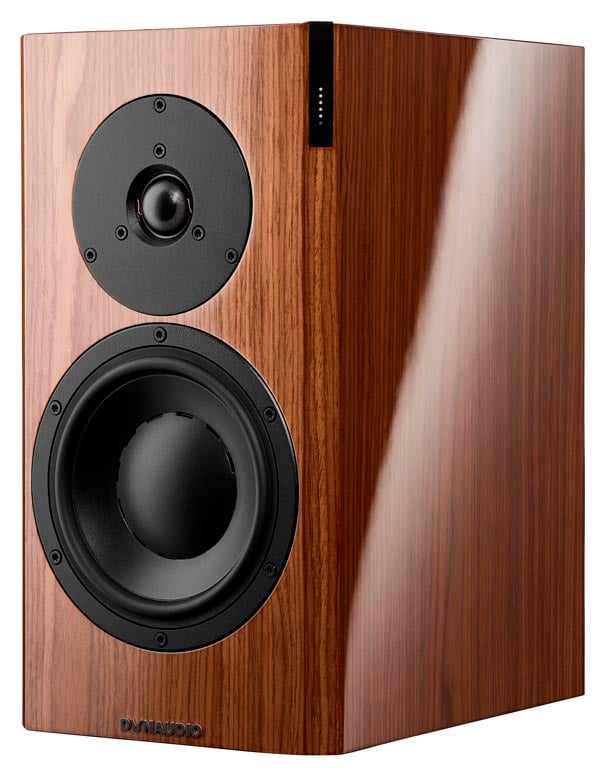

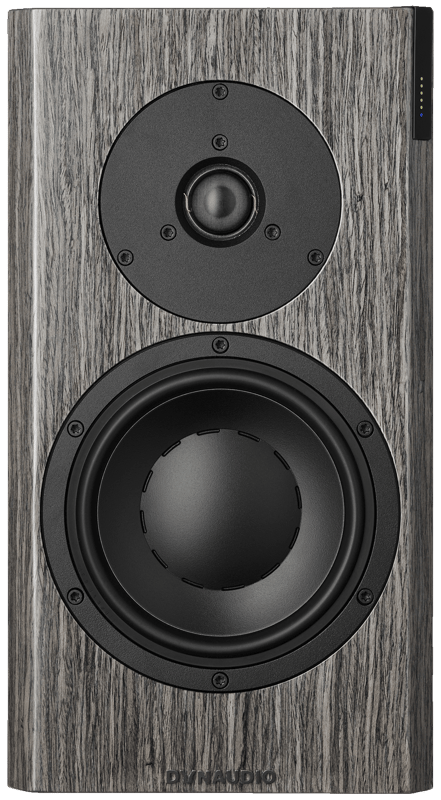

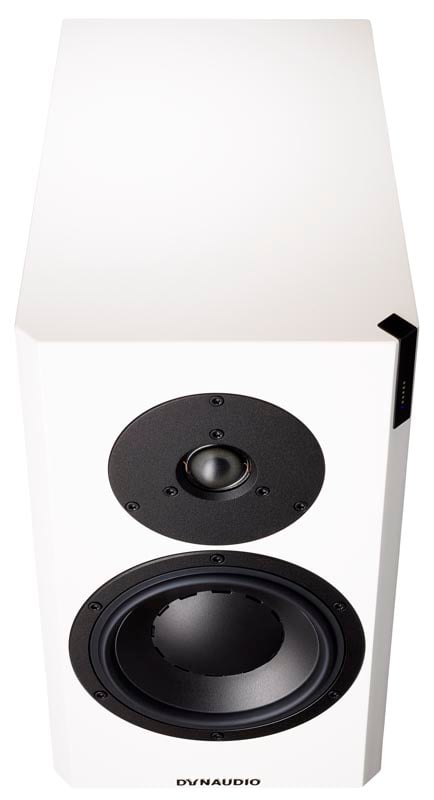

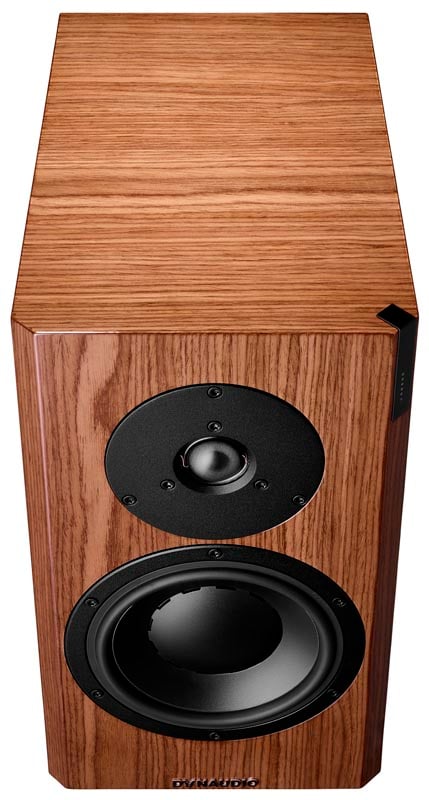

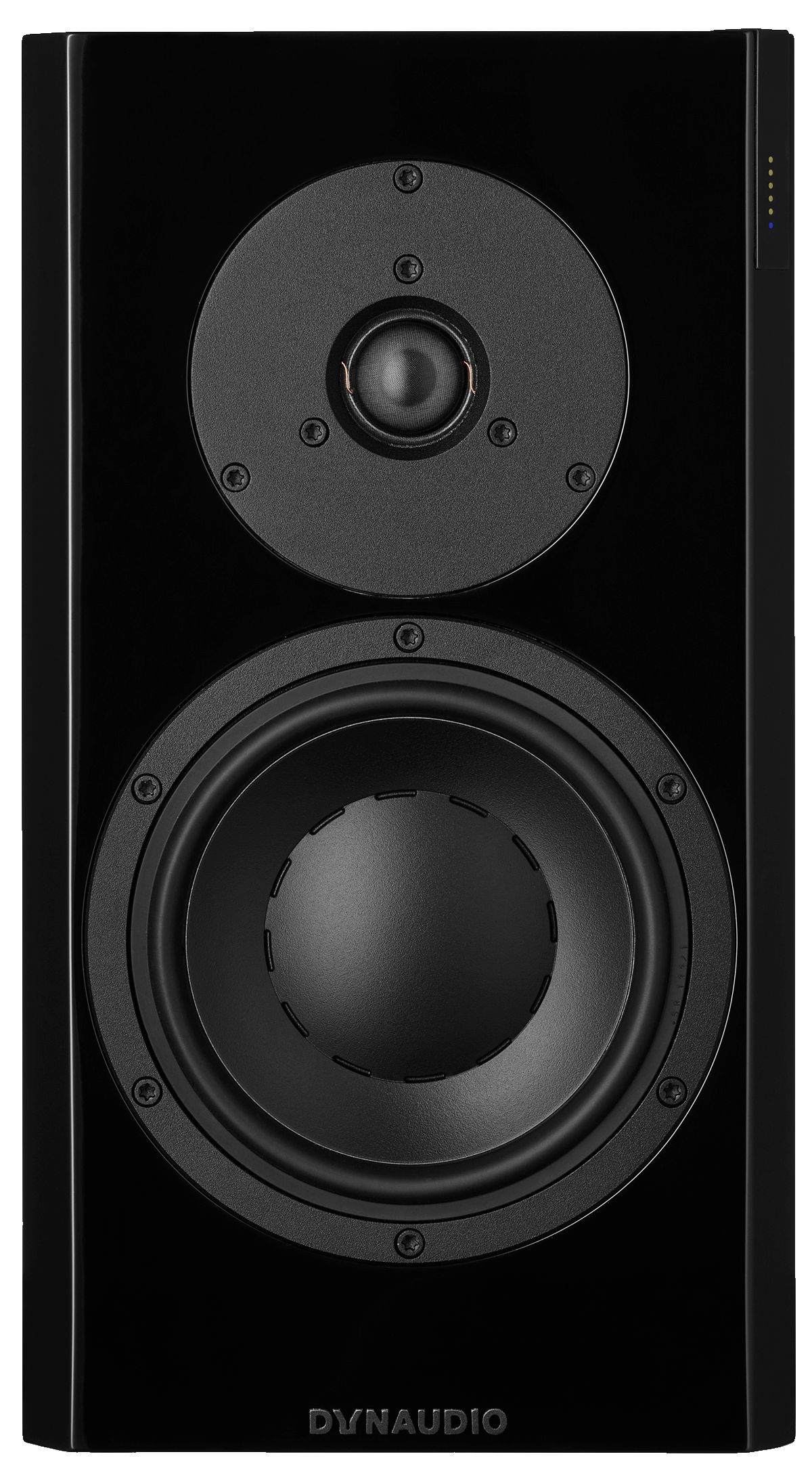

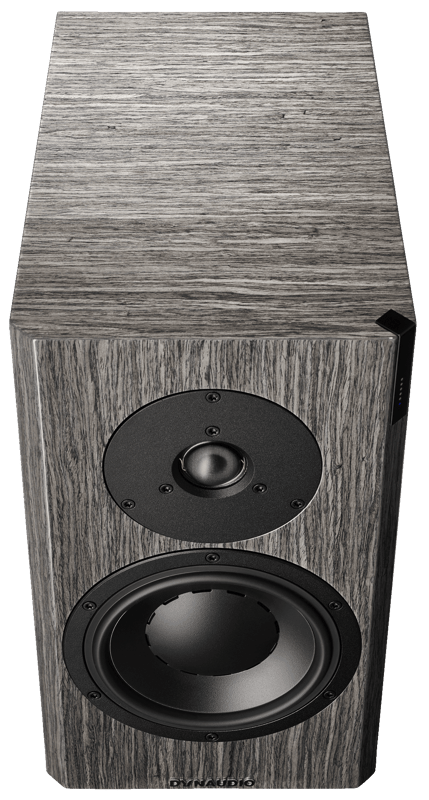

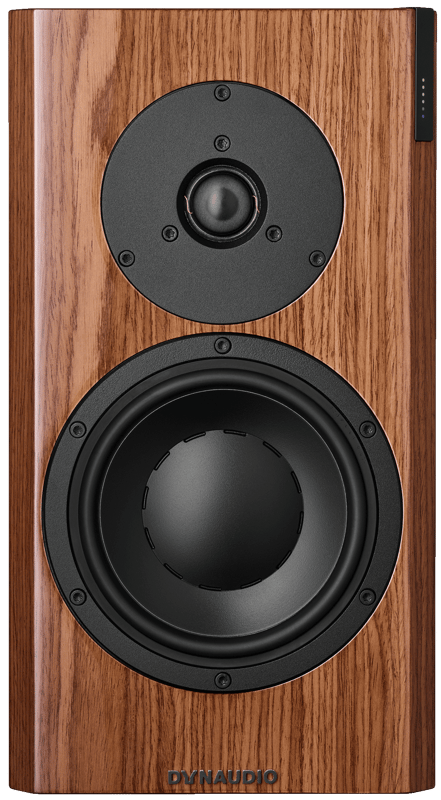

- Finishes Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG

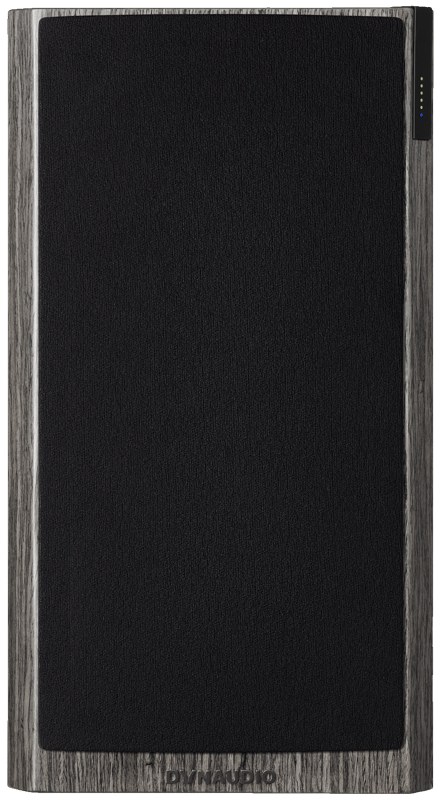

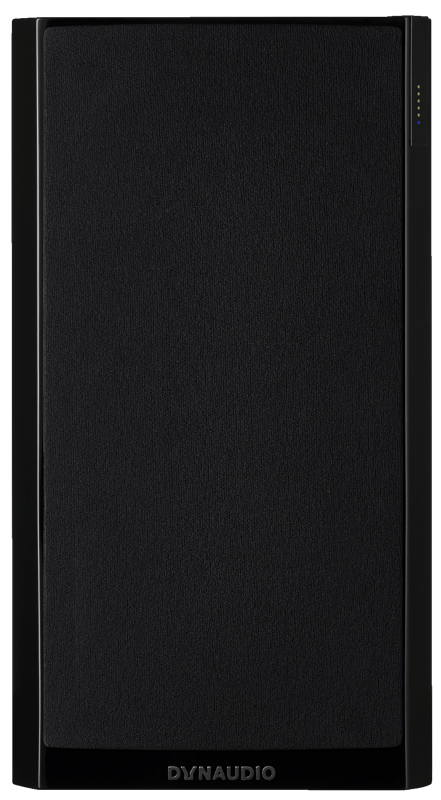

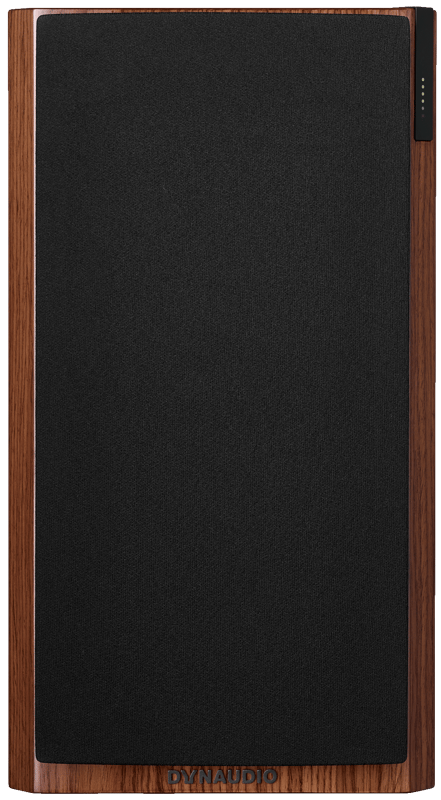

- Grille Black
This is an awesome new tuning – a clear improvement that you’ll hear instantly
Roland Hoffmann, Director
Reviews
Streamlining the hi-fi experience
Simplifi - a SoundStage! Network partner - has reviewed the fully active, fully digital Focus 20 XD standmounters. It's safe to say they were happy with what they heard; giving them a Reviewer's Choice recommendation along with many praising words.
Simplifi - a SoundStage!
"That’s what we like to call win/win."
With its newly updated, upgraded firmware, the Focus XD series has never been better. The Australian online magazine, Man of Many, has put a pair of Focus 20 XDs to the test and liked what they heard. We’ve read the review and found our favourite bit of text for you to enjoy:
Man of Many, Australia
Focus XD series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs (Primary):
- Digital inputs (Primary):
- Digital outputs (Primary):
- Wireless inter-speaker connection:
- Amplifier Power Woofer (W):
- Amplifier Power midrange (W):
- Amplifier Power Tweeter (W):
- AC Power Input:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):
- Upper Cutoff (kHz @ 85dB +/- 3 dB):
- Box Principle:
- Crossover:
- Crossover Frequency (Hz):
- Tweeter:
- Midrange:
- Midrange/Woofer:
- Woofer:
- Weight kg:
- Weight lbs:
- Width mm:
- Height mm:
- Depth mm:
- Width inches:
- Height inches:
- Depth inches:
- Finishes:
- Grille:
Focus 20 XD
- Discontinued
- Home
- Focus XD
- Bookshelf
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 39
- 24
- Bass reflex rear port
- 2-way DSP based
- 2500 Hz
- 28mm soft dome
- 17 cm MSP
- 8.65
- 19
- 198
- 360
- 307
- 7 6/8
- 14 1/8
- 12 1/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
Focus 60 XD
- Discontinued
- Home
- Focus XD
- Floorstand
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 20
- 24
- Sealed
- 3-way DSP-based
- 270,3100 Hz
- 28mm soft dome
- 14 cm MSP
- 2x18 cm MSP
- 27
- 60
- 213
- 1095
- 337
- 8 3/8
- 43 1/8
- 13 2/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
Focus 30 XD
- Discontinued
- Home
- Focus XD
- Floorstand
- 1x RCA
- 1x RCA Coax
- 1x RCA Coax
- 24-bit / 96 kHz
- 150
- 150
- 150
- 100-240V 50/60Hz
- 0.5
- 200
- 29
- 24
- Bass reflex rear port
- 2.5-way DSP based
- (300),2500 Hz
- 28mm soft dome
- 17 cm MSP
- 17 cm MSP
- 18.5
- 41
- 198
- 980
- 307
- 7 6/8
- 38 5/8
- 12 1/8
- Grey Oak HG, Walnut HG, Black HG, White HG, Rosewood HG
- Black
