AIR BASE 1

AIR BASE 1

Compact integrated sub for AIR series.

FIND A DEALER

AIR BASE 1

Compact integrated sub for AIR series. AIR Base 1 is the most compact dedicated AIR series active subwoofer. Intended for smaller rooms AIR Base-1 offers high performance where space is an issue. Use one AIR Base 1 with AIR 6 in smaller rooms or link several Base 1's in bigger rooms increasing acoustic output 6 dB for each additional unit.

Through the TC Link (proprietary AIR network) AIR Base 1 integrates with AIR series monitors and delivers unique features such as integrated bass management and presets. To be used with both stereo and multichannel

AIR systems in any demanding production environment including:
- Post Production and Editing suites
- Music Recording and Mixing
- DVD authoring and Mastering
- 5.1 Production (Audio or Audio for pictures)
- OB Vans

Combining technology from Dynaudio and TC, AIR Base 1 offers ultimate precision and total integration with AIR Series. AIR Base subwoofers can be used only with AIR Series monitors.

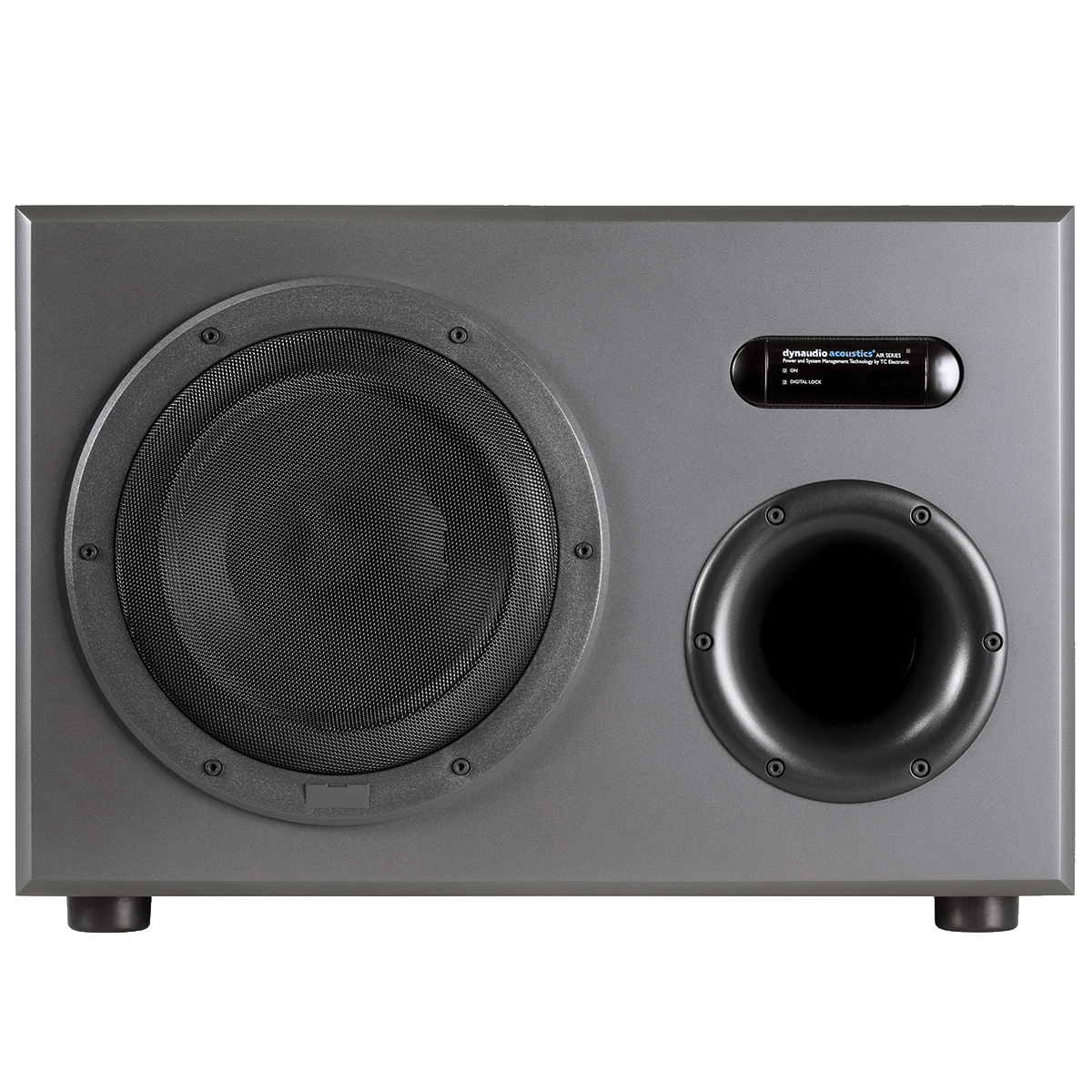

Dynaudio_AirBase1_front-1

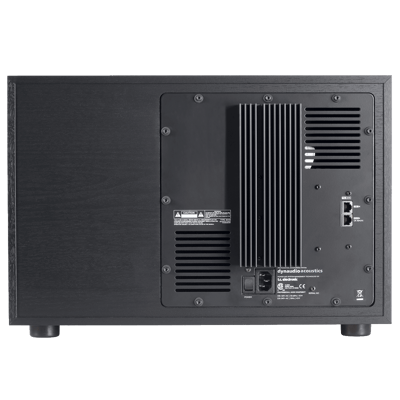

Dynaudio_AirBase1_rear-1

AIR BASE 1

Specifications

  • Status Discontinued
  • Segment Pro
  • Range AIR
  • Type Subwoofers
  • Digital inputs TC Link
  • Amplifier Power (Watt) 200W
  • AC Power Input 100-120 V/200-240 V 50/60 Hz
  • Lower Cutoff (Hz @85 dB +/- 3 dB) 25
  • Upper Cutoff (Hz @ 85dB +/- 3 dB) 120
  • MAX SPL (dB) 113
  • Box Principle Front-loaded bass reflex
  • Woofer 10in MSP

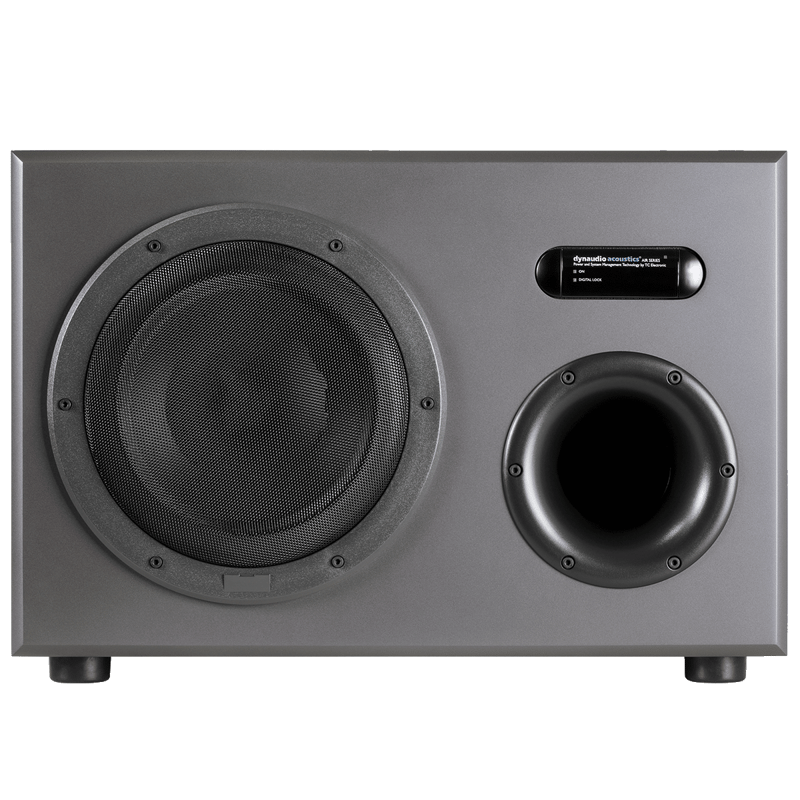

Dynaudio_AirBase1_front-1

Find a dealer

Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.

    Air + Air Software series

    • Status:
    • Segment:
    • Range:
    • Type:
    • Digital inputs:
    • Amplifier Power (Watt):
    • AC Power Input:
    • Lower Cutoff (Hz @85 dB +/- 3 dB):
    • Upper Cutoff (Hz @ 85dB +/- 3 dB):
    • MAX SPL (dB):
    • Box Principle:
    • Woofer:
    • AIR BASE-1
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 200W
    • 100-120 V/200-240 V 50/60 Hz
    • 25
    • 120
    • 113
    • Front-loaded bass reflex
    • 10in MSP
    • AIR BASE 12
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 500W
    • 100-120 V/200-240 V 50/60 Hz
    • 22
    • 200
    • 117
    • Bass reflex. Downfiring port
    • 12in MSP
    • AIR BASE-2
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 500W
    • 100-120 V/200-240 V 50/60 Hz
    • 22
    • 200
    • 117
    • Front-loaded bass reflex
    • 2x10in MSP
    • AIR BASE 24
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 700W
    • 100-120 V/200-240 V 50/60 Hz
    • 20
    • 200
    • 120
    • Bass reflex. Downfiring port
    • 2x12in MSP
