AIR BASE 12

AIR BASE 12

Active subwoofer, one 12" woofer. With a total frequency response of 22 Hz - 200 Hz and 500 watts of amplification, this AIR Base 12 subwoofer delivers a clear and crisp punch to the bottom.

FIND A DEALER

AIR BASE 12

Active subwoofer, one 12" woofer. With a total frequency response of 22 Hz - 200 Hz and 500 watts of amplification, this AIR Base 12 subwoofer delivers a clear and crisp punch to the bottom.

AIR Base 12 sports a new class D amp developed at the TC Electronic laboratories, which will assure "top of the line" quality and an abundance of power and reliability. On top of that the AIR Base 12 comes with a new 12" woofer that was specifically designed for low frequency reproduction and extremely tight impulse response.

AIR Base 12 is a compact and dedicated AIR series active subwoofer. Intended for smaller and medium size rooms, AIR Base 12 offers the high performance that has become the trademark of Dynaudio Acoustics' AIR Series. Use one AIR Base 12 with e.g. AIR 6 or 15 in smaller rooms, or link several Base 12's in bigger rooms with e.g. AIR 20 or 25 and increase the acoustic output with each additional unit.

Through the TC Link (proprietary AIR network) AIR Base 12 integrates with AIR series monitors and delivers unique features such as advanced bass management and a wealth of other tweaking possibilities. This subwoofer will be an ideal complement for both stereo and multichannel setups like:
- Editing suites
- Post Production facilities
- Music recording and mixing studios
- Larger OB vans
- DVD authoring and mastering
 -Stereo and Multichannel production.

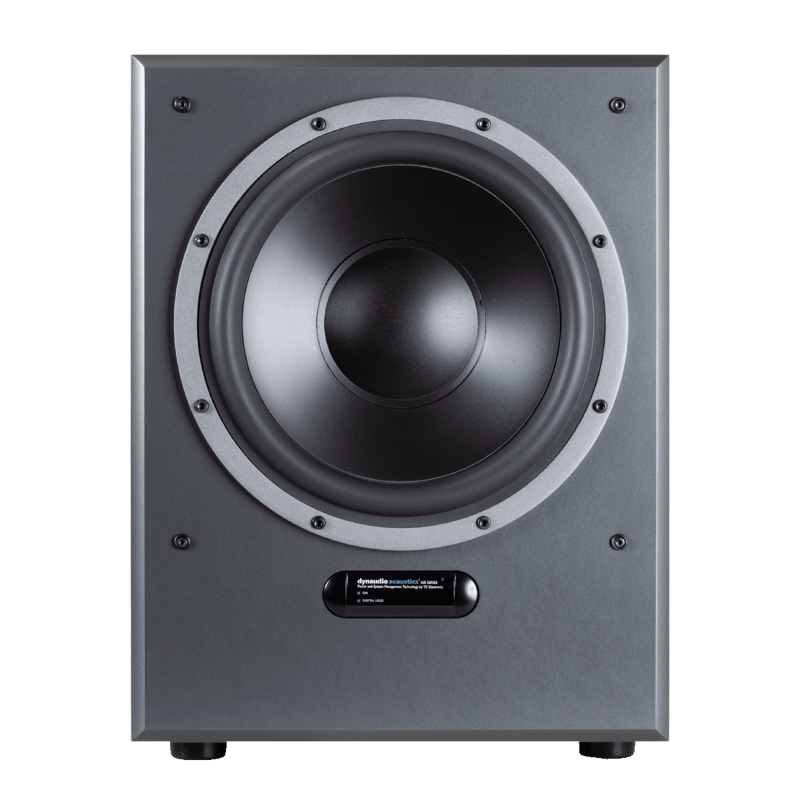

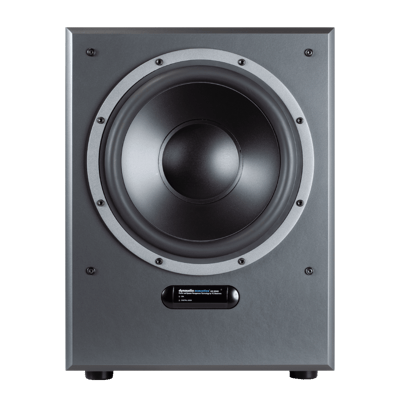

Dynaudio_AIRBASE12_front

AIR BASE 12

Specifications

  • Status Discontinued
  • Segment Pro
  • Range AIR
  • Type Subwoofers
  • Digital inputs TC Link
  • Amplifier Power (Watt) 500W
  • AC Power Input 100-120 V/200-240 V 50/60 Hz
  • Lower Cutoff (Hz @85 dB +/- 3 dB) 22
  • Upper Cutoff (Hz @ 85dB +/- 3 dB) 200
  • MAX SPL (dB) 117
  • Box Principle Bass reflex. Downfiring port
  • Woofer 12in MSP

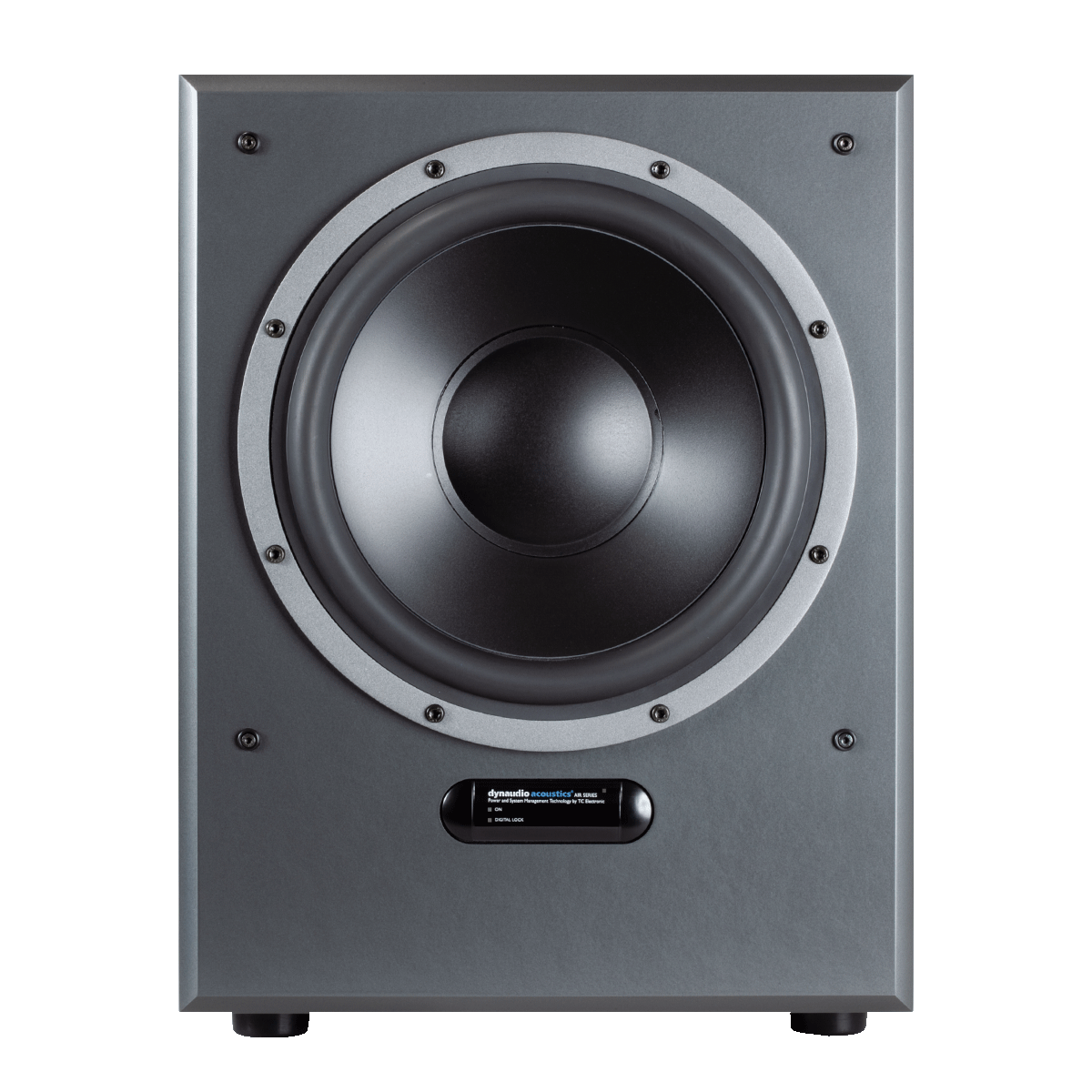

Dynaudio_AIRBASE12_front

Find a dealer

Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.

    Air + Air Software series

    • Status:
    • Segment:
    • Range:
    • Type:
    • Digital inputs:
    • Amplifier Power (Watt):
    • AC Power Input:
    • Lower Cutoff (Hz @85 dB +/- 3 dB):
    • Upper Cutoff (Hz @ 85dB +/- 3 dB):
    • MAX SPL (dB):
    • Box Principle:
    • Woofer:

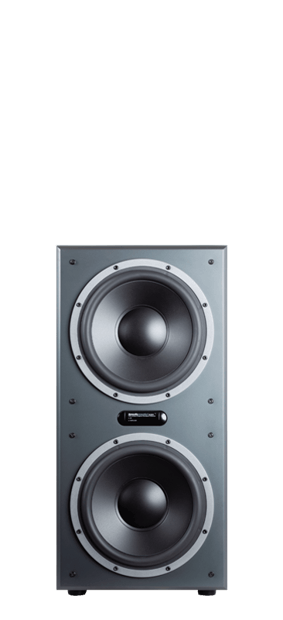

    • AIR BASE 24
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 700W
    • 100-120 V/200-240 V 50/60 Hz
    • 20
    • 200
    • 120
    • Bass reflex. Downfiring port
    • 2x12in MSP

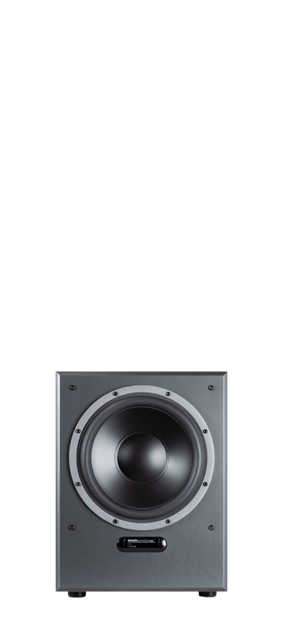

    • AIR BASE 12
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 500W
    • 100-120 V/200-240 V 50/60 Hz
    • 22
    • 200
    • 117
    • Bass reflex. Downfiring port
    • 12in MSP

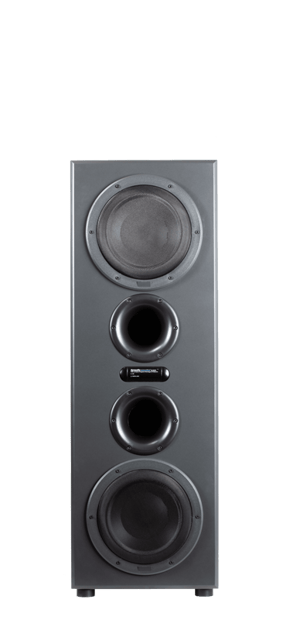

    • AIR BASE-2
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 500W
    • 100-120 V/200-240 V 50/60 Hz
    • 22
    • 200
    • 117
    • Front-loaded bass reflex
    • 2x10in MSP

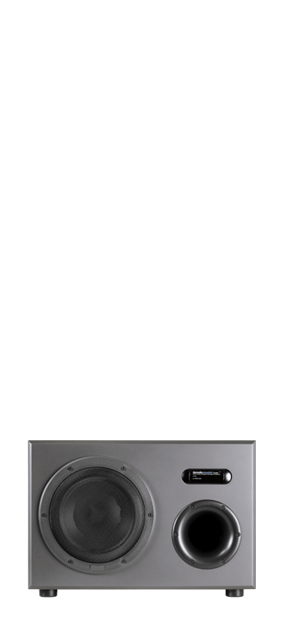

    • AIR BASE-1
    • Discontinued
    • Pro
    • AIR
    • Subwoofers
    • TC Link
    • 200W
    • 100-120 V/200-240 V 50/60 Hz
    • 25
    • 120
    • 113
    • Front-loaded bass reflex
    • 10in MSP
