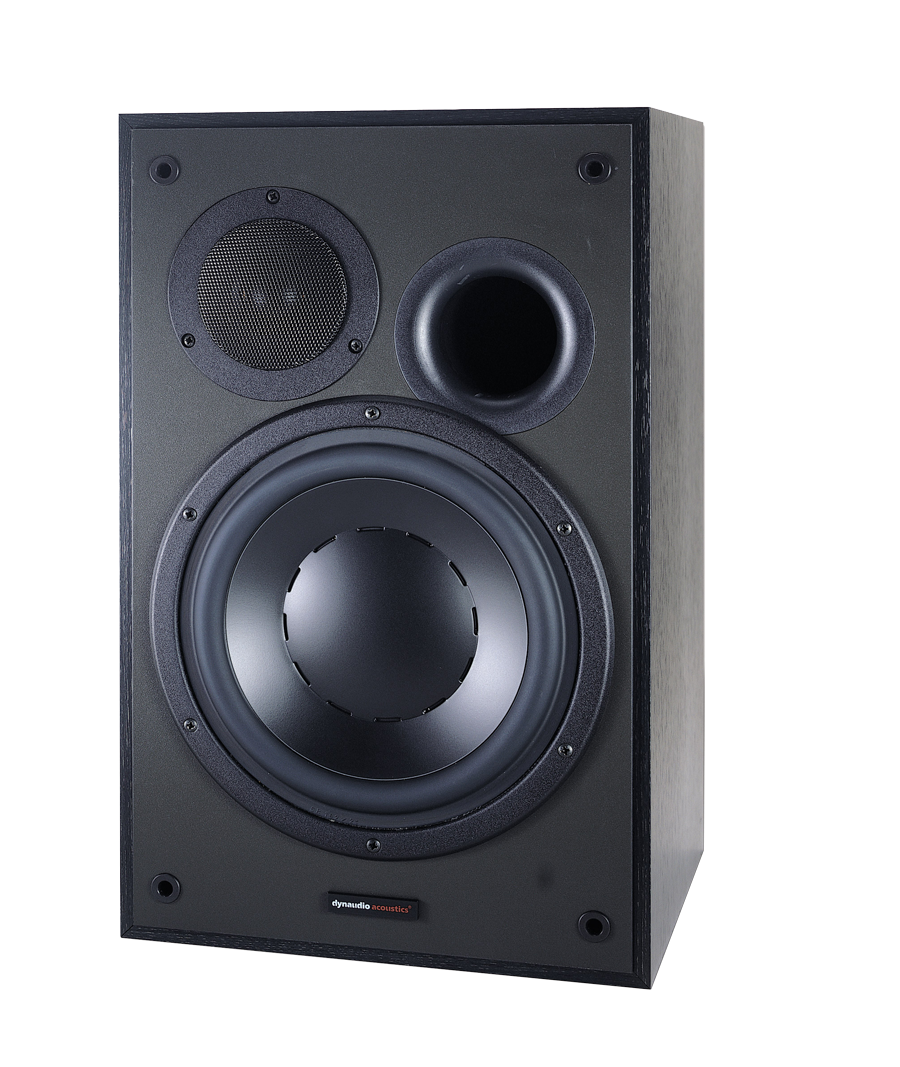

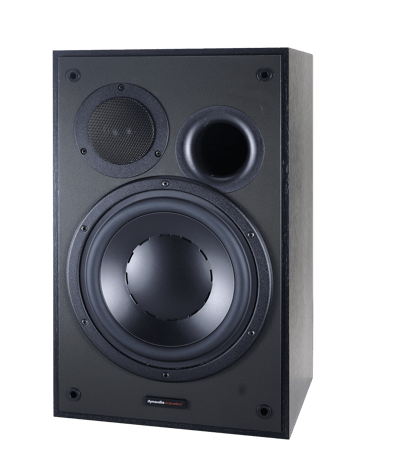

BM15
BM15
The BM15 is the largest and most powerful speaker within the BM Passive range and is designed for any studio application where higher sound pressure levels and extended low frequence response are required. Its astonishing power handling and full range extended bass response makes it the perfect alternative to wall mounted main monitors, particularly for commercial studios, project studios and post production facilities.
Introduction
The BM15 is the largest and most powerful speaker within the BM Passive range and is designed for any studio application where higher sound pressure levels and extended low frequence response are required.
The BM15 is the largest and most powerful speaker within the BM Passive range and is designed for any studio application where higher sound pressure levels and extended low frequence response are required. Its astonishing power handling and full range extended bass response makes it the perfect alternative to wall mounted main monitors, particularly for commercial studios, project studios and post production facilities.
BM15
Specifications
- Status Discontinued
- Segment Pro
- Series BM Legacy
- Type Nearfield Monitor
- Analog inputs Passive
- Maximum SPL (1m, pair) 127
- Lower Cutoff (Hz @85 dB +/- 3 dB) 43
- Upper Cutoff (kHz @ 85dB +/- 3 dB) 20
- Box Principle Front-loaded bass reflex
- Crossover 2-way
- Crossover Frequency (Hz) 2700 Hz
- Crossover Topology 1st/2nd order
- Tweeter 1.1in soft dome
- Midrange/Woofer 10in MSP
- Weight kg 12.3
- Weight lbs 27 1/8
- Width mm 272
- Height mm 436
- Depth mm 321
- Width inches 10 6/8
- Height inches 17 1/8
- Depth inches 12 5/8
