BM 15A
BM15A
The Dynaudio nearfield experience.
Introduction

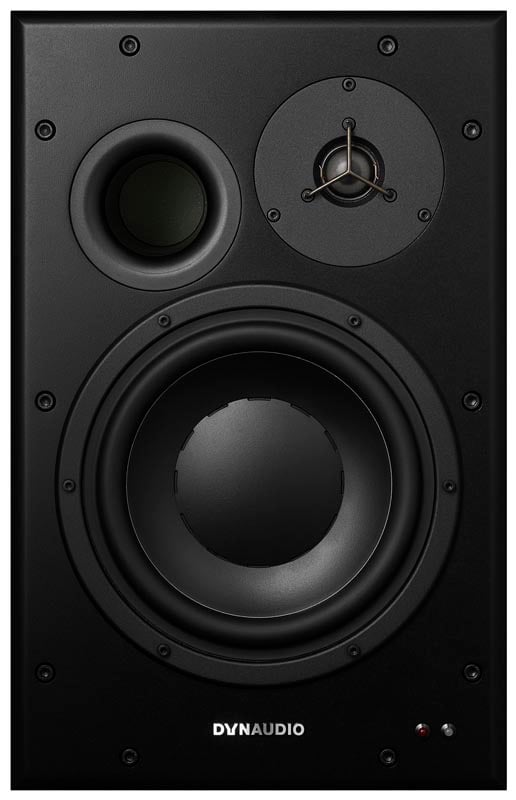

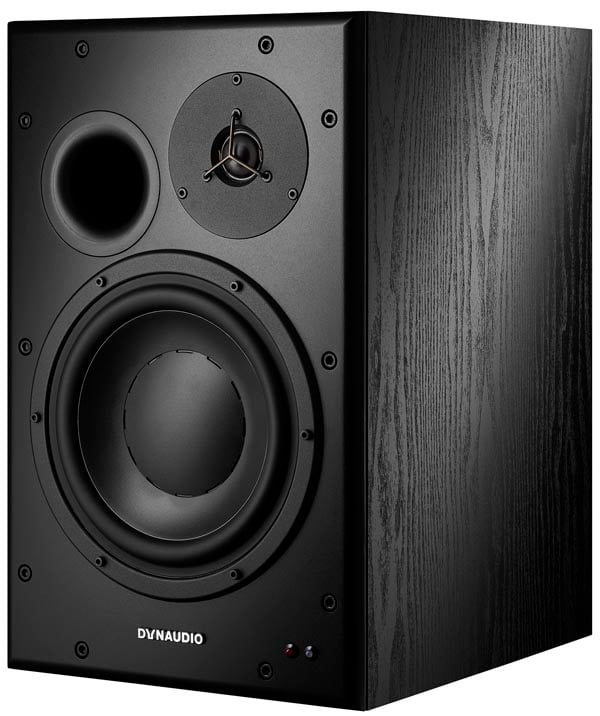

BM15A. The Dynaudio nearfield experience.
The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.
The ESOTEC HF has a dynamic headroom of 1000W, and the 240mm (10") bass driver is world-renowned for its 100mm (4") aluminium alloy voice coil.
The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.



Classic BM Range
Features
Phase-aligned crossover
Handcrafted drivers with aluminum voice coils
Made in Denmark
BM 15A
Specifications
- Status Current
- Segment Pro
- Series BM
- Type Nearfield Monitor
- Analog inputs XLR
- Maximum SPL (1m, pair) 124
- Amplifier Power Woofer (W) 200
- Amplifier Power Tweeter (W) 100
- AC Power Input 100-240V 50/60Hz
- Max Power Consumption (W) 300
- Lower Cutoff (Hz @85 dB +/- 3 dB) 40
- Upper Cutoff (kHz @ 85dB +/- 3 dB) 21
- Box Principle Front-loaded bass reflex
- Crossover 2-way
- Crossover Frequency (Hz) 1800 Hz
- Tweeter 1800 Hz
- Midrange/Woofer 10in MSP
- Weight kg 18.6
- Weight lbs 41
- Width mm 290
- Height mm 454
- Depth mm 388
- Width inches 11 3/8
- Height inches 17 7/8
- Depth inches 15 2/8
- Speakers per packaged box 1

I really like the way they sound and I know I can trust what I hear. With them my mixes translate well every time
Roy Hendrickson, Studio Engineer
