P4-W65
The right fit
Slimline in-wall speaker with a 6.5in woofer
P4-W65
The right fit. Slimline in-wall speaker with a 6.5in woofer.

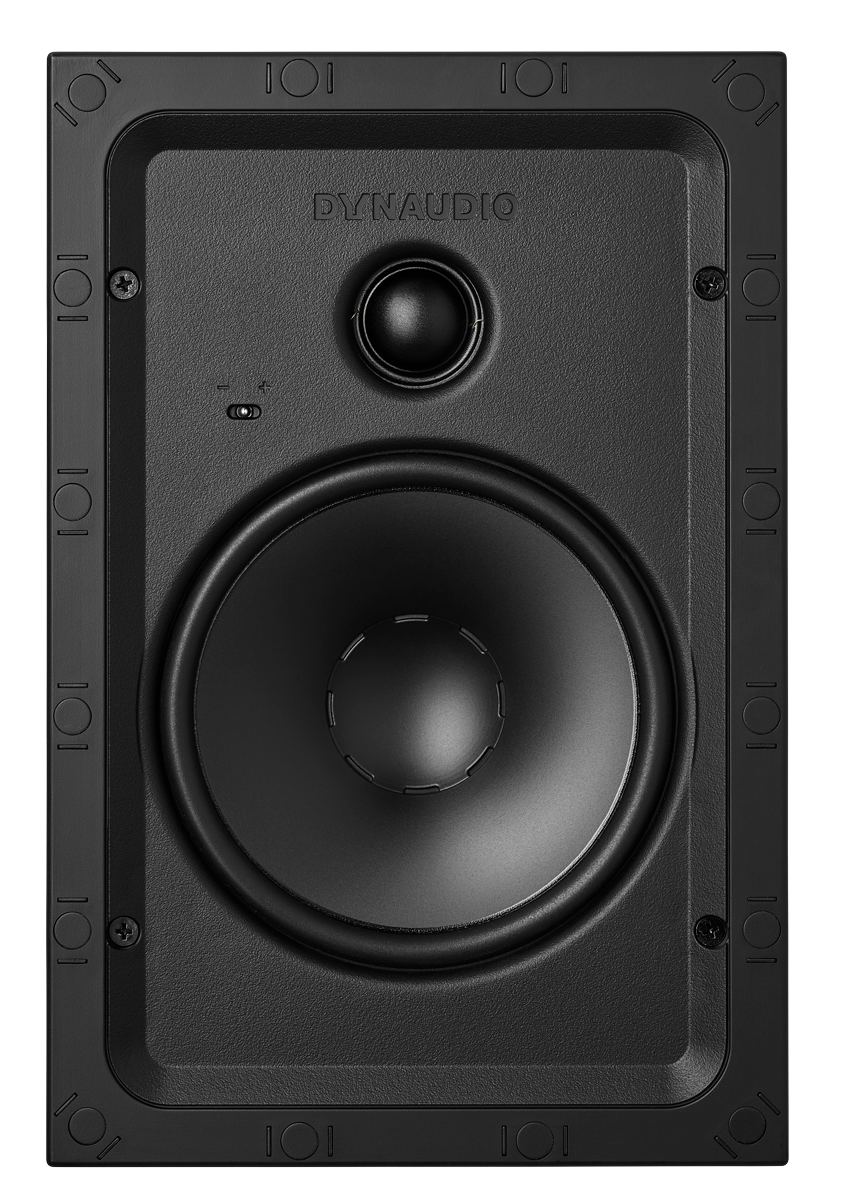

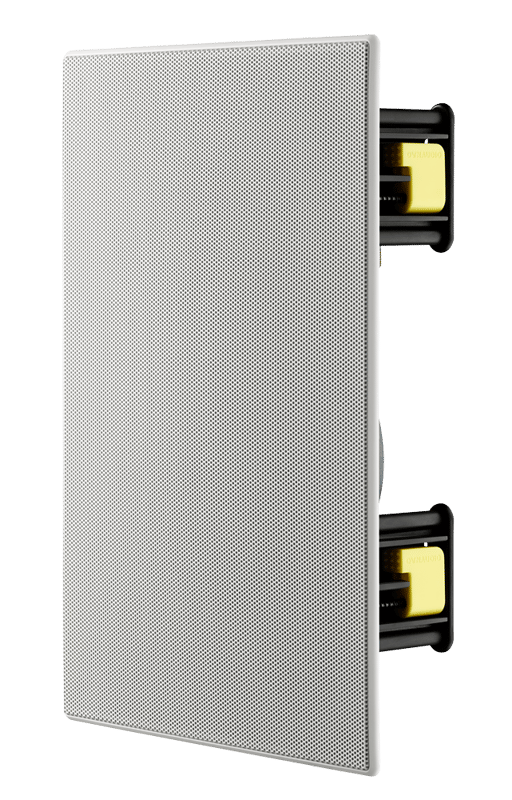

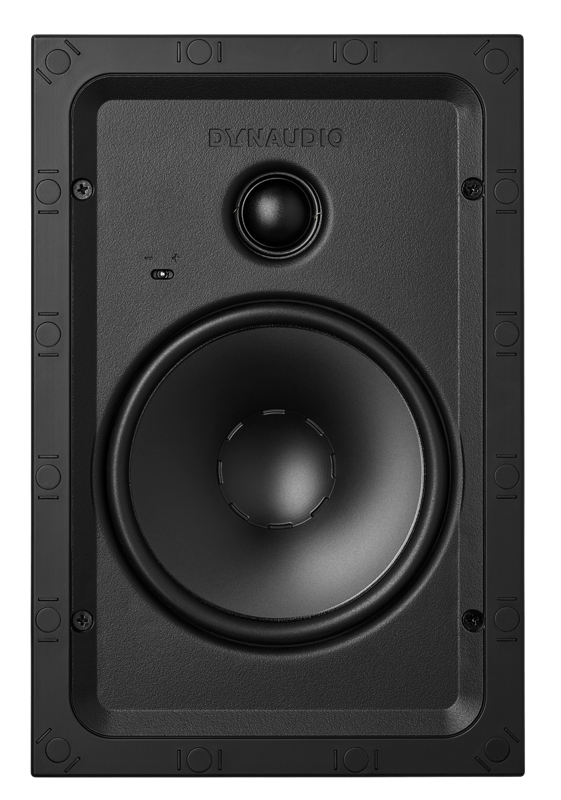

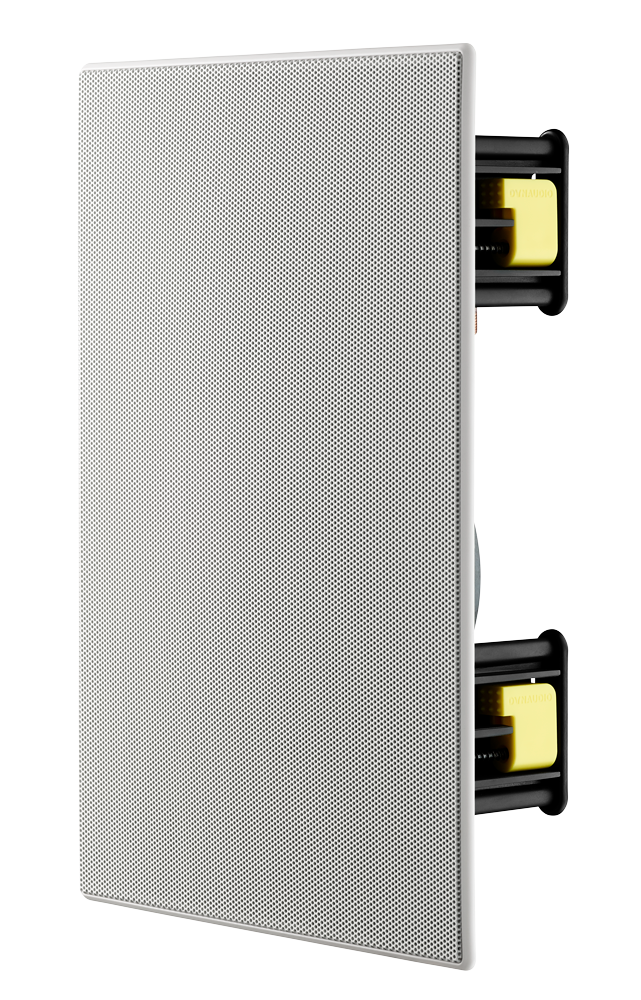

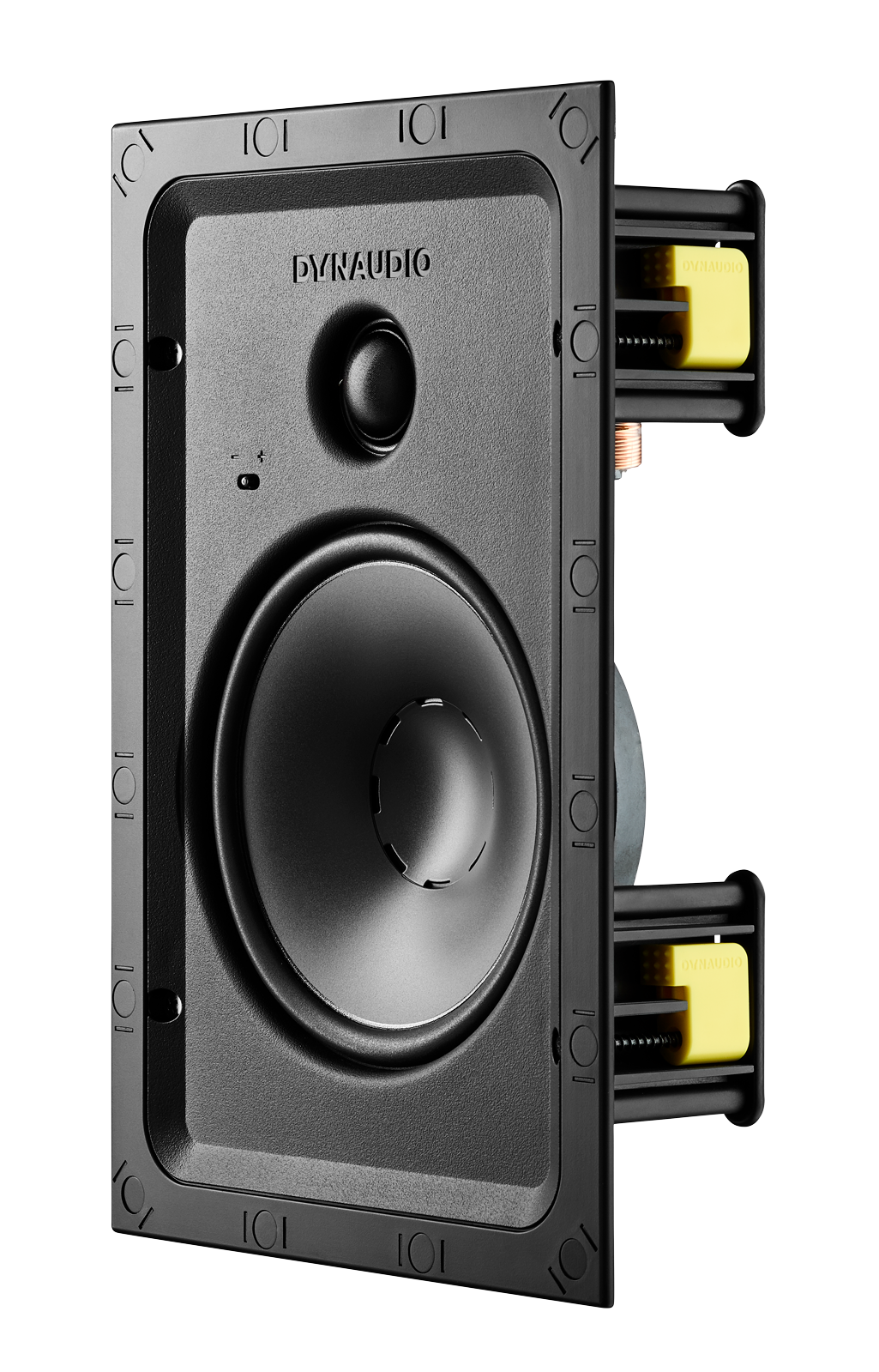

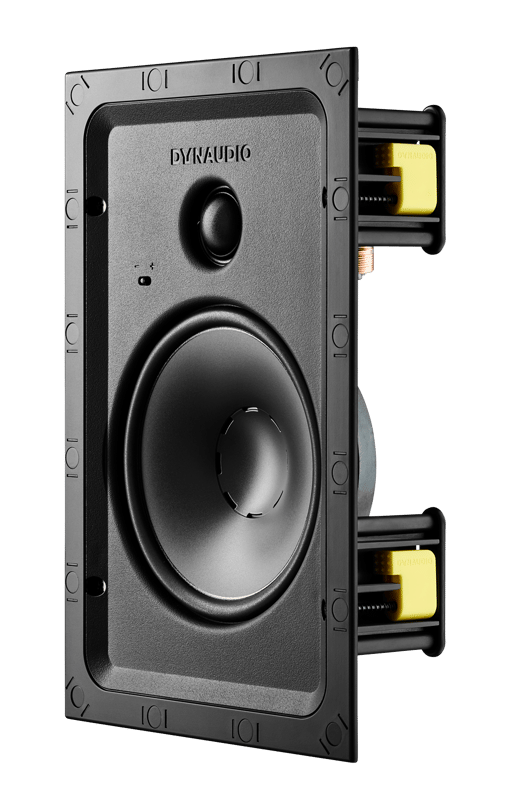

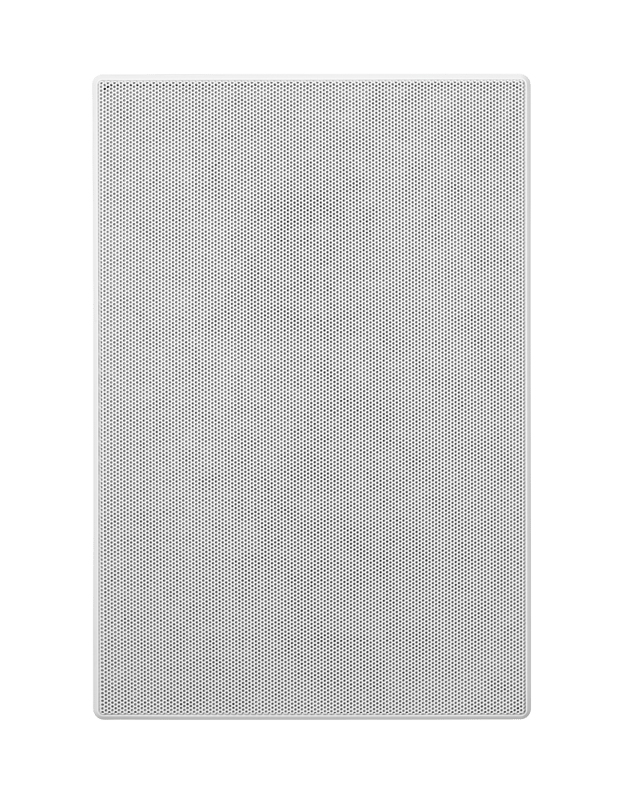

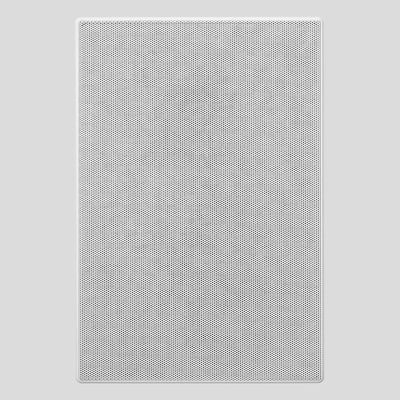

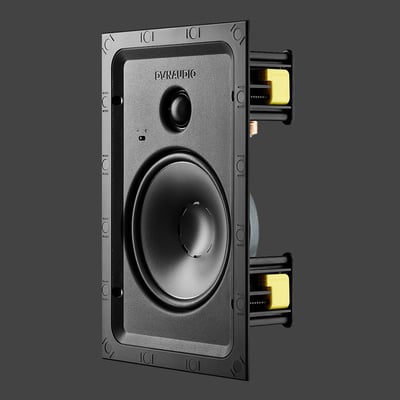

What do you do if you don’t have the space for a full install system… but you still want a full install system? You could modify the wall, of course (which could mean big time and money); you could compromise on the speaker you put in the cavity (which would mean inferior sound); or you could go for this slimline in-wall model.The P4-W65 is just 63mm deep, so it will fit into ridiculously tight spaces with the same ease that you’d expect from a Dynaudio Custom speaker.Like all of our other speakers it uses a 28mm coated soft-dome tweeter and a Magnesium Silicate Polymer woofer (a 6.5in version, in this case). And it’s all housed in a one-piece chassis that secures into place with the turn of a few screws.You can fine-tune the tweeter’s response to -3dB, 0dB or +3dB to really tailor the speaker to the room. And, for the finishing touch, the included magnetic grille is paintable – so it can be coloured to fit seamlessly with the rest of the room’s décor.



P4-W65
Specifications
- Status Current
- Segment Custom Install
- Series Performance
- Type In-wall
- Sensitivity (dB @ 2.83V/1m) 87,5
- Rated Power 40
- Long Term Power 80
- Rated Impedance (Ohm) 8
- Impedance (Minimum) 5
- Lower Cutoff (Hz @ +/- 3 dB) 46
- Upper Cutoff (kHz @ +/- 3 dB) 20
- Crossover 2-way
- Tweeter 28 mm soft dome
- Midrange/Woofer 16.5 cm MSP
- Tweeter level options -3dB, 0dB, +3dB
- Width mm 198
- Height mm 296
- Depth mm 63
- Width inches 7 3/4
- Height inches 11 11/16
- Depth inches 2 1/5
- Width Cutout mm 175
- Height Cutout mm 275
- Height cutout inches 6 7/8
- Width cutout inches 10 7/8
