P4-W80
Power without bulk
Slimline in-wall speaker with an 8in woofer
P4-W80
Power without bulk. Slimline in-wall speaker with an 8in woofer.

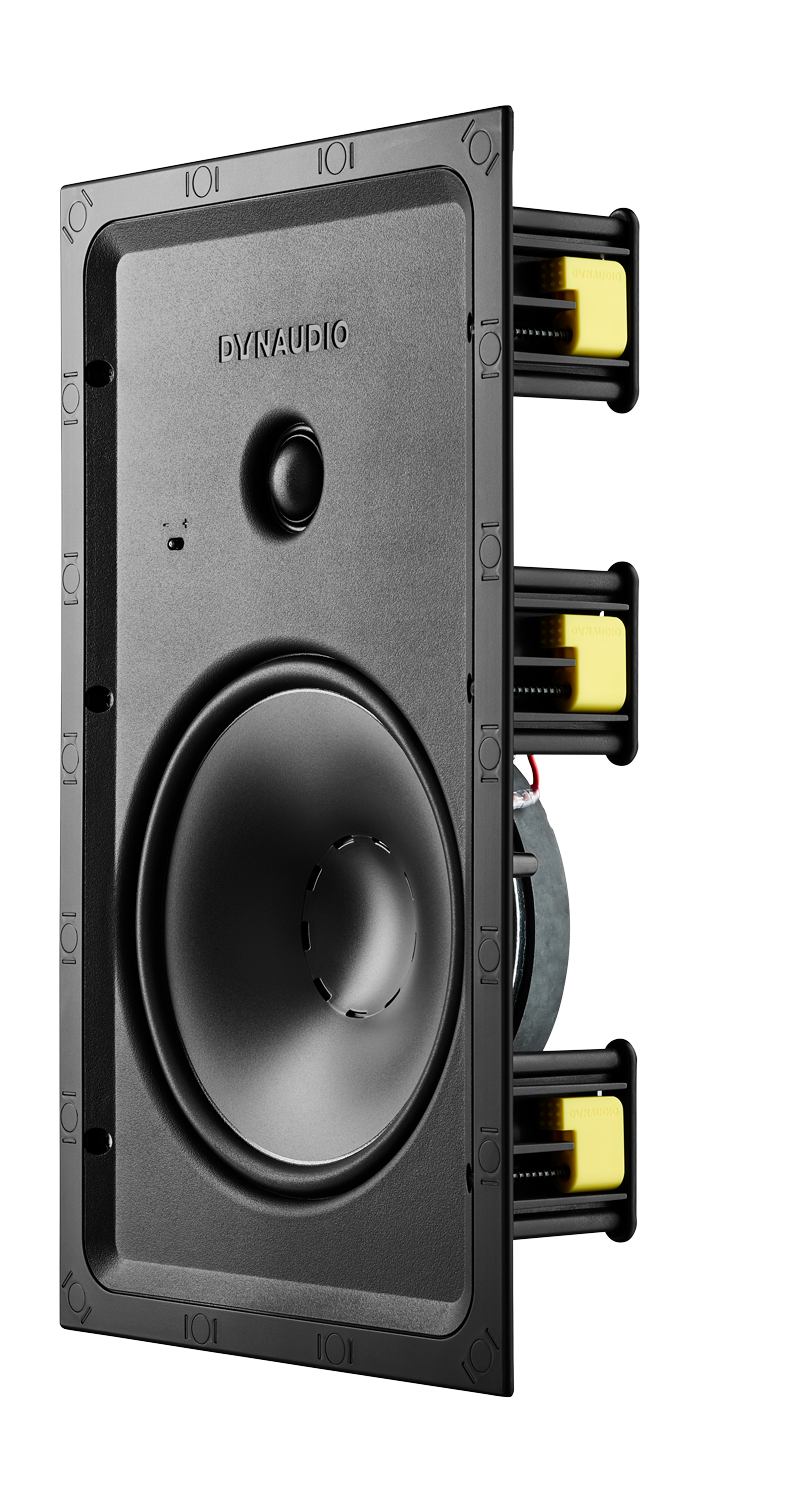

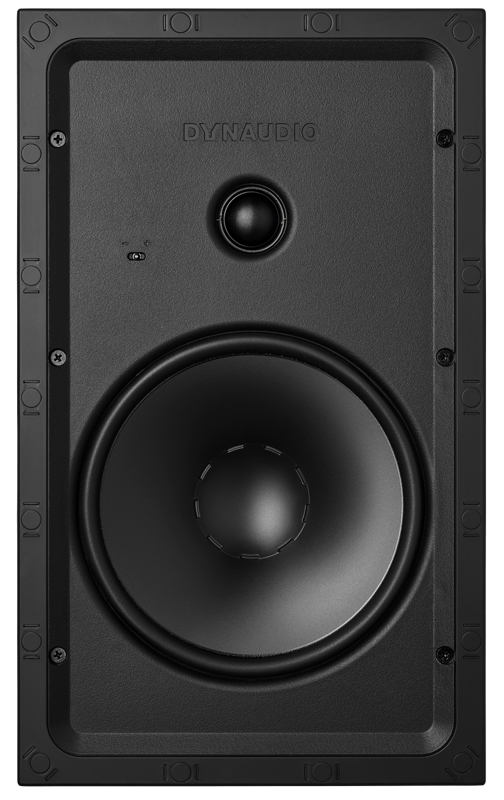

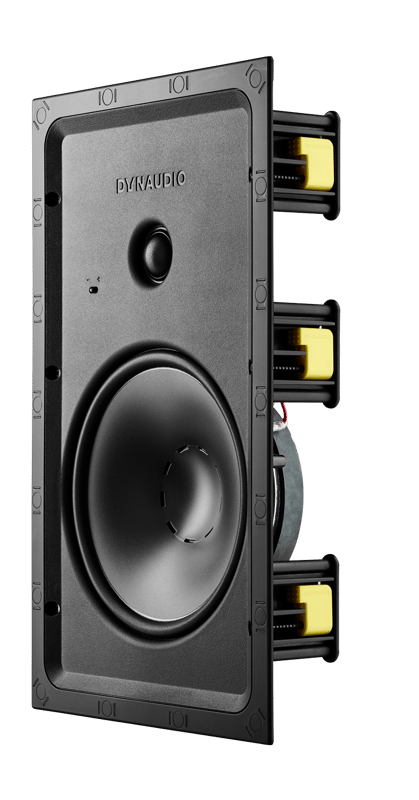

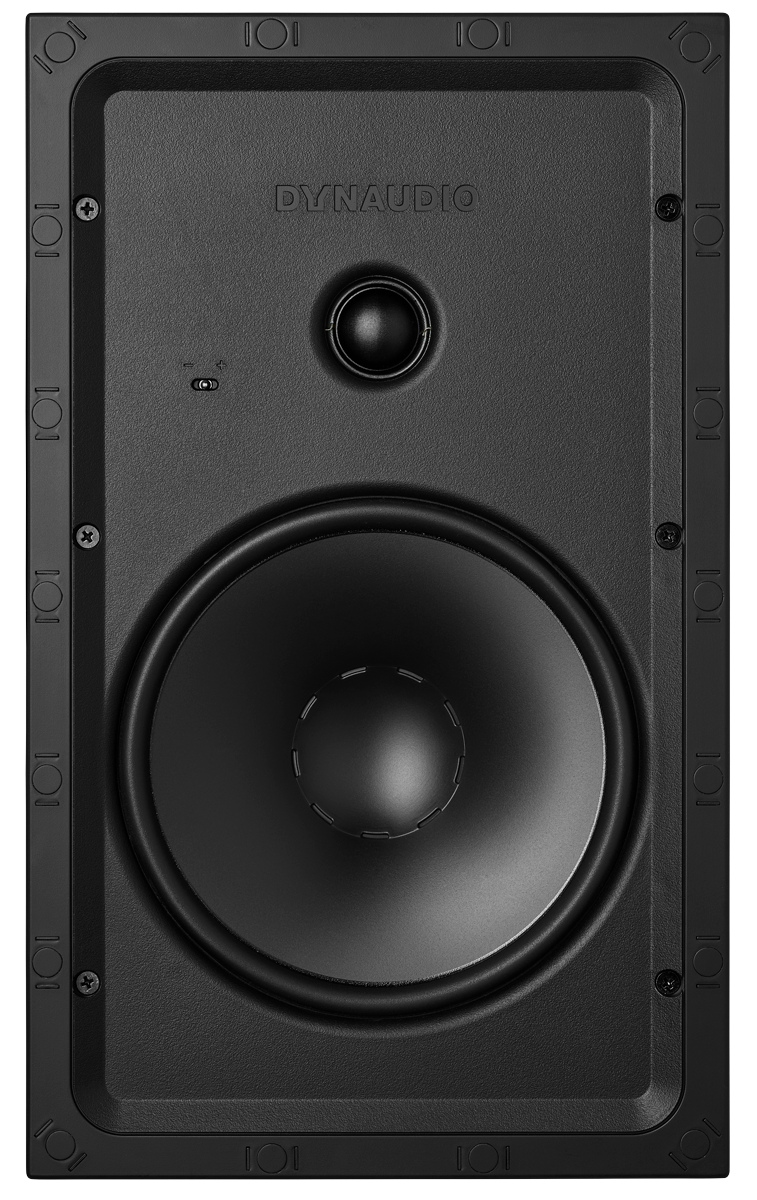

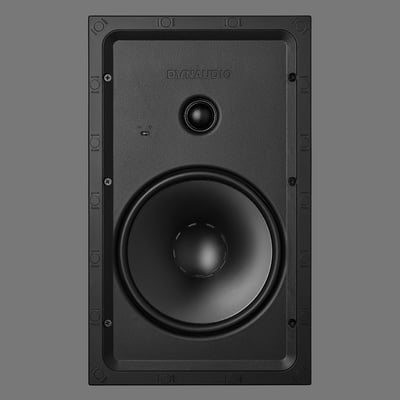

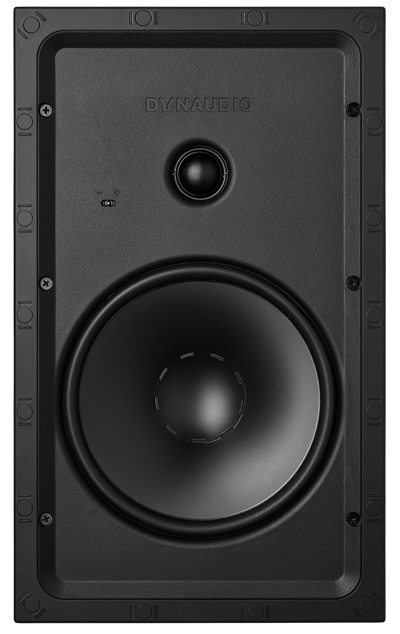

It delivers all the power, finesse and clean detail of the smaller P4-W65 in-wall speaker, but ramps it all up for bigger spaces. The 8in MSP (Magnesium Silicate Polymer) woofer is complemented by a Dynaudio 28mm coated soft-dome tweeter, and sits in a one-piece frame that’s a piece of cake to install.

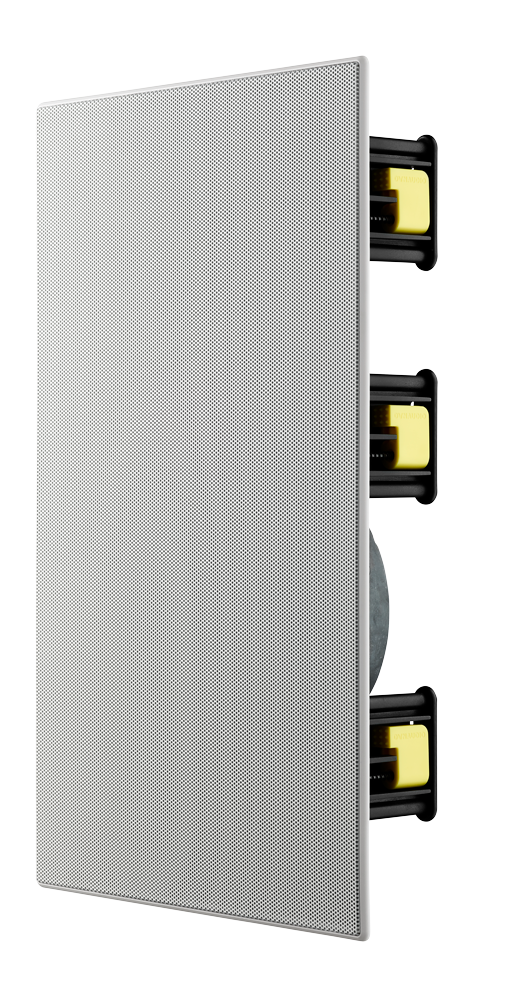

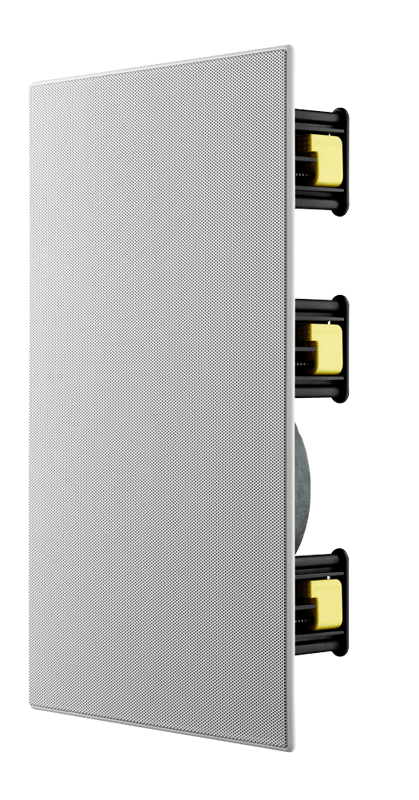

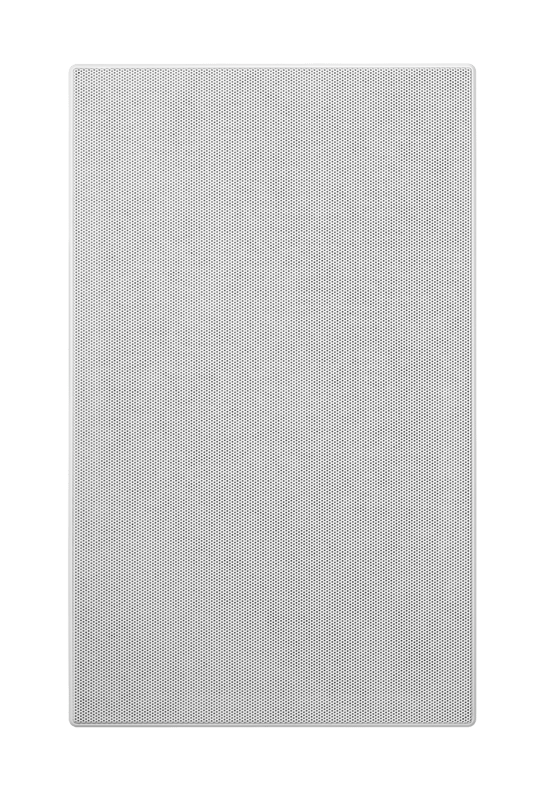

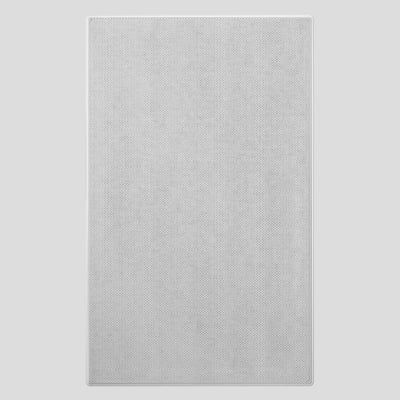

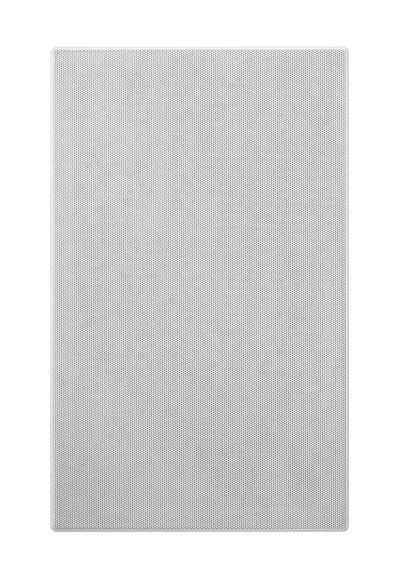

Once done, adjust the tweeter sensitivity (-3dB, 0dB or +3dB are available) to suit the room, fit the paintable magnetic grille and it’s job done.
P4-W80
Specifications
- Status Current
- Segment Custom Install
- Series Performance
- Type In-wall
- Sensitivity (dB @ 2.83V/1m) 89
- Rated Power 50
- Long Term Power 160
- Rated Impedance (Ohm) 8
- Impedance (Minimum) 5
- Lower Cutoff (Hz @ +/- 3 dB) 42
- Upper Cutoff (kHz @ +/- 3 dB) 20
- Crossover 2-way
- Tweeter 28 mm soft dome
- Midrange/Woofer 20 cm MSP
- Tweeter level options -3dB, 0dB, +3dB
- Width mm 237
- Height mm 392
- Depth mm 77
- Width inches 9 5/16
- Height inches 15 3/8
- Depth inches 3
- Width Cutout mm 215
- Height Cutout mm 370
- Height cutout inches 8 4/8
- Width cutout inches 14 5/8
