S4-C80

For when only big sound will do, upgrade your in-ceiling speakers for even more power.

Bigger rooms need bigger sound to fill them, and the Dynaudio Custom S4-C80 in-ceiling speaker certainly won’t leave larger spaces wanting. While it shares lots of what’s great about the smaller S4-C65 in its design – including its ability to rotate through 360 degrees to suit your room – it boasts a larger 20cm mid/bass driver for a more powerful sound that’ll go deeper and louder when it really counts.

The higher frequencies are handled by the same excellent 28mm soft-dome tweeter as its smaller sibling too, which can also be pivoted to tailor the sound perfectly to your room.

The bigger size of this speaker will require a little more room in your ceiling, but don’t worry. With a choice of round or square paintable grilles, the S4-C80 can stand out or blend in as much as you want it to.

s4-c8_half_profile

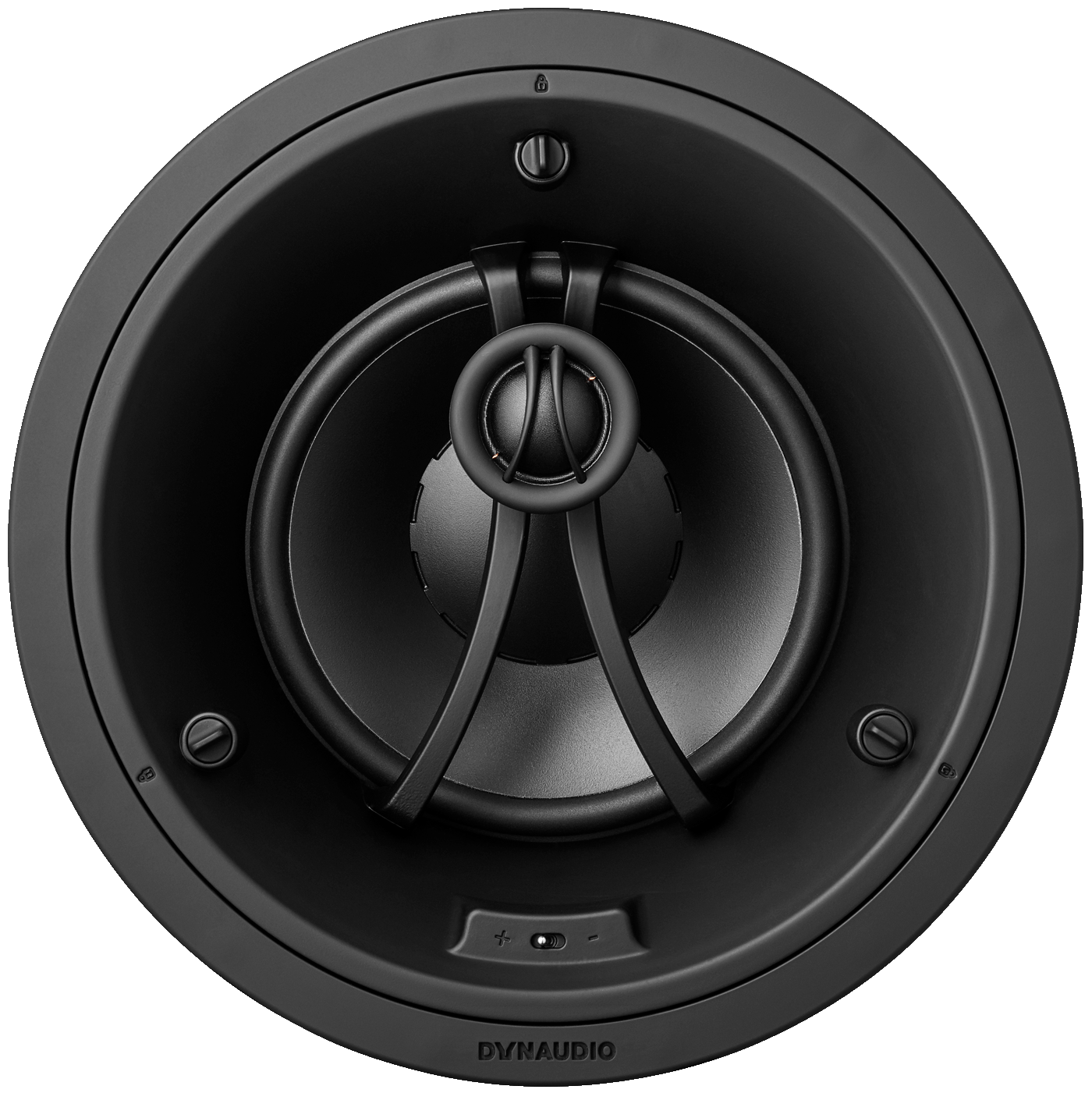

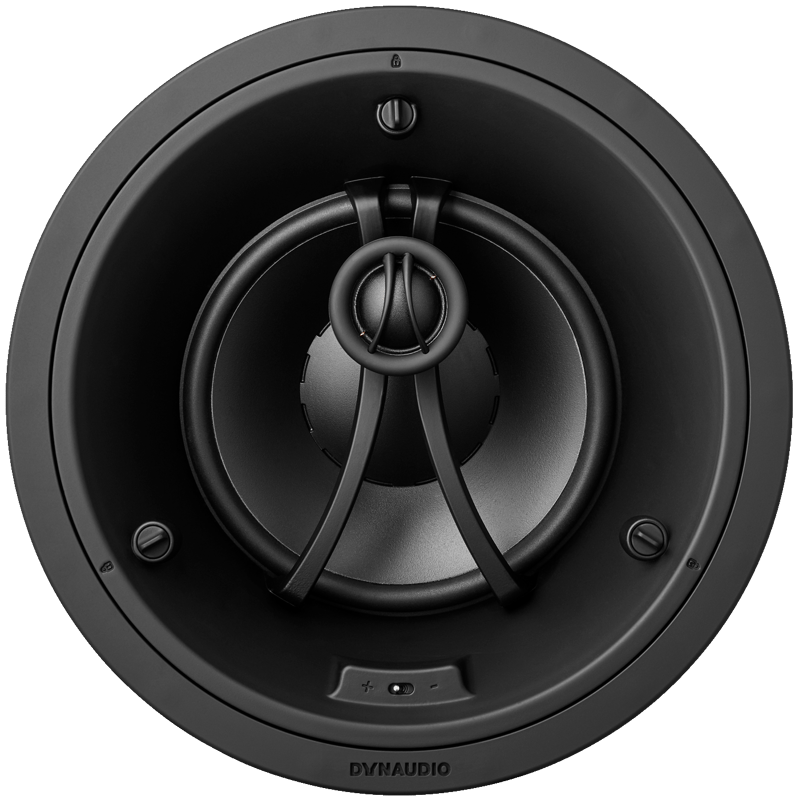

s4-c8_front

S4-C80

Specifications

  • Status Current
  • Segment Custom Install
  • Series Studio
  • Type In-celling
  • Sensitivity (dB @ 2.83V/1m) 89
  • Rated Power 100
  • Long Term Power 140
  • Rated Impedance (Ohm) 8
  • Impedance (Minimum) 5
  • Lower Cutoff (Hz @ +/- 3 dB) 45
  • Upper Cutoff (kHz @ +/- 3 dB) 20
  • Crossover 2-way
Product-Lineart-P4-C80

Studio Series

  • Status:
  • Segment:
  • Series:
  • Type:
  • Sensitivity (dB @ 2.83V/1m):
  • Rated Power:
  • Long Term Power:
  • Rated Impedance (Ohm):
  • Impedance (Minimum):
  • Lower Cutoff (Hz @ +/- 3 dB):
  • Upper Cutoff (kHz @ +/- 3 dB):
  • Crossover:
  • S4-C65
  • Current
  • Custom Install
  • Studio
  • In-celling
  • 87,5
  • 50
  • 125
  • 8
  • 5
  • 55
  • 20
  • 2-way
  • S4-C80
  • Current
  • Custom Install
  • Studio
  • In-celling
  • 89
  • 100
  • 140
  • 8
  • 5
  • 45
  • 20
  • 2-way
  • S4-DVC65
  • Current
  • Custom Install
  • Studio
  • In-ceiling Dual Voice Coil
  • 83,5
  • 2x 50
  • 2x 100
  • 2x 4
  • 2x 3.2
  • 50
  • 20
  • 2-way Stereo
  • S4-LCR65W
  • Current
  • Custom Install
  • Studio
  • In-wall bass module
  • 86
  • 50
  • 200
  • 8
  • 4,6
  • 35
  • Custom
  • S4-LCRMT
  • Current
  • Custom Install
  • Studio
  • In-wall tweeter/mid module
  • 89
  • 50
  • 150
  • 8
  • 5
  • 250
  • 20
  • 2-way
  • S4-W65
  • Current
  • Custom Install
  • Studio
  • In-wall
  • 87,5
  • 50
  • 125
  • 8
  • 5
  • 55
  • 20
  • 2-way
  • S4-W80
  • Current
  • Custom Install
  • Studio
  • In-wall
  • 89
  • 100
  • 140
  • 8
  • 5
  • 45
  • 20
  • 2-way
