Easy installation, custom features

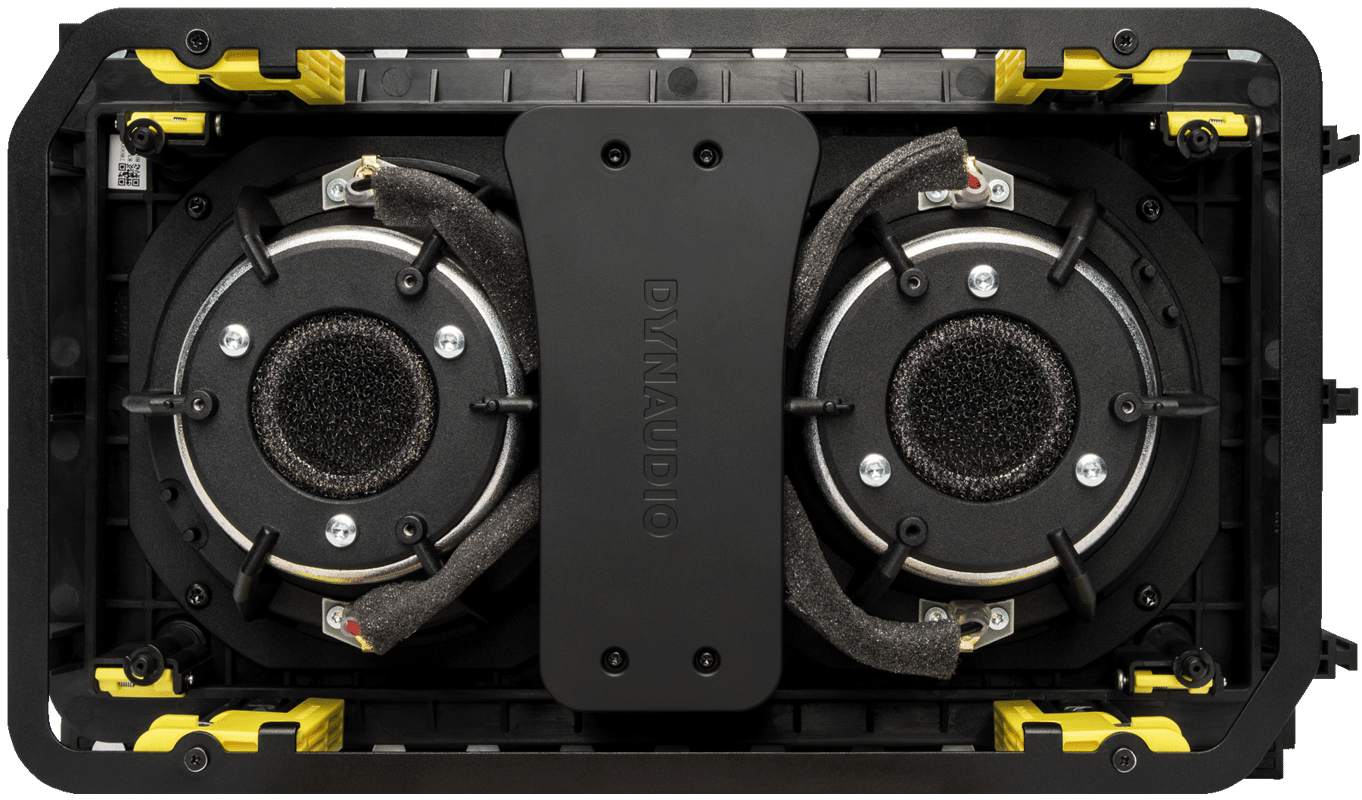

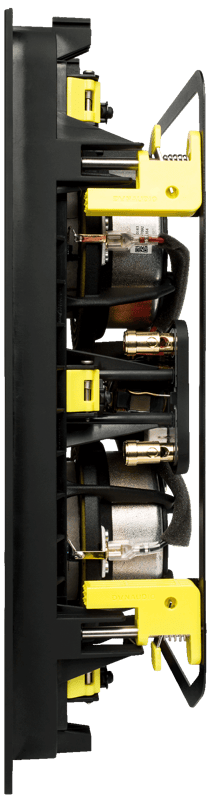

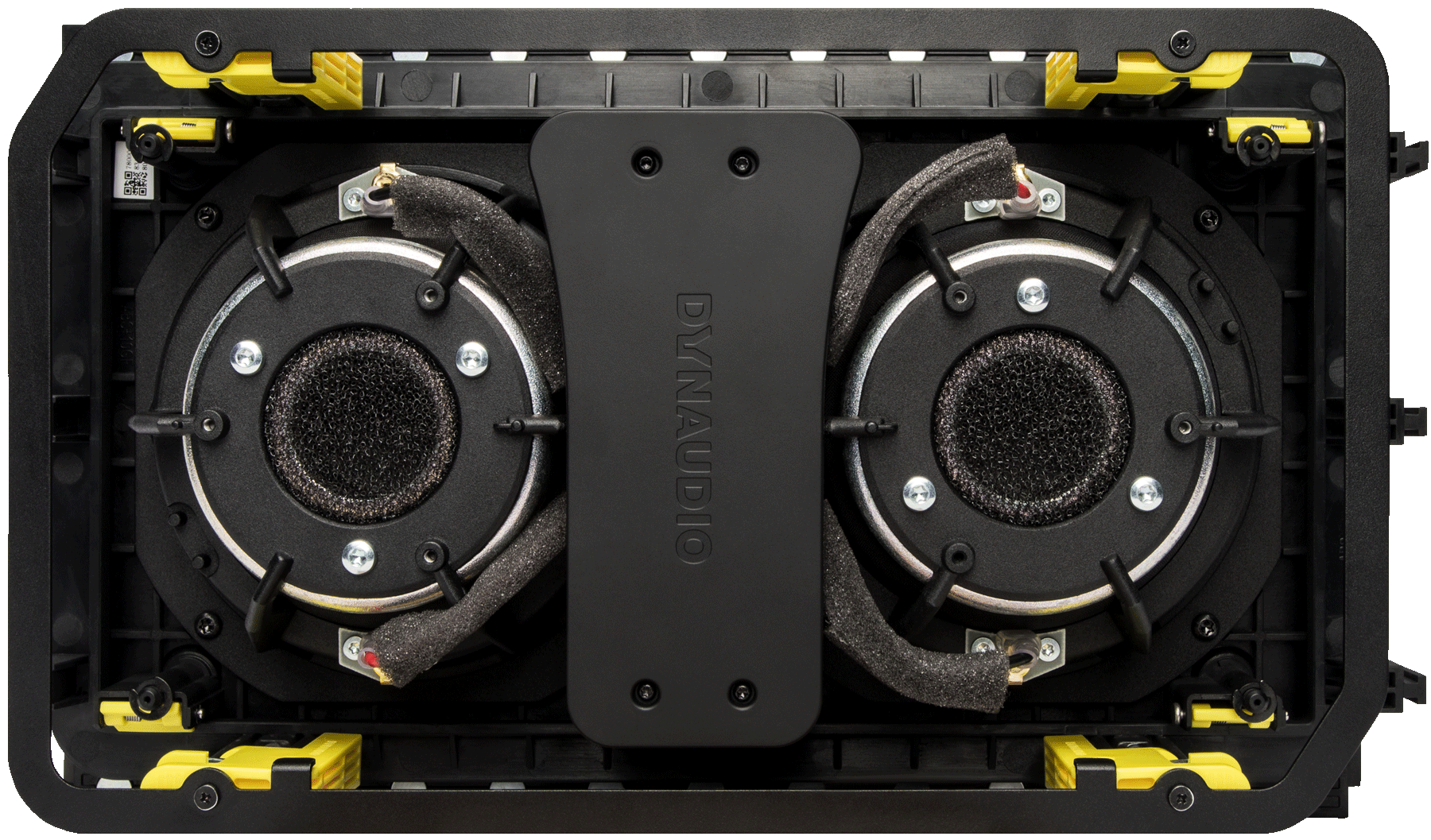

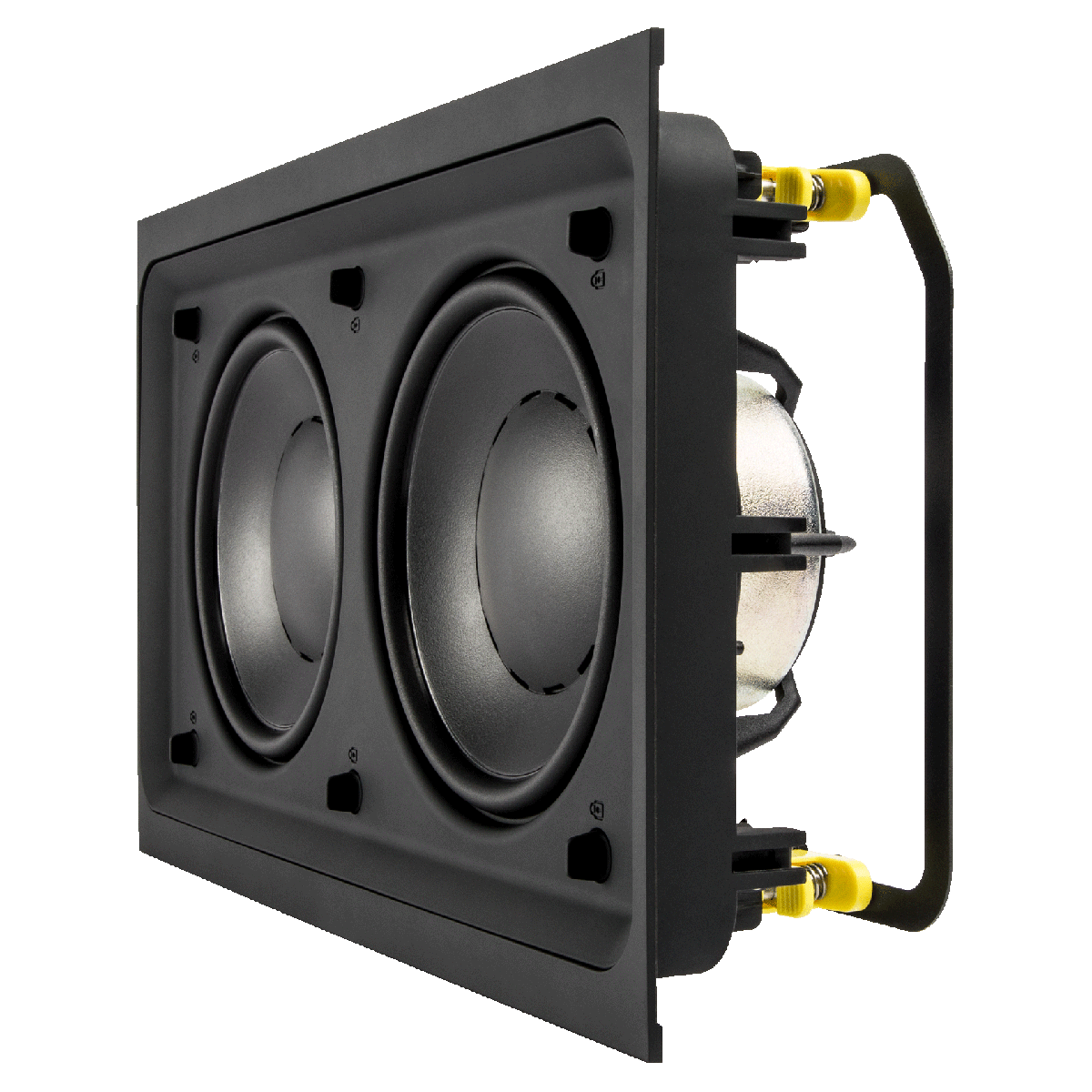

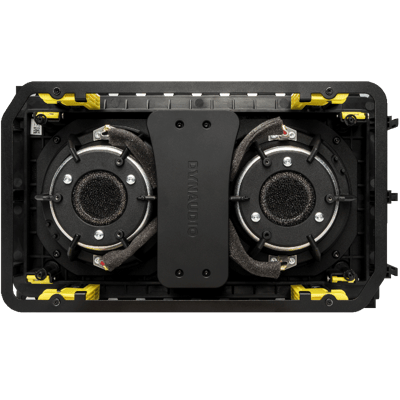

Like the rest of the Dynaudio Custom range, all the modules mount into their frames without any tools required. The frames use a special integrated counter-spring mechanism that prevents unwanted sonic vibrations while keeping everything solidly connected in the installation.
Each module uses a passive crossover with a three-position switch, pre-configured to standard LCR channel configurations that use one or two connected woofer modules. There’s also a bypass position to enable an unlimited number of fully active and completely customised S4-LCR65 system setups with external DSP processing and a dedicated amplifier channel for every driver.
The S4-LCR65 system has five different optional paintable white grilles that attach magnetically (four standard-sized and one customisable), and it can also be installed behind acoustic fabric or acoustically transparent screens.
And, of course, it uses the same materials and technologies that have made our other loudspeakers so legendary: soft-dome tweeters, MSP cones and large aluminium voice-coils. Classic Dynaudio heritage in a brand-new configuration.
- Status Current
- Segment Custom Install
- Series Studio
- Type In-wall bass module
- Sensitivity (dB @ 2.83V/1m) 86
- Rated Power 50
- Long Term Power 200
- Rated Impedance (Ohm) 8
- Impedance (Minimum) 4,6
- Lower Cutoff (Hz @ +/- 3 dB) 35
- Crossover Custom
- Woofer 2x 16.5 cm MSP
Studio series
- Status:
- Segment:
- Series:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- Rated Power:
- Long Term Power:
- Rated Impedance (Ohm):
- Impedance (Minimum):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Crossover:
S4-C65
- Current
- Custom Install
- Studio
- In-celling
- 87,5
- 50
- 125
- 8
- 5
- 55
- 20
- 2-way
S4-C80
- Current
- Custom Install
- Studio
- In-celling
- 89
- 100
- 140
- 8
- 5
- 45
- 20
- 2-way
S4-DVC65
- Current
- Custom Install
- Studio
- In-ceiling Dual Voice Coil
- 83,5
- 2x 50
- 2x 100
- 2x 4
- 2x 3.2
- 50
- 20
- 2-way Stereo
S4-LCR65W
- Current
- Custom Install
- Studio
- In-wall bass module
- 86
- 50
- 200
- 8
- 4,6
- 35
- Custom
S4-LCRMT
- Current
- Custom Install
- Studio
- In-wall tweeter/mid module
- 89
- 50
- 150
- 8
- 5
- 250
- 20
- 2-way
S4-W65
- Current
- Custom Install
- Studio
- In-wall
- 87,5
- 50
- 125
- 8
- 5
- 55
- 20
- 2-way
S4-W80
- Current
- Custom Install
- Studio
- In-wall
- 89
- 100
- 140
- 8
- 5
- 45
- 20
- 2-way
