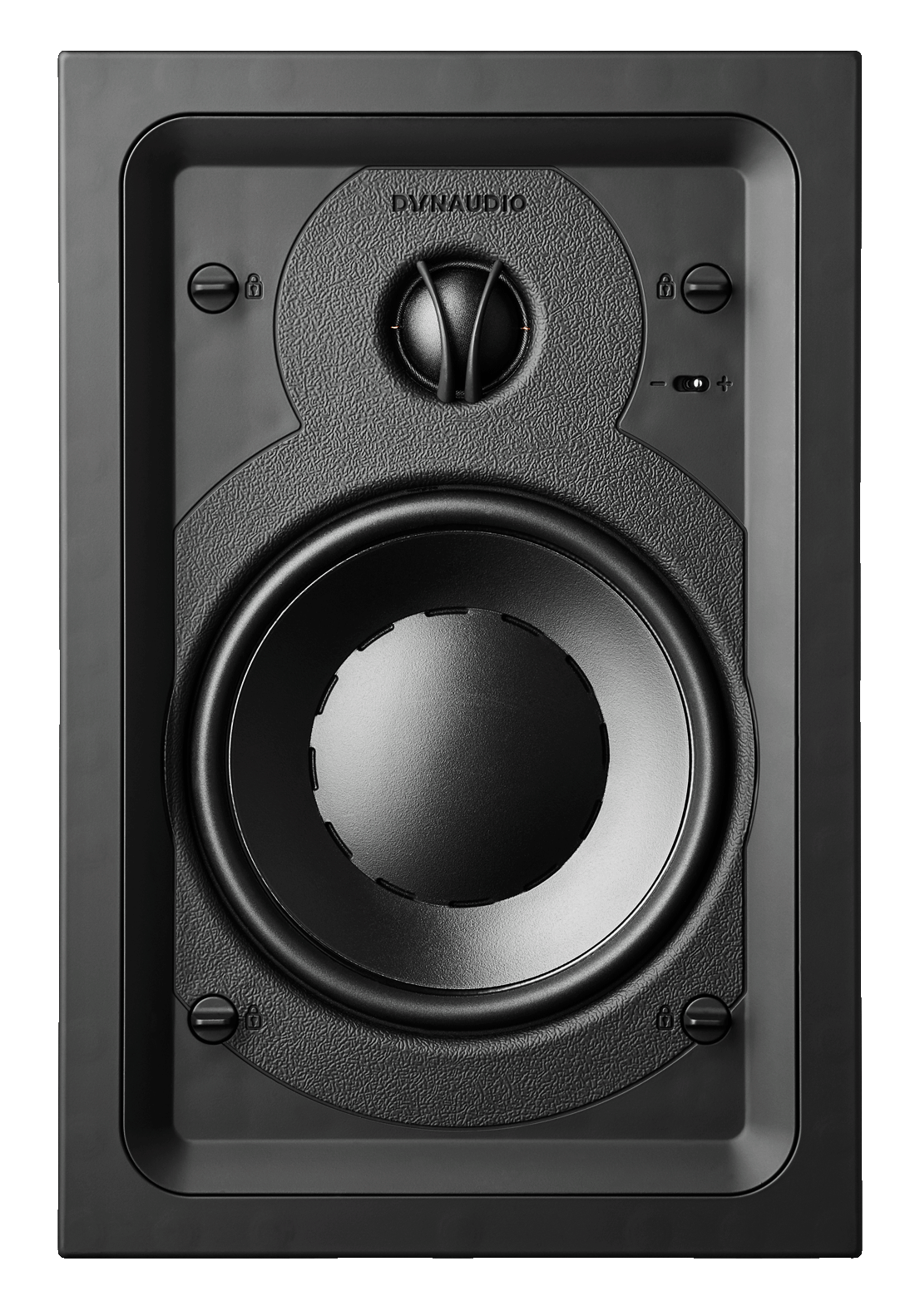

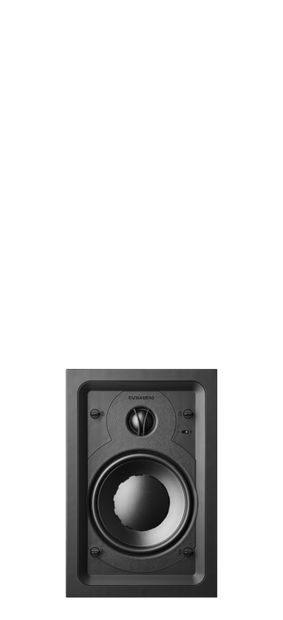

S4-W65
Decades of Dynaudio speaker expertise built in to your walls

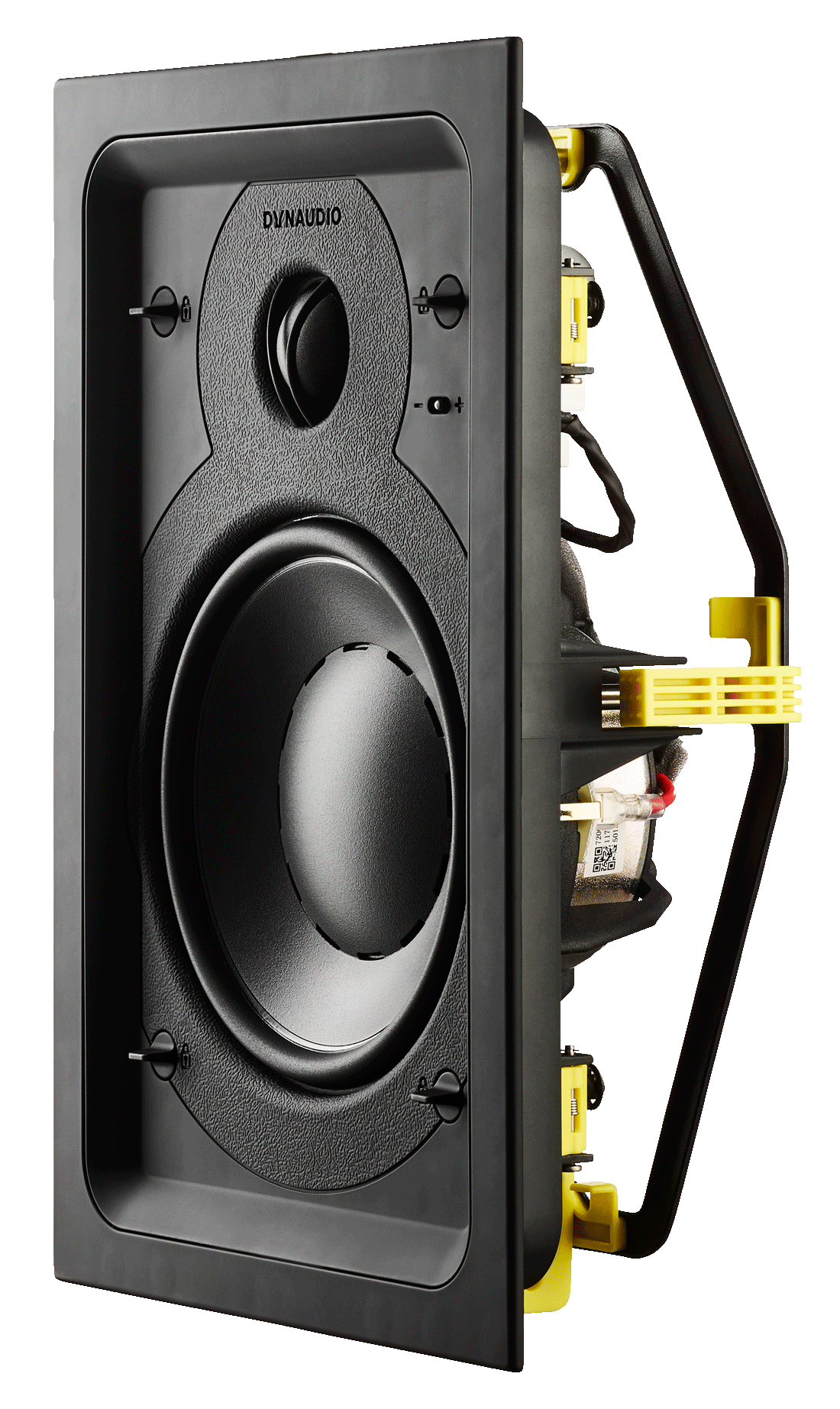

No visible wires, no fuss – just great sound. The S4-W65 from the Dynaudio Custom Architectural Studio range is an in-wall speaker with no compromises. The smaller of the two in-wall options, it makes the perfect companion for small to medium-sized rooms, offering a 17cm mid/bass driver to support its 28mm precision-coated soft-dome tweeter.

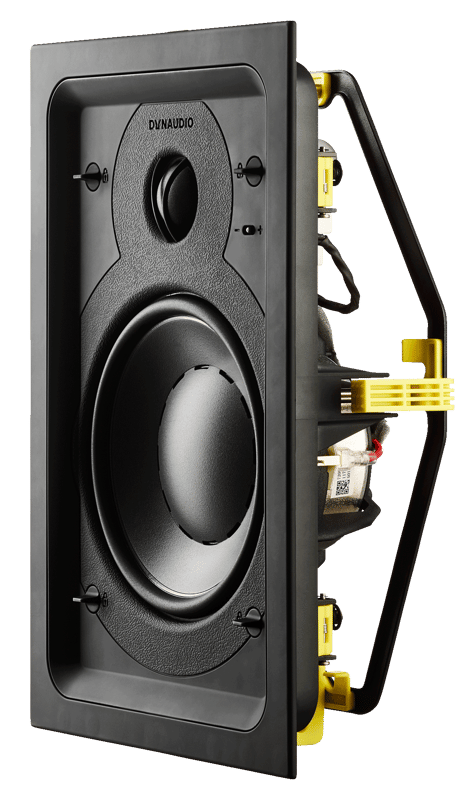

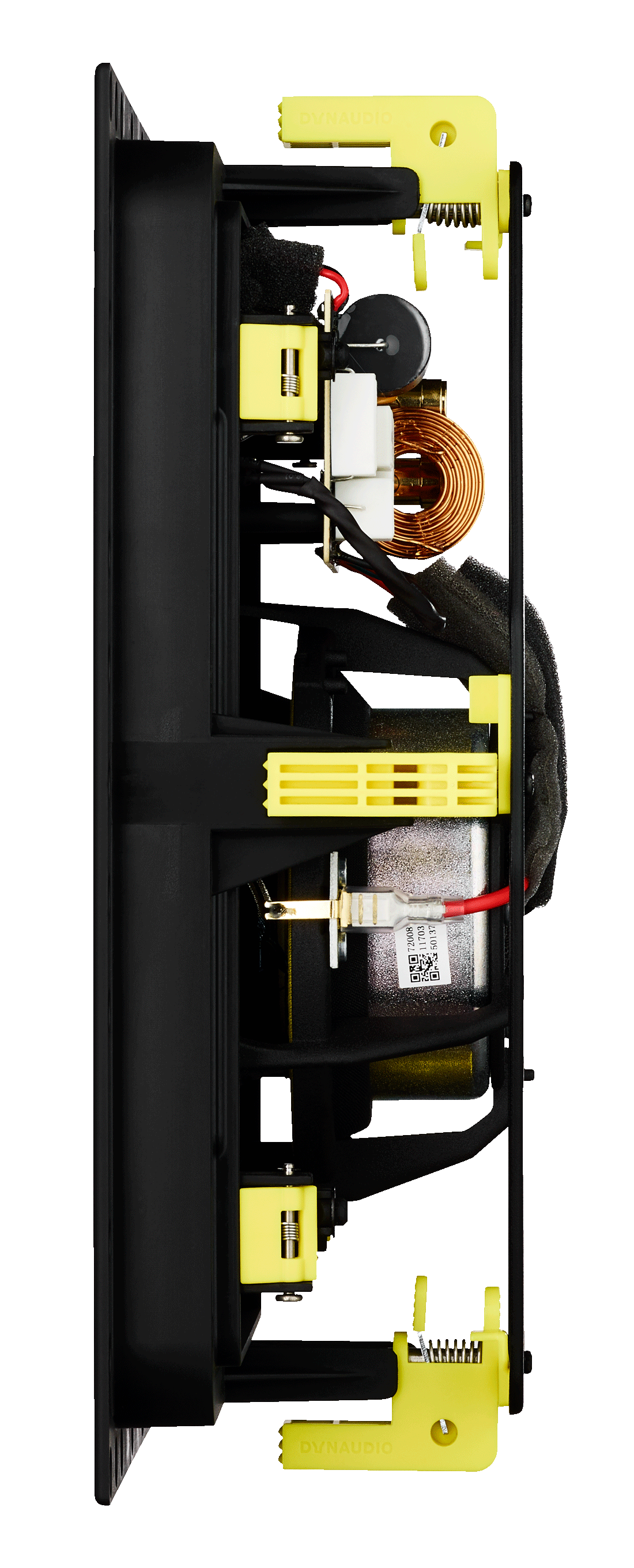

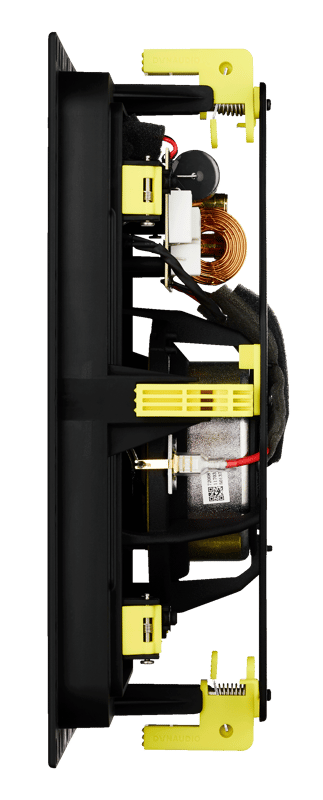

Like our in-ceiling options, the S4-W65 fixes on to a pre-installed frame, which can be fitted either way up for total flexibility. The patent-pending baffle latch makes mounting the speakers a breeze, and the frames even retrofit into many existing popular-sized cavities, so you don’t have to start from scratch if you don’t want to.
Changing your décor? No problem. The Dynaudio Custom Studio range can adapt as your room does, with paintable magnetic grilles that can be swapped out as quickly as your colour scheme changes.



S4-W65
Specifications
- Status Current
- Segment Custom Install
- Series Studio
- Type In-wall
- Sensitivity (dB @ 2.83V/1m) 87,5
- Rated Power 50
- Long Term Power 125
- Rated Impedance (Ohm) 8
- Impedance (Minimum) 5
- Lower Cutoff (Hz @ +/- 3 dB) 55
- Upper Cutoff (kHz @ +/- 3 dB) 20

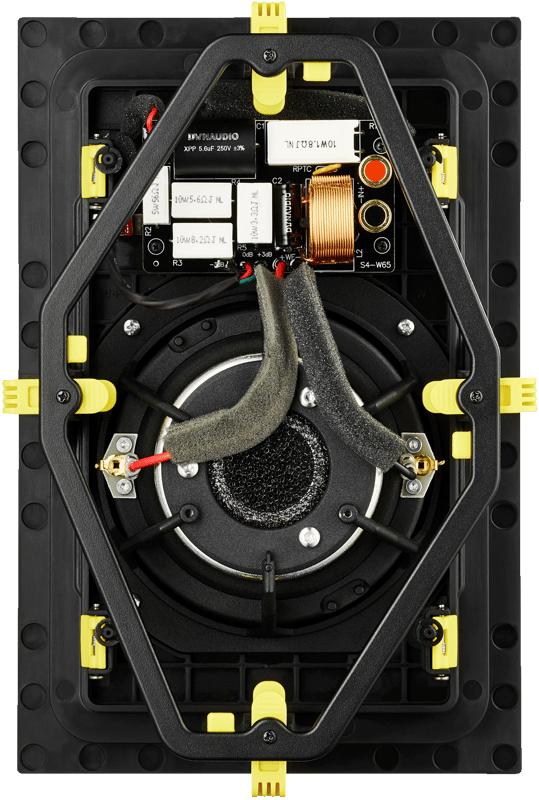

- Crossover 2-way
- Tweeter 28 mm soft dome
- Midrange/Woofer 16.5 cm MSP
- Tweeter level options -3dB, 0dB, +3dB
- Width mm 197,5
- Height mm 296,3
- Depth mm 90
- Width inches 7 3/4
- Height inches 11 11/16
- Depth inches 3 9/16
- Width Cutout mm 175
- Height Cutout mm 275
- Height cutout inches 6 7/8
- Width cutout inches 10 7/8
- Grille material Painted steel
- Grille options Rectangular
- Grille attachment Magnetic
- Grille finish White (paintable)
- Certifications CE
- Environmental RoHS
