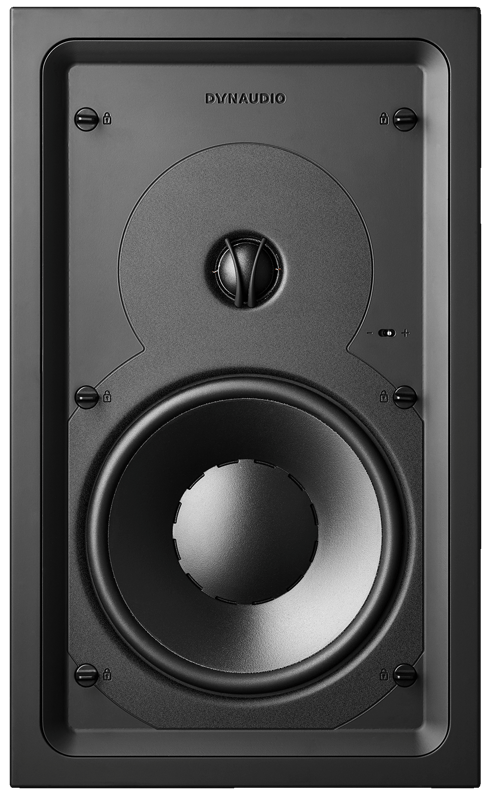

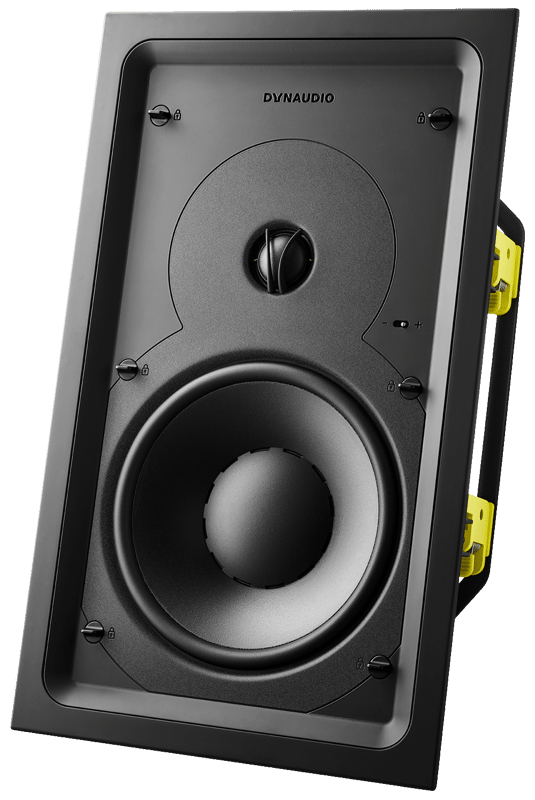

S4-W80
Give your room the sound it deserves, with the Studio range’s biggest in-wall speaker.
Just add music. Or movies, for that matter. Whatever you’re listening to, the S4-W80 in-wall speaker from Dynaudio’s Custom Architectural Studio range delivers all the accuracy and refinement of the smaller S4-W65, and turns it up a notch.
Offering a bolder, even more authoritative sound, the S4-W80 makes easy work of bigger rooms. That’s thanks to its larger 20cm mid/bass driver, which – like the rest of the Custom Studio range – is matched with Dynaudio’s iconic 28mm soft-dome tweeter for a treble that sings.

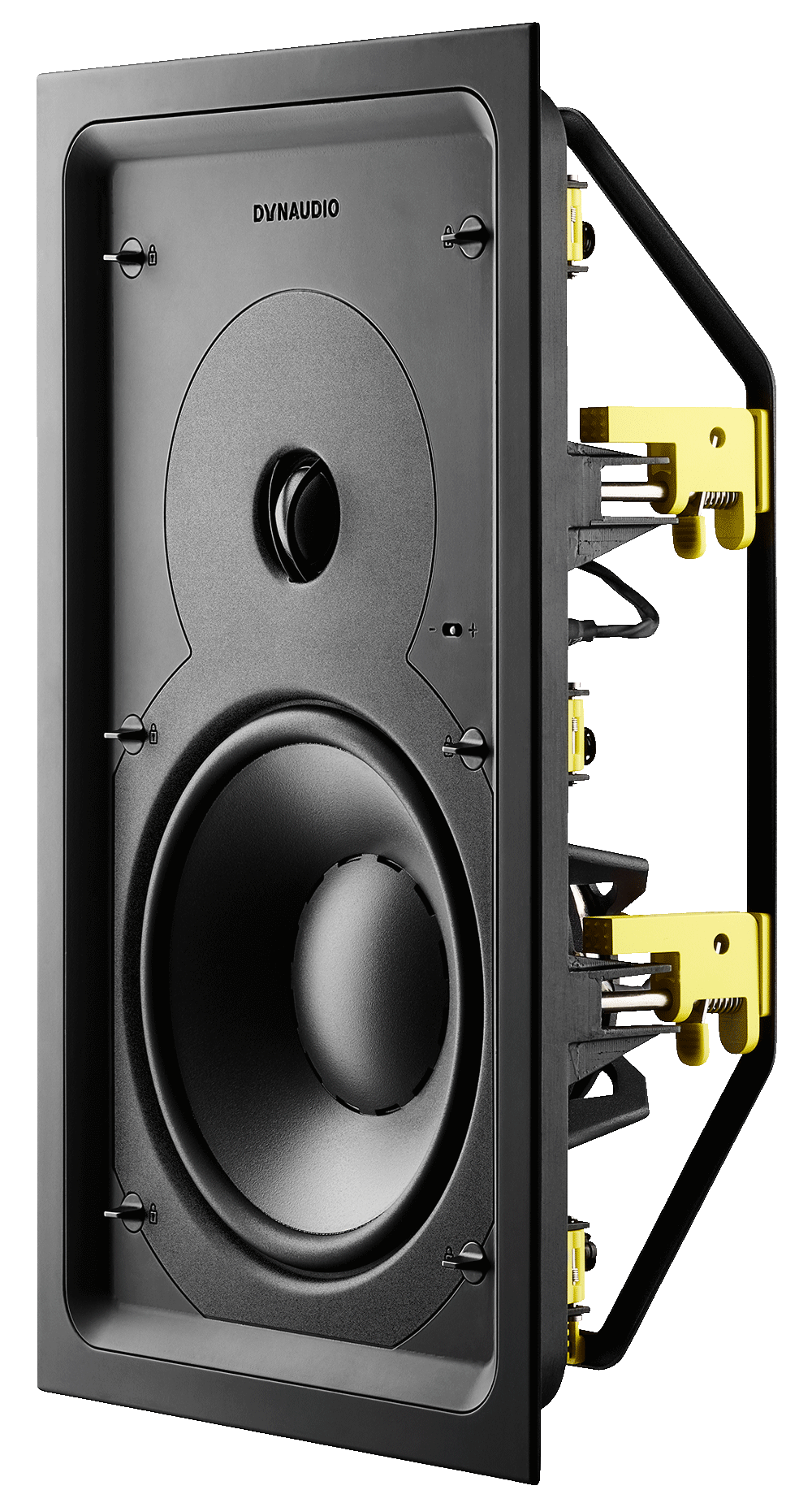

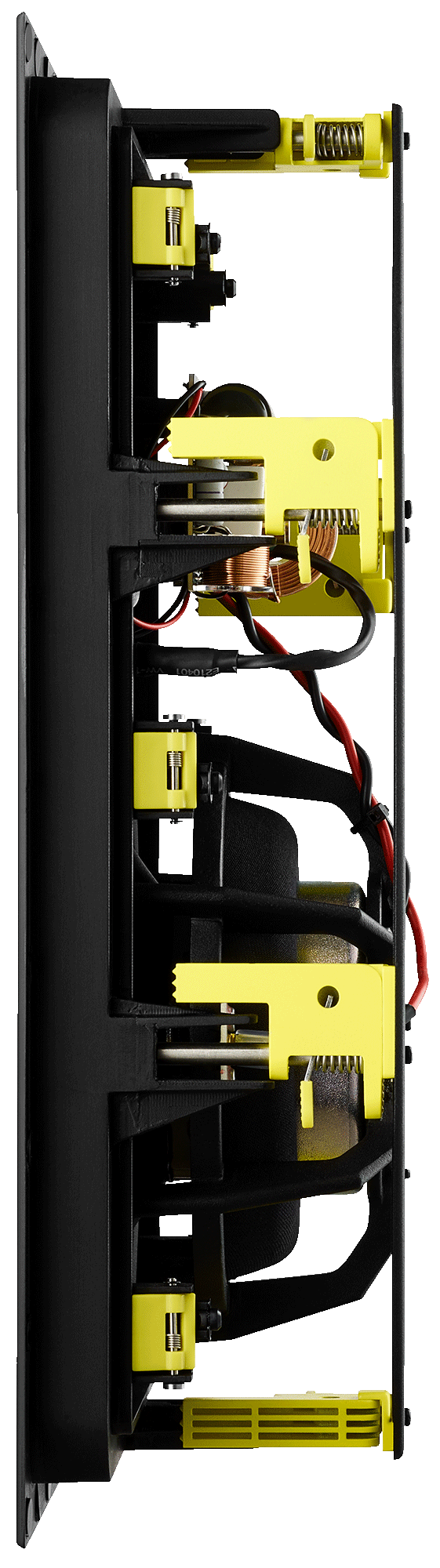

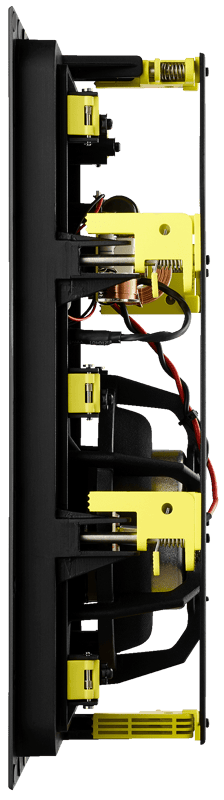

Getting custom audio into your home shouldn’t be hard, and Dynaudio’s specially designed easy-mount frames can be installed quickly and simply during any building or renovation process.
Not planning on tearing down your walls any time soon? The frames can also be retrofitted into the majority of existing wall cavities for fuss-free installation.



S4-W80
Specifications
- Status Current
- Segment Custom Install
- Range Studio
- Type In-wall
- Sensitivity (dB @ 2.83V/1m) 89
- Rated Power 100
- Long Term Power 140
- Rated Impedance (Ohm) 8
- Impedance (Minimum) 5
- Lower Cutoff (Hz @ +/- 3 dB) 45
- Upper Cutoff (kHz @ +/- 3 dB) 20
- Crossover 2-way
- Tweeter 28 mm soft dome
- Midrange/Woofer 20 cm MSP
- Tweeter level options -3dB, 0dB, +3dB
- Width mm 236,5
- Height mm 391,5
- Depth mm 99
- Width inches 9,311023622
- Height inches 15,41338583
- Depth inches 3,897637795
- Width Cutout mm 215
- Height Cutout mm 370
- Height cutout inches 8 4/8
- Width cutout inches 14 5/8
- Grille material Painted steel
- Grille options Rectangular
- Grille attachment Magnetic
- Grille finish White (paintable)
- Certifications CE
- Environnmental RoHS
