Cutting-edge development

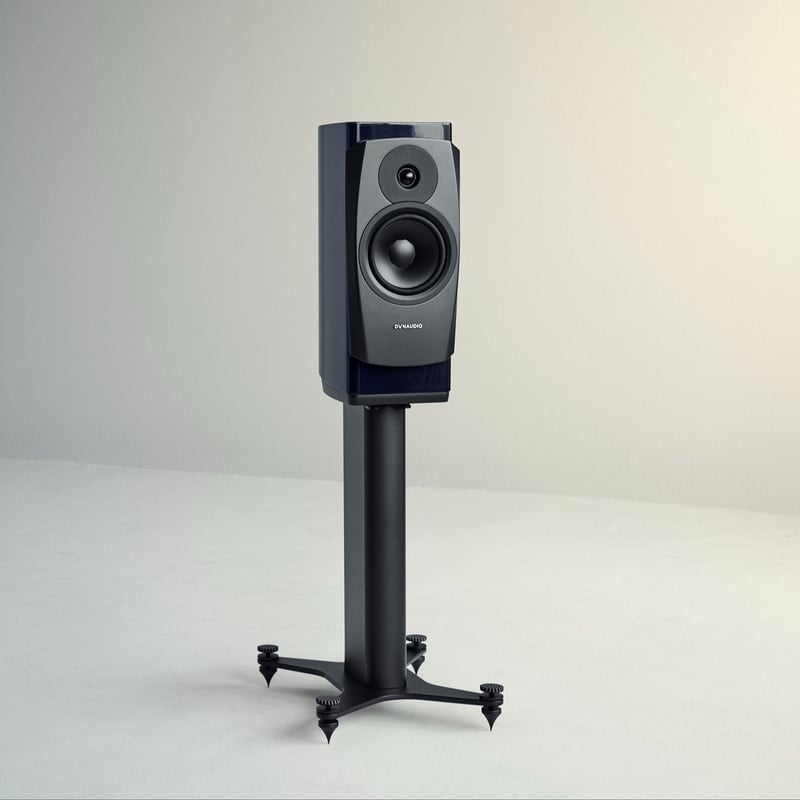

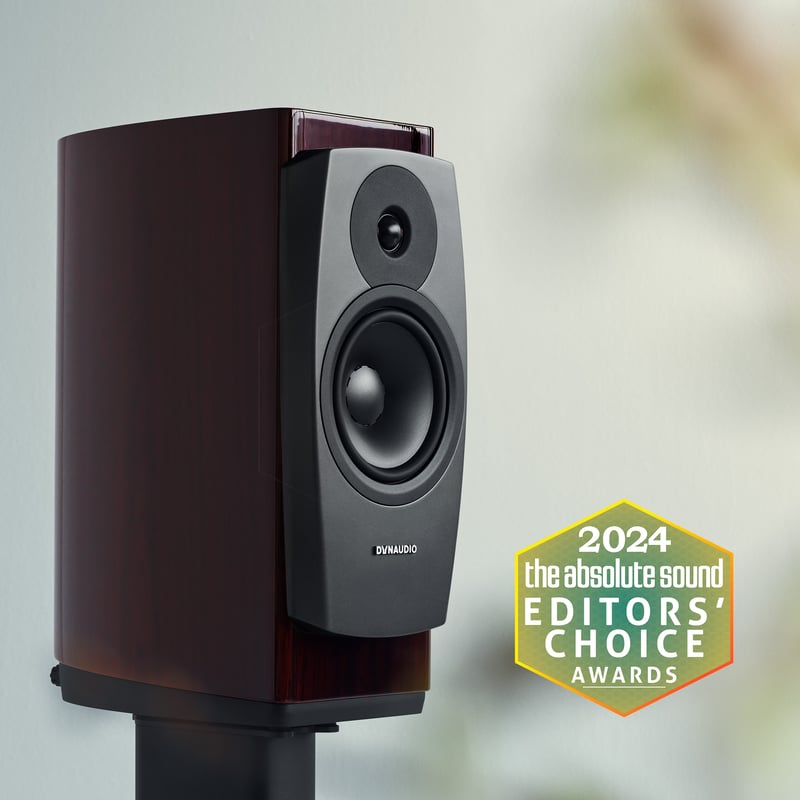

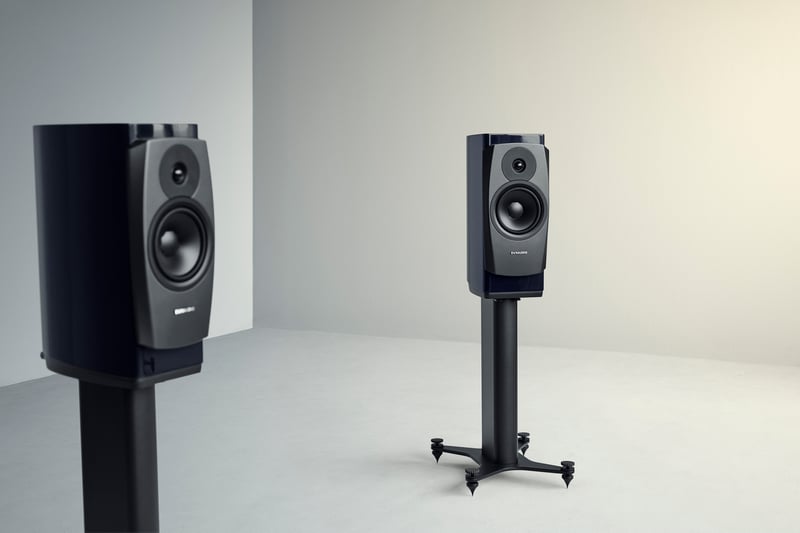

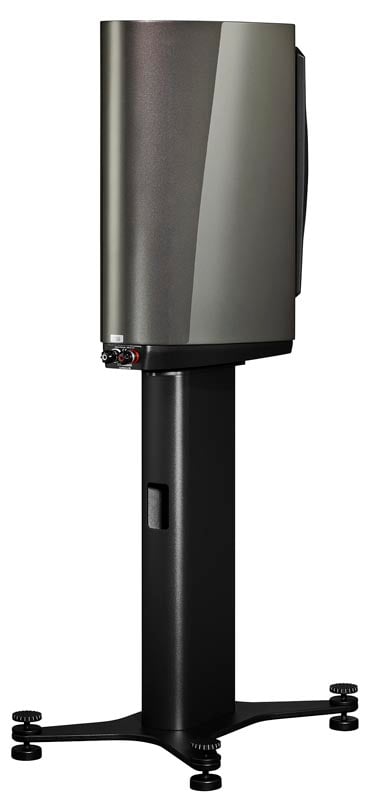

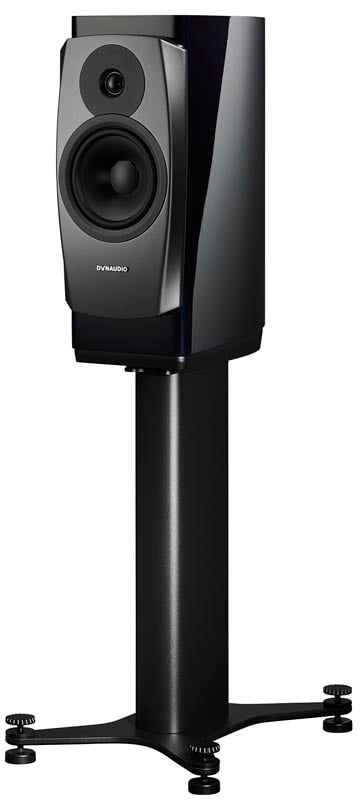

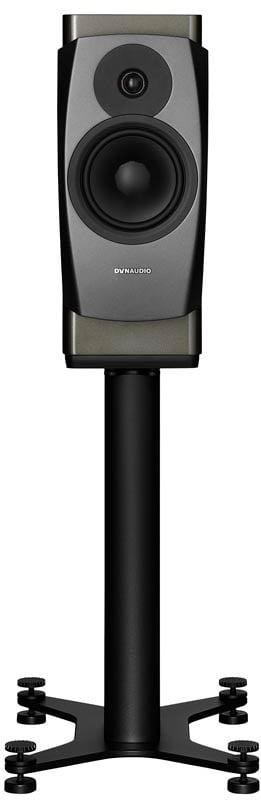

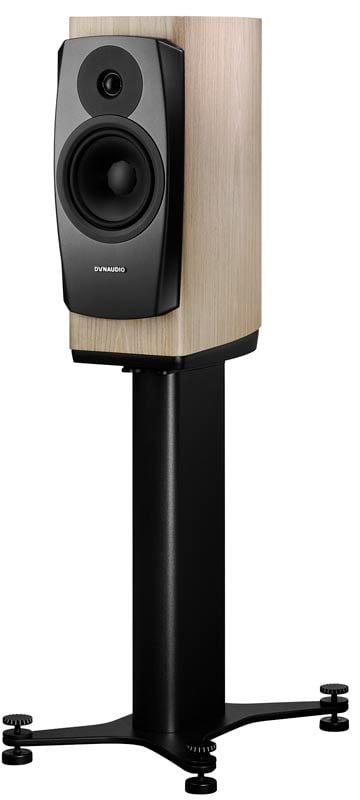

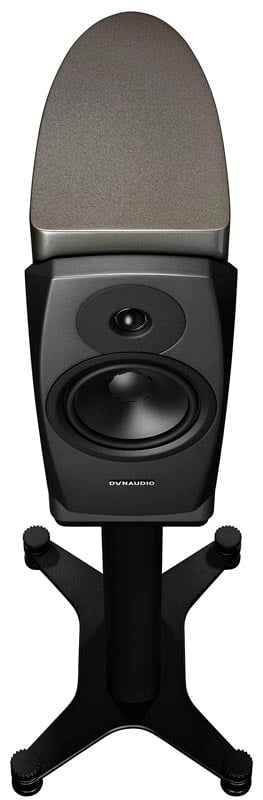

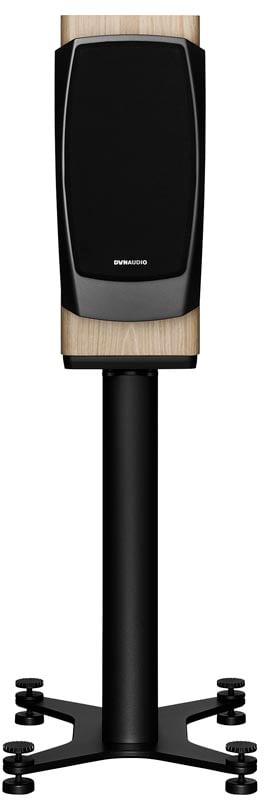

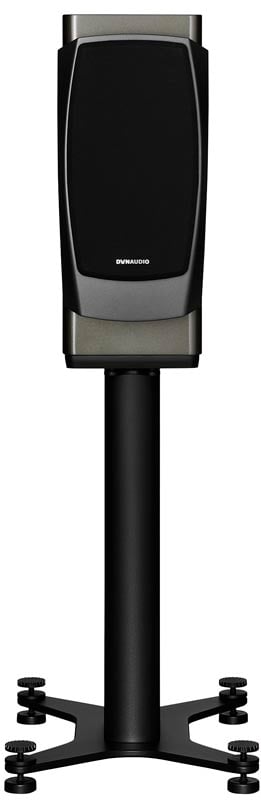

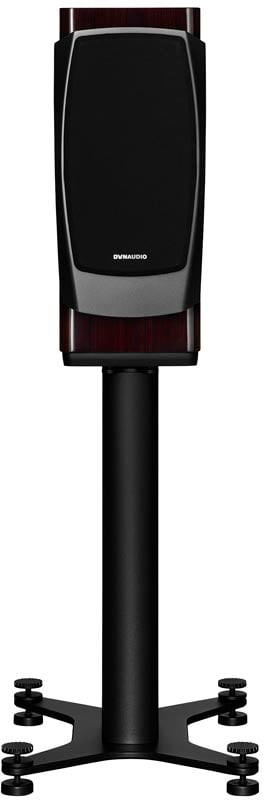

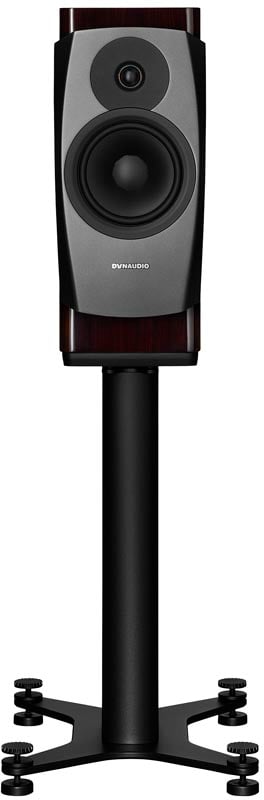

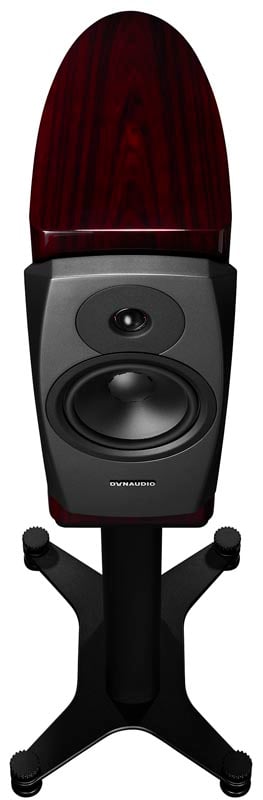

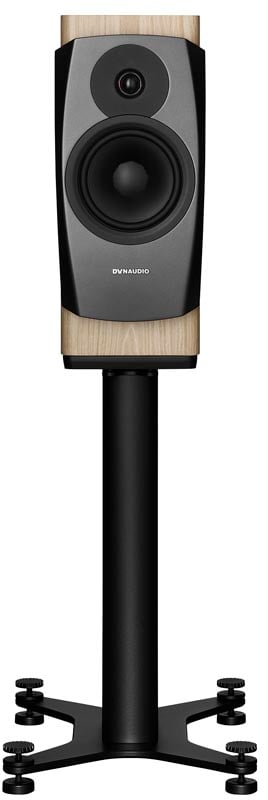

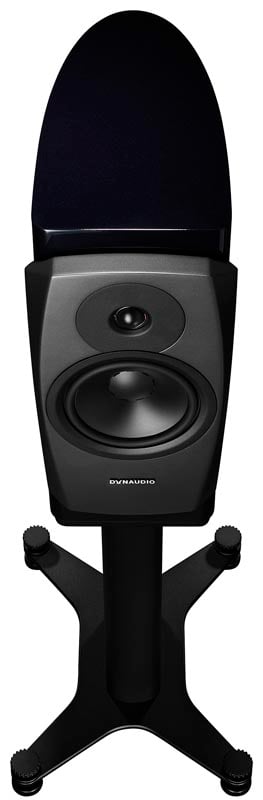

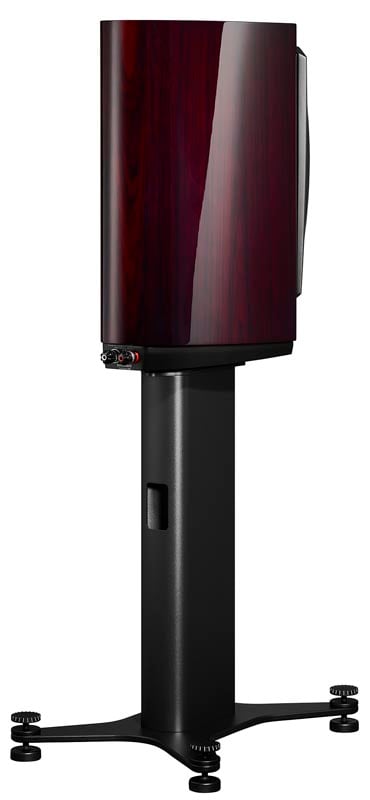

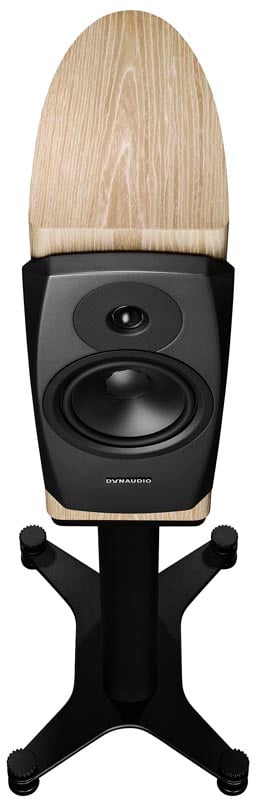

Like the rest of the range, the Confidence 20 features the 28mm Esotar3 soft-dome tweeter, plus an improved 18cm NeoTec MSP woofer and an innovative down-firing bass port.
Its drivers feature cutting-edge developments in airflow technology (including a much larger rear chamber and optimised venting in the tweeter, plus the resonance-stabilising Hexis inner dome); simulation-derived diaphragm thickness; super-powerful neodymium magnets; and the Compex front baffle.
The 28mm Esotar3 soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of learnings from the award-winning Esotar Forty unit – and rolls it all into the finest tweeter we’ve ever created. A powerful neodymium magnet system, innovations in airflow routing, the resonance-busting Hexis inner dome… it all combines to increase detail, clarity and sensitivity.
The 18cm NeoTec MSP woofer also has neodymium under the hood, and uses glass-fibre in its voice-coil former for optimum stiffness. The voice-coil itself is aluminium, which lets us use the ideal weight (or lightness, depending on your point of view) for powerful and controlled bass as well as refined midrange. And the entire woofer motor has been designed to harness airflow using an innovative venting system that’s been machined directly into the magnet. (Something you can learn more about in our six-part podcast series on the Confidence).
We’re guessing you want to know how it sounds… and the answer is, simply, “like your favourite artist”. Nothing more, nothing less.
Confidence
Features
Designed and engineered in Denmark
We put Confidence through intensive –and exhaustive –testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.
Esotar3 tweeter
The legend continues. The Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.
- Status Current
- Segment Home
- Series Confidence
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 87
- IEC Power Handling (W) 250
- Rated Impedance (Ohm) 6
- Minimum Impedance (Ohm) 5 ohm @ 155 Hz
- Lower Cutoff (Hz @ +/- 3 dB) 42
- Upper Cutoff (kHz @ +/- 3 dB) 22
- Box Principle Bass reflex down-firing port
- Crossover 2-way
Otto Jørgensen, Product Manager
This is the Confidence series
- Status:
- Segment:
- Series:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- IEC Power Handling (W):
- Rated Impedance (Ohm):
- Minimum Impedance (Ohm):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Box Principle:
- Crossover:
Confidence 60
- Current
- Home
- Confidence
- Floorstand
- 87
- 600
- 4
- 3.7 @ 71 Hz
- 29
- 22
- Bass reflex down-firing port
- 3-way
Confidence 50
- Current
- Home
- Confidence
- Floorstand
- 87
- 400
- 4
- 2.7 @ 79 HZ
- 35
- 22
- Bass reflex down-firing port
- 3-way
Confidence 30
- Current
- Home
- Confidence
- Floorstand
- 88
- 350
- 4
- 2.8 ohm @ 85 Hz
- 38
- 22
- Bass reflex down-firing port
- 3-way
Confidence 20
- Current
- Home
- Confidence
- Bookshelf
- 87
- 250
- 6
- 5 ohm @ 155 Hz
- 42
- 22
- Bass reflex down-firing port
- 2-way
