Cutting-edge development

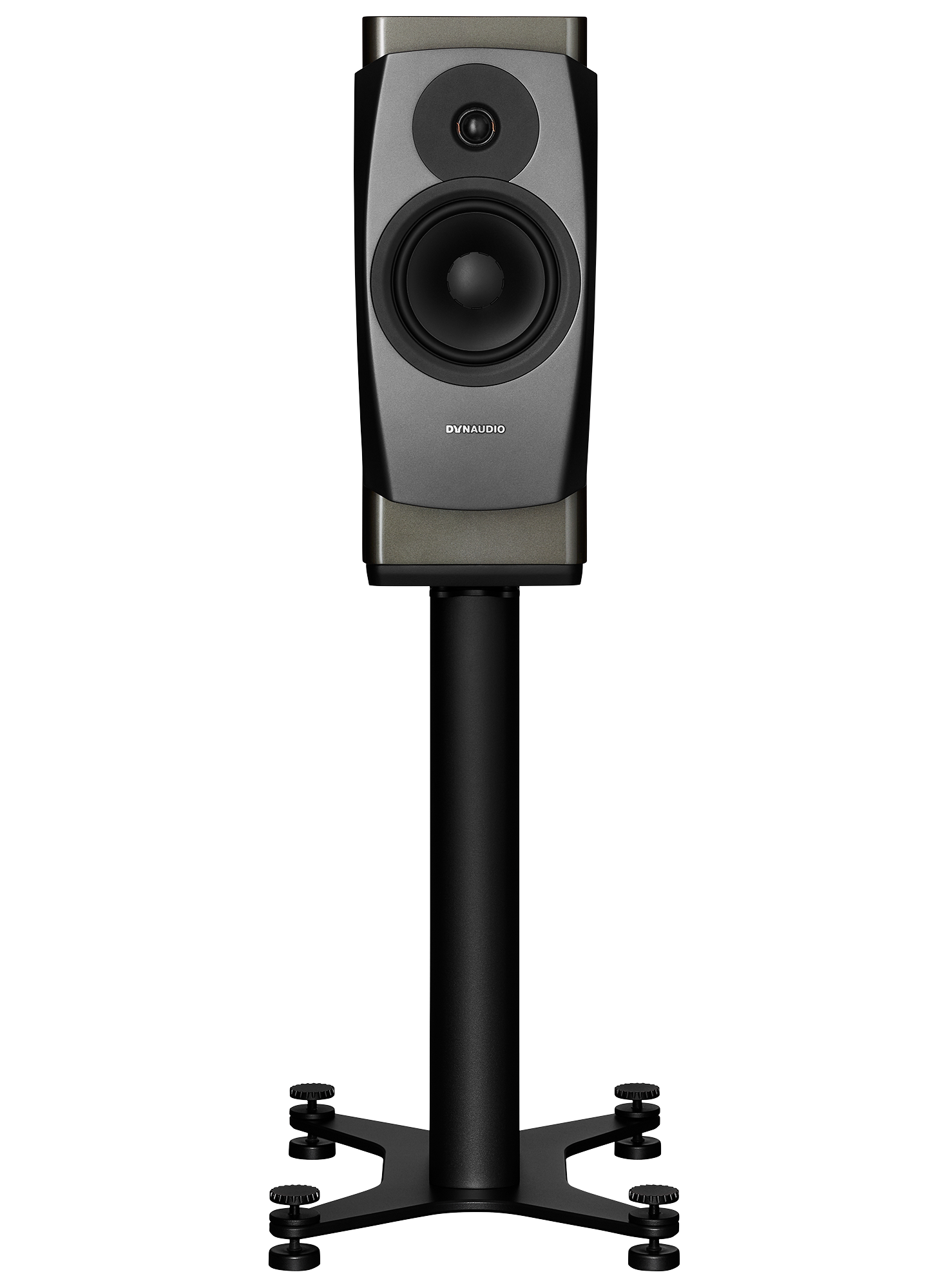

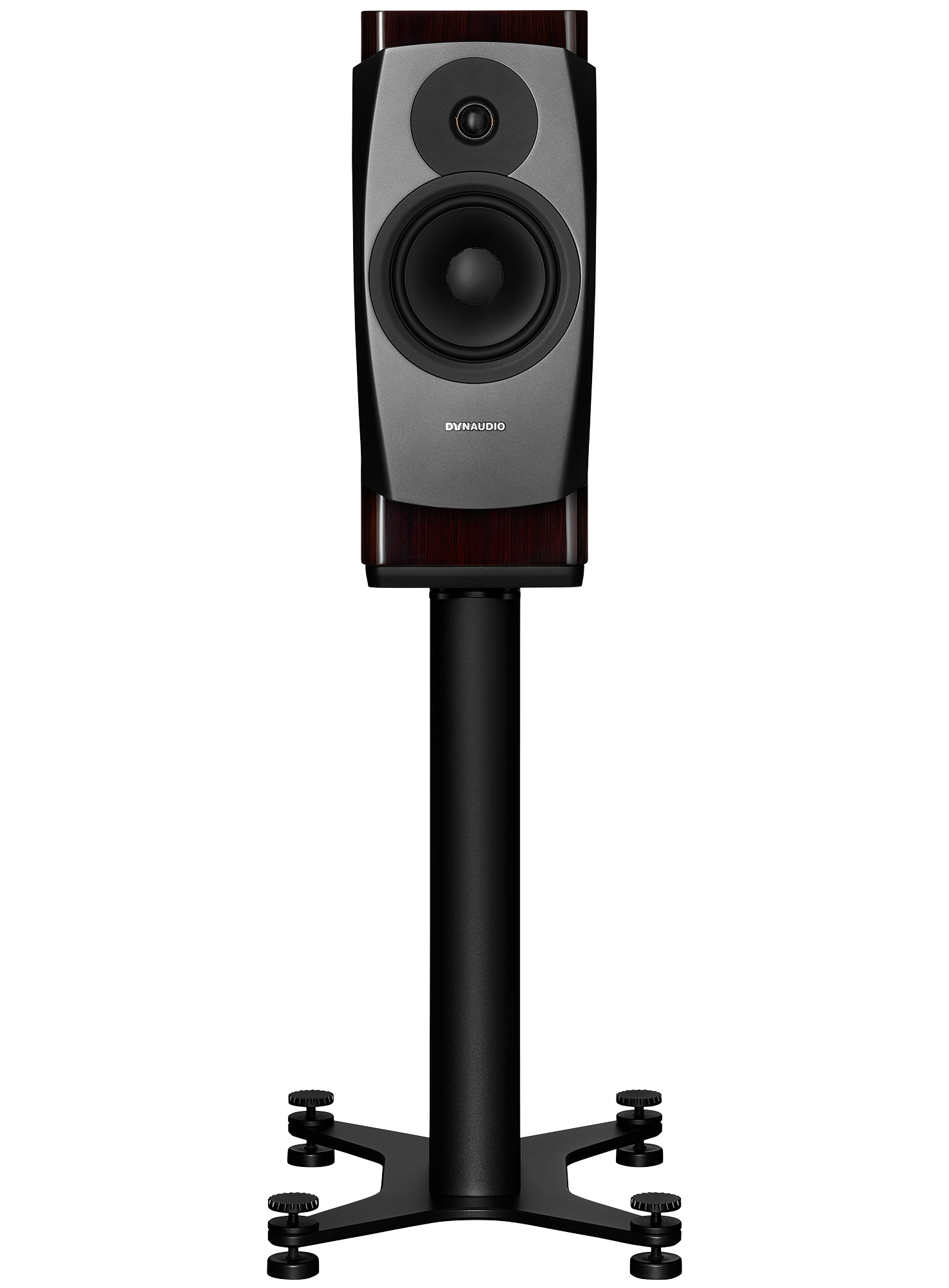

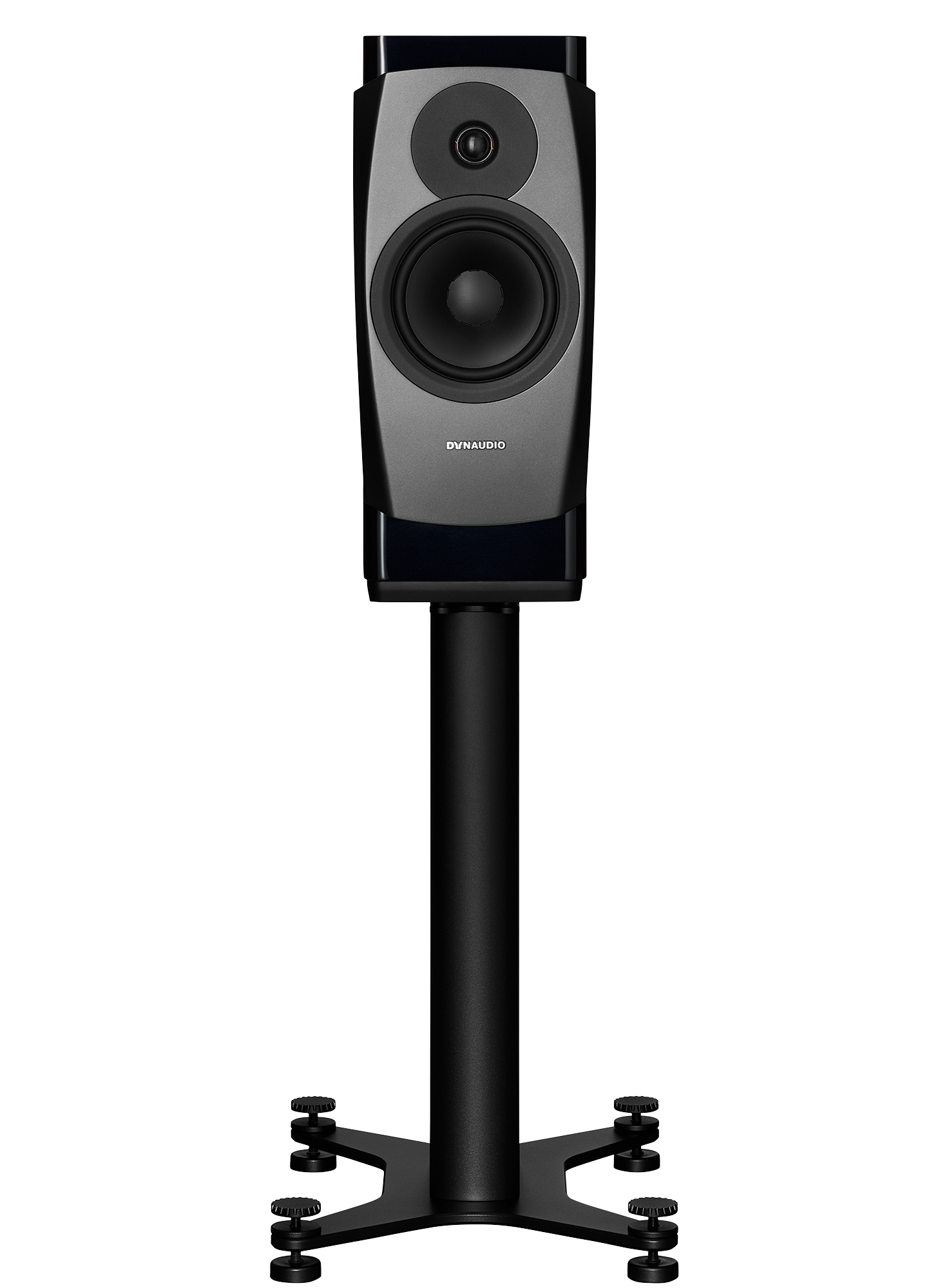

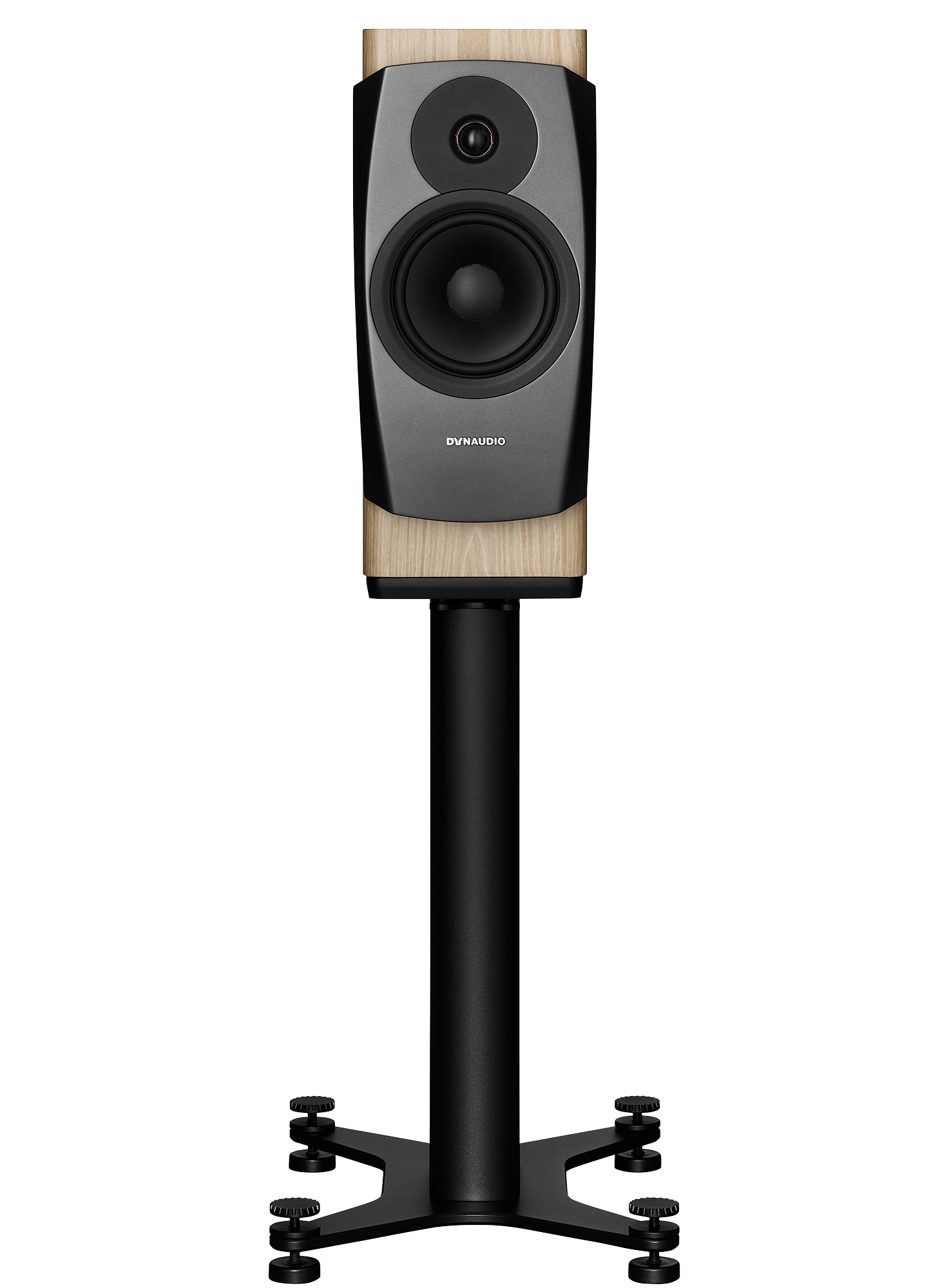

Like the rest of the range, the Confidence 20 features the all-new 28mm Esotar3 soft-dome tweeter, plus a new 18cm NeoTec MSP woofer and an innovative down-firing bass port.
Its drivers feature cutting-edge developments in airflow technology (including a much larger rear chamber and optimised venting in the tweeter, plus the new resonance-stabilising Hexis inner dome); simulation-derived diaphragm thickness; super-powerful neodymium magnets; and the new Compex front baffle.
The new 28mm Esotar3 soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of new learnings from the award-winning Esotar Forty unit – and rolls it all into the finest tweeter we’ve ever created. A powerful neodymium magnet system, innovations in airflow routing, the new resonance-busting Hexis inner dome… it all combines to increase detail, clarity and sensitivity.
The new 18cm NeoTec MSP woofer also has neodymium under the hood, and uses glass-fibre in its voice-coil former for optimum stiffness. The voice-coil itself is aluminium, which lets us use the ideal weight (or lightness, depending on your point of view) for powerful and controlled bass as well as refined midrange. And the entire woofer motor has been designed to harness airflow using an innovative new venting system that’s been machined directly into the magnet. (Something you can learn more about in our six-part podcast series on the new Confidence).
We’re guessing you want to know how it sounds… and the answer is, simply, “like your favourite artist”. Nothing more, nothing less.
Confidence
Features
Designed and engineered in Denmark
We put Confidence through intensive –and exhaustive –testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.
Brand-new Esotar3 tweeter
The legend continues. The all-new Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.
- Status Current
- Segment Home
- Range Confidence
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 87
- Lower Cutoff (Hz @ +/- 3 dB) 42
- Upper Cutoff (kHz @ +/- 3 dB) 22
- Box Principle Bass reflex down-firing port
- Crossover 2-way
- Crossover Frequency (Hz) 2325 Hz
- Crossover Topology 2nd order
- Tweeter 28 mm Esotar 3
Otto Jørgensen, Product Manager
Find a dealer
Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.
{name}
- {productImages}
Products
This is the Confidence series
- Status:
- Segment:
- Range:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Box Principle:
- Crossover:
- Crossover Frequency (Hz):
- Crossover Topology:
- Tweeter:
Confidence 60
- Current
- Home
- Confidence
- Floorstand
- 87
- 29
- 22
- Bass reflex down-firing port
- 3-way
- 200/2580 Hz
- 2nd/3rd order w. DDC
- 28 mm Esotar 3
Confidence 50
- Current
- Home
- Confidence
- Floorstand
- 87
- 35
- 22
- Bass reflex down-firing port
- 3-way
- 200/2860 Hz
- 2nd/3rd order w. DDC
- 28 mm Esotar 3
Confidence 30
- Current
- Home
- Confidence
- Floorstand
- 88
- 38
- 22
- Bass reflex down-firing port
- 3-way
- 290/3700 Hz
- 2nd/3rd order w. DDC
- 28 mm Esotar 3
Confidence 20
- Current
- Home
- Confidence
- Bookshelf
- 87
- 42
- 22
- Bass reflex down-firing port
- 2-way
- 2325 Hz
- 2nd order
- 28 mm Esotar 3
