DDC Lens
It all centres on the DDC Lens – the stunning precision-machined waveguide around the Esotar3 tweeter (we think you’ll agree that’s a mouth-watering combination right there).
The DDC Lens has been simulated and topology-optimised to vertically focus the tweeter, midrange drivers and woofers on the listening position. That results in dramatically reduced reflections from floors and ceilings – which means you hear exactly what the driver system, and not the room, is doing.
Esotar3
The 28mm Esotar3 soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of learnings from the award-winning Esotar Forty unit – and rolls it all into the finest tweeter we’ve ever developed.
A powerful neodymium magnet system, innovations in airflow routing, the resonance-busting Hexis inner dome … it all combines to increase detail, clarity and sensitivity.
You have to hear it to believe...

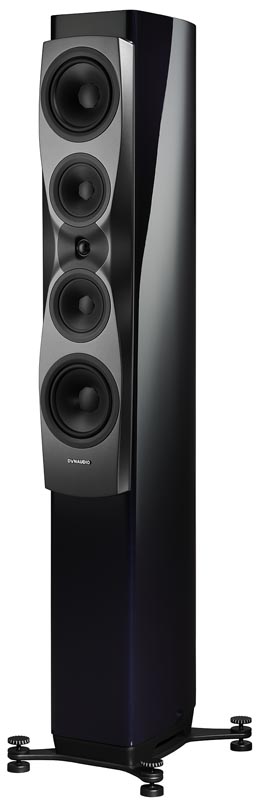

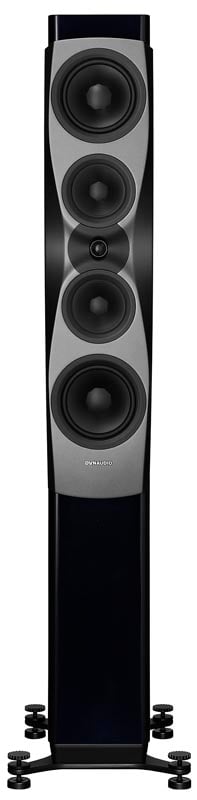

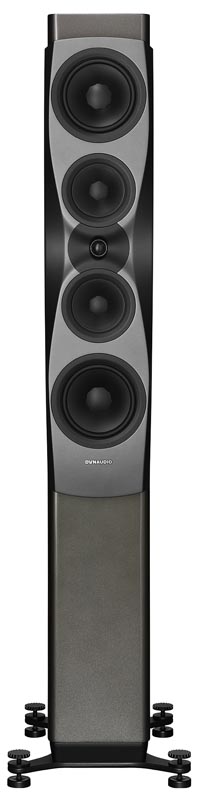

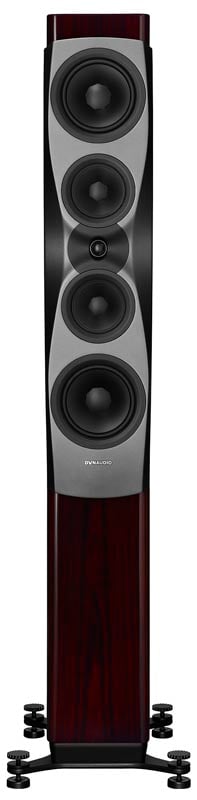

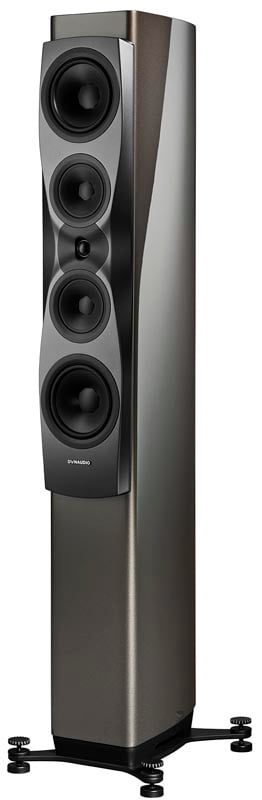

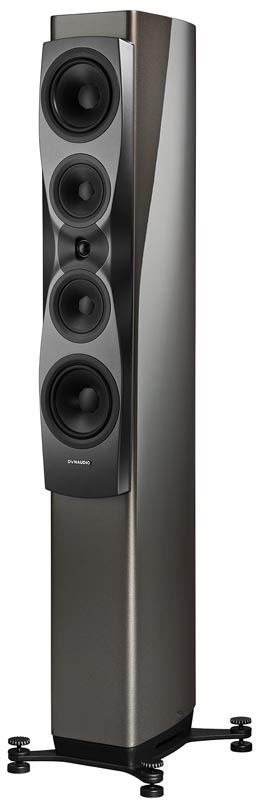

The Confidence 50’s updated MSP midrange drivers are a big departure from previous Dynaudio designs.
They use a radical surround design – the Horizon – that follows the cone’s shape right to the edge of the driver. This reduces the surround’s first resonant mode to effectively increase the whole playing surface area and improve performance. They also sit flush with the baffle to reduce diffractions from the diaphragm and the adjacent tweeter.
Behind the scenes, the basket has been given a lightweight organic design – one that’s come from extensive topology-optimisation simulations. It increases airflow, maintains its stability and rigidity and reduces weight simultaneously without sacrificing performance.

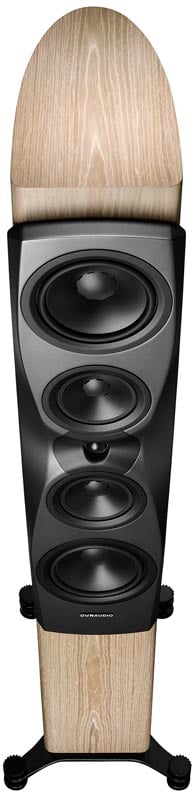

Everything is held securely in place in the ultra-rigid, super-damped and acoustically inert Compex composite baffle. It echoes the design of previous Confidences – but brings the look up to date in aesthetics and acoustic principles. That’s because it forms an integral part of the DDC Lens system, as well as providing perfect coupling and decoupling of the drivers.

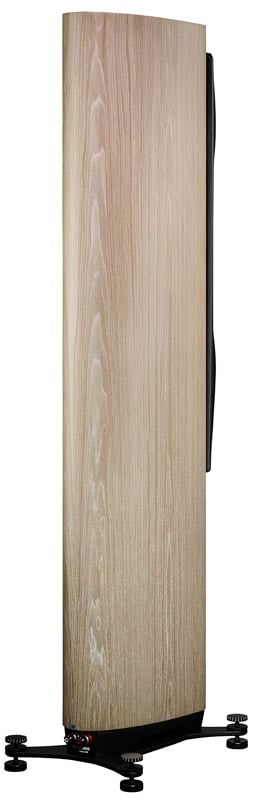

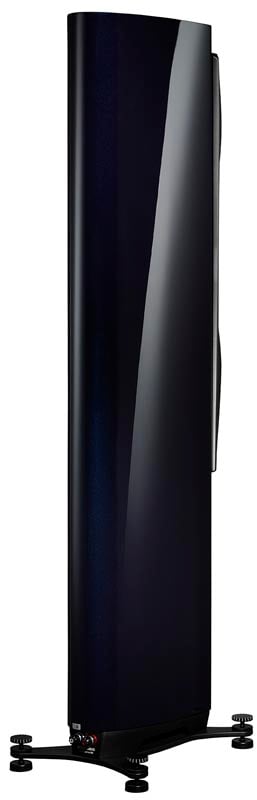

Down below is the bass port . You won’t see it; it sits under the speaker. And because it fires downwards, we’ve been able to design it to perform exactly as we want it to without having to worry about putting a big hole in the beautiful finish.
And, honestly, you have to hear it to believe it…
Confidence
Features
Designed and engineered in Denmark
We put Confidence through intensive –and exhaustive –testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.
Esotar3 tweeter
The legend continues. The Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.
Next-gen DDC technology
Dynaudio Directivity Control, our sound-shaping technology platform, has been rebooted, revamped and refined to include the DDC Lens –a unique machined waveguide that focuses your music exactly where it should go: your ears.
- Status Current
- Segment Home
- Series Confidence
- Type Floorstand
- Sensitivity (dB @ 2.83V/1m) 87
- IEC Power Handling (W) 400
- Rated Impedance (Ohm) 4
- Minimum Impedance (Ohm) 2.7 @ 79 HZ
- Lower Cutoff (Hz @ +/- 3 dB) 35
- Upper Cutoff (kHz @ +/- 3 dB) 22
- Box Principle Bass reflex down-firing port
- Crossover 3-way
Otto Jørgensen, Product Manager
The Confidence series
- Status:
- Segment:
- Series:
- Type:
- Sensitivity (dB @ 2.83V/1m):
- IEC Power Handling (W):
- Rated Impedance (Ohm):
- Minimum Impedance (Ohm):
- Lower Cutoff (Hz @ +/- 3 dB):
- Upper Cutoff (kHz @ +/- 3 dB):
- Box Principle:
- Crossover:

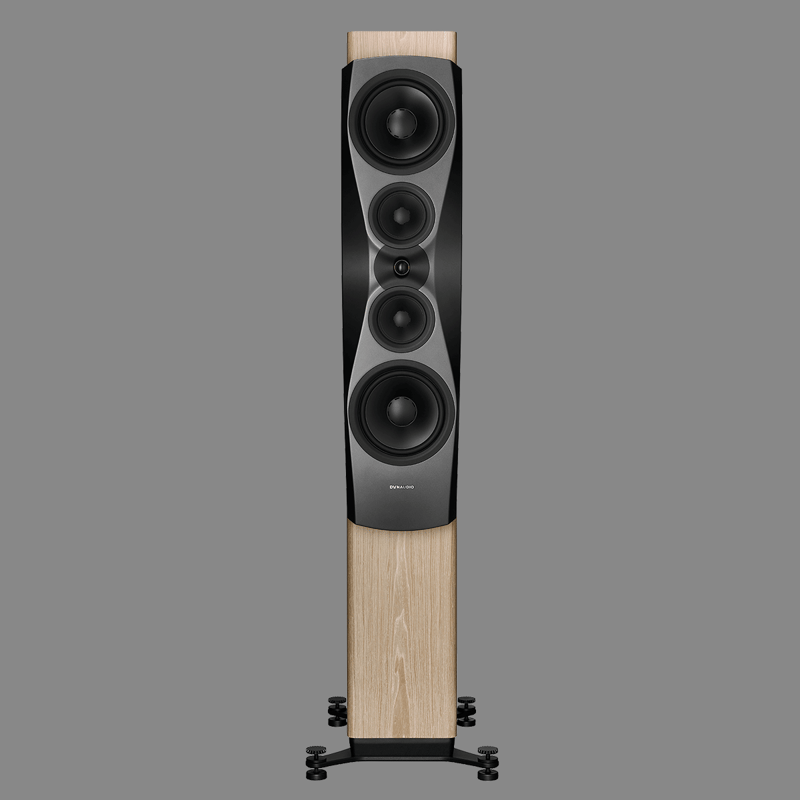

Confidence 60
- Current
- Home
- Confidence
- Floorstand
- 87
- 600
- 4
- 3.7 @ 71 Hz
- 29
- 22
- Bass reflex down-firing port
- 3-way
Confidence 50
- Current
- Home
- Confidence
- Floorstand
- 87
- 400
- 4
- 2.7 @ 79 HZ
- 35
- 22
- Bass reflex down-firing port
- 3-way
Confidence 30
- Current
- Home
- Confidence
- Floorstand
- 88
- 350
- 4
- 2.8 ohm @ 85 Hz
- 38
- 22
- Bass reflex down-firing port
- 3-way
Confidence 20
- Current
- Home
- Confidence
- Bookshelf
- 87
- 250
- 6
- 5 ohm @ 155 Hz
- 42
- 22
- Bass reflex down-firing port
- 2-way
