Sub 6
High-end low end
The subwoofer that matches seamlessly with your Dynaudio speakers… intelligently. Brand-new driver design, sophisticated DSP and full parametric EQ ensure a tailor-made fit for your set-up.
Sub 6
High-end low end. The subwoofer that matches seamlessly with your Dynaudio speakers… intelligently. Brand-new driver design, sophisticated DSP and full parametric EQ ensure a tailor-made fit for your set-up.
The Sub 6 is designed to integrate seamlessly with all Dynaudio speakers – and it has a special trick up its sleeve to do just that…
It features advanced intelligent DSP technology that tailors its performance so closely to a user’s system that it can confidently turn a two-way speaker system in a three-way one. For other models, including non-Dynaudio speakers, the crossover frequency, gain and phase can be set manually.

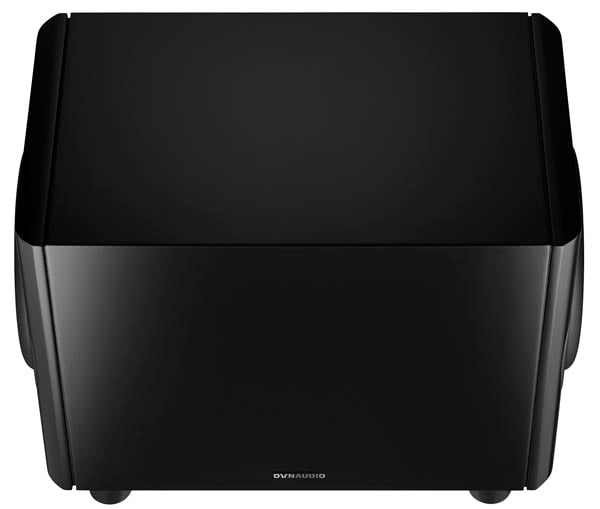

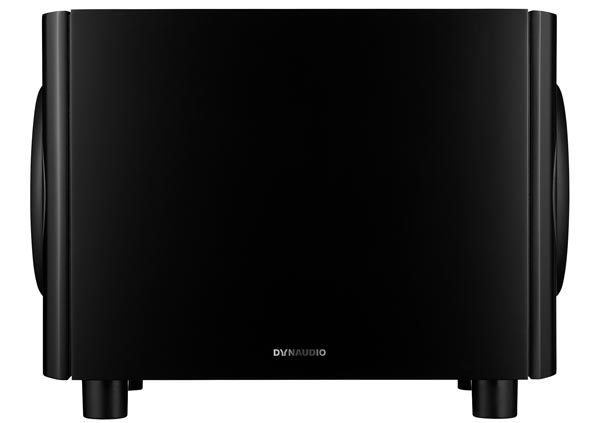

In charge of its powerful bass response are two brand-new 24cm MSP+ Hybrid Drive units, designed specifically for subwoofers, alongside a 500W power amplifier built into its base. These new drivers sit at either end of the carefully constructed sealed enclosure design, which stands wider than it does deep to help it sit more discreetly against a wall.

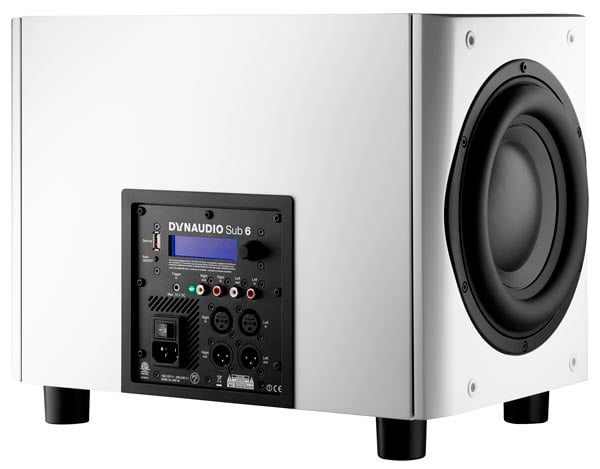

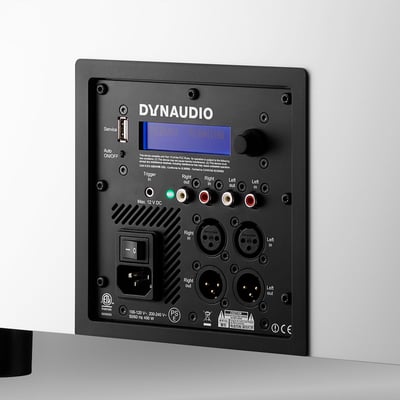

The Sub 6 has dual RCA and XLR connections to suit most systems and comes with a number of handy features to help larger and more advanced setups. This includes the ability to set a time-delay to ensure the sub and speakers are working perfectly in sync with one another. All a user has to do is enter the distance from the sub to the speakers and the sub will adjust itself automatically using both time and phase delays. There’s also a fully parametric EQ, including three filters to counter the effects of any room modes, to ensure the best possible performance.

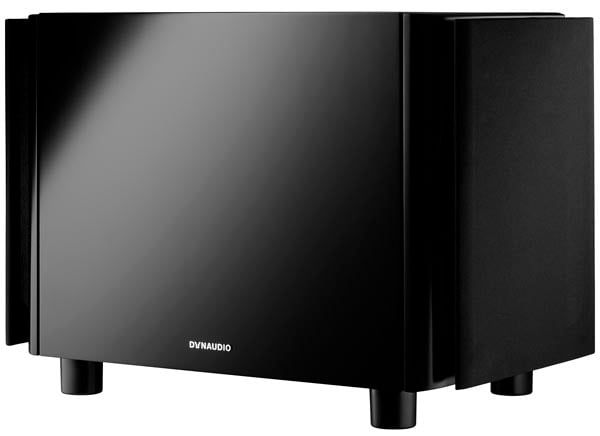

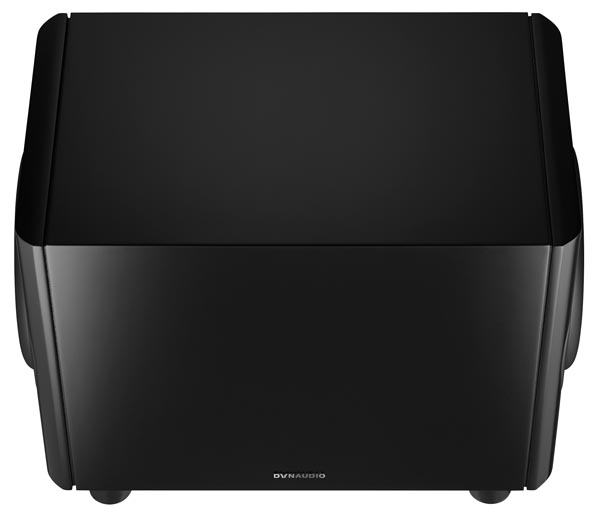

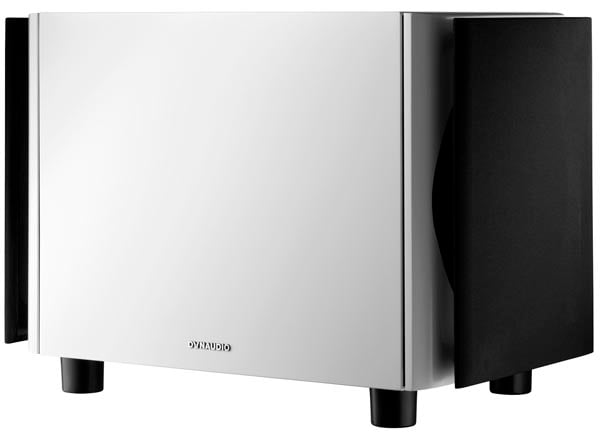

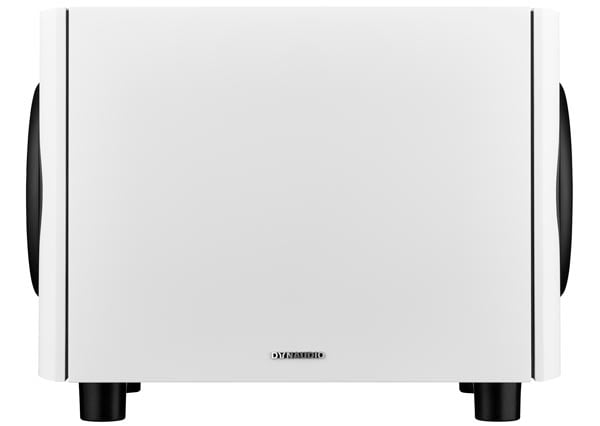

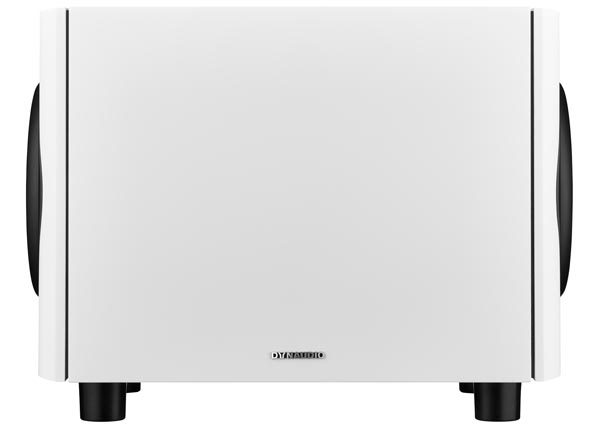

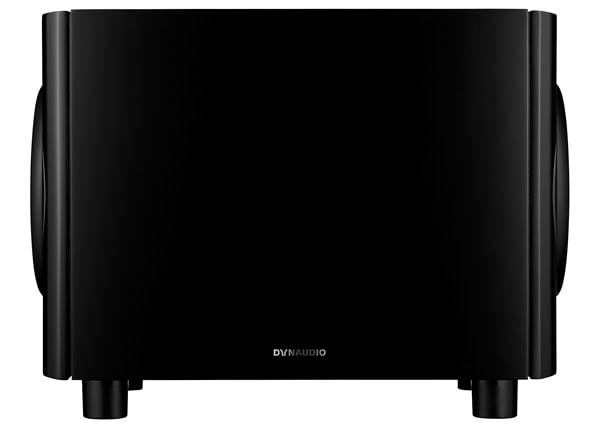

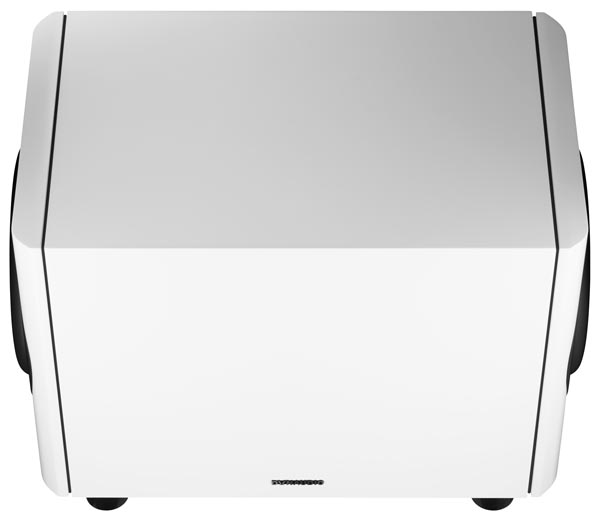

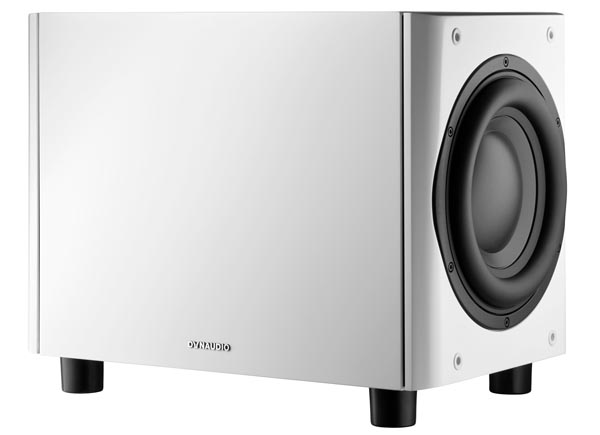

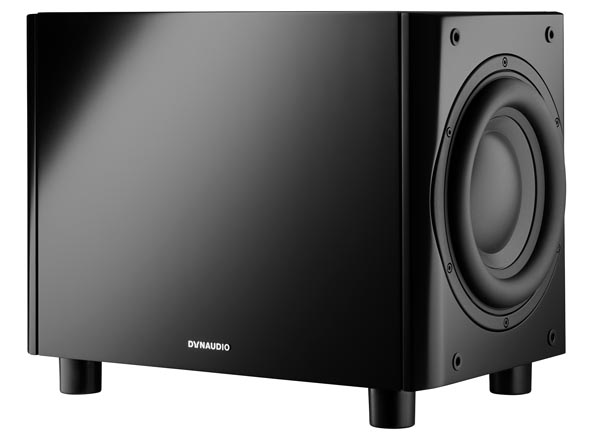

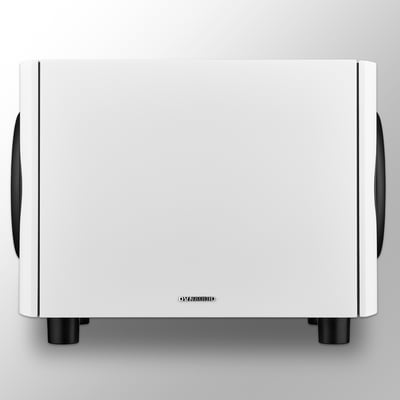

The Sub 6 comes in two finishes…
• Black satin lacquer

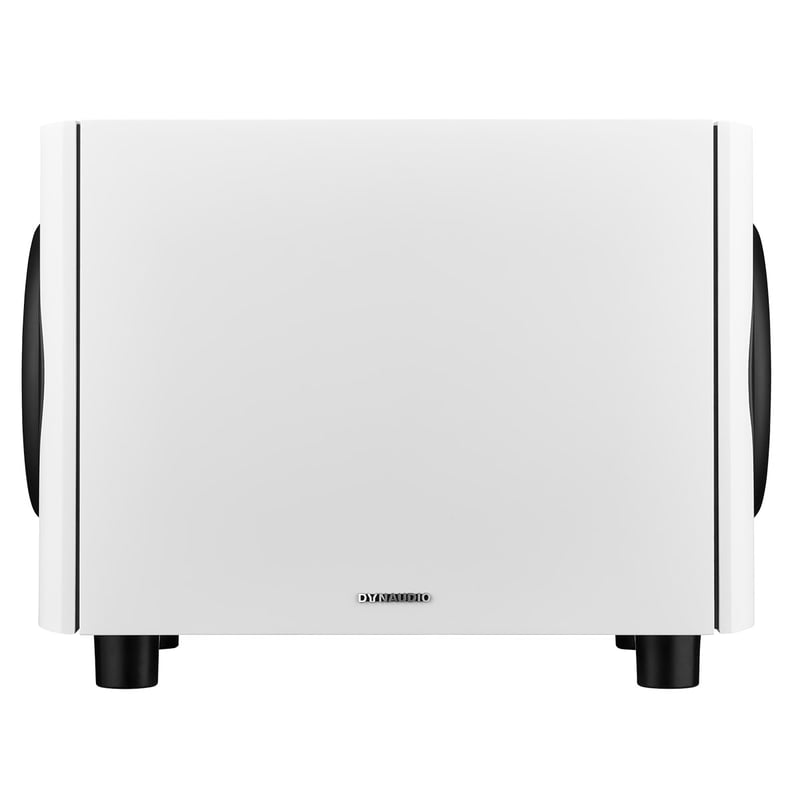

• White satin lacquer
And its presets are designed to work with these speakers…
- Confidence C1
- Confidence C2
- Confidence C4
- Confidence 20
- Confidence 30
- Confidence 50
- Confidence 60
- Contour 20i
- Contour 30i
- Contour 60i
- Contour 20
- Contour 30
- Contour 60
- Contour S 1.4 LE
- Contour S 3.4 LE
- Evidence Temptation
- Evidence Platinum
- Evidence Master
- Evoke 10
- Evoke 20
- Evoke 30
- Evoke 50
- Special Twenty-Five
- Special Forty
- Heritage Special
- Focus 20 XD
- Focus 30 XD
- Focus 60 XD
Why is there no preset for Focus 10/30/50 active speakers? When using Sub 6 with these models the subwoofer alignment is controlled by the speaker, not the subwoofer. In this case, the crossover in the Sub 6 should be set to “bypass”.
Two-way to three-way
The Sub 6 integrates so well into existing Dynaudio setups because our engineers decided to go over and above the call of duty to assess the acoustic characteristics of each of our popular high-end hi-fi speakers – and then create a custom performance map for each one.
This information is built into the Sub 6 so, using its display and menu system, users can choose the specific model of selected Dynaudio speakers they have in their setup. The Sub 6’s roll-off will then be matched perfectly between the two, turning a two-way system into a three-way one.
Firmware upgrades
When we release new speakers, we'll release a firmware update for the Sub 6, adding their new performance maps so the Sub 6 can work just as closely with our latest models as it does with the classics.
Brand-new drivers, tailor-made for subwoofers
Subwoofers need a different balance from their drivers than stereo speakers. That’s why the Sub 6 uses Dynaudio’s new MSP+ Hybrid Drive units, which are made primarily from aluminium for stiffness, and specifically with subwoofers in mind.
To counter ringing from the aluminium, it utilises a dual-action damping system that combines paper dampening on the back of the driver and Dynaudio’s own Magnesium Silicate Polymer material in a dampening cap on the front, ensuring the best performance.
Sub 6
Specifications
- Status Current
- Segment Home
- Series Subwoofers
- Type Subwoofer
- Analog inputs 2x balanced XLR, 2x unbalanced RCA phono
- Analog outputs 2x balanced XLR, 2x unbalanced RCA phono
- Amplifier Power (W) 500W
- AC Power Input 100-120 V/200-240 V 50/60 Hz
- Auto on/off Yes
- Max Stand-by Power Consumption (W) 0,5
- Max Power Consumption (W) 490
- Lower Cutoff (Hz @85 dB +/- 3 dB) 16
- Upper Cutoff (Hz @ 85dB +/- 3 dB) 230
- Box Principle Sealed
- Low pass filter Adjustable/Preset
- High pass filter Adjustable
- Phase adjustment 0/180 degrees
- Woofer 2x 23cm MSP Hybrid Drive
- Weight kg 21.5
- Weight lbs 47.4
- Width mm 447
- Height mm 300
- Depth mm 268
- Width inches 17 5/8
- Height inches 11 6/8
- Depth inches 10 4/8
- Width mm incl. feet/grill 470
- Height mm incl. feet/grill 333
- Depth mm incl. feet/grill 268
- Width inches incl. feet/grill 18 4/8
- Height inches incl. feet/grill 13 1/8
- Depth inches incl. feet/grill 10 4/8
- Speakers per packaged box 1
- Grille Black
Reviews
"The first subwoofer in STEREOPLAY’s review history that..."
In their November issue, Germany's magazine STEREOPLAY reviews the Sub 6 after being updated with the latest speaker presets. And the results prove that this subwoofer is one of a kind.
STEREOPLAY, Germany
Sub series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs:
- Analog outputs:
- Amplifier Power (W):
- AC Power Input:
- Auto on/off:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):
- Upper Cutoff (Hz @ 85dB +/- 3 dB):
- Box Principle:
- Low pass filter:
- High pass filter:
- Phase adjustment:
- Woofer:
- Weight kg:
- Weight lbs:
- Width mm:
- Height mm:
- Depth mm:
- Width inches:
- Height inches:
- Depth inches:
- Width mm incl. feet/grill:
- Height mm incl. feet/grill:
- Depth mm incl. feet/grill:
- Width inches incl. feet/grill:
- Height inches incl. feet/grill:
- Depth inches incl. feet/grill:
- Speakers per packaged box:
- Grille:
Sub 6
- Current
- Home
- Subwoofers
- Subwoofer
- 2x balanced XLR, 2x unbalanced RCA phono
- 2x balanced XLR, 2x unbalanced RCA phono
- 500W
- 100-120 V/200-240 V 50/60 Hz
- Yes
- 0,5
- 490
- 16
- 230
- Sealed
- Adjustable/Preset
- Adjustable
- 0/180 degrees
- 2x 23cm MSP Hybrid Drive
- 21.5
- 47.4
- 447
- 300
- 268
- 17 5/8
- 11 6/8
- 10 4/8
- 470
- 333
- 268
- 18 4/8
- 13 1/8
- 10 4/8
- 1
- Black
