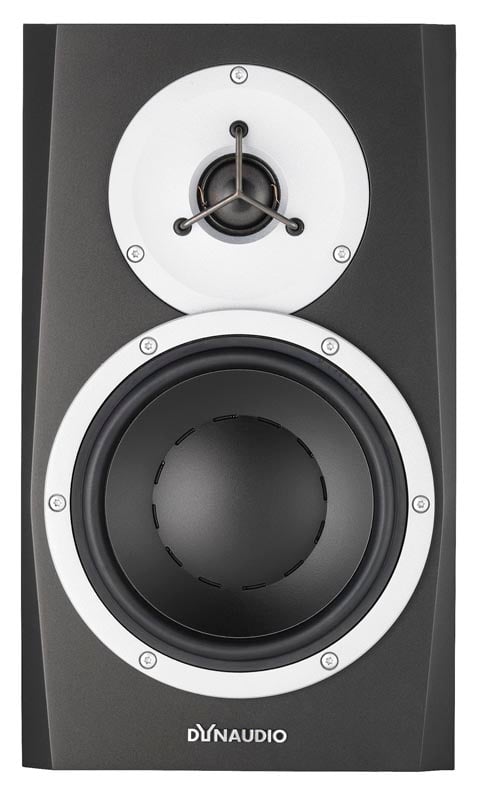

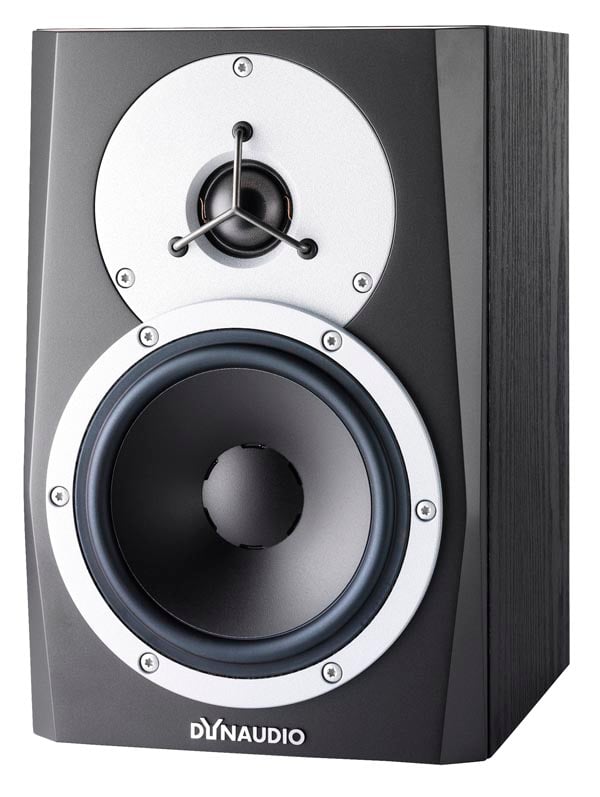

BM5 mkIII

The BM5 mkIII is the next generation of the tremendously successful BM5A MKII.

The BM5 mkIII is the next generation of the tremendously successful BM5A MKII.

With greater SPL, broader frequency and power response compared to the previous model, its ultra-high dynamic range and hand-crafted drivers deliver performance superior to many larger, more expensive monitors.

Large diameter voice coil surrounds the magnet for superior linearity. Aluminum voice coil former and wire are low mass so transient response is quick and accurate. Diaphragm and dust cap are moulded as one piece in patented low-mass, highly rigid Magnesium Silicate Polymer providing unrivaled accuracy.

Dynaudio-BM5-mkIII-Driver-Cross-Cut-Persp

Classic BM Range

Features

7" Nearfield Monitor

Handcrafted drivers with aluminum voice coils

Class-D Amplification with DSP

Flexible operation with XLR and RCA inputs

Made in Denmark

Status Current
Segment Pro
Range BM mkIII
Type Nearfield Monitor
Analog inputs XLR, RCA
Maximum SPL (1m, pair) 118
Amplifier Power Woofer (Watt) 50
Amplifier Power Tweeter (Watt) 50
AC Power Input 100-240V 50/60Hz
Max Stand-by Power Consumption (Watt) 0,3
Max Power Consumption 94
Lower Cutoff (Hz @85 dB +/- 3 dB) 42
Upper Cutoff k(Hz @ 85dB +/- 3 dB) 24
Box Principle Rear-loaded bass reflex
Crossover 2-way DSP-based
Crossover Frequency (Hz) 1900 Hz
Tweeter 1.1in soft dome
Midrange/Woofer 6.5in MSP
Weight kg 7,7
Weight lbs 17
Width mm 186
Height mm 320
Depth mm 296
Width inches 7 3/8
Height inches 12 5/8
Depth inches 11 5/8
Speakers per packaged box 1

Classic BM series

Status:
Segment:
Range:
Type:
Analog inputs:
Maximum SPL (1m, pair):
Amplifier Power Woofer (Watt):
Amplifier Power Tweeter (Watt):
AC Power Input:
Max Stand-by Power Consumption (Watt):
Max Power Consumption:
Lower Cutoff (Hz @85 dB +/- 3 dB):
Upper Cutoff k(Hz @ 85dB +/- 3 dB):
Box Principle:
Crossover:
Crossover Frequency (Hz):
Tweeter:
Midrange/Woofer:
Weight kg:
Weight lbs:
Width mm:
Height mm:
Depth mm:
Width inches:
Height inches:
Depth inches:
Speakers per packaged box:

BM 15A
Current
Pro
BM
Nearfield Monitor
XLR
124
200
100
100-240V 50/60Hz
300
40
21
Front-loaded bass reflex
2-way
1800 Hz
1800 Hz
10in MSP
18,6
41
290
454
388
11 3/8
17 7/8
15 2/8
1

BM5 mkIII
Current
Pro
BM mkIII
Nearfield Monitor
XLR, RCA
118
50
50
100-240V 50/60Hz
0,3
94
42
24
Rear-loaded bass reflex
2-way DSP-based
1900 Hz
1.1in soft dome
6.5in MSP
7,7
17
186
320
296
7 3/8
12 5/8
11 5/8
1

BM 6A
Current
Pro
BM
Nearfield Monitor
XLR
118
100
100
100-240V 50/60Hz
200
41
21
Rear-loaded bass reflex
2-way
2200 Hz
1.1in soft dome
6.5in MSP
11
24 2/8
217
338
321
8 4/8
13 2/8
12 5/8
1
