Core Sub Compact

Big bottom

Precision, punch and pizzazz

FIND A DEALER
BOOK LISTENING SESSION

Core Sub Compact



We know, and we agree: if the space exists for it, the full-size Core Sub is the way to go. More is more, after all. But for many studios, space is already lacking – and with rooms getting filled with ever more equipment thanks to increasing demands for immersive content, having a compact system that still packs a punch is more important than ever.

In size, Core Sub Compact is half a Core Sub. In performance, you’ll get everything you demand.

It digs down to 16Hz. It’ll put out 109dB at a listening distance of 1m (in a small studio, you’ll definitely know it’s there). It has a full set of DSP controls from the rest of the Core family. It uses 280W of high-quality Pascal amplification for each of its twin drive-units. And it won’t take up valuable floor or wall space.

We challenge you to find a meaningful low frequency it can’t handle, whatever your project.

More power to you

Core Sub Compact might be smaller in size, but in processing power it’s a giant. It uses the same amp module and DSP engine you’ll find in the rest of the Core family – which means you get all the customisation options you want, plus all the I/O connections you’d ever need. Analogue, AES digital… you can deal with everything from a 2.1-channel system right up to a full-on 9.1.6 immersive rig.

It also means total consistency with the rest of the Core family, regardless of which combination of speakers you use. Core Sub Compact’s tonality is identical to its higher-frequency cousins – it really is an integrated bass-extension system, not just a boom-box

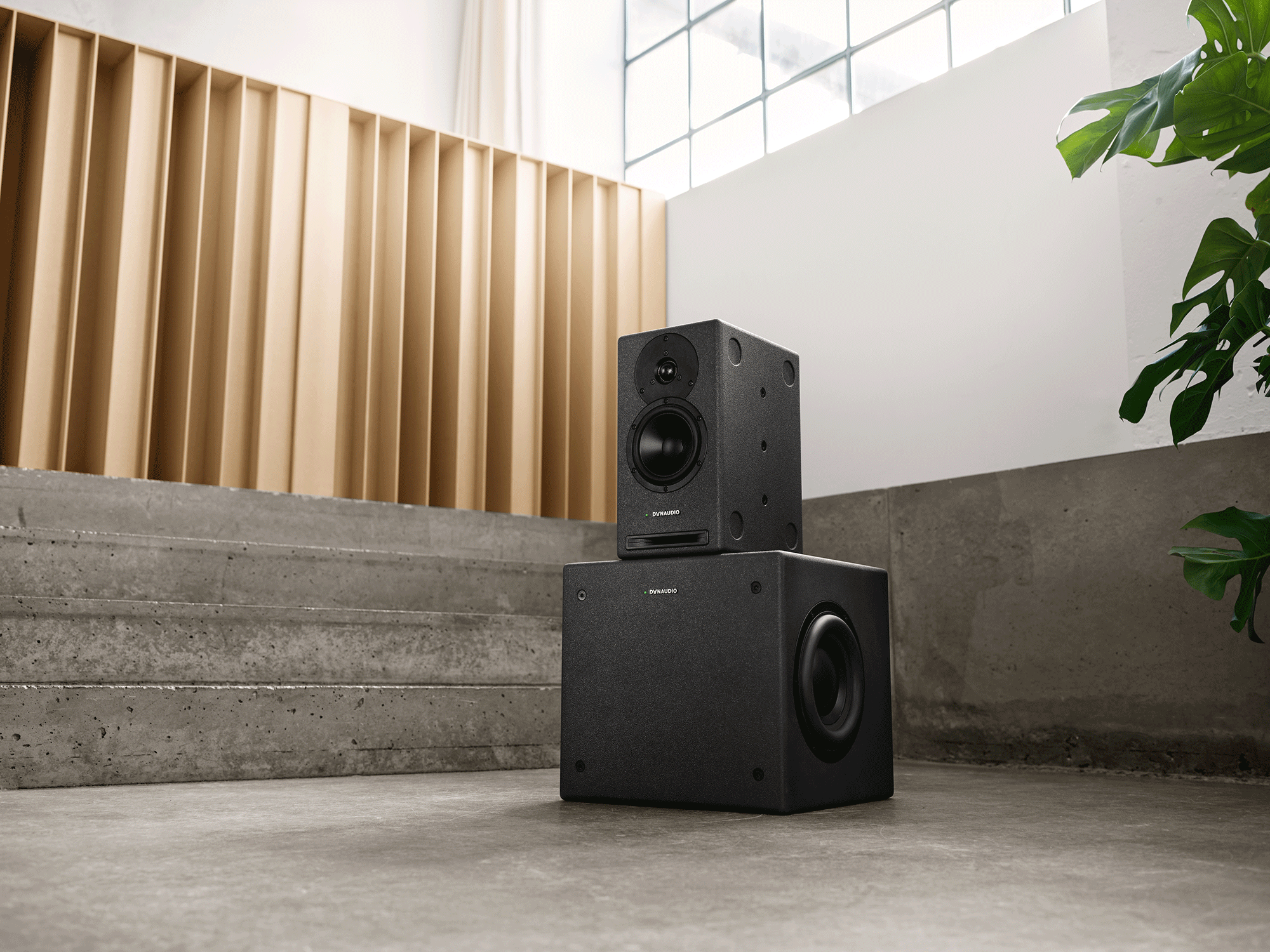

2023_DynaudioCore5+SubCompact_01

Need more versatility?

You can use more than one Core Sub Compact in your system for more even bass-distribution. They’ll happily sit underneath or behind a desk, directly underneath a Core speaker (thanks to the built-in location indentations) or on a wall, courtesy of a standard VESA bracket.

And you don’t have to worry about vibration. The two Dynaudio MSP+ Hybrid Drive units work in an opposed configuration. Combine that with the ultra-stable cabinet and you can mix at maximum SPL with your priceless Ming vase sitting right on the sub. Worry-free.

The Hybrid Drive is a clever thing – specifically engineered for subwoofers. The rigid aluminium core is sandwiched between a layer of paper damping on the rear, and our proprietary MSP (Magnesium Silicate Polymer) material in a cap on the front to eliminate ringing. Put the whole thing in front of a muscular ferrite magnet system and you’ve an incredibly solid engine for bass. Plus, you get two…

Reference monitoring is all about trust – and solid bass-management is crucial in letting you know exactly how your material and room really sound. Core Sub Compact is the way to hear it.



Core-SUB-Compact_Label-1

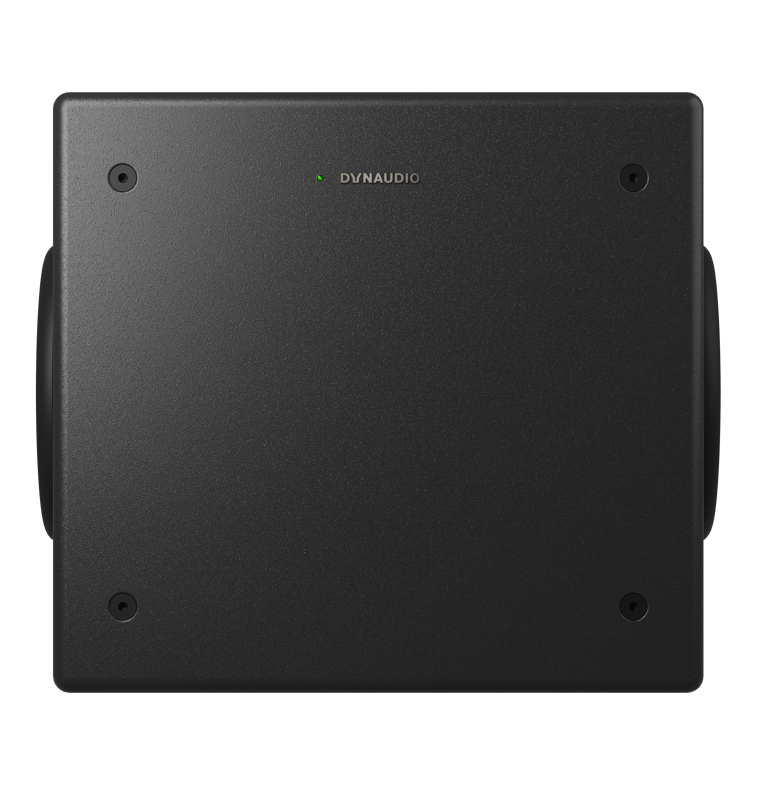

2023_DynaudioCoreSubCompact__square
2023_DynaudioCoreFamily_01_v2_square

Core Sub Compact

Features

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Hand-crafted placeholder


Designed, developed, tested and made in Denmark. All the drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before it leaves our factory.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Advanced materials


Core Sub uses new Dynaudio MSP+ Hybrid Drive units – made with MSP and aluminium – designed specifically for subwoofers. Dual-action damping ensures tight, controlled bass.



2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Advanced DSP


Uses the same DSP engine you'll find in the rest of the Core range – so you can customise its response to its position in the room for seamless consistency and integration.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

Mix-and-match


Use as many Subs as you need with your Core speakers – stack them in neat arrays or even mount them on walls. Core Sub aligns physically and electronically with your studio.

Core Sub Compact

Specifications

  • Status Current
  • Segment Pro
  • Series Core
  • Type Subwoofer
  • Analog inputs 1x XLR female, balanced
  • Digital inputs 1x AES3 XLR female 1x BNC word clock
  • Digital outputs 1x AES3 XLR male, pass-through
  • Amplifier Power (W) 280 W
  • AC Power Input 100 - 240 V 50/60 Hz
  • Auto on/off Yes
  • Max Stand-by Power Consumption (W) 0.48
  • Lower Cutoff (Hz @85 dB +/- 3 dB) 16
Product-Lineart_CoreSubCompact

Core Sub series

  • Status:
  • Segment:
  • Series:
  • Type:
  • Analog inputs:
  • Digital inputs:
  • Digital outputs:
  • Amplifier Power (W):
  • AC Power Input:
  • Auto on/off:
  • Max Stand-by Power Consumption (W):
  • Lower Cutoff (Hz @85 dB +/- 3 dB):
  • Core SUB
  • Current
  • Pro
  • Core
  • Subwoofer
  • 1x balanced XLR
  • 1x AES3 XLR (no sample rate conversion), BNC Word Clock
  • 1x AES XLR pass-through
  • 2x 500W
  • 100-120 V/200-240 V 50/60 Hz
  • Yes
  • 0.5
  • 15
  • Core Sub Compact
  • Current
  • Pro
  • Core
  • Subwoofer
  • 1x XLR female, balanced
  • 1x AES3 XLR female 1x BNC word clock
  • 1x AES3 XLR male, pass-through
  • 280 W
  • 100 - 240 V 50/60 Hz
  • Yes
  • 0.48
  • 16
