Delta 40 DSP

Remote control, cutting-edge DSP and all the power you need. Rack ’em up…

The Delta series philosophy: reliability, trust and transparent amplification of your mix.

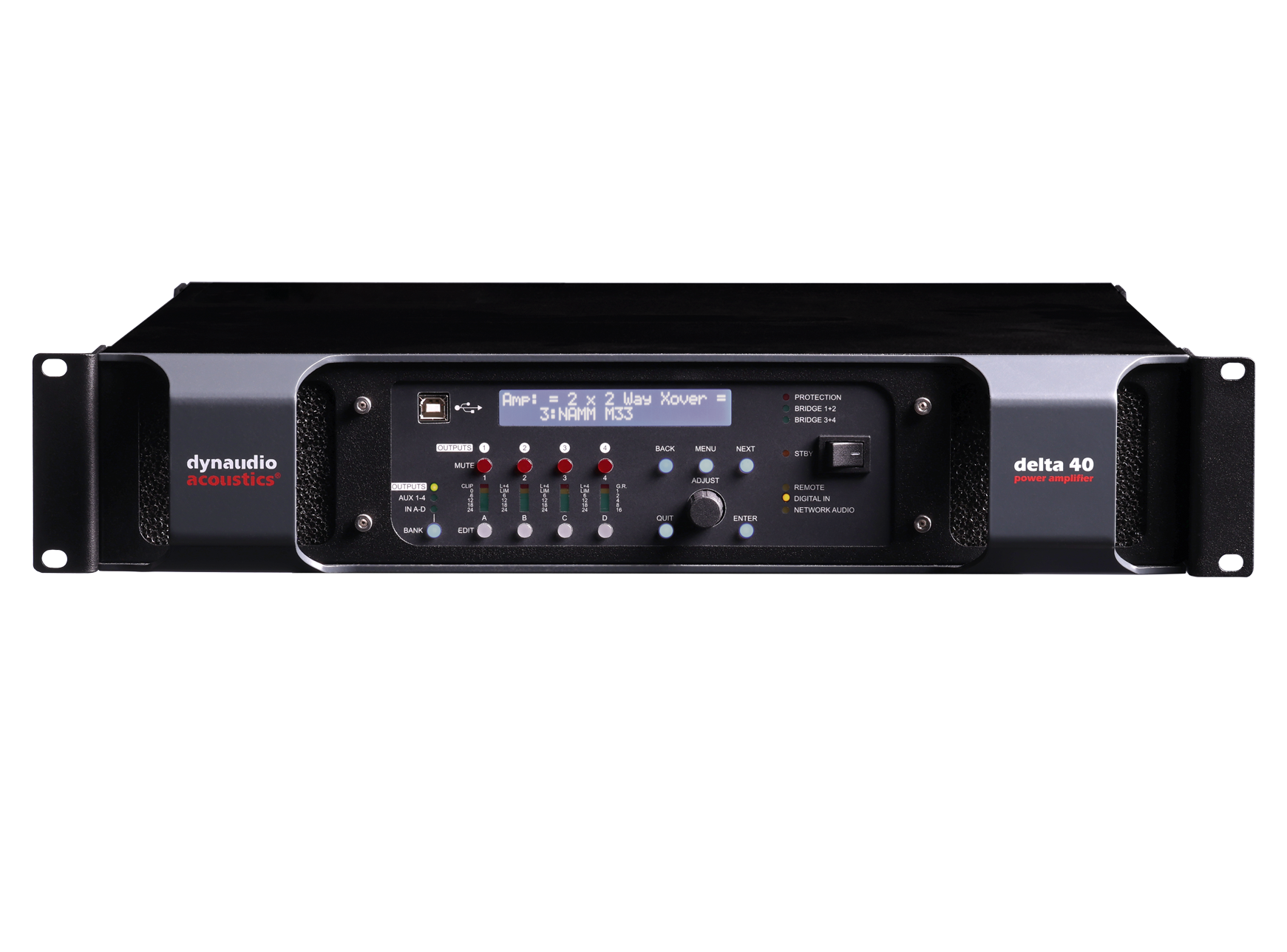

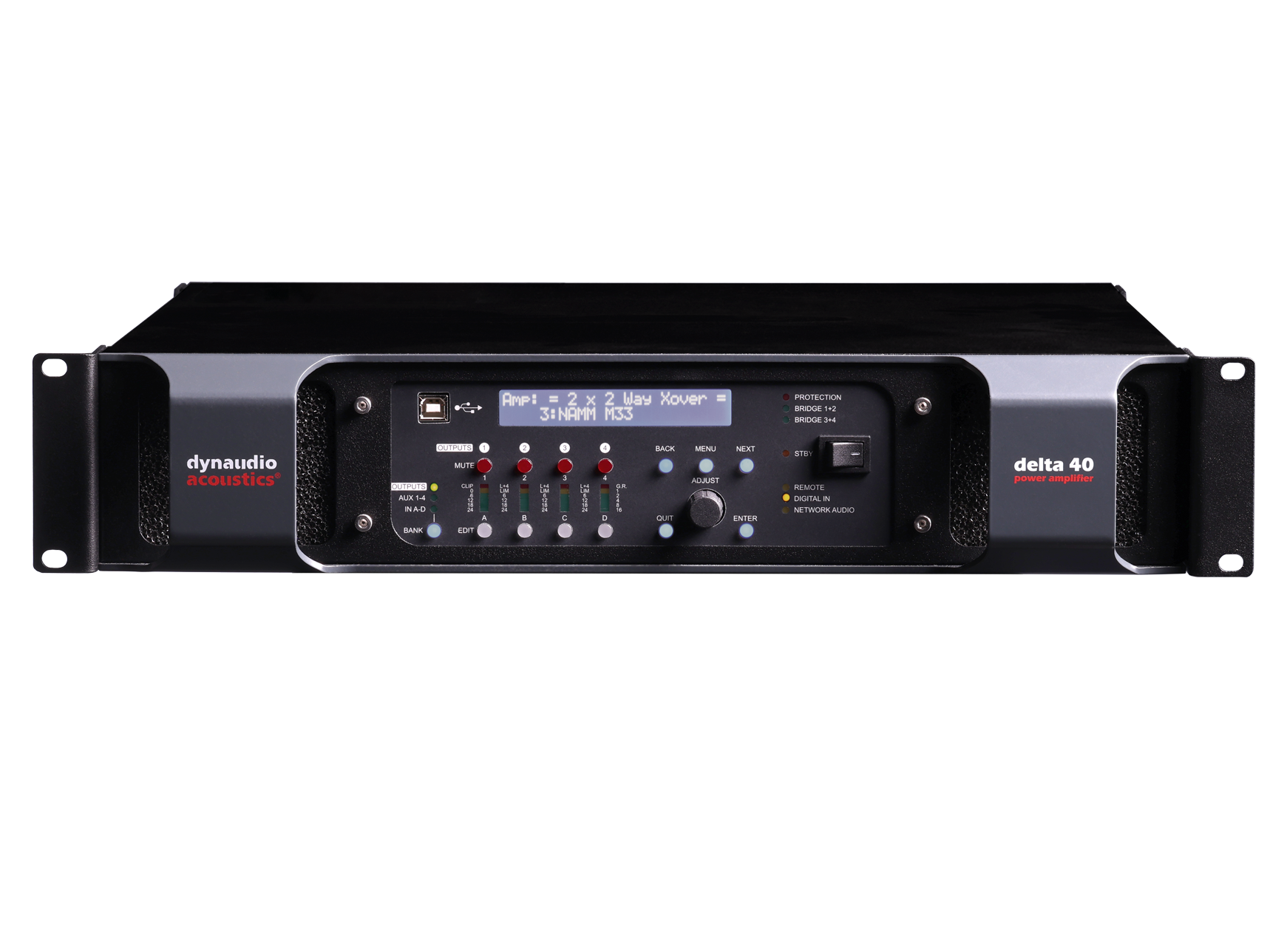

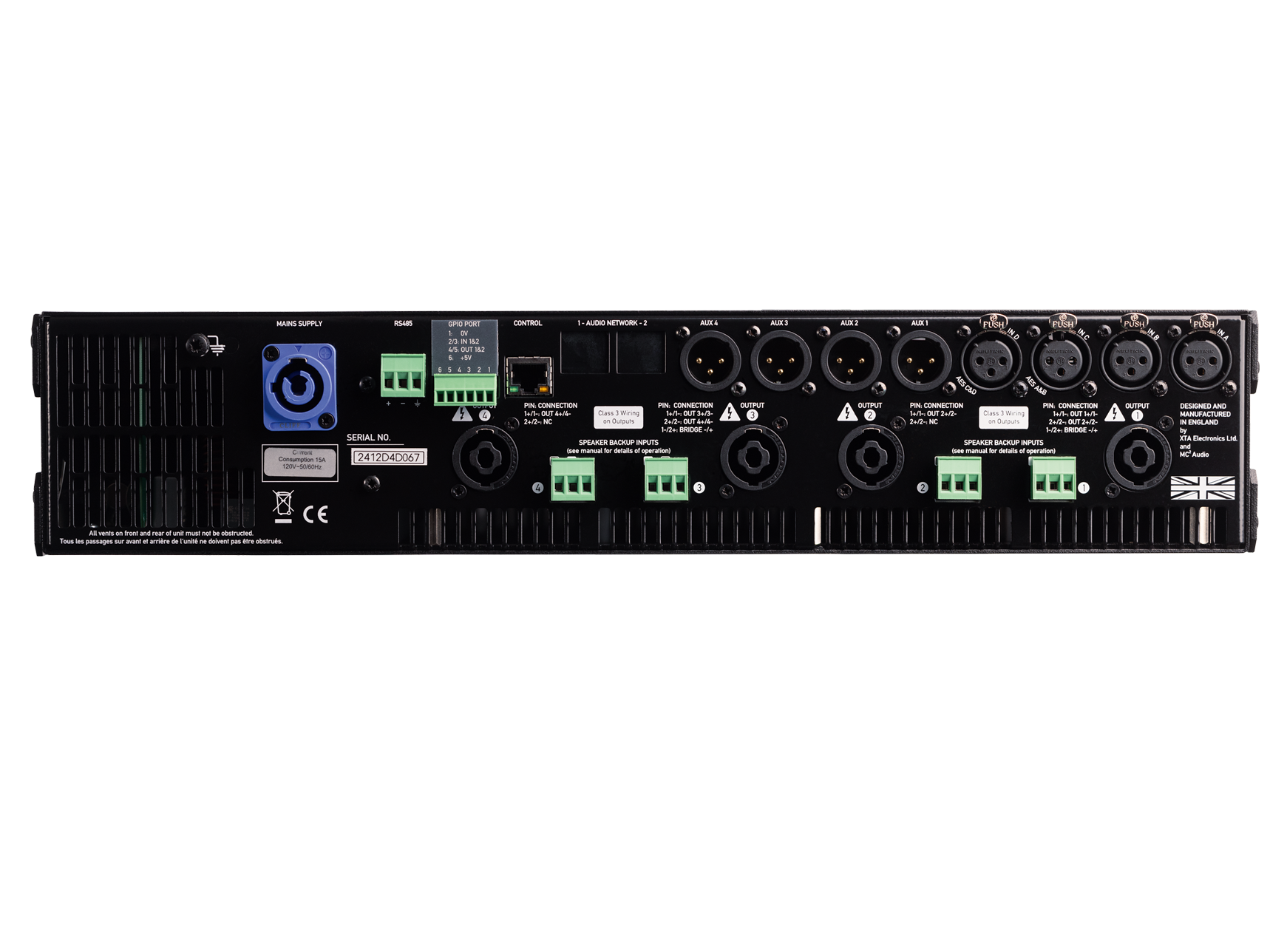

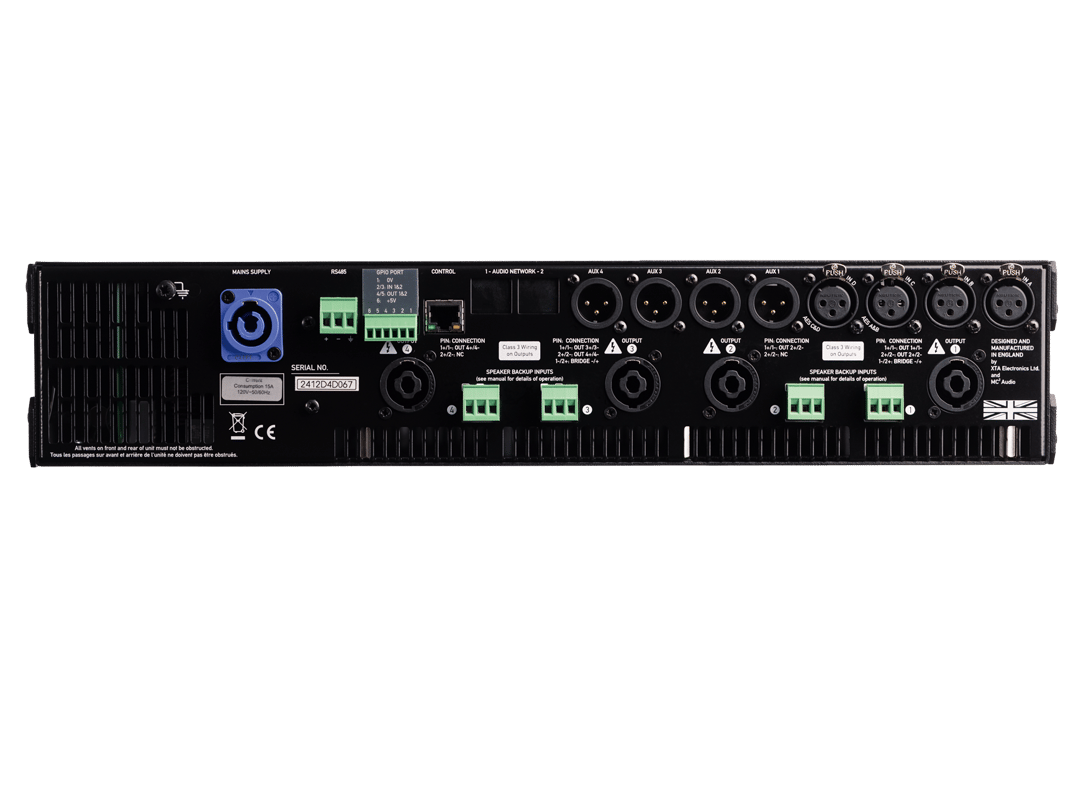

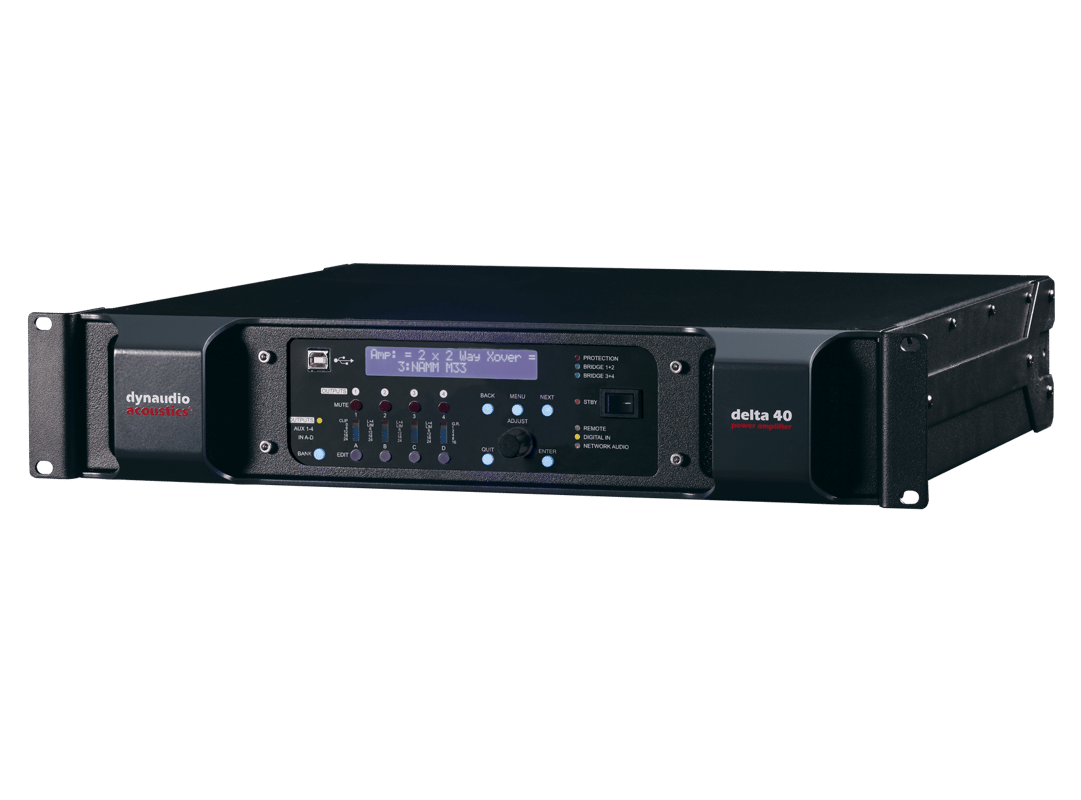

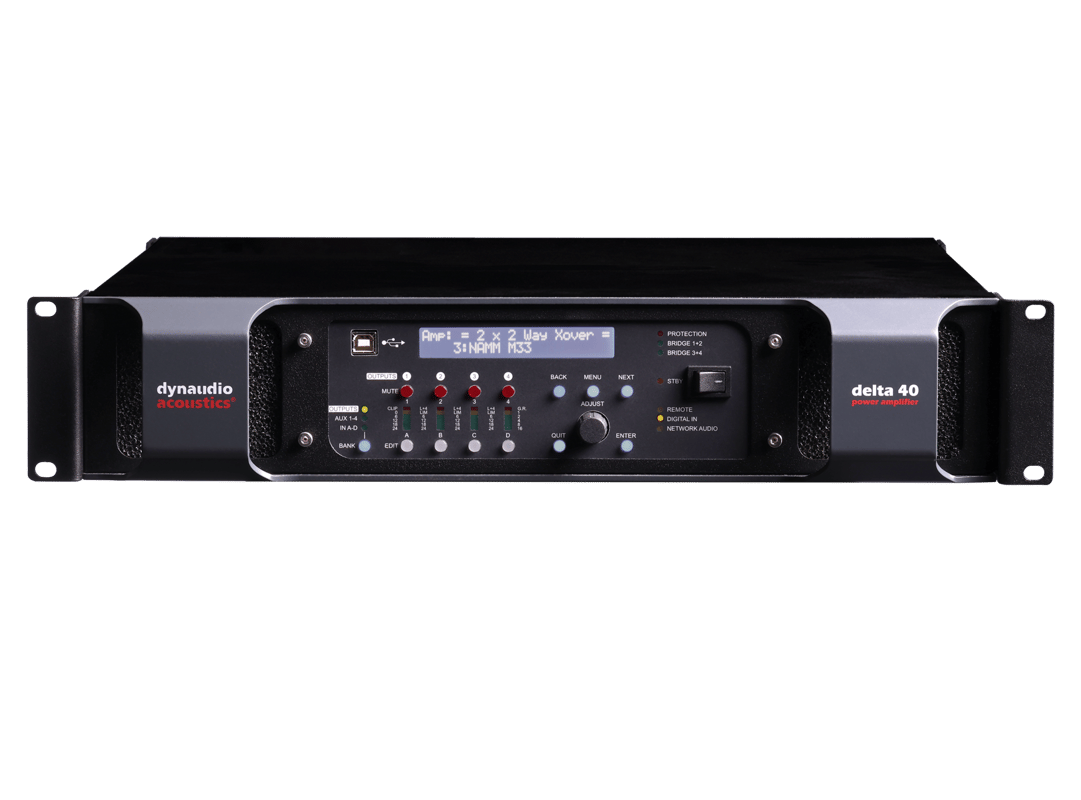

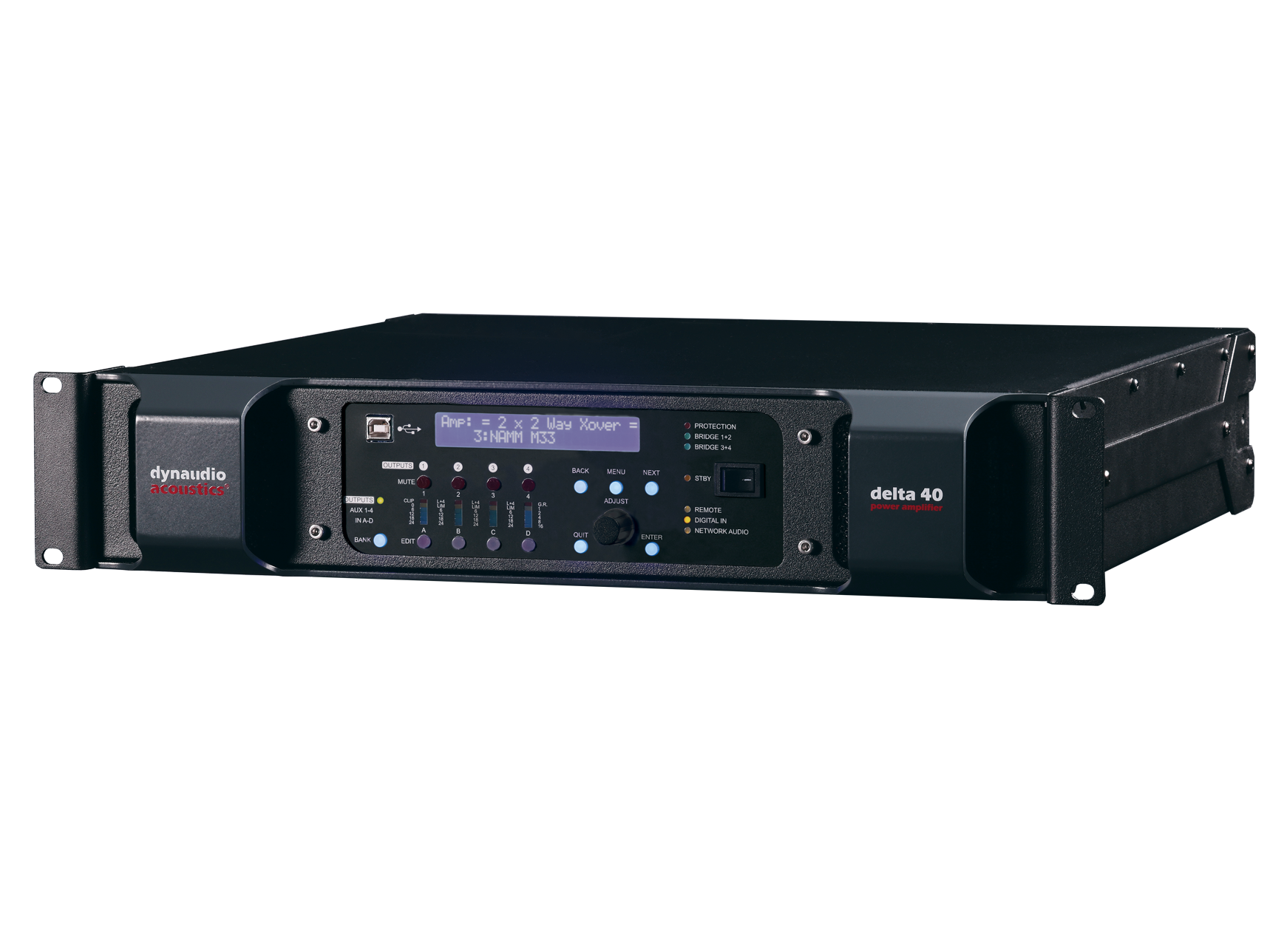

Delta 40 DSP

Every model uses the highest-quality power-amplifier technology – so you know for a fact that what goes in, comes out exactly as intended. Only louder.

The 2U Delta 40 yields a huge 4x 1000W at 4 ohms – or 2x 2400W when bridged. And it does so without breaking a sweat, while delivering enviably low distortion and noise figures. For instance, THD is as low as <0.18% at 1kHz.

Analogue or AoIP via Dante? Delta 40 handles up to four channels; it’s a future-proof system that can keep up with whatever your studio throws at it. When using Dante, your audio is converted by 24-bit/96kHz DACs.

Should the need for room tuning arise, you also get access to pristine DSP features. These span three dynamic and eight static EQ bands per input channel, and nine static EQ bands per output. Add to that, a suite of additional filters.

You also get wireless control via the DeltaDirect app for iPad, GPIO for remote control and monitoring, and redundant back-up amplifier inputs. Want a stereo four-way system? Just connect to a Delta DSP amplifier with a single Cat 5 cable to eliminate the need for external processing.

Specifications

Digital I/O

Networking	2x RJ45	1000BASE-T, Dante, AES67
Thunderbolt	2x Thunderbolt 3	2x15 Watts PD
ADAT	Toslink 2x In, 2x Out	16 channels total, can be configured as S/PDIF
AES3	DB25	8CH AES3 (16 Audio Channels)
Word Clock	2x BNC	WC In/Out
MADI	2x BNC	MADI In/Out

Analog I/O

Headphone	2x TRS (Front)	18-600 Ohm
Expansion	DAD Expansion Modules	1 available slot

Power

C13	90-260 VAC (Max 120W)

Dimensions

Chassis	19", 1 RU
Depth	32 cm / 12.6"
Width	43.5 cm / 17.2"
Weight	2.8 kg / 6.5 lbs

DynaudioAcousticsAmplifiers_Delta40_DSP_02_1200x1200px

DynaudioAcousticsAmplifiers_Delta40_DSP_03_1200x1200px

Status Current
Segment Pro
Series Acoustic Amplifiers
Type Amplifier
Number of channels 4
Output Power: (per channel)*
8 ohms 500W
4 ohms 1000W
2.7 ohms 1400W
2 ohms 1200W*
Output Power: (bridged)
8 ohms 2000W
4 ohms 2400W
THD%: (@1dB below max output)
@ 1kHz < 0.18%
20Hz to 20kHz < 0.2%
Gain/Sensivity
Gain 32dB
Sensitivity (for max power) 6.2dBu
Frequency response 20Hz to 20kHz (+ 0/- 0.5dB)
Power Consumption: (< 5W in standby)
Nominal @ 240v into 4 ohms 2.9A
Nominal @ 120v into 4 ohms 6.0A
Dimensions (HxWxD) / Weight
(2 units) (mm) 88x 482 x 428
Single Box (UK shipping) (2 units) (mm) 230 x 580 x 560
Double Box (outside UK) (2 units) (mm) 250 x 610 x 600
Weight kg 10.0
Weight lbs 22.0
Boxed weight (kg) 12.0
Boxed weight (lbs) 26.5
* 2.7 ohm power quoted for highest single ended output and greatest efficiency (3 x 8 ohm parallel drivers). Amplifier is stable with 2 ohm Loads but output will be reduced.

DynaudioAcousticsAmplifiers_Delta40_DSP_01-2
