Dynaudio Acoustics M1 MkII

High-energy compact near-field monitor

2-way passive

Download product sheet

Contact us

M1 MkII

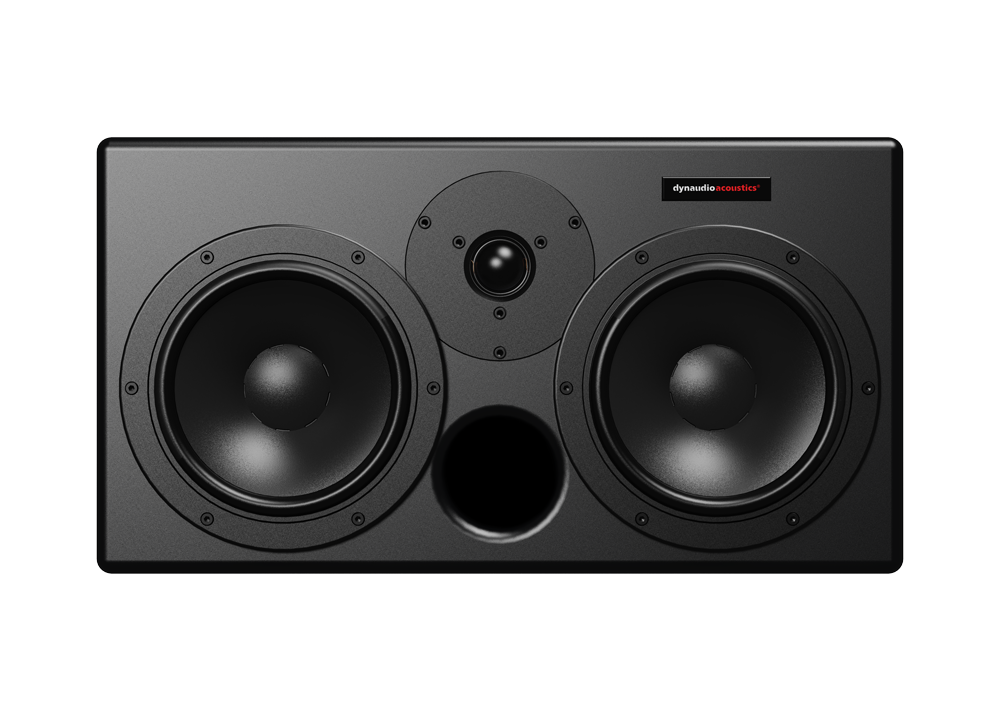

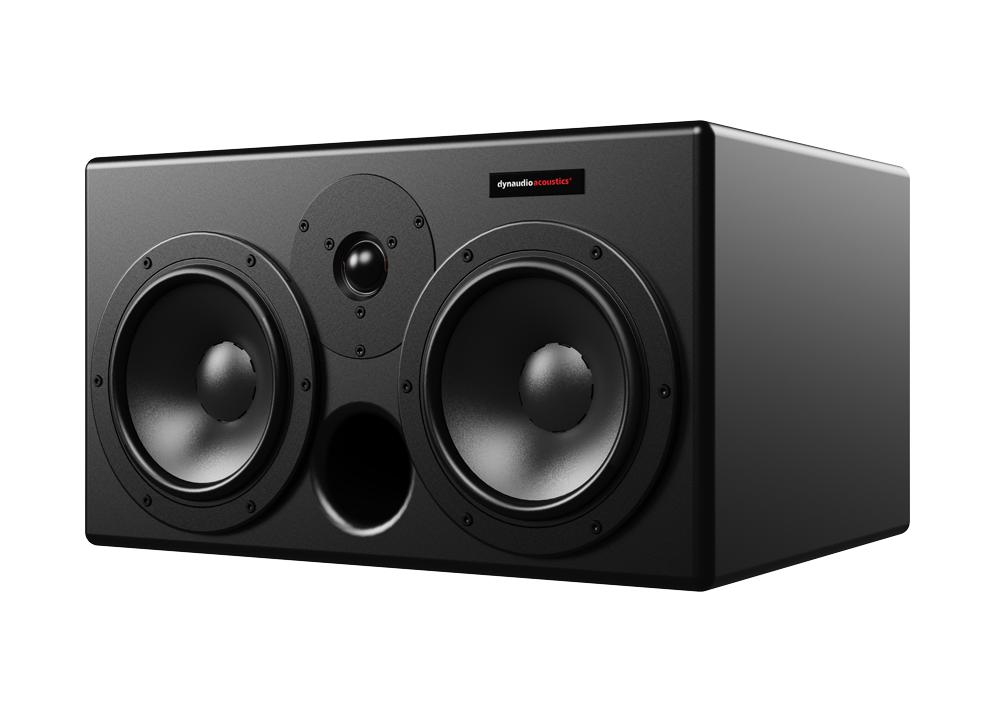

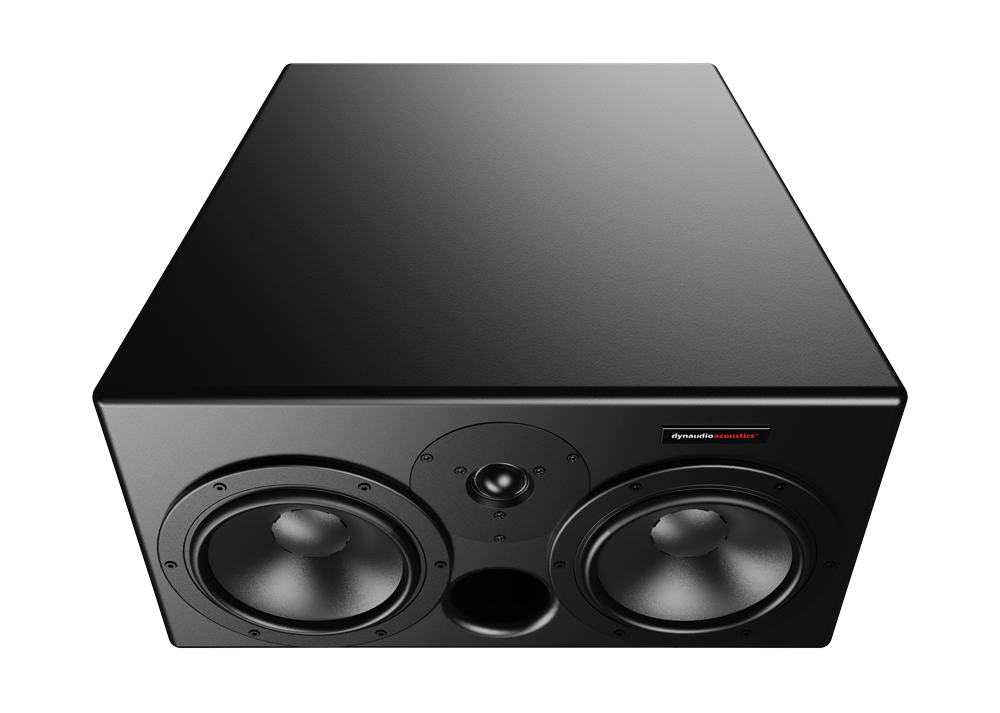

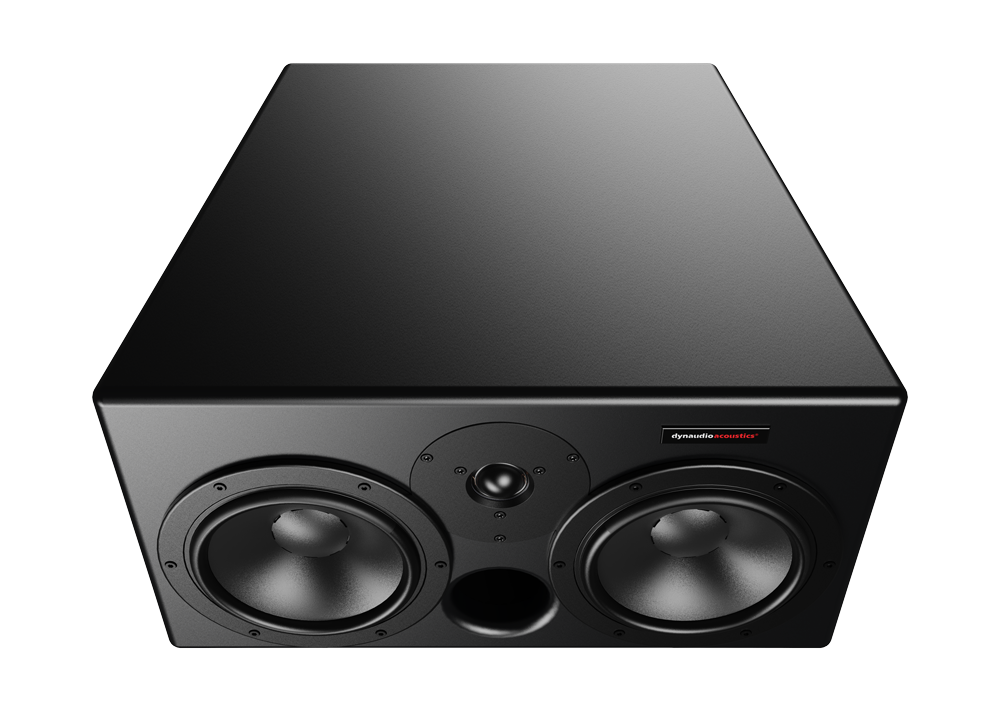

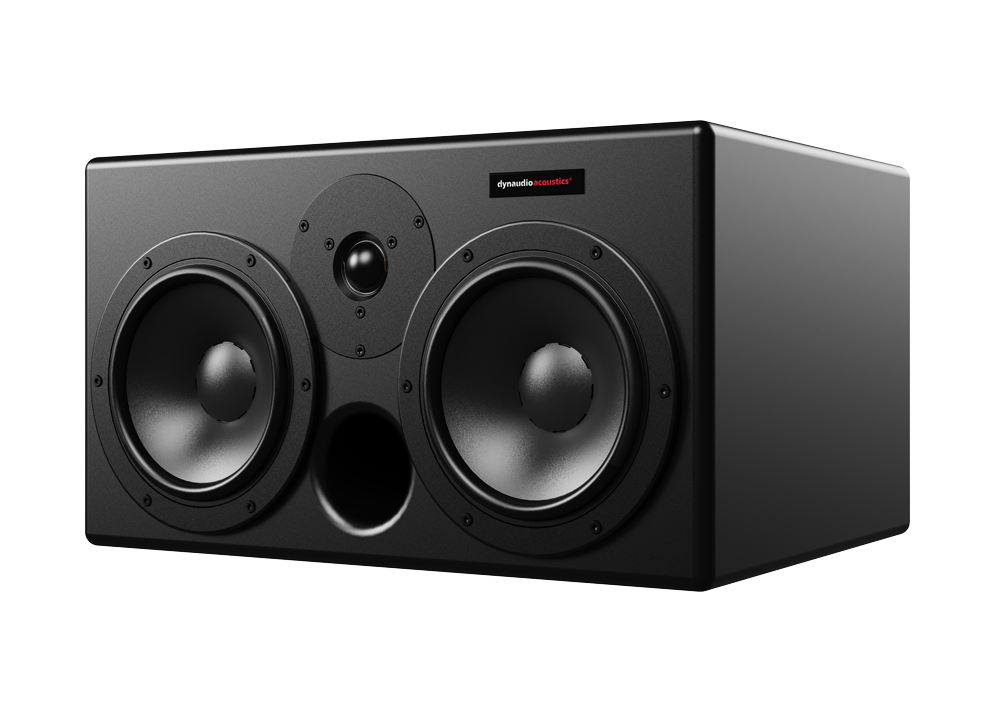

The M1 MkII is a compact dual LF, two-way near-field monitor.

It’s the result of a long term research project aimed at analysing the essential requirements of audio engineers working at high volume levels for extended periods of time.

Every component has been manufactured for reference quality music reproduction and extreme reliability. And we don’t take that lightly: each drive unit can handle 1000W transients with no signal degradation signal – meaning outstanding dynamic response.

Our latest generation of soft-dome high frequency drive units – the legendary Esotar 3 tweeter – and our proprietary MSP (Magnesium Silicate Polymer) low-frequency drive units ensure that the sound field is incredibly accurate… and that listening fatigue is virtually eliminated.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

DynaudioAcoustics_M1_03_landscape

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Music and post production
Type 2-way passive
Frequency response 50Hz – 20kHz
Maximum SPL at 2 metres 122dB stereo
Crossover frequencies 1650Hz
Total harmonic distortion 1% at 90dB
Recommended amplifier power 250-500W per channel
Cabinet dimensions (H x W x D) 256 x 476 x 393mm
Weight kg 14
Finish Black textured paint
High frequency driver Esotar 3
Low frequency driver 2x 18cm MSP
Amplifier recommendation Dynaudio Acoustics DA20, DA40, DCA800
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request
