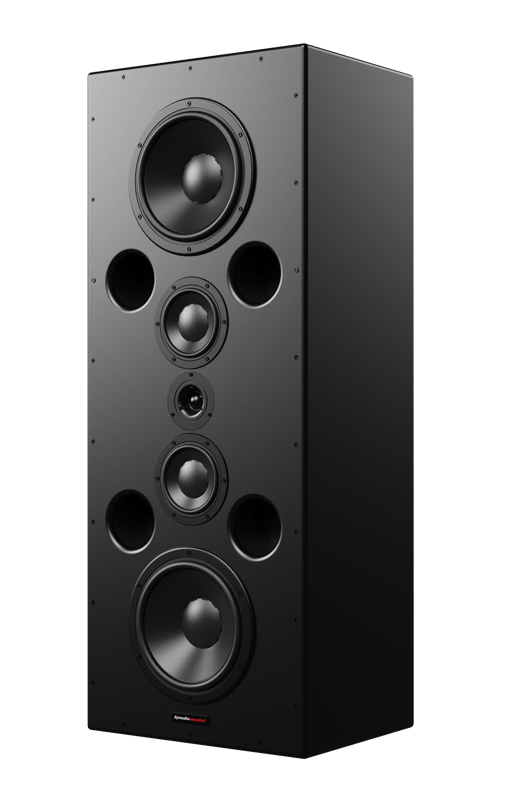

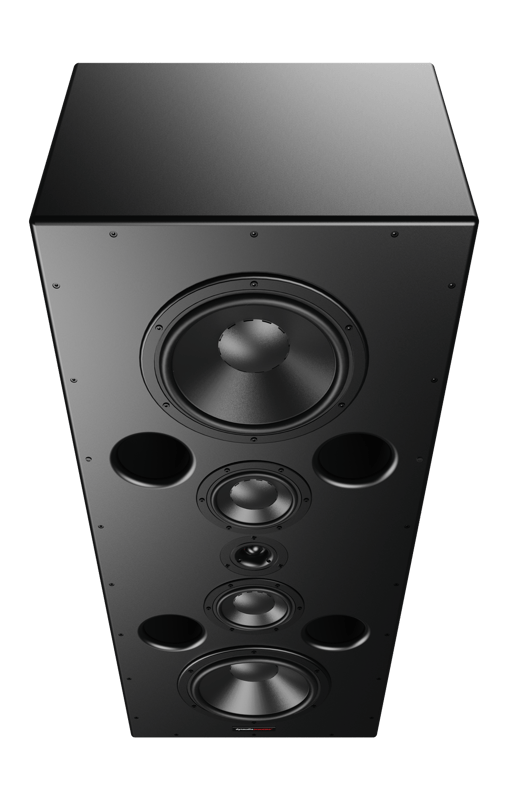

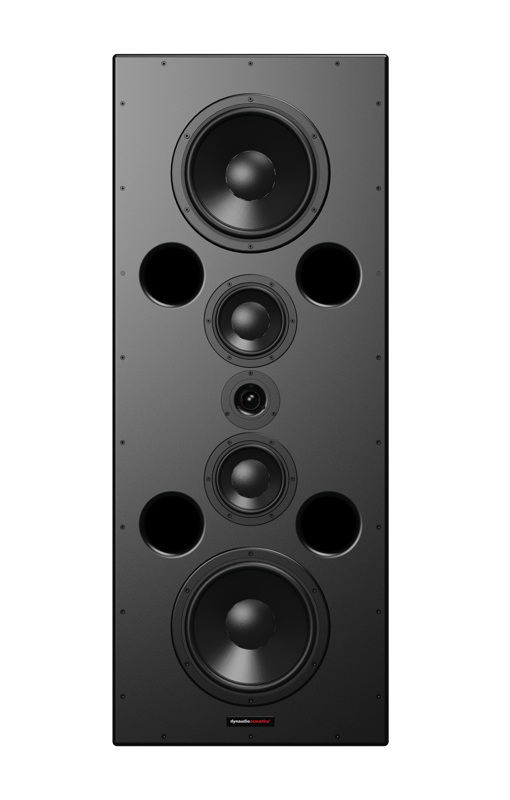

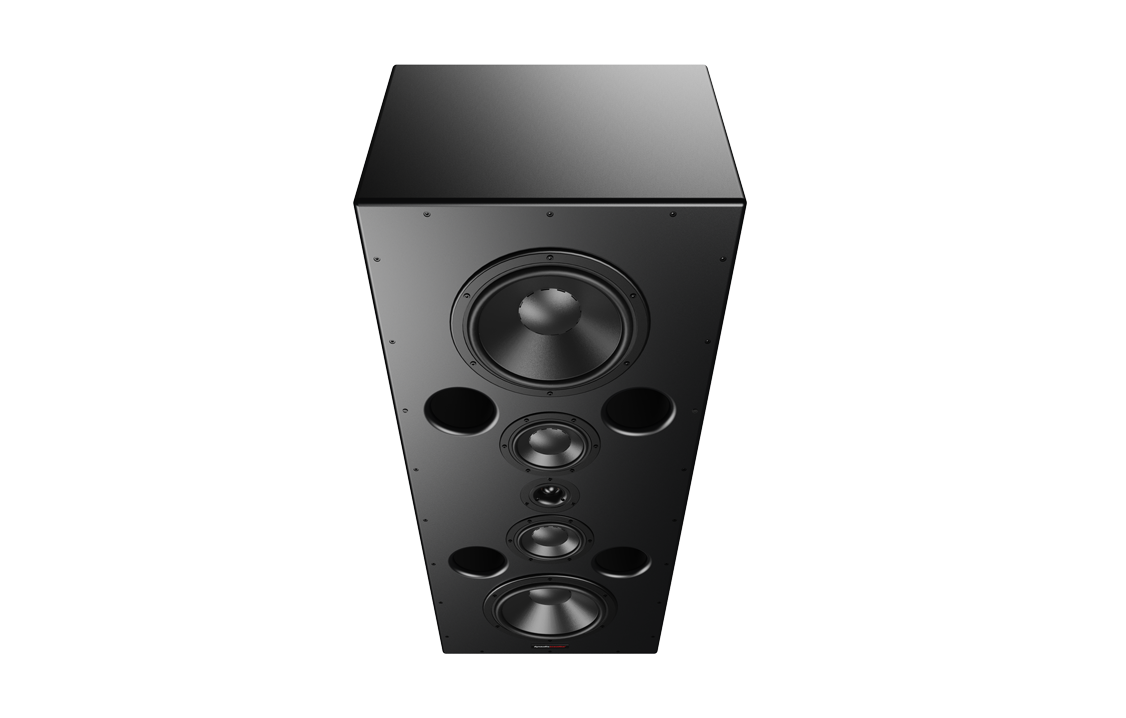

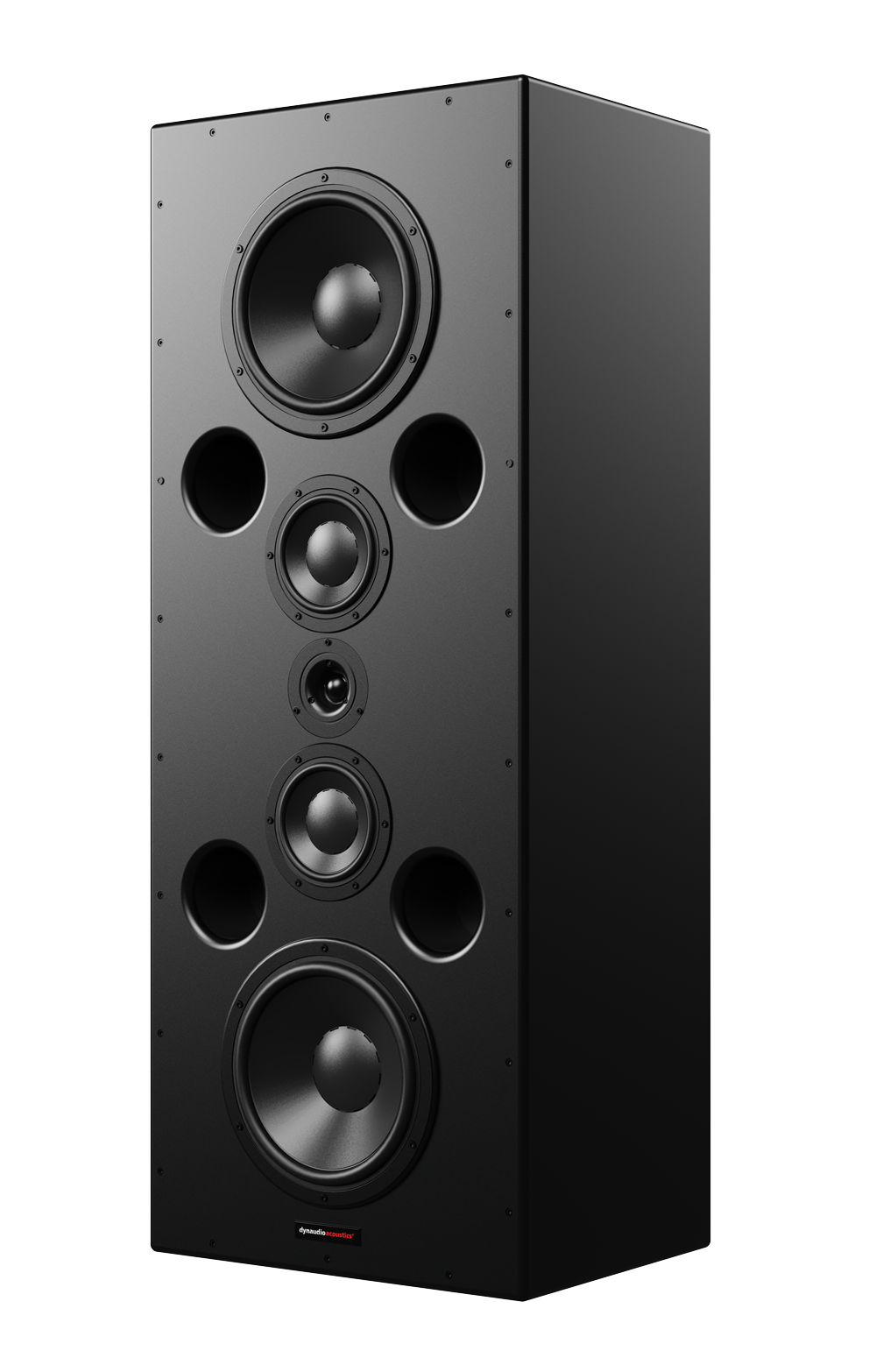

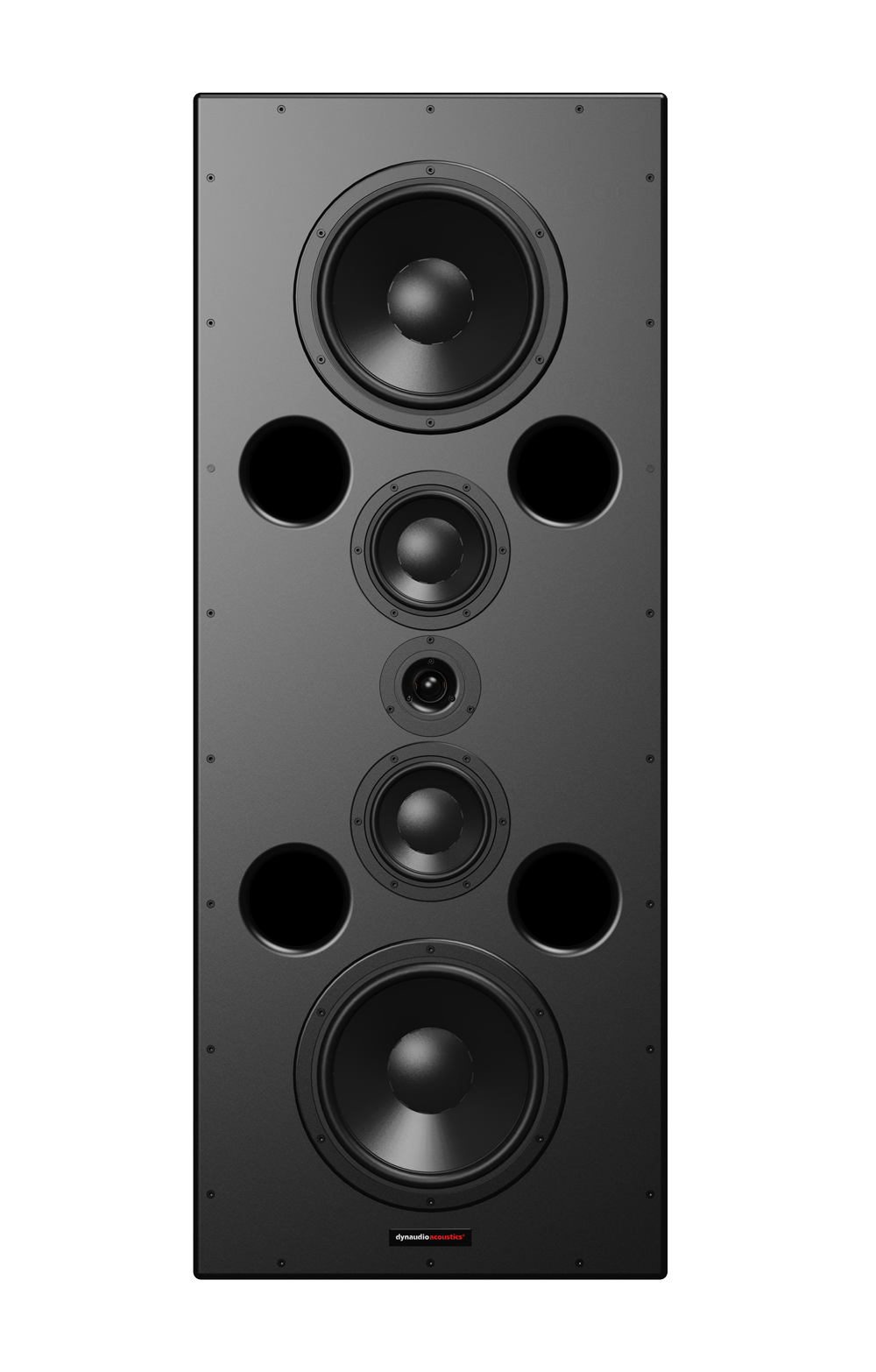

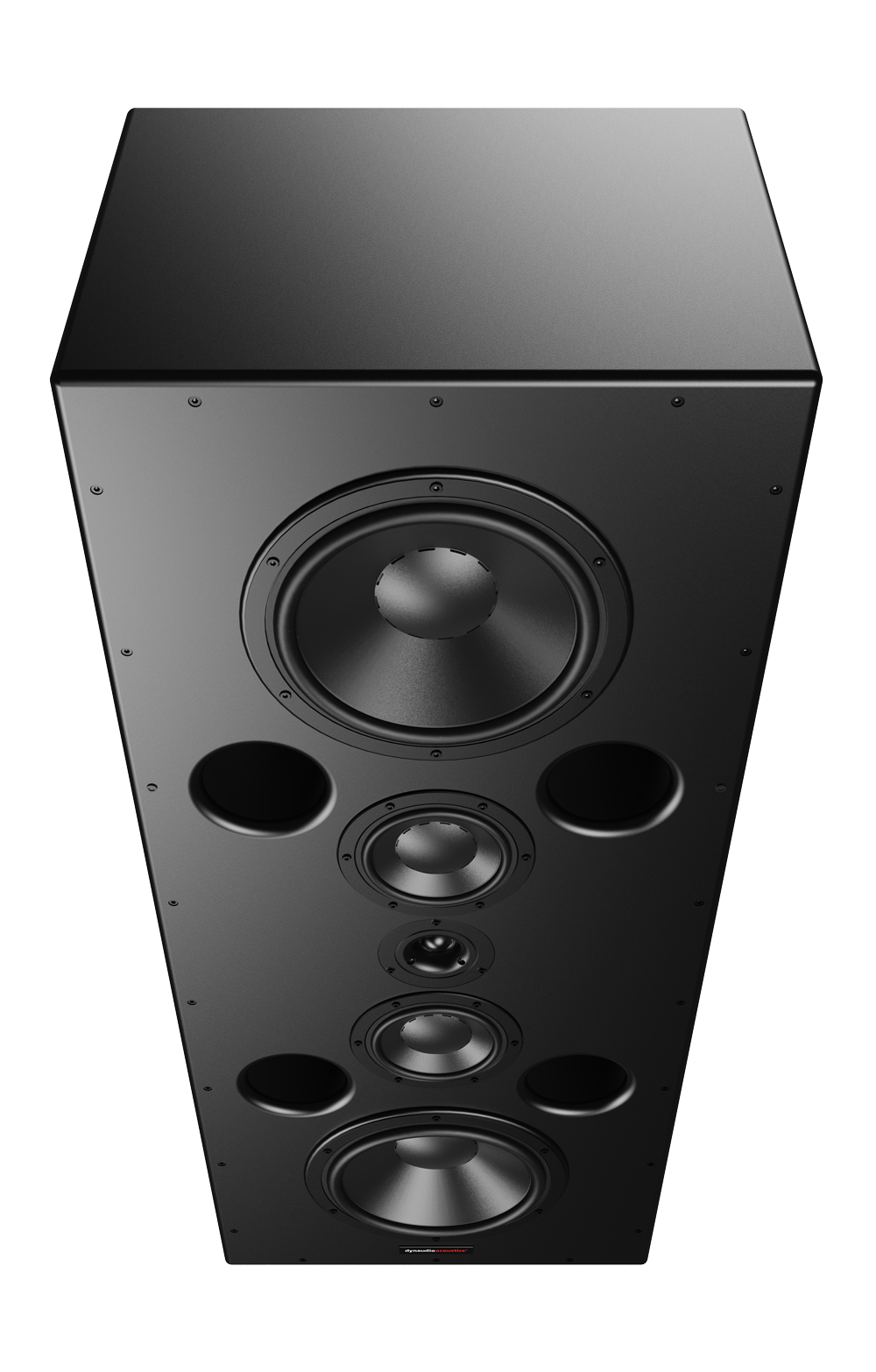

Dynaudio Acoustics M3F

High-quality monitoring for medium-size TV and film dubbing stages

3-way hybrid

M3F

The M3F is a high quality loudspeaker system for use in medium-sized film and television post-production studios.

It’s intended to be put behind a screen – and its small footprint means you can have more space in the theatre. Combine it with our subwoofers and surrounds, and the M3F completes an excellent system for immersive monitoring, including Dolby Atmos HE 7.1.4 and 9.1.4, and full Atmos theatrical multi-channel.

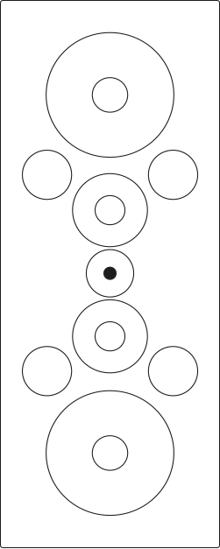

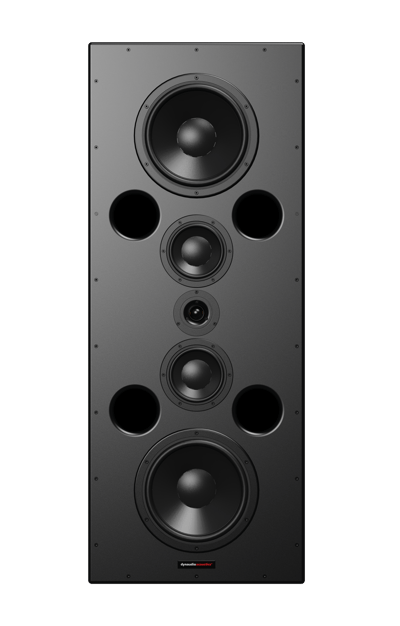

The bass section consists of two 300mm MSP (Magnesium Silicate Polymer) drivers with 100mm ferrofluid-cooled voice-coils. The midrange section consists of two ultra-high-quality 170mm MSP drivers with 75mm diameter voice coils. And the high frequency unit is the D260H soft-dome with short waveguide. A high-power passive crossover links the mids and tweeter.

These speakers are supplied as an active two-way system. We recommend our DA-series amplifiers with onboard DSP, or our DCA series power amps with analogue filter cards.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Post-production and music
Type 3-way hybrid
Frequency response 35Hz – 20kHz
Maximum SPL at 2 metres 120dB
Crossover frequencies 250Hz and 2500Hz
Total harmonic distortion 1% at 90dB
Recommended amplifier power Two channels: 500-1000W/channel per speaker
Cabinet dimensions (H x W x D) 1300 x 520 x 400mm
Weight kg 62
Finish Black textured paint
High frequency driver 28mm soft-dome in short waveguide
Midrange 2x 17cm MSP
Low frequency driver 2x 30cm MSP
Amplifier recommendation Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request

M-series

Specifications

Status:
Segment:
Series:
Application:
Type:
Frequency response:
Maximum SPL at 2 metres:
Maximum SPL at 1 metre:
Crossover frequencies:
Total harmonic distortion:
Sensitivity:
Impedance:
Driver:
Recommended amplifier power:
Cabinet dimensions (H x W x D):
Weight kg:
Fixing:
Finish:
High frequency driver:
Midrange:
High mid driver:
Low mid driver:
Low frequency driver:
Amplifier recommendation:
Optional: Hardwood cabinet:
Custom cabinet sizes:

Dynaudio Acoustics M4 MkII
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
130dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Four channels: 500-1000W/channel per speaker
900 x 850 x 680mm
97
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics C3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
120dB stereo
200Hz and 3000Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
875 x 440 x 395mm
40
Black textured paint
Esotar 3
17cm MSP
30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3F
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
120dB
250Hz and 2500Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
1300 x 520 x 400mm
62
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX left/right
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 720 x 600mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX centre
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 900 x 515mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 vertical
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
452 x 320 x 204mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 centre
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
320 x 452 x 178mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF30
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
122dB
1% at 90dB
95dB/2.83v/1m
4 Ohms
100-500 watts
440 x 515 x 255mm
15
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
2x 24cm MSP
Dynaudio Acoustics Class D four channel DA20/40
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MS15
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
30Hz – >500Hz
128dB
96dB/2.83v/1m
8 Ohms
380mm fibre loaded cone
500-3000 watts
774 x 500 x 550mm
50
Black textured paint
Dynaudio Acoustics DCA800 or DA40
On request

Dynaudio Acoustics MS18
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
25 Hz – >500 Hz
130 dB
97dB/2.83v/1m
8 Ohms
460mm fibre loaded cone
500-3000 watts
1000 x 700 x 550mm
75
Black textured paint
Dynaudio Acoustics DA80 or DCA1400
On request

Dynaudio Acoustics M1 MkII
Current
Pro
Dynaudio Acoustics
Music and post production
2-way passive
50Hz – 20kHz
122dB stereo
1650Hz
1% at 90dB
250-500W per channel
256 x 476 x 393mm
14
Black textured paint
Esotar 3
2x 18cm MSP
Dynaudio Acoustics DA20, DA40, DCA800
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M2 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
40Hz – 20kHz
125dB stereo
700Hz and 3700Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
350 x 680 x 500mm
35
Black textured paint
Esotar3
75mm soft-dome
24cm MSP x2
Dynaudio Acoustics DA20 (with filters), DA40, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
123dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
775 x 555 x 505mm
65
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request
