Dynaudio Acoustics M3FX centre

High-power monitoring for large TV and film dubbing theatres

3-way hybrid

M3FX centre

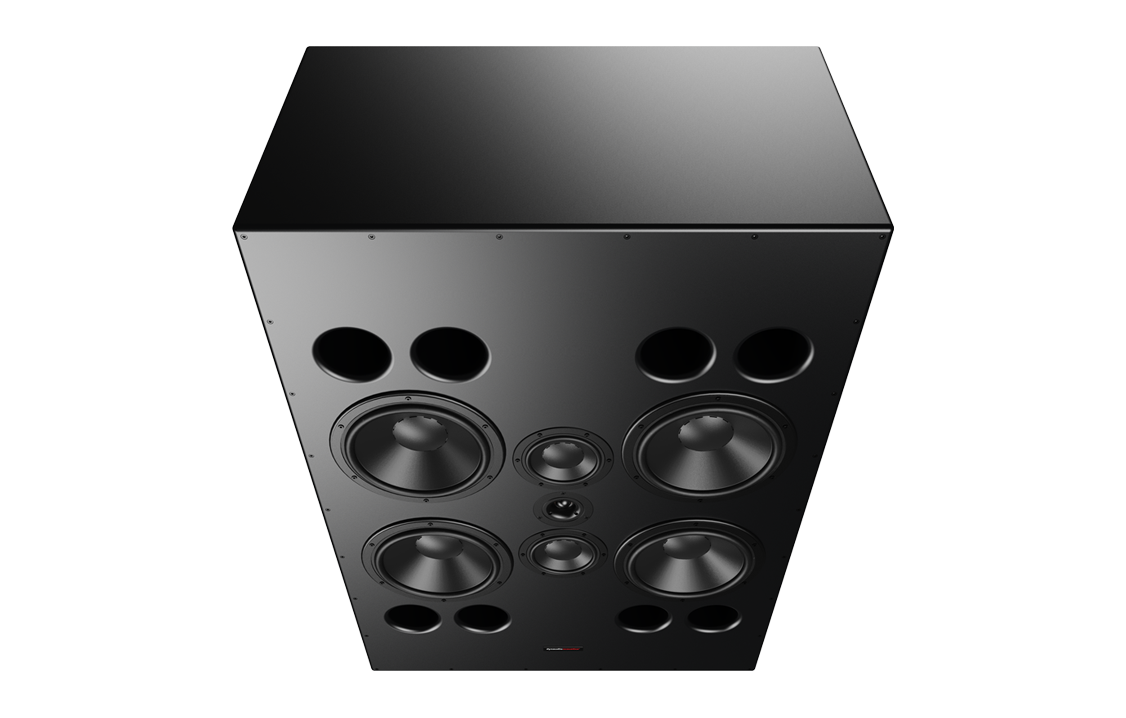

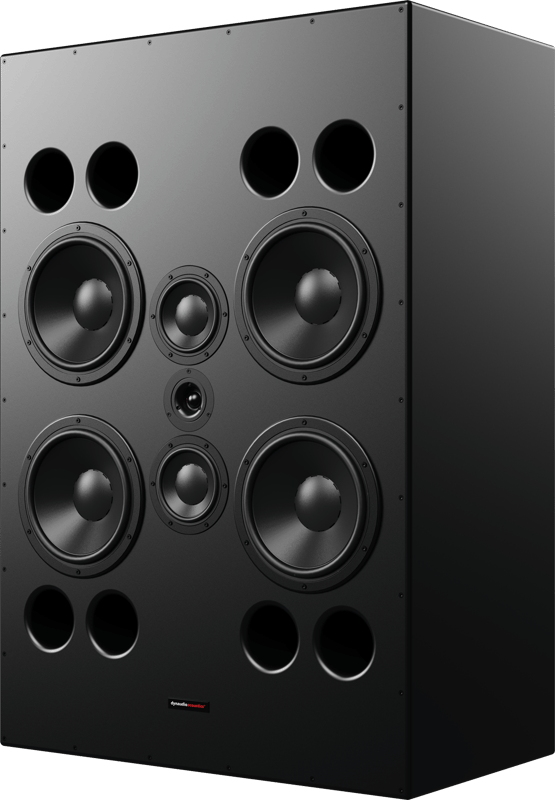

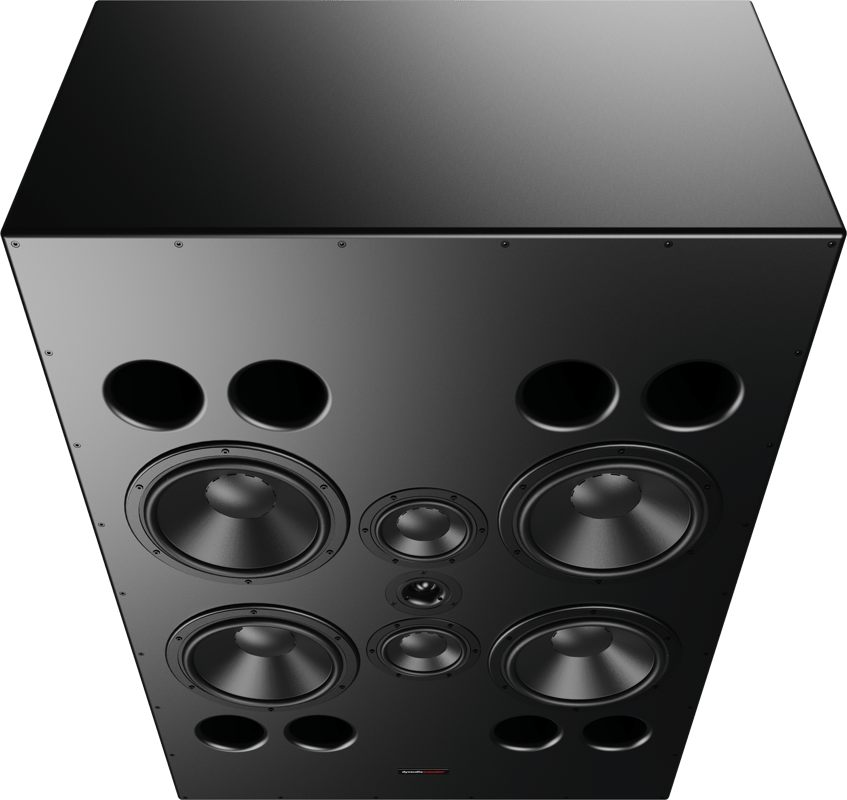

The M3FX is a high power loudspeaker system for use in large film and TV post-production studios where the console is up to 8m from the screen.

Combine it with our subwoofers and surround speakers, and it forms an ideal immersive monitoring system for formats including Dolby Atmos HE 7.1.4 and 9.1.4, and full Atmos theatrical multi-channel.

The system is delivered in left-right and centre versions.

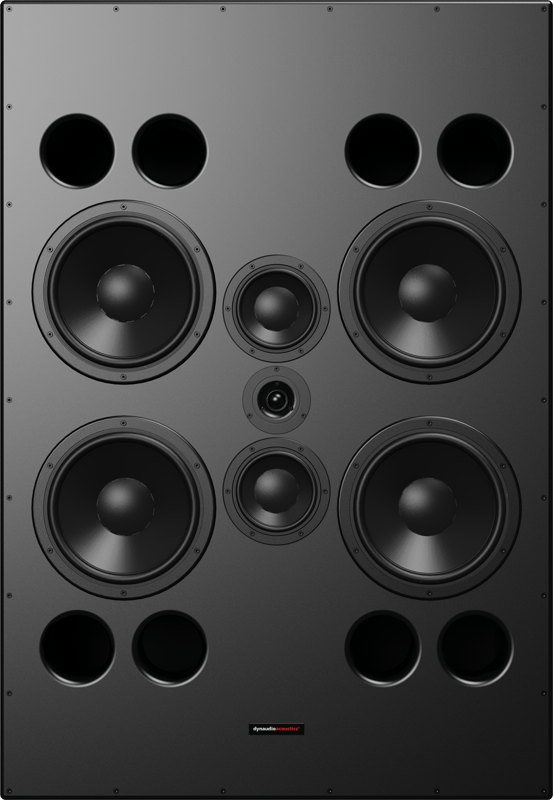

The bass section consists of four 300mm MSP (Magnesium Silicate Polymer) low distortion drivers with 100mm ferrofluid-cooled voice coils. The midrange section consists of two 170mm drive units with 75mm voice coils and neodymium magnets. The high-frequency unit is the D260H soft-dome with short waveguide. Inside, there’s a highpower passive crossover linking the mids and tweeter.

These speakers are supplied as two way active. Reccomended amps are our Dynaudio Acoustics DA series with onboard DSP, or our DCA series with built-in filters.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Post-production and music
Type 3-way hybrid
Frequency response 35Hz – 20kHz
Maximum SPL at 2 metres 125dB stereo
Crossover frequencies 250Hz and 3000Hz
Total harmonic distortion 1% at 90dB
Cabinet dimensions (H x W x D) 1300 x 900 x 515mm
Weight kg 110
Finish Black textured paint
High frequency driver 28mm soft-dome in short waveguide
Midrange 2x 17cm MSP
Low frequency driver 4x 30cm MSP
Amplifier recommendation Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request

Dynaudio Magazine

Dynaudio Magazine is our universe of sound and music-related articles, videos, and podcasts, covering everything from loudspeakers and technology to extraordinary people, and our very best tips and tricks.

2025_Dynaudio_ATE_Ep38_AcousticPanels_05.07min_ListImage

Ask the expert

may 2025

Acoustic panels to the rescue: fixing asymmetrical speaker setups

If you have a less than ideally shaped listening room in need of some acoustic treatment, then you might be feeling overwhelmed by how exactly you sho...

Ask the expert

may 2025

Focus series firmware update 1.2.120

At Dynaudio, our mission with Focus has always been to create a future-proof product that adapts to new features and technologies. Designed for flexib...

WIP_2025_Dynaudio_ATE_Ep37_AmpClasses_12.02min_ListImage

Ask the expert

may 2025

What do different amplifier classes mean?

If you're confused by differing amp classes and classifications, then read on dear reader, and become wiser, as Otto explains this sometimes confusing...

M-series

Specifications

Status:
Segment:
Series:
Application:
Type:
Frequency response:
Maximum SPL at 2 metres:
Maximum SPL at 1 metre:
Crossover frequencies:
Total harmonic distortion:
Sensitivity:
Impedance:
Driver:
Recommended amplifier power:
Cabinet dimensions (H x W x D):
Weight kg:
Fixing:
Finish:
High frequency driver:
Midrange:
High mid driver:
Low mid driver:
Low frequency driver:
Amplifier recommendation:
Optional: Hardwood cabinet:
Custom cabinet sizes:

Dynaudio Acoustics M4 MkII
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
130dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Four channels: 500-1000W/channel per speaker
900 x 850 x 680mm
97
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics C3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
120dB stereo
200Hz and 3000Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
875 x 440 x 395mm
40
Black textured paint
Esotar 3
17cm MSP
30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3F
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
120dB
250Hz and 2500Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
1300 x 520 x 400mm
62
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX left/right
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 720 x 600mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX centre
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 900 x 515mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 vertical
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
452 x 320 x 204mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 centre
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
320 x 452 x 178mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF30
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
122dB
1% at 90dB
95dB/2.83v/1m
4 Ohms
100-500 watts
440 x 515 x 255mm
15
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
2x 24cm MSP
Dynaudio Acoustics Class D four channel DA20/40
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MS15
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
30Hz – >500Hz
128dB
96dB/2.83v/1m
8 Ohms
380mm fibre loaded cone
500-3000 watts
774 x 500 x 550mm
50
Black textured paint
Dynaudio Acoustics DCA800 or DA40
On request

Dynaudio Acoustics MS18
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
25 Hz – >500 Hz
130 dB
97dB/2.83v/1m
8 Ohms
460mm fibre loaded cone
500-3000 watts
1000 x 700 x 550mm
75
Black textured paint
Dynaudio Acoustics DA80 or DCA1400
On request

Dynaudio Acoustics M1 MkII
Current
Pro
Dynaudio Acoustics
Music and post production
2-way passive
50Hz – 20kHz
122dB stereo
1650Hz
1% at 90dB
250-500W per channel
256 x 476 x 393mm
14
Black textured paint
Esotar 3
2x 18cm MSP
Dynaudio Acoustics DA20, DA40, DCA800
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M2 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
40Hz – 20kHz
125dB stereo
700Hz and 3700Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
350 x 680 x 500mm
35
Black textured paint
Esotar3
75mm soft-dome
24cm MSP x2
Dynaudio Acoustics DA20 (with filters), DA40, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
123dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
775 x 555 x 505mm
65
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request
