Dynaudio Acoustics M4 MkII Mini

The heart and soul of M4 MkII but with a compact footprint

4-way hybrid

Contact us

M4 MkII Center

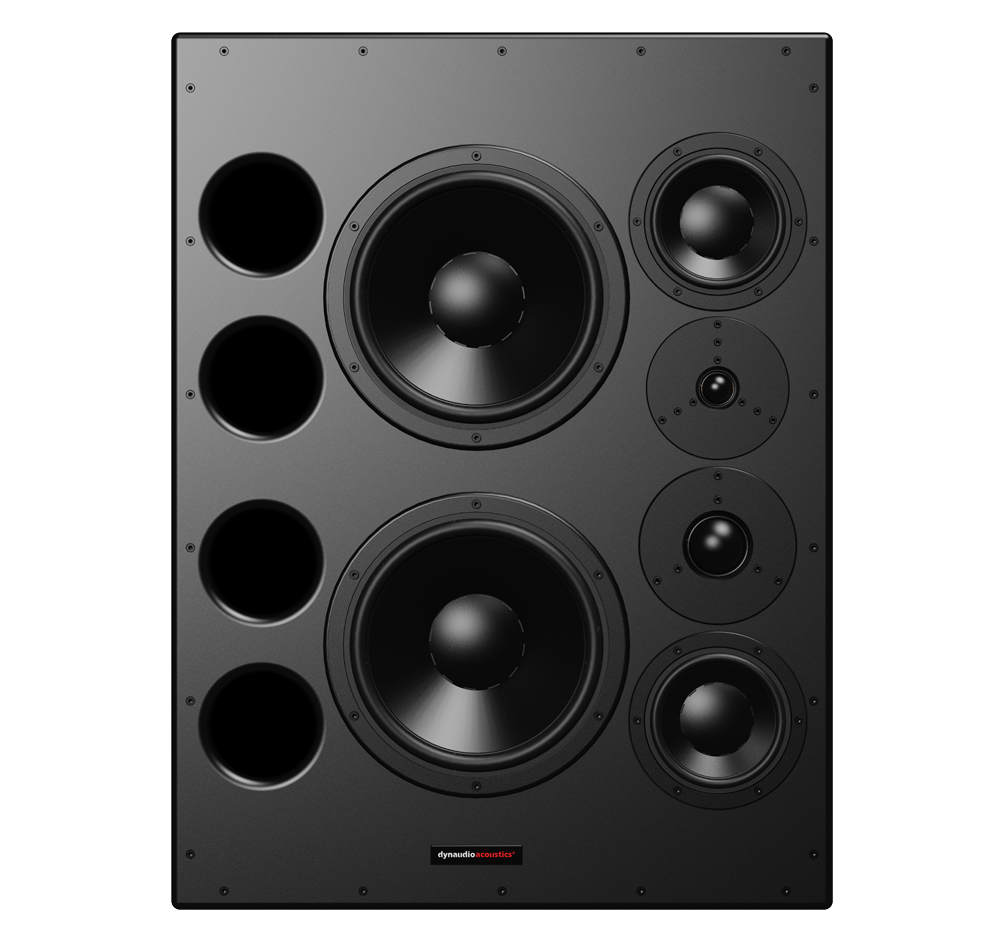

M4 Mini MkII delivers the incredible 4-way accuracy as its larger sibling M4 MkII but in a significantly smaller package. The SPL is comparable, and with two 300mm low-frequency MSP (Magnesium Silicate Polymer) drivers with 100mm ferrofluid-cooled voice coils and three channels that should be fed 500-1000 W per speaker, you are guaranteed to have a stellar listening area with a rock-solid soundstage.

The low-mid section uses two 170mm MSP drivers with 75mm voice coils and neodymium magnets. The upper-midrange driver is a 54mm critically doped fabric dome Esotar model that ensures low distortion and excellent transient response. Finally, the high-frequency unit is the legendary Esotar 3, designed to reproduce distortion-free transients of up to 1000 watts.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible

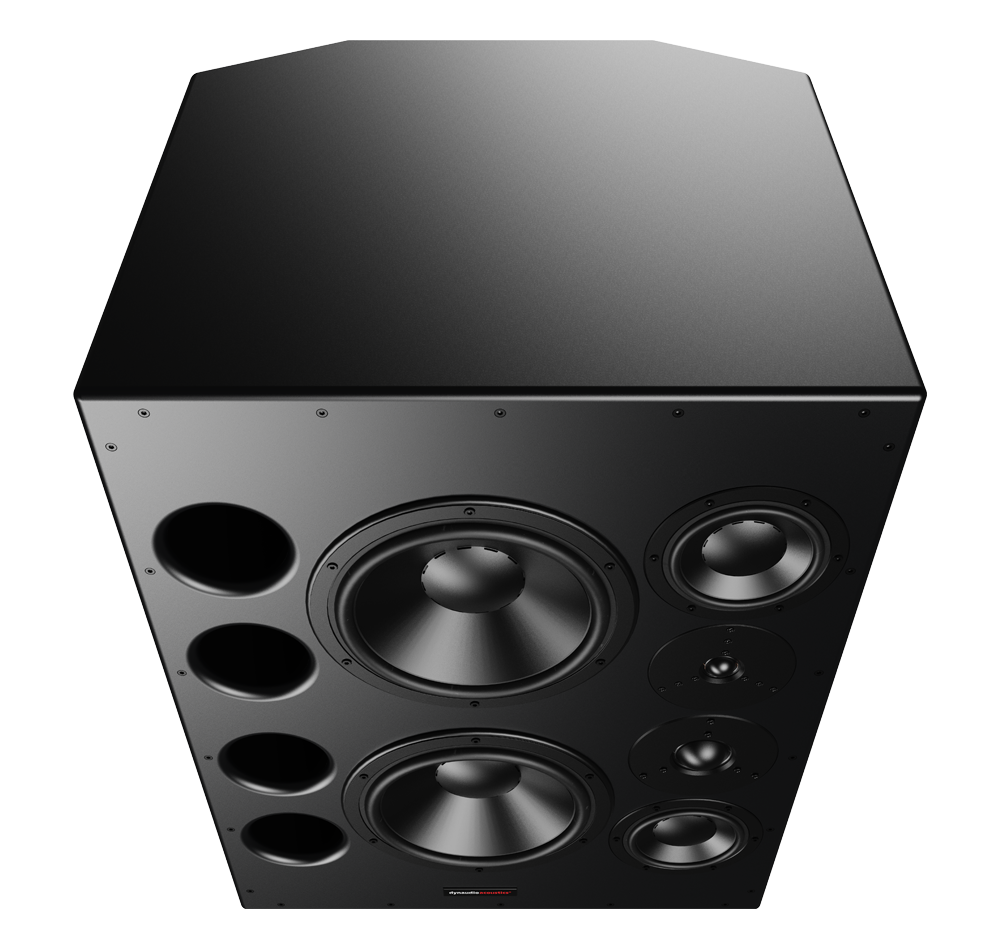

DynaudioAcoustics_M4_mini_03-1

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Music recording and mixing
Type 4-way hybrid
Frequency response 35Hz – 20kHz
Maximum SPL at 2 metres 130dB stereo
Crossover frequencies 250Hz, 2kHz, 5kHz
Total harmonic distortion 1% at 90dB
Recommended amplifier power Four channels: 500-1000W/channel per speaker
Cabinet dimensions (H x W x D) 900 x 850 x 680mm
Weight kg 145
Finish Black textured paint
High frequency driver Esotar 3
High mid driver 56mm soft dome
Low mid driver 2x 17cm MSP
Low frequency driver 4x 30cm MSP
Amplifier recommendation Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request

See more

Dynaudio_Acoustics_M4MKII_Lineart

Dynaudio Magazine

Dynaudio Magazine is our universe of sound and music-related articles, videos, and podcasts, covering everything from loudspeakers and technology to extraordinary people, and our very best tips and tricks.

Read more

2026_Dynaudio_ATE_Ep46_ProducingOurOwnMagnets_02.15min_ListImage

Ask the expert

october 2026

How we make our voice coil magnets

On this episode of Ask The Expert, Otto Jørgensen talks all things voice coil magnets – how the are made and how we magnetise them.

1200x1200px_Homepage_DynaudioConfidence30i_08

News and events

october 2026

Announcing Confidence i

The original Confidence series has been an industry benchmark since 2018 and a globally-reocognised reference for high-end passive home audio that has...

2026_Dynaudio_ATE_Ep45_WhatsInACrossover_03.19_ListImage

Ask the expert

october 2026

What's in a crossover?

On this episode of Ask The Expert, Otto Jørgensen guides us through the main components of a passive loudspeaker crossover, including what they do and...

M-series

Specifications

Status:
Segment:
Series:
Application:
Type:
Frequency response:
Maximum SPL at 2 metres:
Maximum SPL at 1 metre:
Crossover frequencies:
Total harmonic distortion:
Sensitivity:
Impedance:
Driver:
Recommended amplifier power:
Cabinet dimensions (H x W x D):
Weight kg:
Fixing:
Finish:
High frequency driver:
Midrange:
High mid driver:
Low mid driver:
Low frequency driver:
Amplifier recommendation:
Optional: Hardwood cabinet:
Custom cabinet sizes:

See more

Dynaudio Acoustics M4 MkII

Dynaudio Acoustics M4 MkII
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
130dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Four channels: 500-1000W/channel per speaker
900 x 850 x 680mm
145
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics C3 MkII

Dynaudio Acoustics C3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
120dB stereo
200Hz and 3000Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
875 x 440 x 395mm
40
Black textured paint
Esotar 3
17cm MSP
30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3F

Dynaudio Acoustics M3F
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
120dB
250Hz and 2500Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
1300 x 520 x 400mm
62
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX left/right

Dynaudio Acoustics M3FX left/right
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 720 x 600mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX centre

Dynaudio Acoustics M3FX centre
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 900 x 515mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 vertical

Dynaudio Acoustics MF15 vertical
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
452 x 320 x 204mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 centre

Dynaudio Acoustics MF15 centre
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
320 x 452 x 178mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF30

Dynaudio Acoustics MF30
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
122dB
1% at 90dB
95dB/2.83v/1m
4 Ohms
100-500 watts
440 x 515 x 255mm
15
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
2x 24cm MSP
Dynaudio Acoustics Class D four channel DA20/40
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MS15

Dynaudio Acoustics MS15
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
30Hz – >500Hz
128dB
96dB/2.83v/1m
8 Ohms
380mm fibre loaded cone
500-3000 watts
774 x 500 x 550mm
50
Black textured paint
Dynaudio Acoustics DCA800 or DA40
On request

Dynaudio Acoustics MS18

Dynaudio Acoustics MS18
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
25 Hz – >500 Hz
130 dB
97dB/2.83v/1m
8 Ohms
460mm fibre loaded cone
500-3000 watts
1000 x 700 x 550mm
75
Black textured paint
Dynaudio Acoustics DA80 or DCA1400
On request

Dynaudio Acoustics M1 MkII

Dynaudio Acoustics M1 MkII
Current
Pro
Dynaudio Acoustics
Music and post production
2-way passive
50Hz – 20kHz
122dB stereo
1650Hz
1% at 90dB
250-500W per channel
256 x 476 x 393mm
14
Black textured paint
Esotar 3
2x 18cm MSP
Dynaudio Acoustics DA20, DA40, DCA800
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M2 MkII

Dynaudio Acoustics M2 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
40Hz – 20kHz
125dB stereo
700Hz and 3700Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
350 x 680 x 500mm
35
Black textured paint
Esotar3
75mm soft-dome
24cm MSP x2
Dynaudio Acoustics DA20 (with filters), DA40, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII

Dynaudio Acoustics M3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
123dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
775 x 555 x 505mm
65
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII Center

Dynaudio Acoustics M3 MkII Center
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
125dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels 500-1000W/channel per speaker
570 x 912 x 390 mm
64
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M4 MkII Mini

Dynaudio Acoustics M4 MkII Mini
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
125dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Three channels 500-1000W per speaker
862 x 650 x 550 mm
65
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request
