Dynaudio Acoustics MF30

Compact surround speaker for immersive audio applications

2-way passive surround

Download product sheet

Contact us

MF30

The MF30 is the dual LF version of the MF15, offering a higher SPL surround speaker designed for immersive audio applications.

It’s an ideal surround speaker for music and post-production – including larger Dolby Atmos configurations.

As a passive speaker, the MF30 is incredibly easy to install and manage in larger rooms. It can be used in conjunction with all M-series enclosures according to the room requirements, as well as MS subs for bass management.

The drivers perfectly complement our screen speakers to give seamless movement of sound around the theatre in Atmos applications.

The MF30 is also available custom configurations to suit all applications.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

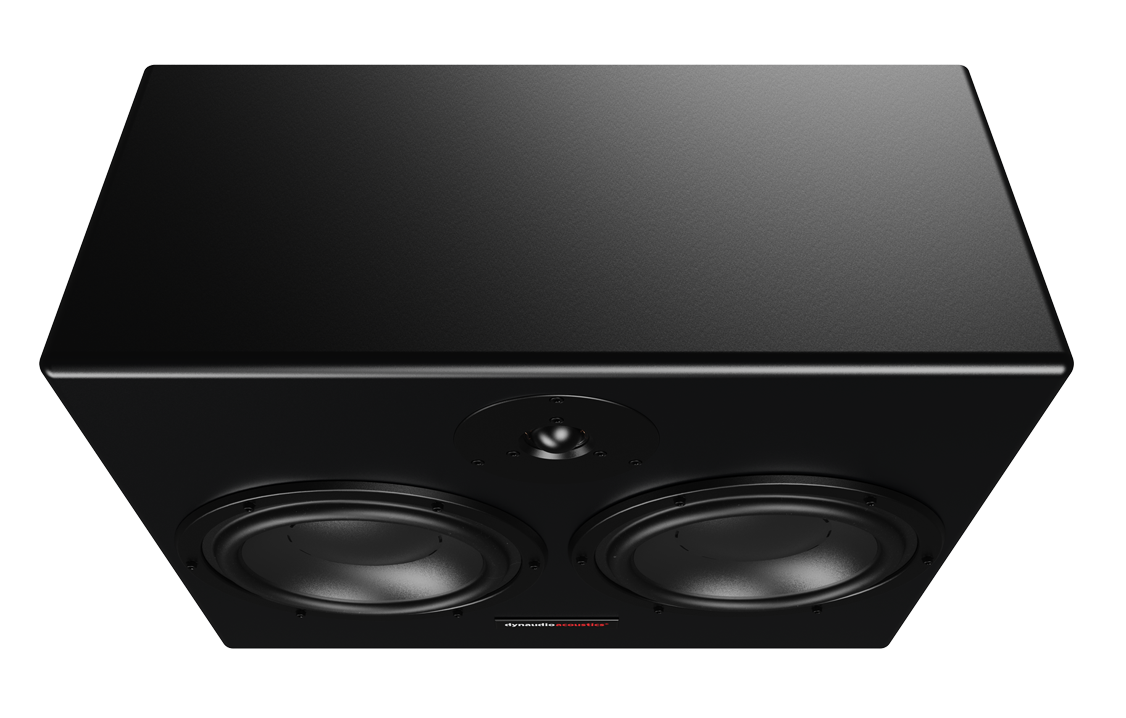

DynaudioAcoustics_CF30_03_landscape

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Music and post-production
Type 2-way passive surround
Frequency response 60Hz – 20kHz
Maximum SPL at 1 metre 122dB
Total harmonic distortion 1% at 90dB
Sensitivity 95dB/2.83v/1m
Impedance 4 Ohms
Recommended amplifier power 100-500 watts
Cabinet dimensions (H x W x D) 440 x 515 x 255mm
Weight kg 15
Fixing 4x M8 threaded inserts in the back allow fixing to a range of brackets
Finish Black textured paint
High frequency driver 28mm soft-dome
Low frequency driver 2x 24cm MSP
Amplifier recommendation Dynaudio Acoustics Class D four channel DA20/40
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request

See more

Dynaudio_Acoustics_MF30_Lineart

Dynaudio Magazine

Dynaudio Magazine is our universe of sound and music-related articles, videos, and podcasts, covering everything from loudspeakers and technology to extraordinary people, and our very best tips and tricks.

Read more

2025_Dynaudio_ATE_Ep42_DoSpeakersNeedACabinet_02.03min_ListImage

Ask the expert

october 2025

Do speakers need a cabinet?

On this episode of Ask The Expert, Otto explains what speaker cabinets do, describes an alternative construction method, and ultimately concludes that...

2025_Dynaudio_ATE_Ep41_UnderstandingSubwooferLatency_03.32min_ListImage

Ask the expert

september 2025

Understanding Subwoofer Latency

Are you experiencing latent low-end? Out-of-phase phatness? Fear not! On this episode of Ask The Expert, Otto talks you through some very simple tweak...

2025_Dynaudio_ATE_Ep40_SpeakerLoudness_04.31min_ListImage

Ask the expert

september 2025

How to calculate speaker loudness

On this episode of Ask The Expert, Otto explains how to calculate loudness – perfect if you've ever tried to figure out in advance how loud your syste...

M-series

Specifications

Status:
Segment:
Series:
Application:
Type:
Frequency response:
Maximum SPL at 2 metres:
Maximum SPL at 1 metre:
Crossover frequencies:
Total harmonic distortion:
Sensitivity:
Impedance:
Driver:
Recommended amplifier power:
Cabinet dimensions (H x W x D):
Weight kg:
Fixing:
Finish:
High frequency driver:
Midrange:
High mid driver:
Low mid driver:
Low frequency driver:
Amplifier recommendation:
Optional: Hardwood cabinet:
Custom cabinet sizes:

See more

Dynaudio Acoustics M4 MkII
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
130dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Four channels: 500-1000W/channel per speaker
900 x 850 x 680mm
97
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics C3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
120dB stereo
200Hz and 3000Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
875 x 440 x 395mm
40
Black textured paint
Esotar 3
17cm MSP
30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3F
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
120dB
250Hz and 2500Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
1300 x 520 x 400mm
62
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX left/right
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 720 x 600mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX centre
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 900 x 515mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 vertical
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
452 x 320 x 204mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 centre
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
320 x 452 x 178mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF30
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
122dB
1% at 90dB
95dB/2.83v/1m
4 Ohms
100-500 watts
440 x 515 x 255mm
15
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
2x 24cm MSP
Dynaudio Acoustics Class D four channel DA20/40
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MS15
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
30Hz – >500Hz
128dB
96dB/2.83v/1m
8 Ohms
380mm fibre loaded cone
500-3000 watts
774 x 500 x 550mm
50
Black textured paint
Dynaudio Acoustics DCA800 or DA40
On request

Dynaudio Acoustics MS18
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
25 Hz – >500 Hz
130 dB
97dB/2.83v/1m
8 Ohms
460mm fibre loaded cone
500-3000 watts
1000 x 700 x 550mm
75
Black textured paint
Dynaudio Acoustics DA80 or DCA1400
On request

Dynaudio Acoustics M1 MkII
Current
Pro
Dynaudio Acoustics
Music and post production
2-way passive
50Hz – 20kHz
122dB stereo
1650Hz
1% at 90dB
250-500W per channel
256 x 476 x 393mm
14
Black textured paint
Esotar 3
2x 18cm MSP
Dynaudio Acoustics DA20, DA40, DCA800
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M2 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
40Hz – 20kHz
125dB stereo
700Hz and 3700Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
350 x 680 x 500mm
35
Black textured paint
Esotar3
75mm soft-dome
24cm MSP x2
Dynaudio Acoustics DA20 (with filters), DA40, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
123dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
775 x 555 x 505mm
65
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII Center
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
125dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels 500-1000W/channel per speaker
570 x 912 x 390 mm
64
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M4 MkII Mini
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
125dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Three channels 500-1000W per speaker
862 x 650 x 550 mm
65
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request
