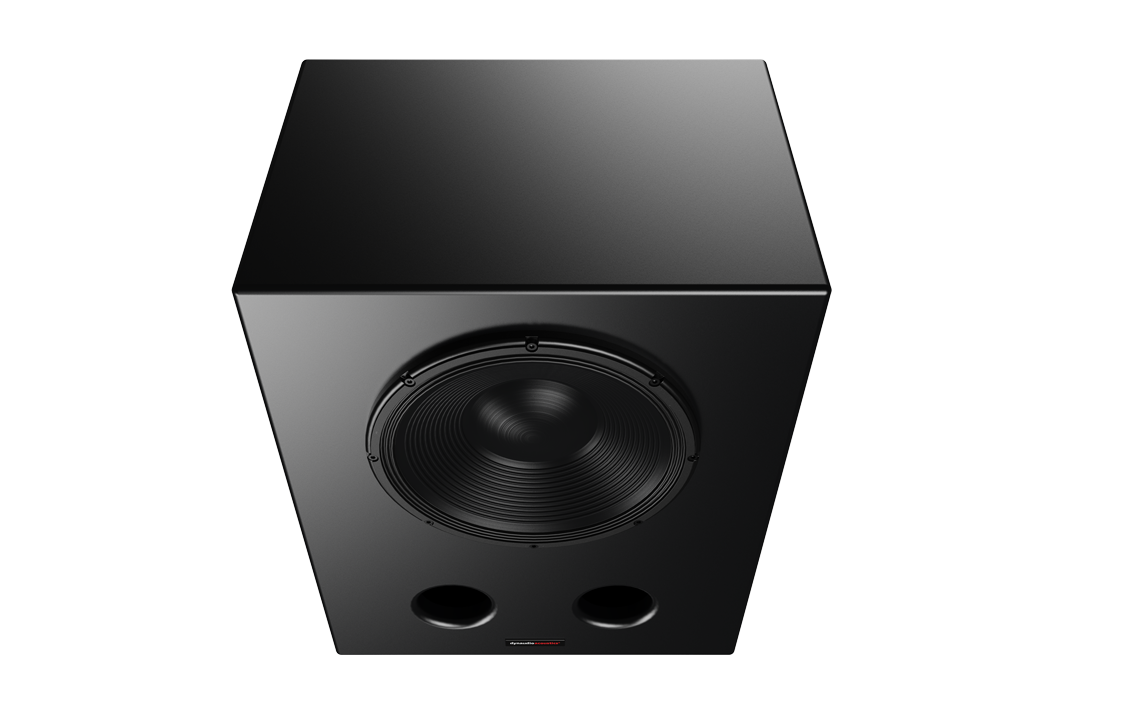

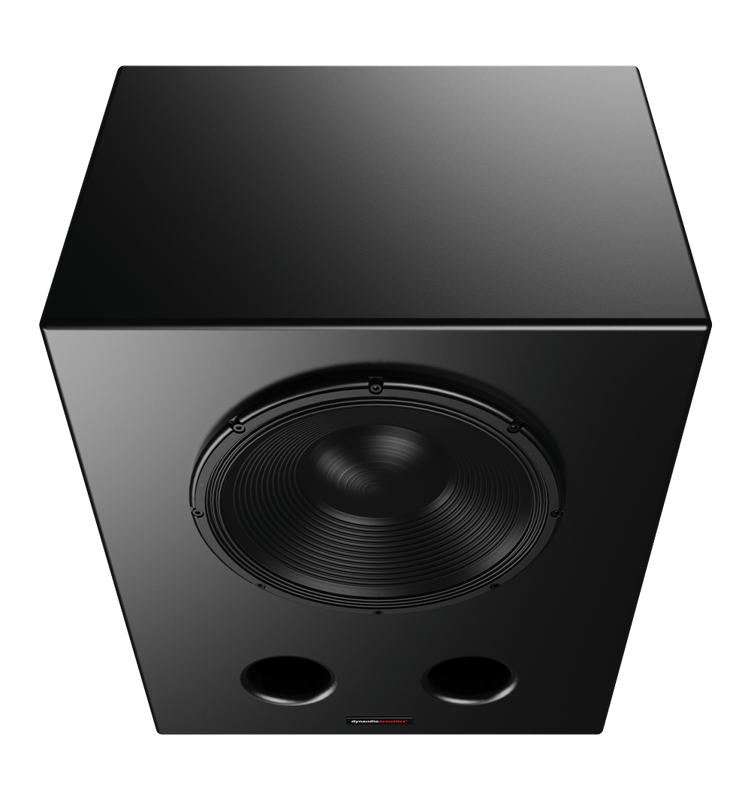

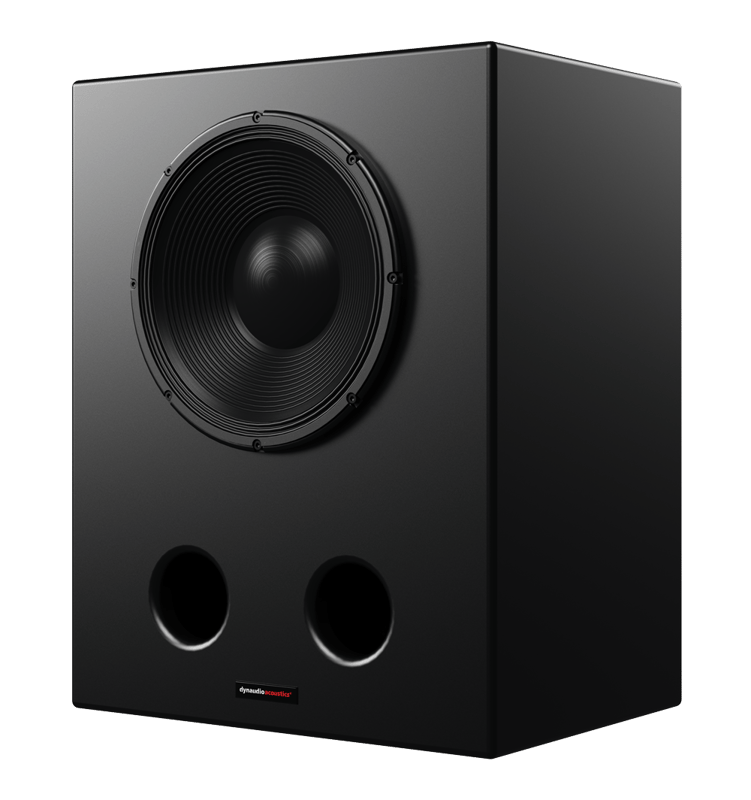

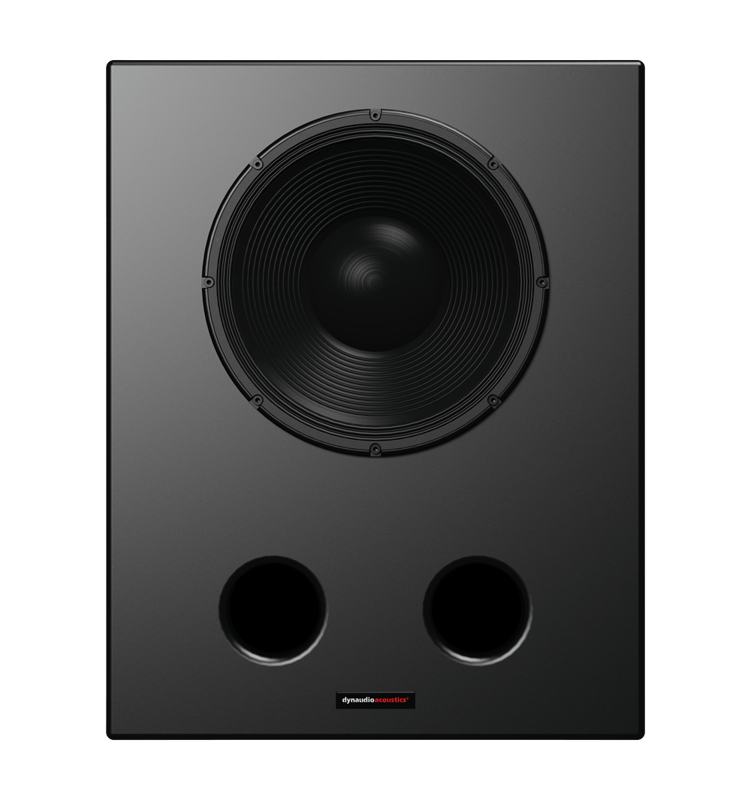

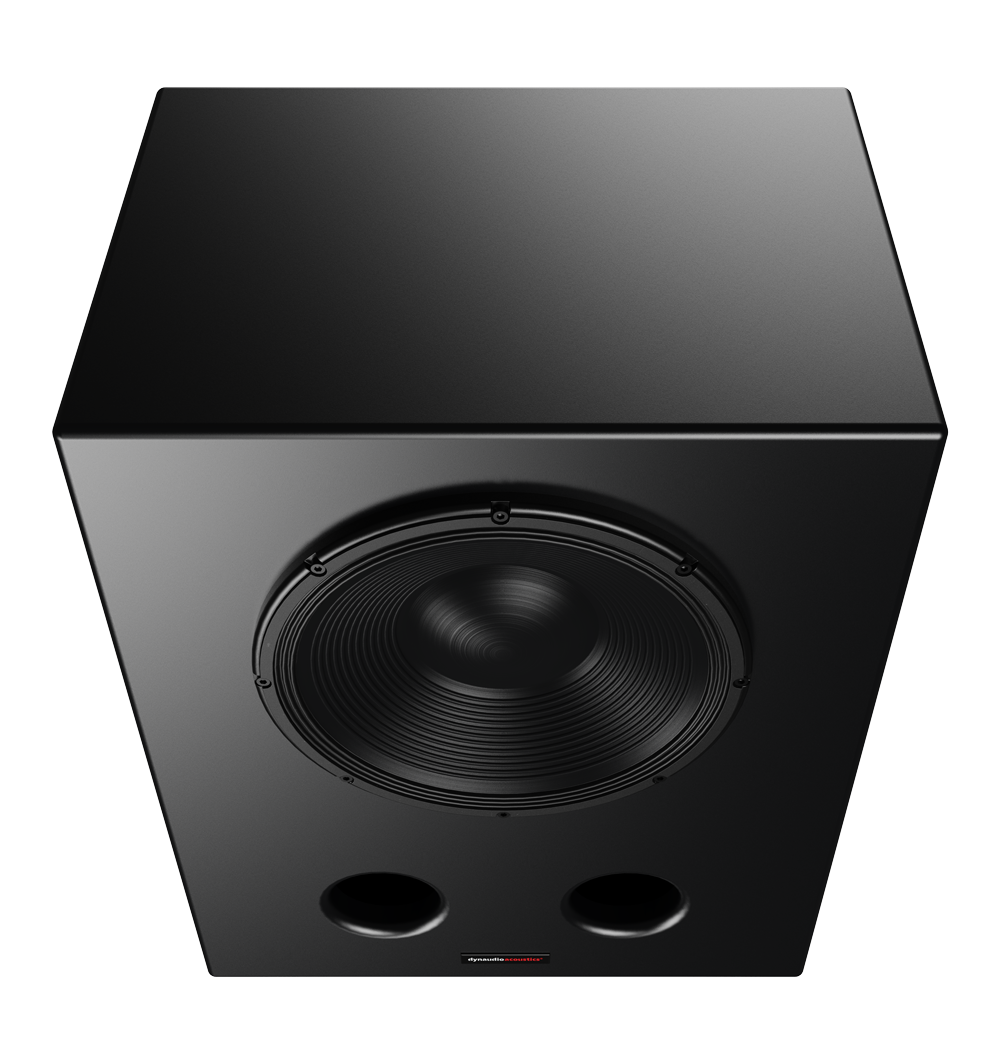

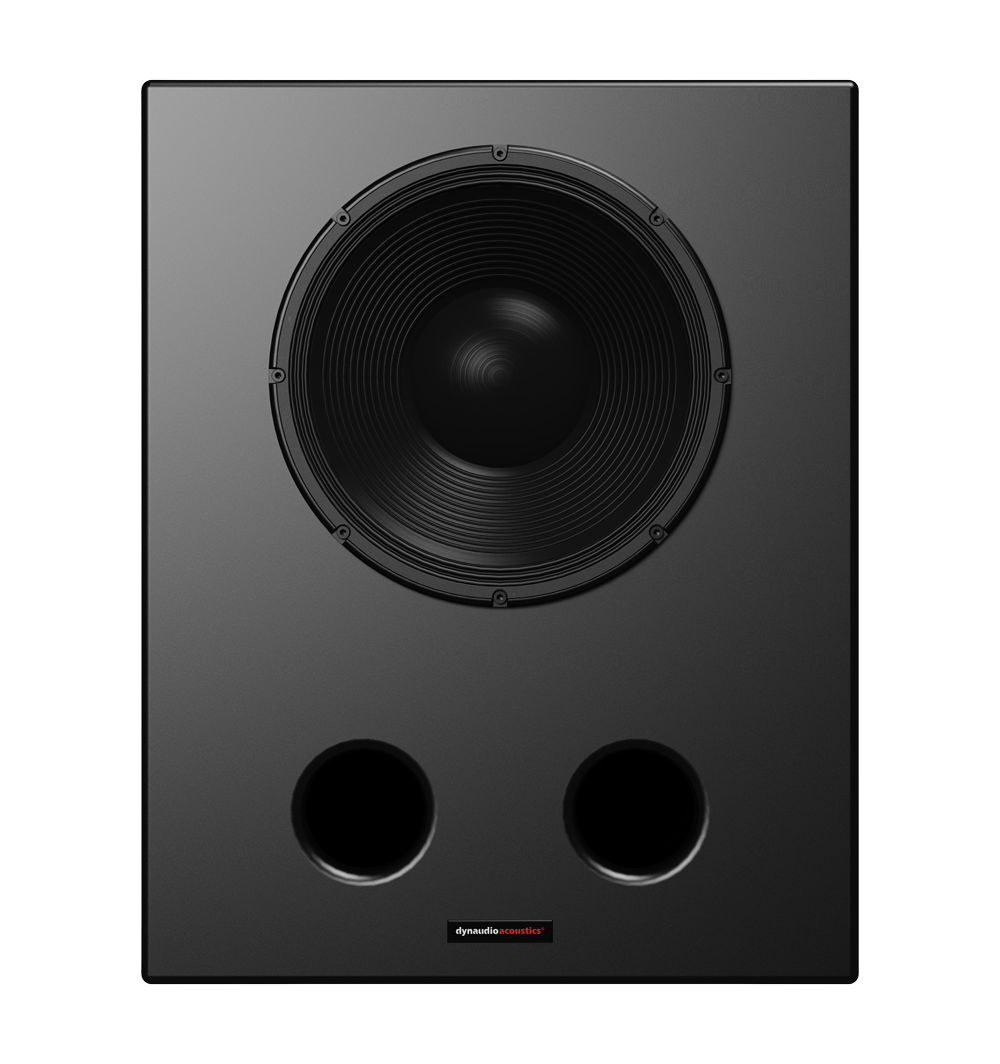

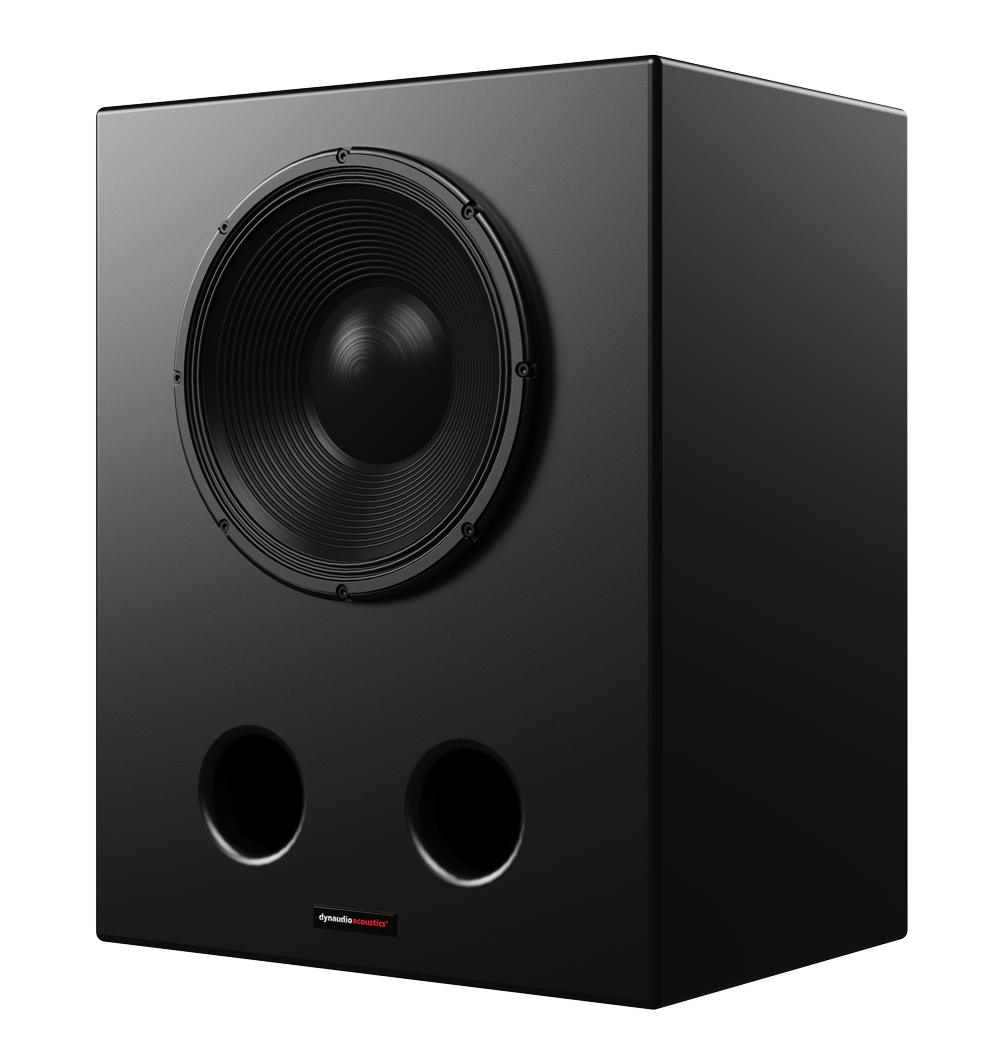

Dynaudio Acoustics MS15

Subwoofer for small to medium sized studios

Subwoofer

MS15

The MS15 is a high powered subwoofer for use in small to medium-sized film and television postproduction studios.

It’s suitable for immersive monitoring including Dolby Atmos HE 7.1.4 and 9.1.4.

The enclosure housing the single 15-inch driver can be configured for many different deployments – such as ceiling mounting for low-frequency support in Atmos arrays, or low profile to fit in confined spaces.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Film and television post-production
Type Subwoofer
Frequency response 30Hz – >500Hz
Maximum SPL at 1 metre 128dB
Sensitivity 96dB/2.83v/1m
Impedance 8 Ohms
Driver 380mm fibre loaded cone
Recommended amplifier power 500-3000 watts
Cabinet dimensions (H x W x D) 774 x 500 x 550mm
Weight kg 50
Finish Black textured paint
Amplifier recommendation Dynaudio Acoustics DCA800 or DA40
Custom cabinet sizes On request
