Dynaudio Acoustics MS18

High-power subwoofer for immersive monitoring

Subwoofer

Download product sheet

Contact us

MS18

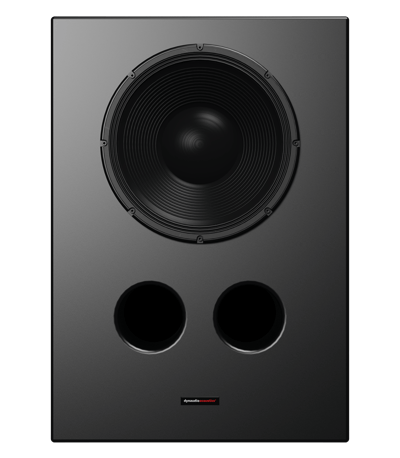

The MS18 is a high-powered subwoofer for use in film and television post production studios.

It’s suitable for immersive monitoring, including Dolby Atmos HE 7.1.4 and 9.1.4, and full Atmos theatrical multi-channel.

The enclosure housing the single 18-inch driver can be configured for many different deployments – such as ceiling mounting for low-frequency support in Atmos arrays, or low-profile to fit in confined spaces.

Let's talk

Fill in your details and a member of our team will get in touch as soon as possible.

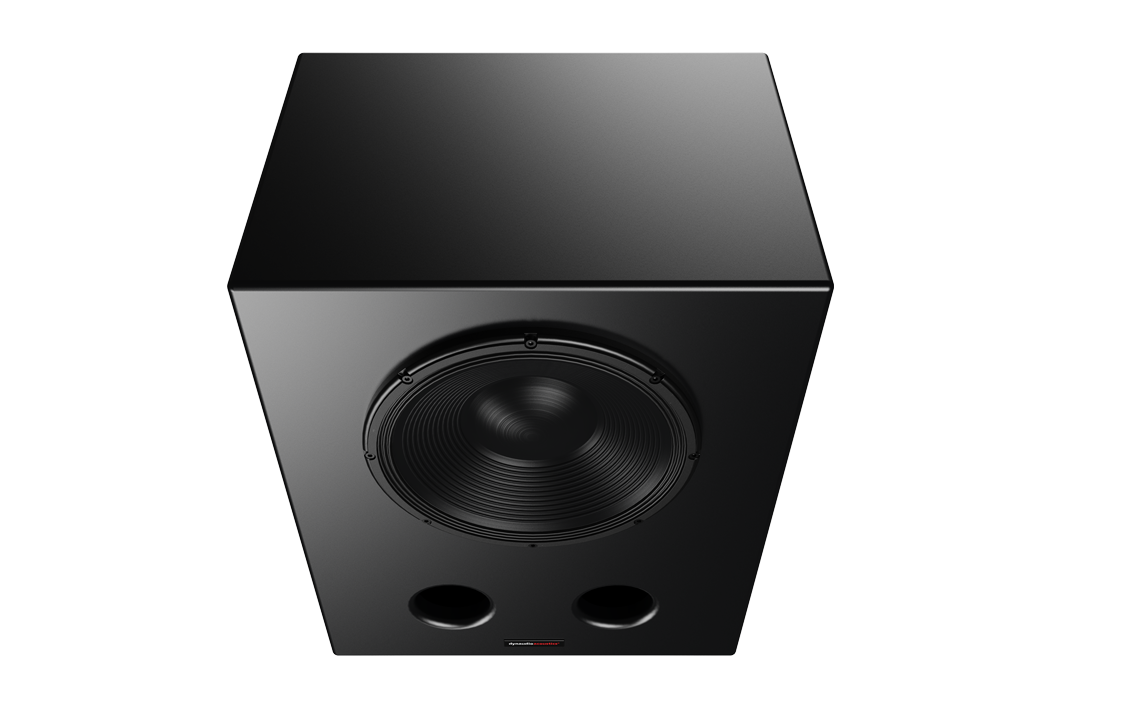

DynaudioAcoustics_MS18_03_landscape

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Film and television post-production
Type Subwoofer
Frequency response 25 Hz – >500 Hz
Maximum SPL at 1 metre 130 dB
Sensitivity 97dB/2.83v/1m
Impedance 8 Ohms
Driver 460mm fibre loaded cone
Recommended amplifier power 500-3000 watts
Cabinet dimensions (H x W x D) 1000 x 700 x 550mm
Weight kg 75
Finish Black textured paint
Amplifier recommendation Dynaudio Acoustics DA80 or DCA1400
Custom cabinet sizes On request

See more

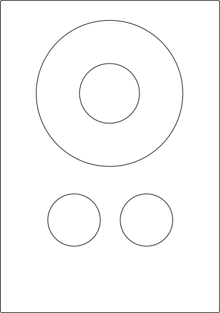

Dynaudio_Acoustics_MS18_Lineart

Dynaudio Magazine

Dynaudio Magazine is our universe of sound and music-related articles, videos, and podcasts, covering everything from loudspeakers and technology to extraordinary people, and our very best tips and tricks.

Read more

1200x1200_Oppo_Enco_X3s

News and events

october 2025

Dynaudio teams-up with OPPO for Enco X3s earbuds

We're thrilled to announce the release of OPPO's Enco X3s true wireless noise cancelling earbuds, with Dynaudio sound tuning.

2025_Dynaudio_ATE_Ep43_WhatAreTheHolesFor_04.50min_ListImage

Ask the expert

october 2025

Why are there holes in our speaker drivers?

On this episode of Ask The Expert, Otto explains why our speaker cones have small, rectangular slots around the central dome. Far from being a random ...

Dynaudio_Control02_ControlLink_01_1200x1200px

News and events

october 2025

Dynaudio Control series

We are pleased to introduce the Dynaudio Control series: a suite of next-generation audio tools engineered to serve as the central monitor controller ...

M-series

Specifications

Status:
Segment:
Series:
Application:
Type:
Frequency response:
Maximum SPL at 2 metres:
Maximum SPL at 1 metre:
Crossover frequencies:
Total harmonic distortion:
Sensitivity:
Impedance:
Driver:
Recommended amplifier power:
Cabinet dimensions (H x W x D):
Weight kg:
Fixing:
Finish:
High frequency driver:
Midrange:
High mid driver:
Low mid driver:
Low frequency driver:
Amplifier recommendation:
Optional: Hardwood cabinet:
Custom cabinet sizes:

See more

Dynaudio Acoustics M4 MkII
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
130dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Four channels: 500-1000W/channel per speaker
900 x 850 x 680mm
97
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics C3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
120dB stereo
200Hz and 3000Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
875 x 440 x 395mm
40
Black textured paint
Esotar 3
17cm MSP
30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3F
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
120dB
250Hz and 2500Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
1300 x 520 x 400mm
62
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX left/right
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 720 x 600mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3FX centre
Current
Pro
Dynaudio Acoustics
Post-production and music
3-way hybrid
35Hz – 20kHz
125dB stereo
250Hz and 3000Hz
1% at 90dB
1300 x 900 x 515mm
110
Black textured paint
28mm soft-dome in short waveguide
2x 17cm MSP
4x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 vertical
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
452 x 320 x 204mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF15 centre
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
114dB
2000Hz
1% at 90dB
90dB/2.83v/1m
4 Ohms
100-500 watts
320 x 452 x 178mm
10
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
24cm MSP
Dynaudio Acoustics DA20 4-channel
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MF30
Current
Pro
Dynaudio Acoustics
Music and post-production
2-way passive surround
60Hz – 20kHz
122dB
1% at 90dB
95dB/2.83v/1m
4 Ohms
100-500 watts
440 x 515 x 255mm
15
4x M8 threaded inserts in the back allow fixing to a range of brackets
Black textured paint
28mm soft-dome
2x 24cm MSP
Dynaudio Acoustics Class D four channel DA20/40
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics MS15
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
30Hz – >500Hz
128dB
96dB/2.83v/1m
8 Ohms
380mm fibre loaded cone
500-3000 watts
774 x 500 x 550mm
50
Black textured paint
Dynaudio Acoustics DCA800 or DA40
On request

Dynaudio Acoustics MS18
Current
Pro
Dynaudio Acoustics
Film and television post-production
Subwoofer
25 Hz – >500 Hz
130 dB
97dB/2.83v/1m
8 Ohms
460mm fibre loaded cone
500-3000 watts
1000 x 700 x 550mm
75
Black textured paint
Dynaudio Acoustics DA80 or DCA1400
On request

Dynaudio Acoustics M1 MkII
Current
Pro
Dynaudio Acoustics
Music and post production
2-way passive
50Hz – 20kHz
122dB stereo
1650Hz
1% at 90dB
250-500W per channel
256 x 476 x 393mm
14
Black textured paint
Esotar 3
2x 18cm MSP
Dynaudio Acoustics DA20, DA40, DCA800
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M2 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
40Hz – 20kHz
125dB stereo
700Hz and 3700Hz
1% at 90dB
Two channels: 250-500W/channel per speaker
350 x 680 x 500mm
35
Black textured paint
Esotar3
75mm soft-dome
24cm MSP x2
Dynaudio Acoustics DA20 (with filters), DA40, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
123dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels: 500-1000W/channel per speaker
775 x 555 x 505mm
65
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M3 MkII Center
Current
Pro
Dynaudio Acoustics
Music and post-production
3-way hybrid
35Hz – 20kHz
125dB stereo
400Hz and 3900Hz
1% at 90dB
Two channels 500-1000W/channel per speaker
570 x 912 x 390 mm
64
Black textured paint
Esotar3
2x 15cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40 DSP, DCA800 (with filters)
Oak, cherry, walnut, maple
On request

Dynaudio Acoustics M4 MkII Mini
Current
Pro
Dynaudio Acoustics
Music recording and mixing
4-way hybrid
35Hz – 20kHz
125dB stereo
250Hz, 2kHz, 5kHz
1% at 90dB
Three channels 500-1000W per speaker
862 x 650 x 550 mm
65
Black textured paint
Esotar 3
56mm soft dome
2x 17cm MSP
2x 30cm MSP
Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Oak, cherry, walnut, maple
On request
