MSP+ Hybrid Drive
We’ve designed a brand-new driver for the 18S.
This one is made from aluminium rather than our standard Magnesium Silicate Polymer material. It has paper backing and an MSP dust-cap on the front. Why the sandwich? Because a subwoofer requires a different balance between stiffness, lightness and damping than standard speaker drivers.
The new MSP+ Hybrid Drive units have been designed specifically with subwoofers in mind for the best performance possible. Adding 18S to your monitors will open up a new world of performance that lets you mix and master with painstaking accuracy… and deliver tracks that translate beautifully to any playback system.
The 18S comes with presets designed to work with these monitors…
• BM6 Classic
• BM15 Classic
• BM5 mkIII
• LYD 5
• LYD 7
• LYD 8
• LYD 48
• M5P
Subwoofers
Features

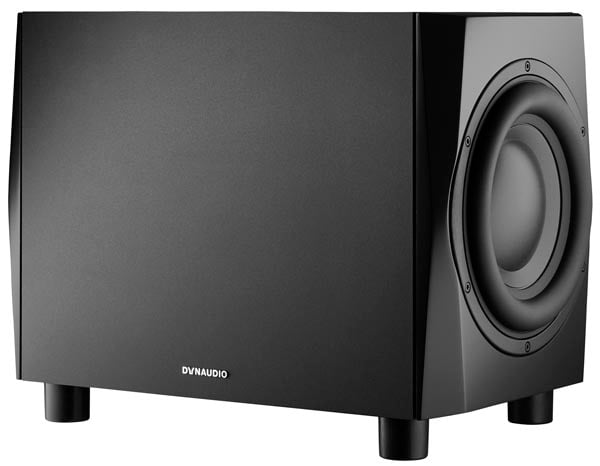

Dual 9in MSP+ Hybrid Drive long-throw woofers for accurate low-end frequency reproduction
Advanced DSP with presets for a wide range of Dynaudio Pro studio monitors
Preset speaker crossover filters
Time alignment for adjusting according to position
Three-band, built-in Parametric EQ
Dual opposing driver design principle
16-230Hz frequency range
Master/Slave feature for daisy-chaining multiple subwoofers
- Status Current
- Segment Pro
- Series Subwoofers
- Type Subwoofer

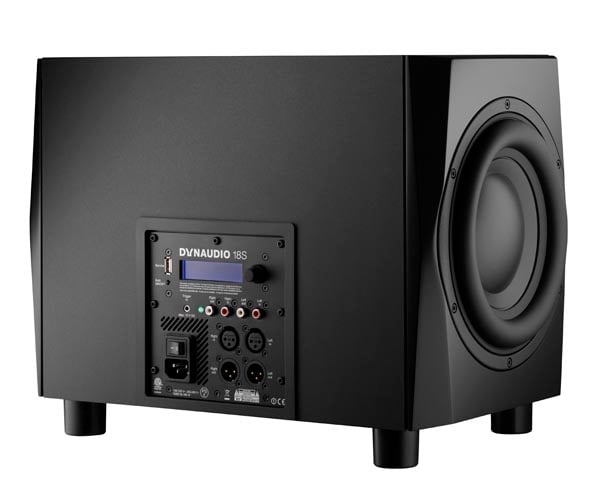

- Analog inputs 2x balanced XLR, 2x unbalanced RCA phono
- Analog outputs 2x balanced XLR, 2x unbalanced RCA phono
- Amplifier Power (W) 500W
- AC Power Input 100-120 V/200-240 V 50/60 Hz
- Auto on/off Yes
- Max Stand-by Power Consumption (W) 0.5
- Max Power Consumption (W) 490
- Lower Cutoff (Hz @85 dB +/- 3 dB) 16
Subwoofers series
- Status:
- Segment:
- Series:
- Type:
- Analog inputs:
- Analog outputs:
- Amplifier Power (W):
- AC Power Input:
- Auto on/off:
- Max Stand-by Power Consumption (W):
- Max Power Consumption (W):
- Lower Cutoff (Hz @85 dB +/- 3 dB):

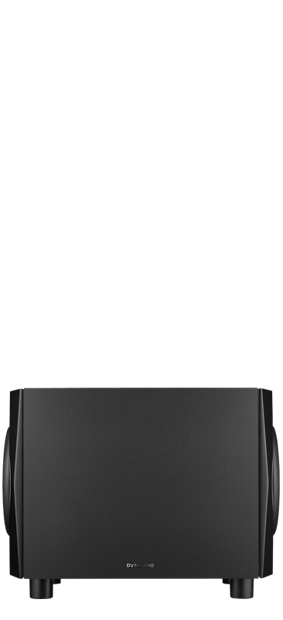

18S
- Current
- Pro
- Subwoofers
- Subwoofer
- 2x balanced XLR, 2x unbalanced RCA phono
- 2x balanced XLR, 2x unbalanced RCA phono
- 500W
- 100-120 V/200-240 V 50/60 Hz
- Yes
- 0.5
- 490
- 16

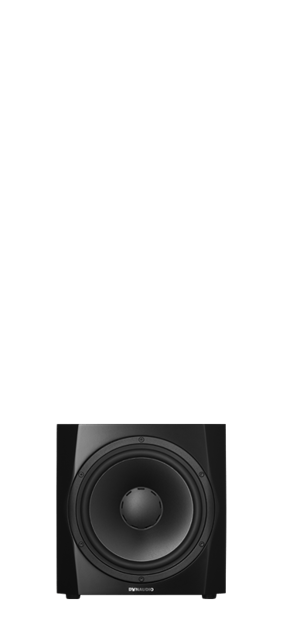

9S
- Current
- Pro
- Subwoofers
- Subwoofer
- 1x XLR LFE, 2x XLR stereo
- 1x XLR Slave out, 2x XLR SAT out
- 300W
- 100-120 V/200-240 V 50/60 Hz
- Yes
- 0.5
- 350
- 22
