9S

True bass

The 9S takes the best from our past subs and refines the details to reach the highest level in the low end department.

9S

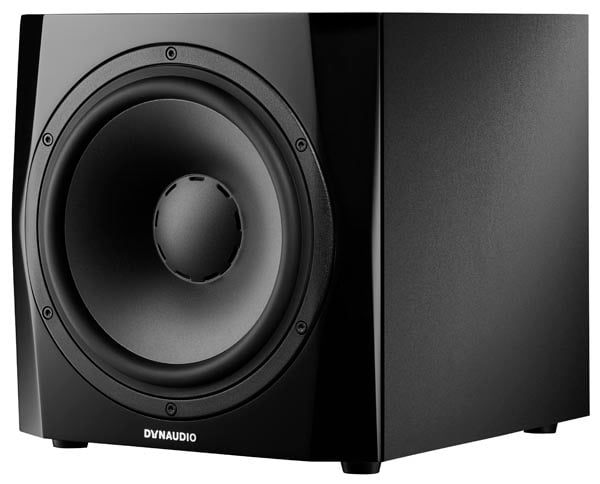

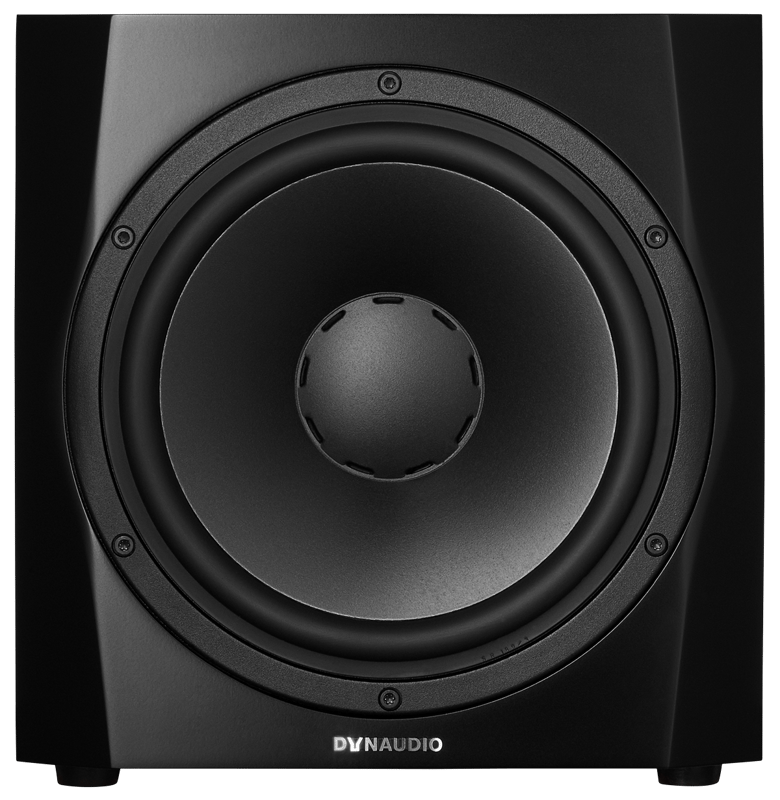

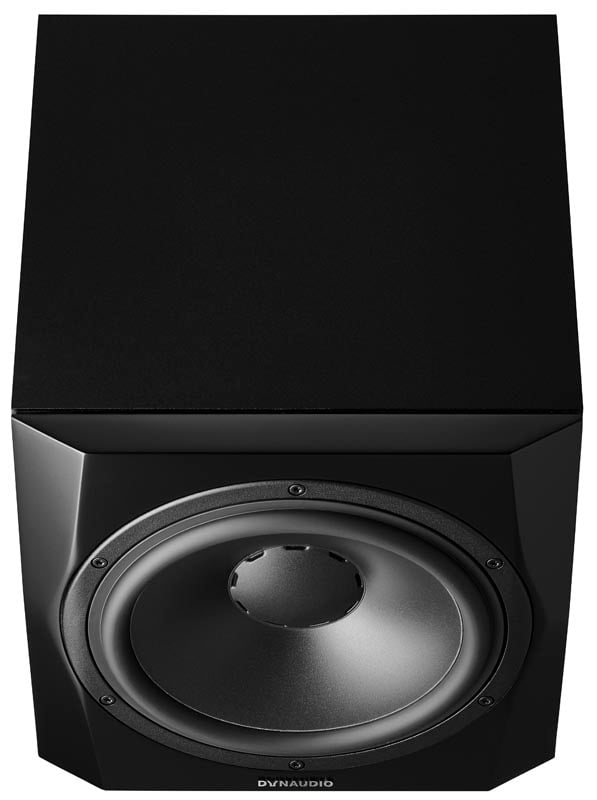

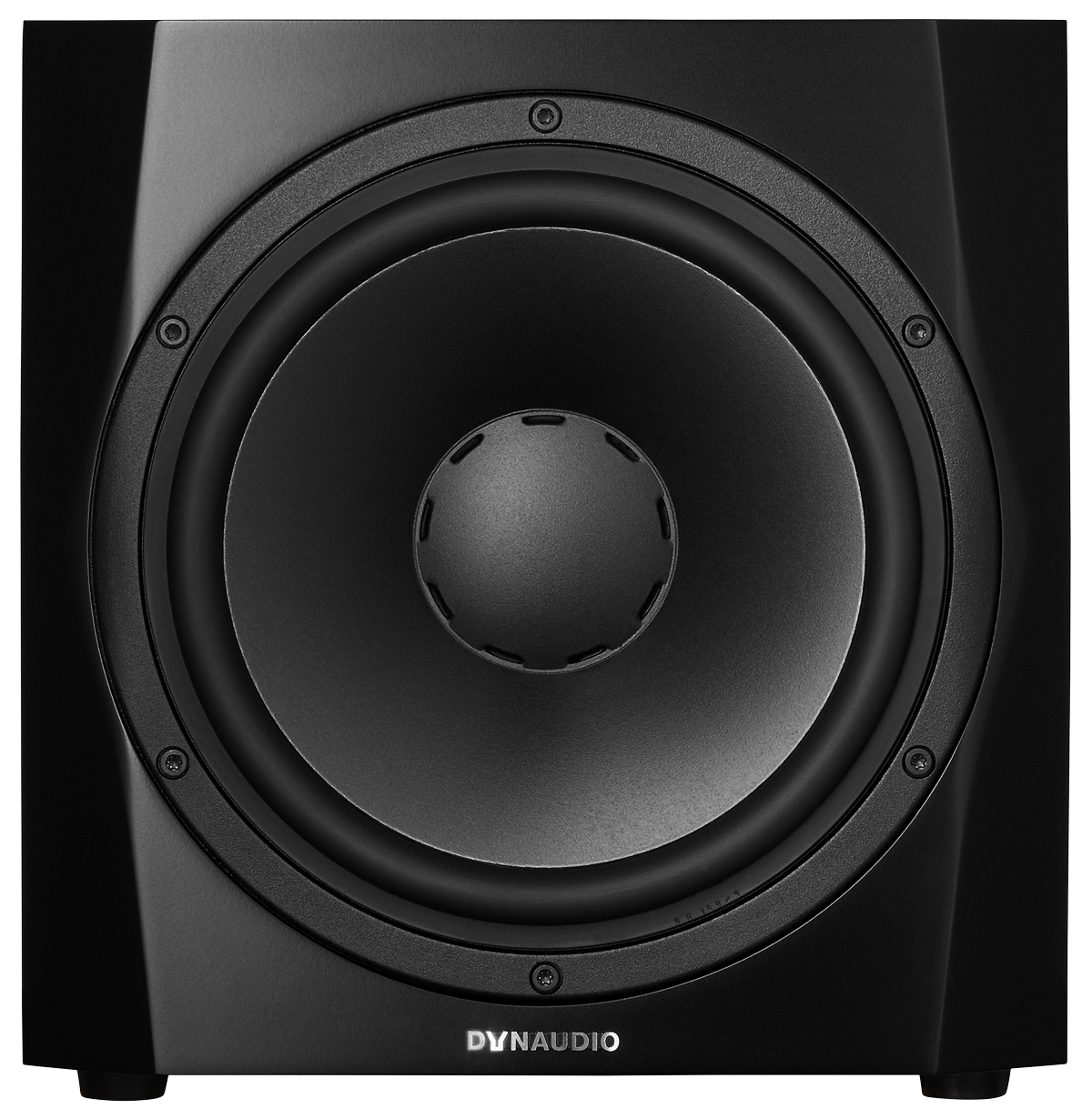

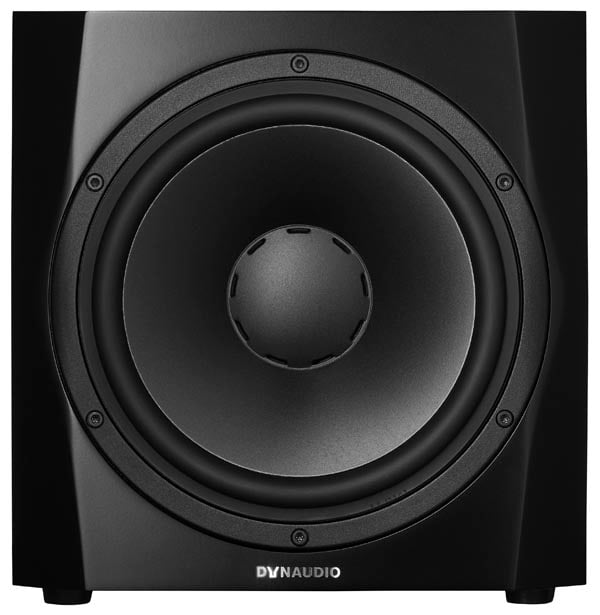

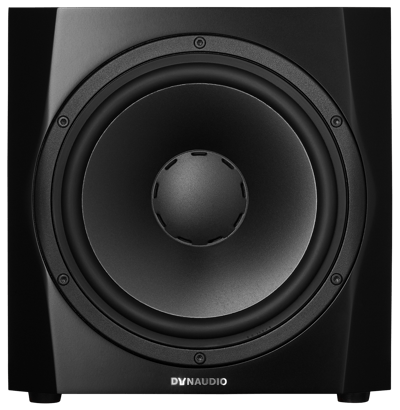

True bass. The 9S subwoofer is designed to complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.

Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.

The 9S will expand any studio monitor setup regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.

A long-throw driver ensures the necessary movement to reproduce super low-end frequencies all the way down to 22Hz in great detail. Running the show is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.

Subwoofers

Features

300-watt state-of-the-art Class D amplifier module

9in long-throw MSP woofer for accurate low-end frequency reproduction

22-175 Hz frequency range

Sealed, black-vinyl cabinet

37mm front baffle

Master/Slave feature for daisy-chaining multiple subwoofers

Adjustable lowpass filter to set the perfect crossover frequency

SAT output with defeatable highpass filter

Status Current
Segment Pro
Series Subwoofers
Type Subwoofer

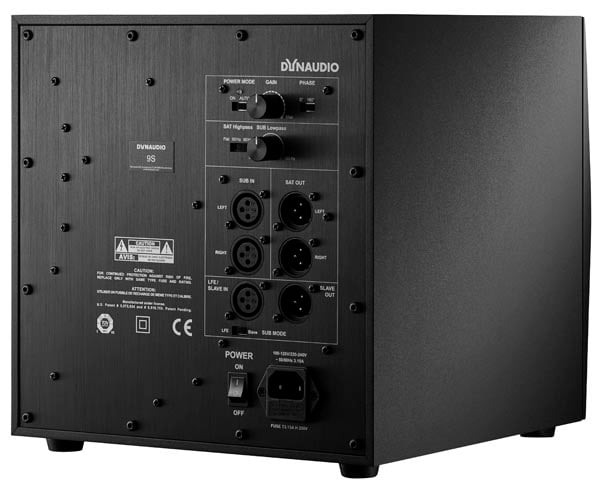

Analog inputs 1x XLR LFE, 2x XLR stereo
Analog outputs 1x XLR Slave out, 2x XLR SAT out
Amplifier Power (W) 300W
AC Power Input 100-120 V/200-240 V 50/60 Hz
Auto on/off Yes
Max Stand-by Power Consumption (W) 0.5
Max Power Consumption (W) 350
Lower Cutoff (Hz @85 dB +/- 3 dB) 22
Upper Cutoff (Hz @ 85dB +/- 3 dB) 175
Maximum SPL (dB) 106
Box Principle Sealed
Low pass filter 50Hz-150Hz
High pass filter Flat / 60 Hz / 80 Hz
Phase adjustment 0/180 degrees
Woofer 9in MSP
Weight kg 10.5
Weight lbs 23.1
Width mm 266
Height mm 276
Depth mm 320
Width inches 10 4/8
Height inches 10 7/8
Depth inches 12 5/8
Packaged Width mm 400
Packaged Height mm 430
Packaged Depth mm 400
Speakers per packaged box 1

Subwoofers series

Status:
Segment:
Series:
Type:
Analog inputs:
Analog outputs:
Amplifier Power (W):
AC Power Input:
Auto on/off:
Max Stand-by Power Consumption (W):
Max Power Consumption (W):
Lower Cutoff (Hz @85 dB +/- 3 dB):
Upper Cutoff (Hz @ 85dB +/- 3 dB):
Maximum SPL (dB):
Box Principle:
Low pass filter:
High pass filter:
Phase adjustment:
Woofer:
Weight kg:
Weight lbs:
Width mm:
Height mm:
Depth mm:
Width inches:
Height inches:
Depth inches:
Packaged Width mm:
Packaged Height mm:
Packaged Depth mm:
Speakers per packaged box:

18S
Current
Pro
Subwoofers
Subwoofer
2x balanced XLR, 2x unbalanced RCA phono
2x balanced XLR, 2x unbalanced RCA phono
500W
100-120 V/200-240 V 50/60 Hz
Yes
0.5
490
16
230
110
Sealed
Adjustable/Preset
Adjustable
0/180 degrees
2x 9in MSP Hybrid Drive
22,1
48.7
447
300
268
17 5/8
11 6/8
10 4/8
600
450
400
1

9S
Current
Pro
Subwoofers
Subwoofer
1x XLR LFE, 2x XLR stereo
1x XLR Slave out, 2x XLR SAT out
300W
100-120 V/200-240 V 50/60 Hz
Yes
0.5
350
22
175
106
Sealed
50Hz-150Hz
Flat / 60 Hz / 80 Hz
0/180 degrees
9in MSP
10.5
23.1
266
276
320
10 4/8
10 7/8
12 5/8
400
430
400
1
